Product Description

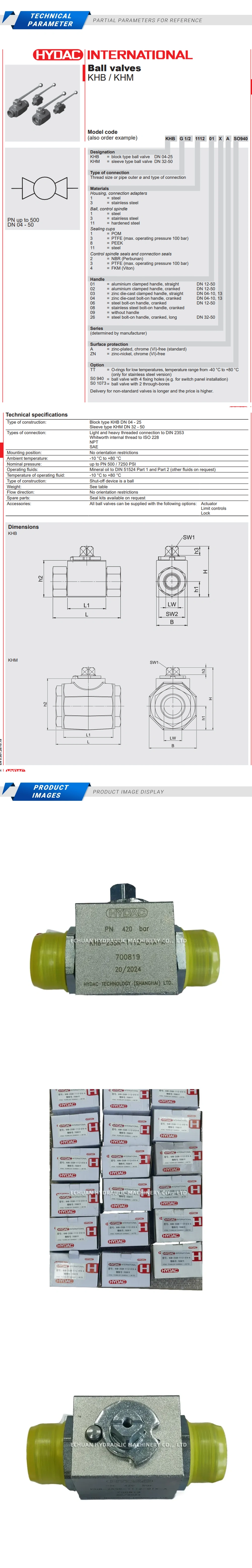

HYDAC KHB-25SR-1112-01X
The HYDAC KHB-25SR-1112-01X is a high-pressure 2-way ball valve designed for reliable shut-off and control of fluid flow in hydraulic systems. Its robust block-type construction from phosphated steel ensures durability and longevity even in demanding high-pressure environments. Featuring a chrome-plated steel ball and high-quality POM and NBR seals, this valve provides a positive, leak-free seal and smooth operation. The G1 (BSPP) female threaded connections allow for easy and secure integration into a wide range of industrial and mobile hydraulic applications requiring dependable performance up to 500 bar.
Technical Specifications:
- Type: 2-Way High-Pressure Ball Valve (Block Type)
- Model Series: KHB
- Nominal Size: DN 25 (1 inch)
- Connection: G 1 (BSPP Female Thread)
- Maximum Operating Pressure: 500 bar (7250 psi)
- Housing Material: Steel, phosphated
- Ball/Stem Material: Steel, chrome-plated
- Sealing Material: POM (Ball Seal), NBR (Stem Seal)
HYDAC KHB-25SR-1112-01X
Discover the HYDAC KHB-25SR-1112-01X, a robust DN 25 (G1) high-pressure 2-way ball valve rated for 500 bar. Engineered for secure hydraulic fluid shut-off with durable steel construction and reliable sealing.
