Product Description

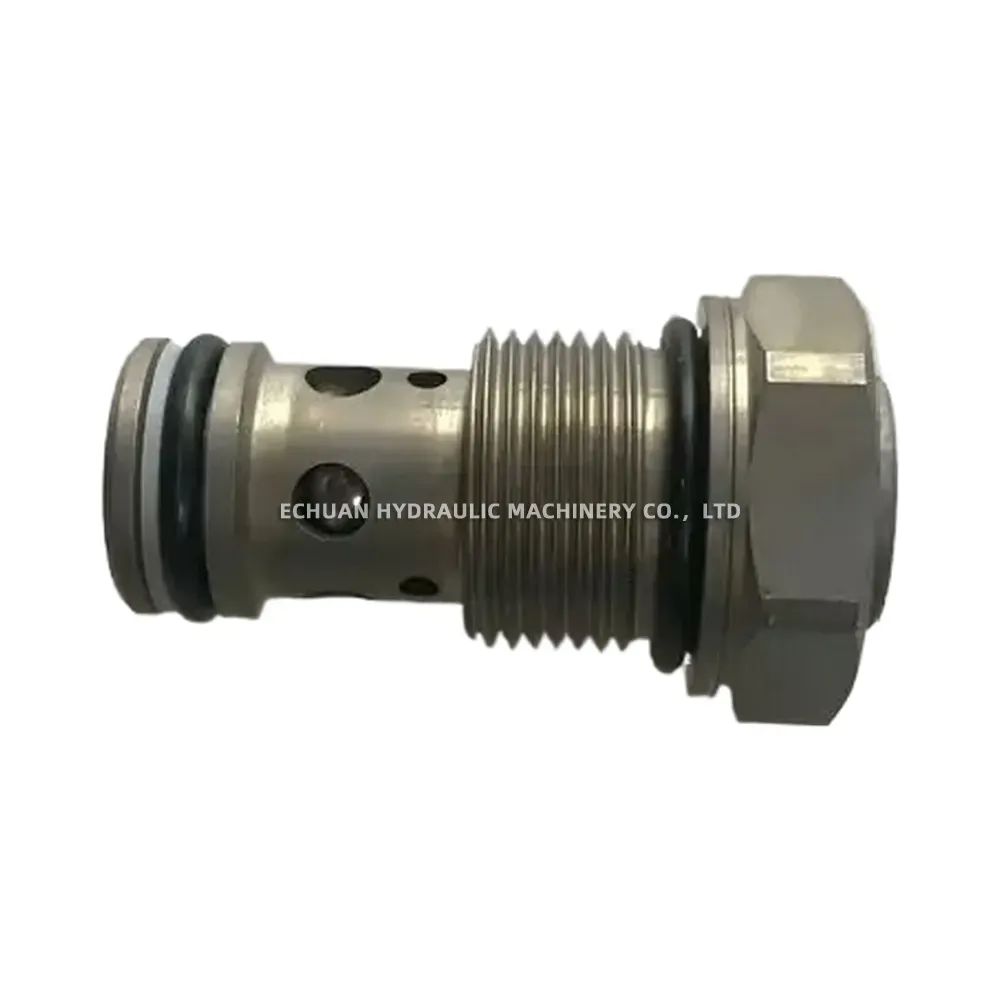

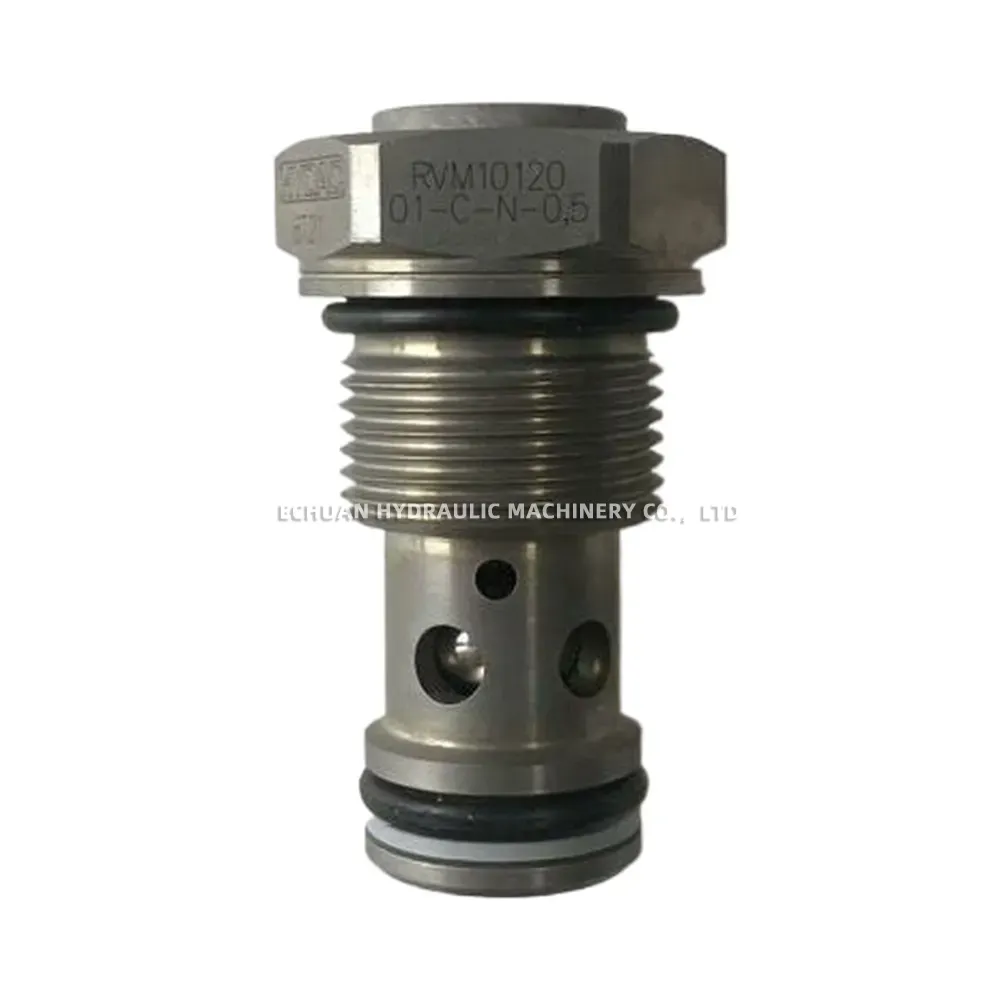

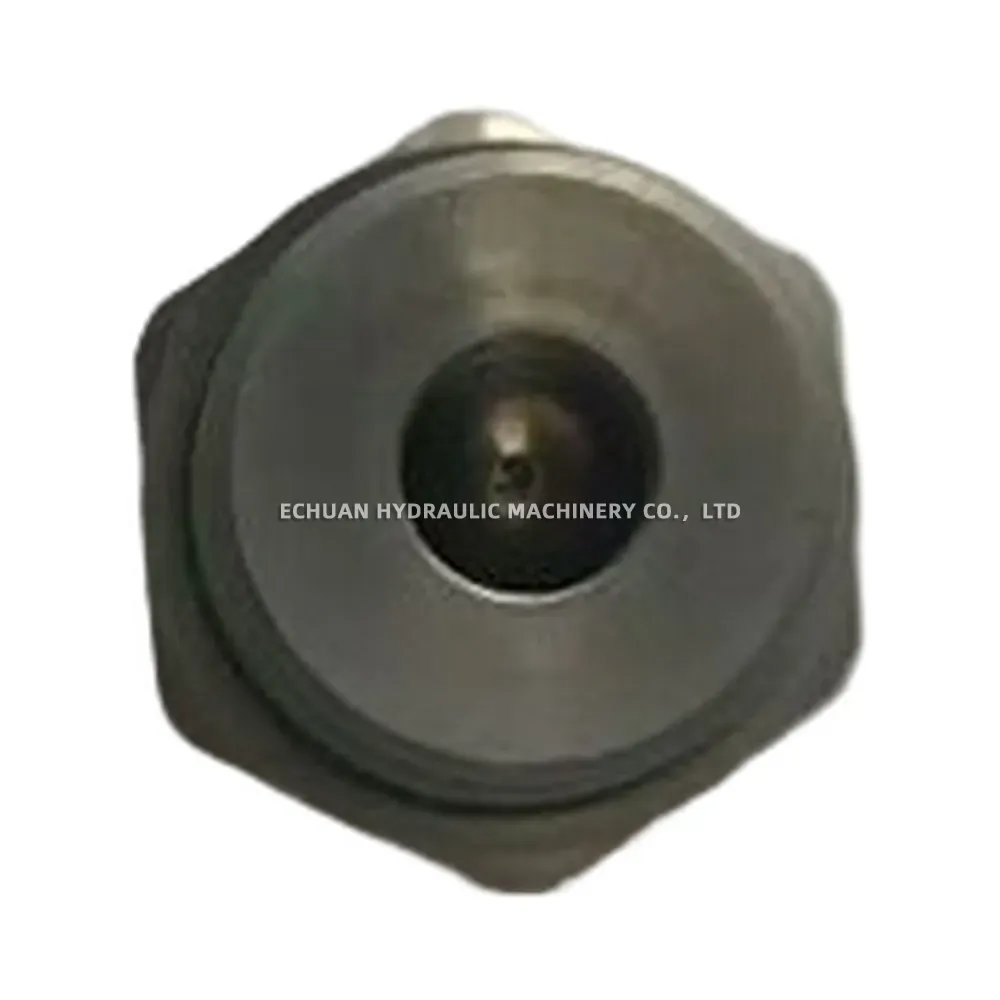

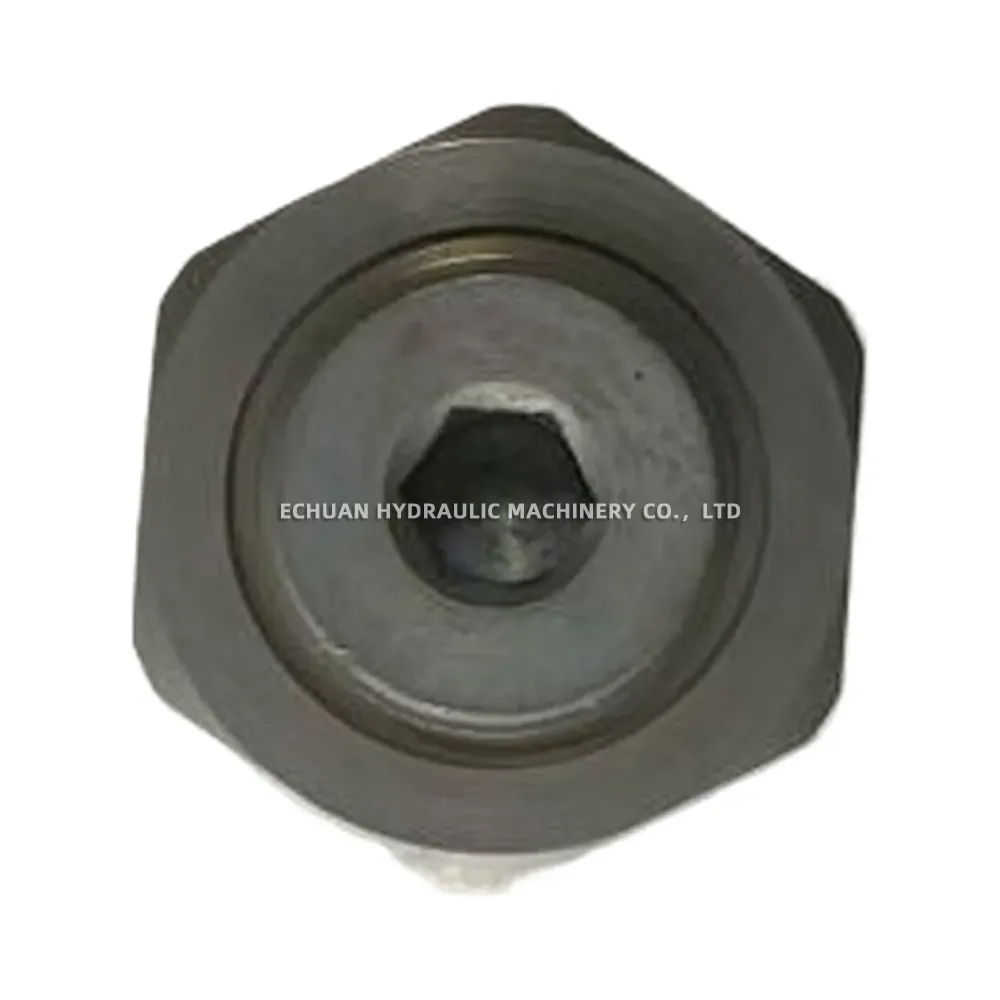

Hydac RVM10120-01-C-N-0.5 one-way valve
The Hydac RVM10120-01-C-N-0.5 is a high-quality, direct-acting screw-in cartridge check valve, also known as a one-way valve. Engineered with a poppet-type design, it permits free flow of hydraulic fluid in one direction while reliably blocking flow in the opposite direction. This valve is essential for preventing backflow, isolating circuit components, and maintaining pressure within a hydraulic system. Its robust construction and NBR seals ensure dependable, low-leakage performance in a wide range of industrial and mobile hydraulic applications.
Technical Specifications:
- Type: Screw-in cartridge check valve (Poppet type)
- Max. Operating Pressure: 420 bar (6090 PSI)
- Max. Flow Rate: 60 l/min (15.8 GPM)
- Cracking Pressure: 0.5 bar (7.25 PSI)
- Seal Material: NBR (Nitrile)
- Cavity: M22 x 1.5

Hydac RVM10120-01-C-N-0.5 one-way valve
Order the Hydac RVM10120-01-C-N-0.5, a reliable screw-in cartridge check valve with a 0.5 bar cracking pressure. Ideal for preventing reverse flow in hydraulic systems up to 420 bar.
