Product Description

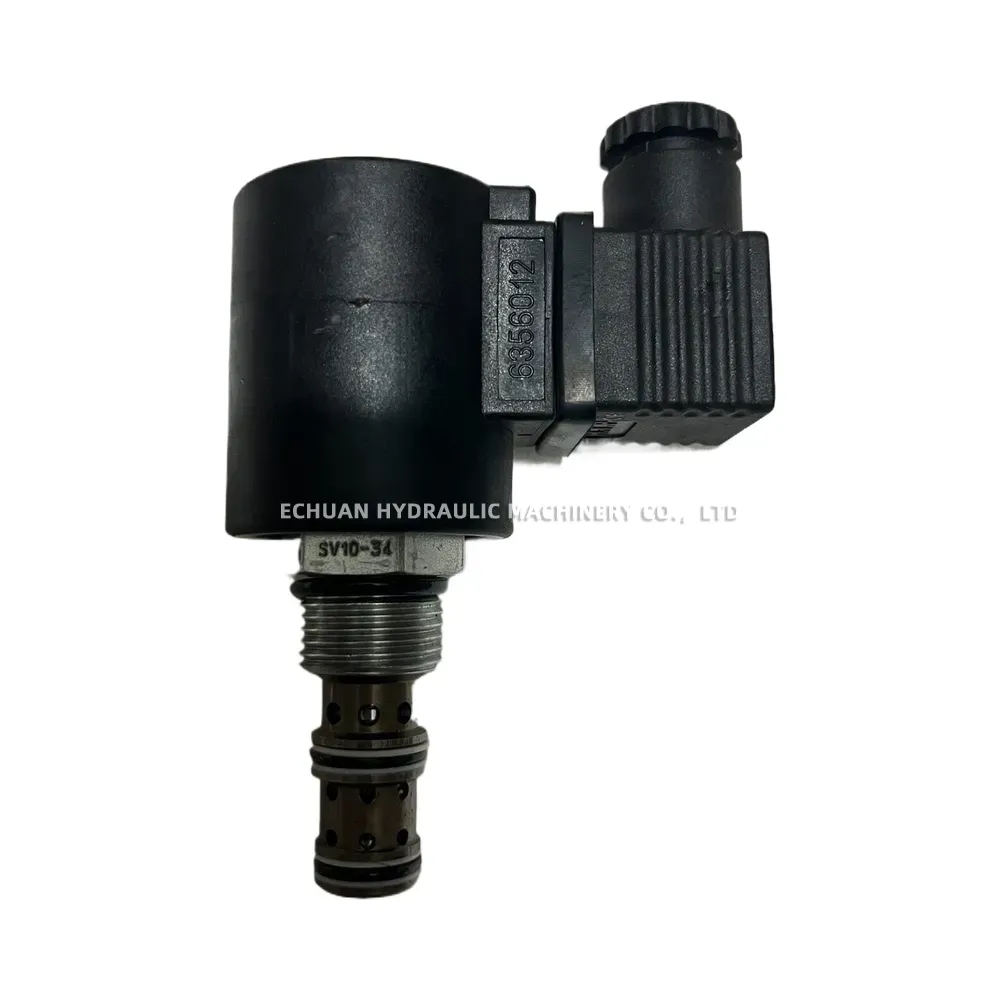

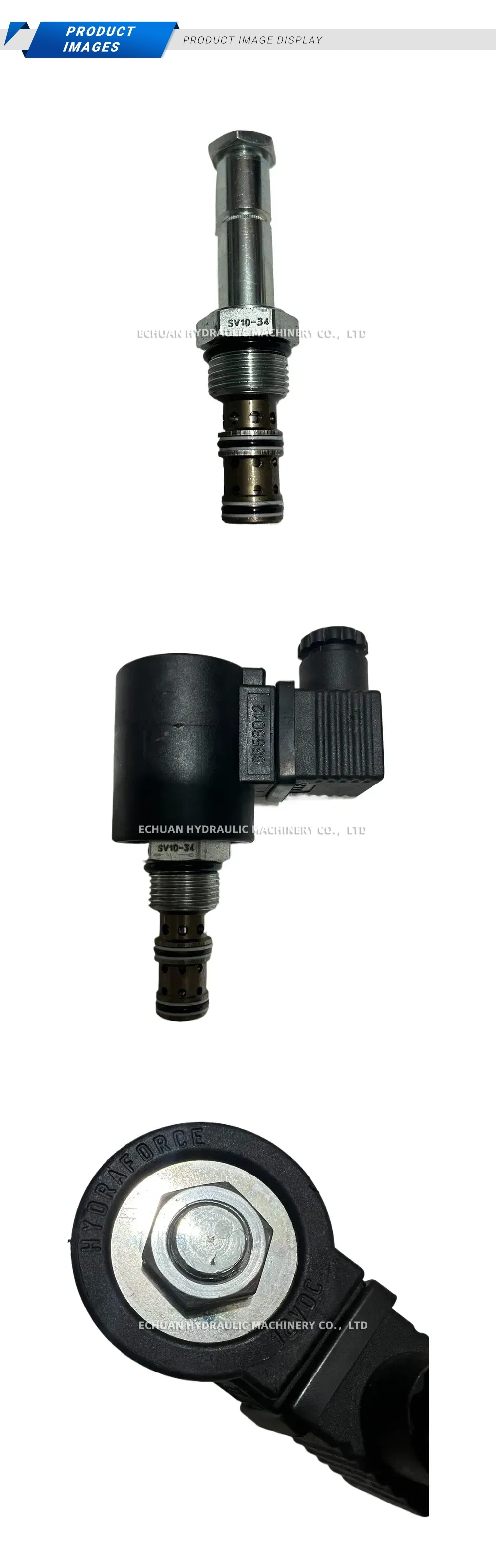

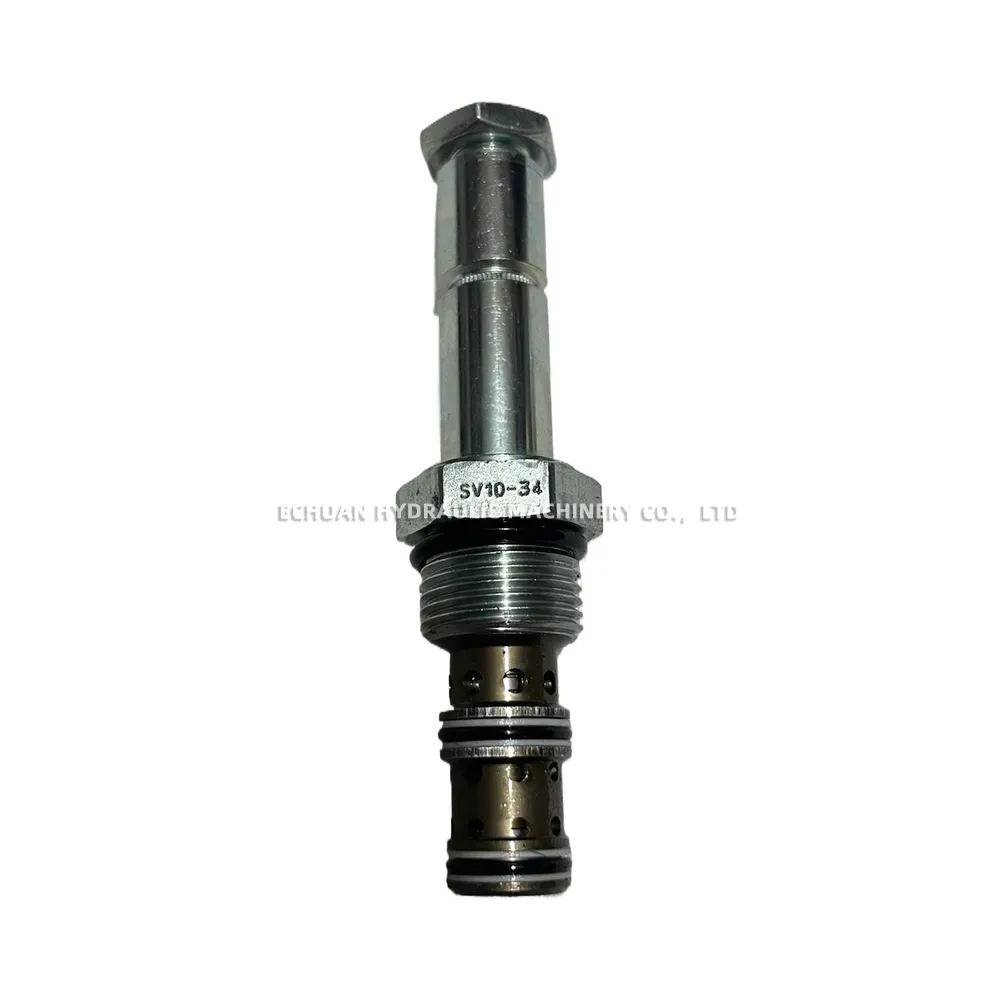

HydraForce SV10-34 Hydraulic Solenoid Cartridge Valve

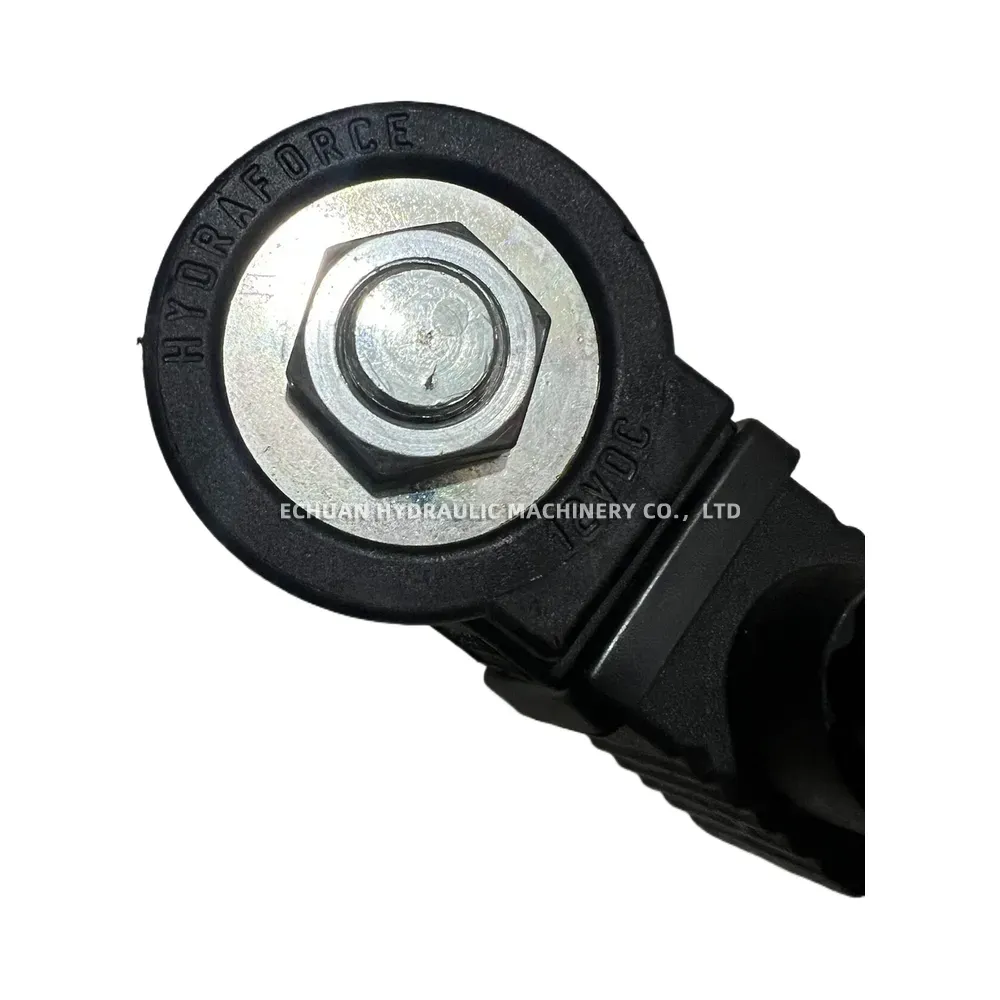

The HydraForce SV10-34 is a premium solenoid-operated, directional, poppet-type hydraulic cartridge valve designed for reliable fluid routing in demanding industrial and mobile applications. Engineered with a robust threaded screw-in cartridge design, it features a ported cage and high-quality O-ring seals to ensure leak-free, efficient performance. This complete assembly includes the HydraForce 6356012 solenoid coil rated at 12 VDC, equipped with a standard DIN-style electrical connector and a hex retaining nut for secure, straightforward installation and maintenance.
Technical Specifications:
- Brand: HydraForce
- Model: SV10-34
- Valve Type: Solenoid-operated directional poppet-type cartridge valve
- Valve Design: Threaded screw-in cartridge with ported cage and O-ring seals
- Coil Part Number: 6356012
- Coil Voltage: 12 VDC
- Electrical Connection: DIN-style electrical connector with hex retaining nut

HydraForce SV10-34 Hydraulic Solenoid Cartridge Valve
Shop the HydraForce SV10-34 Hydraulic Solenoid Cartridge Valve online. This high-performance poppet-type directional valve includes a 12VDC coil (PN: 6356012) and DIN connector, delivering reliable fluid control for mobile and industrial hydraulic systems.
| Brand | HYDRAFORCE |
|---|---|
| Model | SV10-34 |
| Part No. | 957037036865 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/hydraforce-sv10-34-hydraulic-solenoid-cartridge-valve |
