HydraPower 4WE6G61/EW220RNZ5L Hydraulic Power Pack
The HydraPower 4WE6G61/EW220RNZ5L Hydraulic Power Pack is a robust, CE-certified hydraulic power unit engineered specifically for lift platforms and heavy-duty industrial applications. Manufactured by HydraPower CO.,LTD., this reliable unit is powered by a high-efficiency 1.5 kW three-phase 380 V motor and features a durable black steel reservoir tank with a secure filler cap. The system is built around a precision-machined red manifold block equipped with dual oil outlet ports (A and B) and a highly accurate WIZON pressure gauge (0-25 MPa / 0-250 kg/cm²). It utilizes the industry-standard HydraPower 4WE6G61/EW220RNZ5L solenoid-operated directional control valve with 220 V AC coils to provide smooth, double-acting cylinder control for extend and retract operations. Furthermore, the G-spool configuration ensures secure pressure holding when the solenoid is de-energized, maximizing safety and load stability.
Technical Specifications:
- Brand: HydraPower
- Model: 4WE6G61/EW220RNZ5L (MFG. NO. 0230550123)
- Motor Specifications: 1.5 kW, Three-Phase, 380 V AC
- Valve Type: Solenoid-Operated Directional Control Valve
- Coil Voltage: 220 V AC
- Control Function: Double-acting (Extend/Retract) with de-energized pressure holding
- Pressure Gauge: WIZON 0-25 MPa / 0-250 kg/cm²
- Reservoir Construction: Black steel tank with filler cap
- Manifold Ports: Two oil outlet ports (A and B)
- Certifications: CE Certified

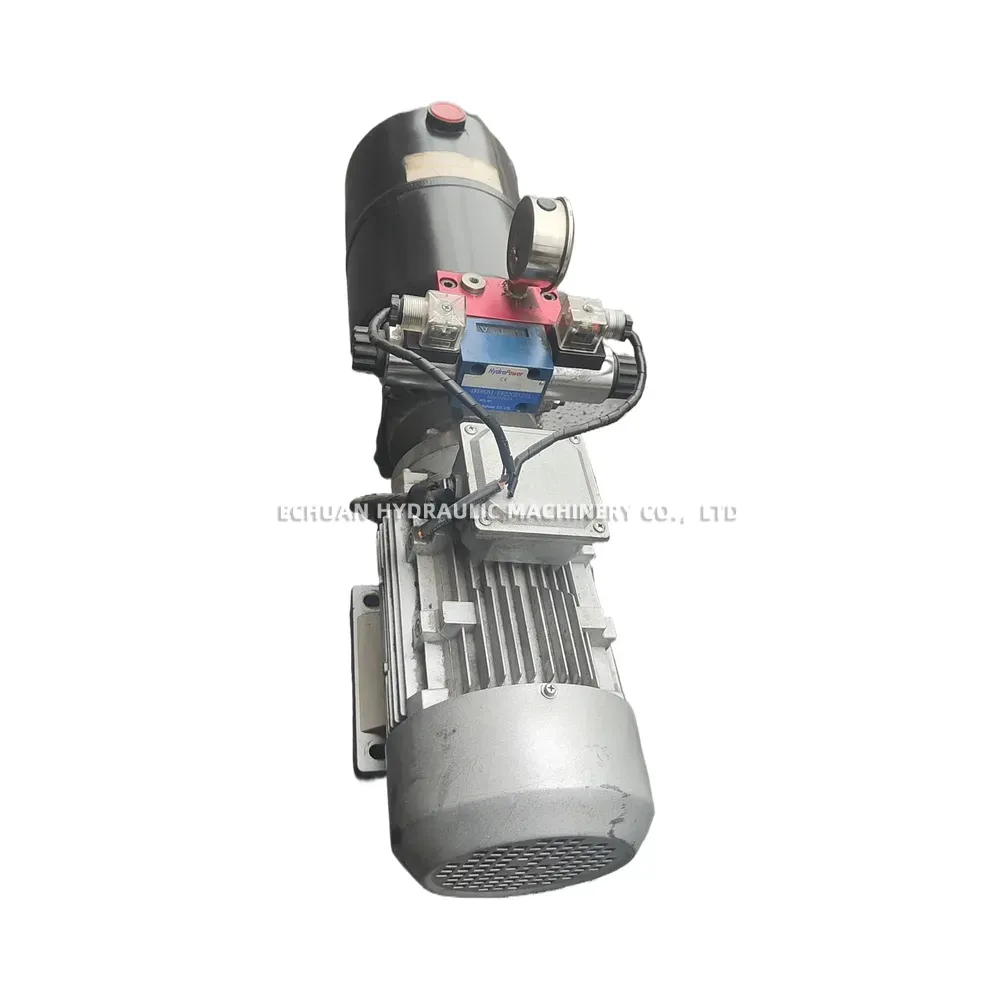

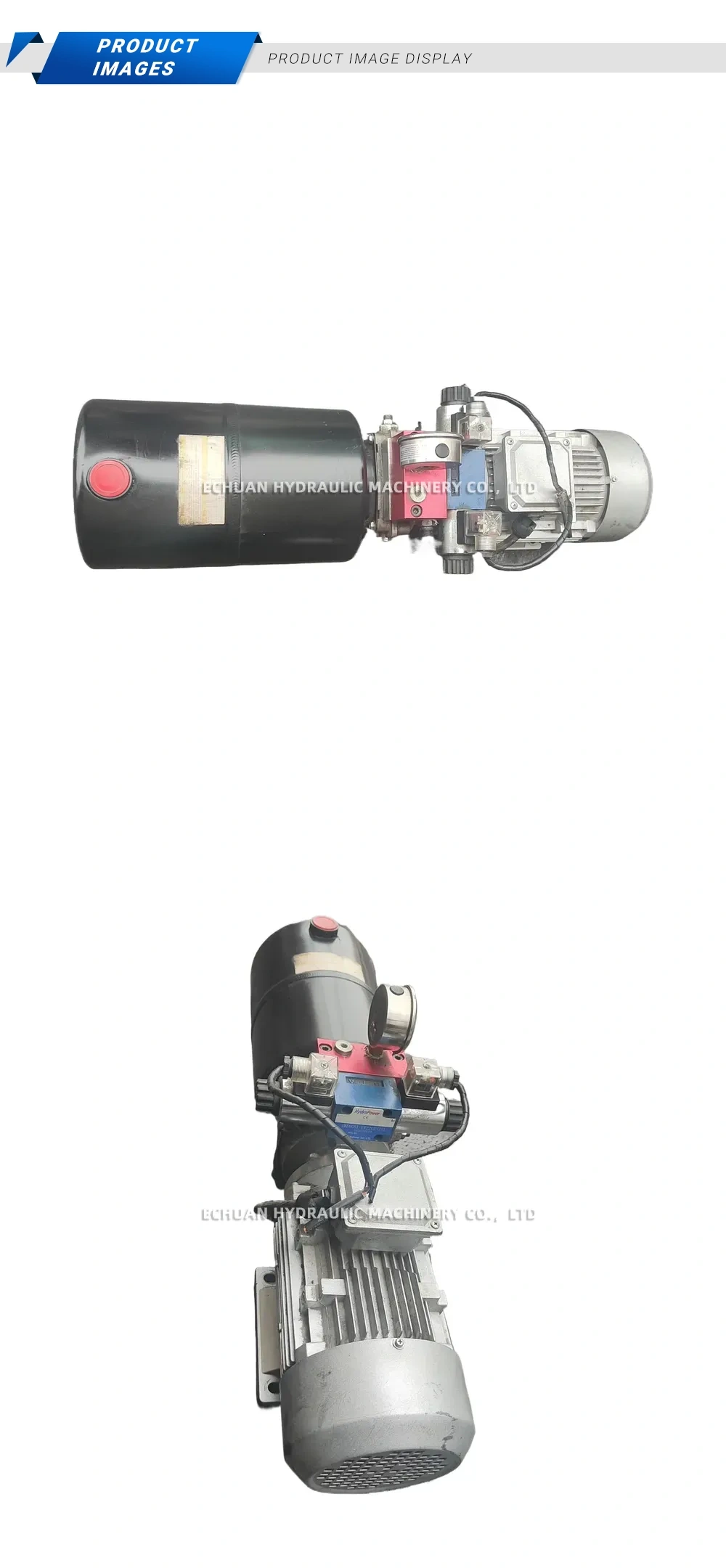

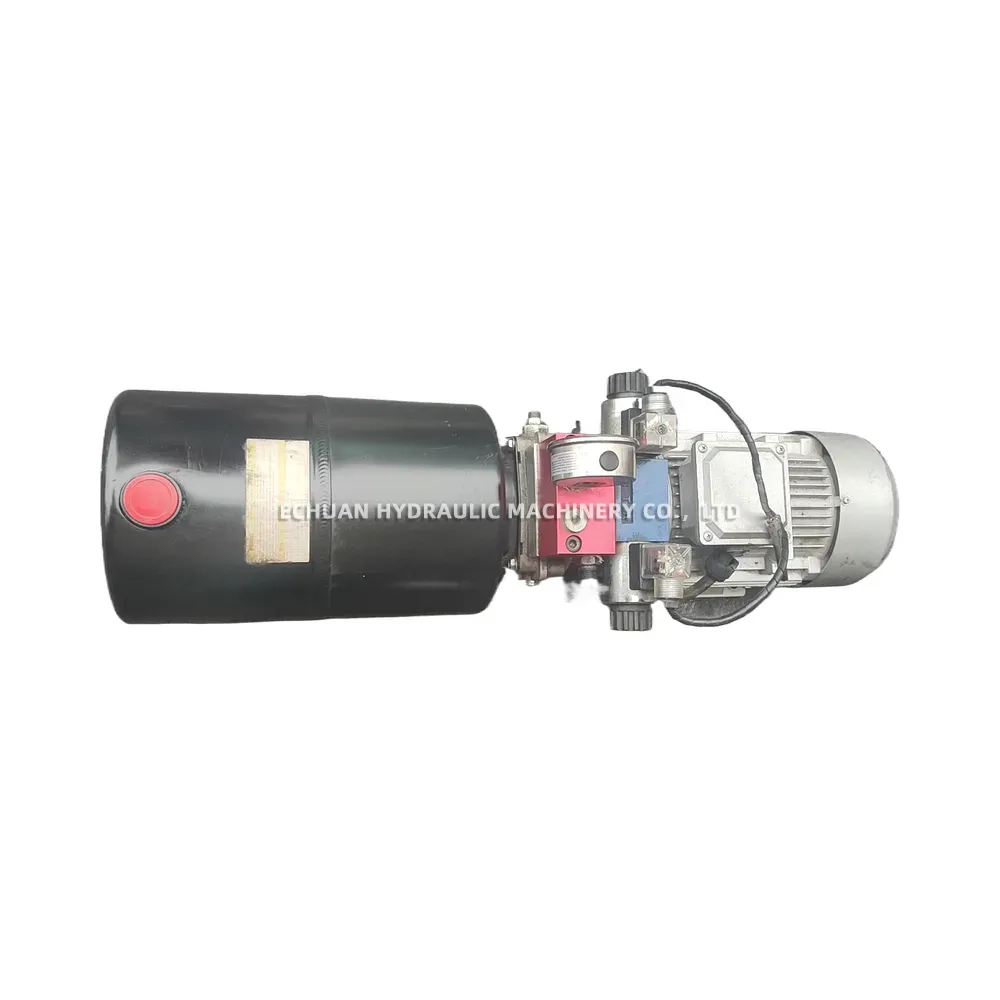

HydraPower 4WE6G61/EW220RNZ5L Hydraulic Power Pack (Hydraulic Power Unit)
Upgrade your industrial lift platforms with the CE-certified HydraPower 4WE6G61/EW220RNZ5L Hydraulic Power Pack. Featuring a robust 1.5 kW 380V 3-phase motor, a 220V AC solenoid directional control valve for double-acting cylinders, and secure pressure holding capabilities, this hydraulic power unit delivers reliable, heavy-duty performance.
| Brand | HydraPower |
|---|---|
| Model | 4WE6G61/EW220RNZ5L |
| Part No. | 917823768081 |
| Category | Hydraulic pumps |
