Product Description
HYUNDAI HiBL 103NT Molded Case Circuit Breaker (MCCB)

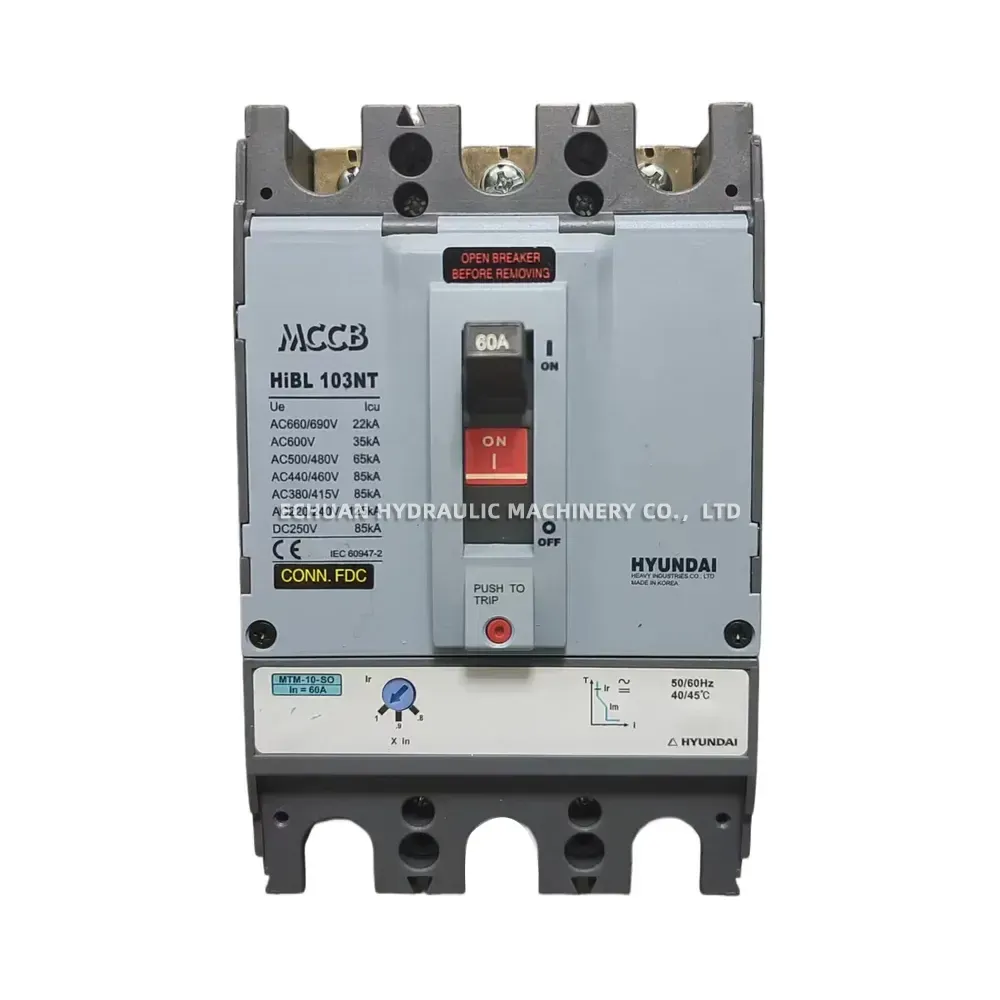

The HYUNDAI HiBL 103NT is a high-performance 3-pole Molded Case Circuit Breaker (MCCB) engineered for robust electrical protection in demanding industrial and commercial environments. Built on a 100A frame (100AF) with a rated current of 60A, it features a reliable MTM-10-SD thermal-magnetic trip unit with an adjustable Ir setting, allowing for precise overload and short-circuit calibration. Manufactured in Korea by Hyundai Heavy Industries, this premium breaker offers exceptional ultimate breaking capacities, reaching up to 125kA at AC220/240V and 85kA at AC380/415V. Designed with safety and durability in mind, it includes a front connection (CONN. FDC), a clear ON/OFF toggle handle, and a push-to-trip testing button. The HiBL 103NT strictly complies with global standards including IEC 60947-2, NEMA AB-1, CE, KS, JIS, and EN, making it a globally trusted choice for low-voltage power distribution systems.
Technical Specifications:
- Brand: HYUNDAI
- Model: HiBL 103NT
- Number of Poles: 3-Pole (3P)
- Frame Size (AF): 100AF
- Rated Current (In): 60A
- Trip Unit: Thermal-Magnetic MTM-10-SD (Adjustable Ir setting)
- Rated Operational Voltage (Ue): AC 690V
- Rated Insulation Voltage (Ui): AC 750V
- Impulse Withstand Voltage (Uimp): 8kV
- Frequency / Operating Temperature: 50/60Hz / 40/45°C
- Ultimate Breaking Capacity (Icu): 125kA (AC220/240V), 85kA (AC380/415V & AC440/460V), 65kA (AC500/480V), 35kA (AC600V), 22kA (AC660/690V), 85kA (DC250V)
- Service Breaking Capacity (Ics): 100% Icu (Utilization Category A)

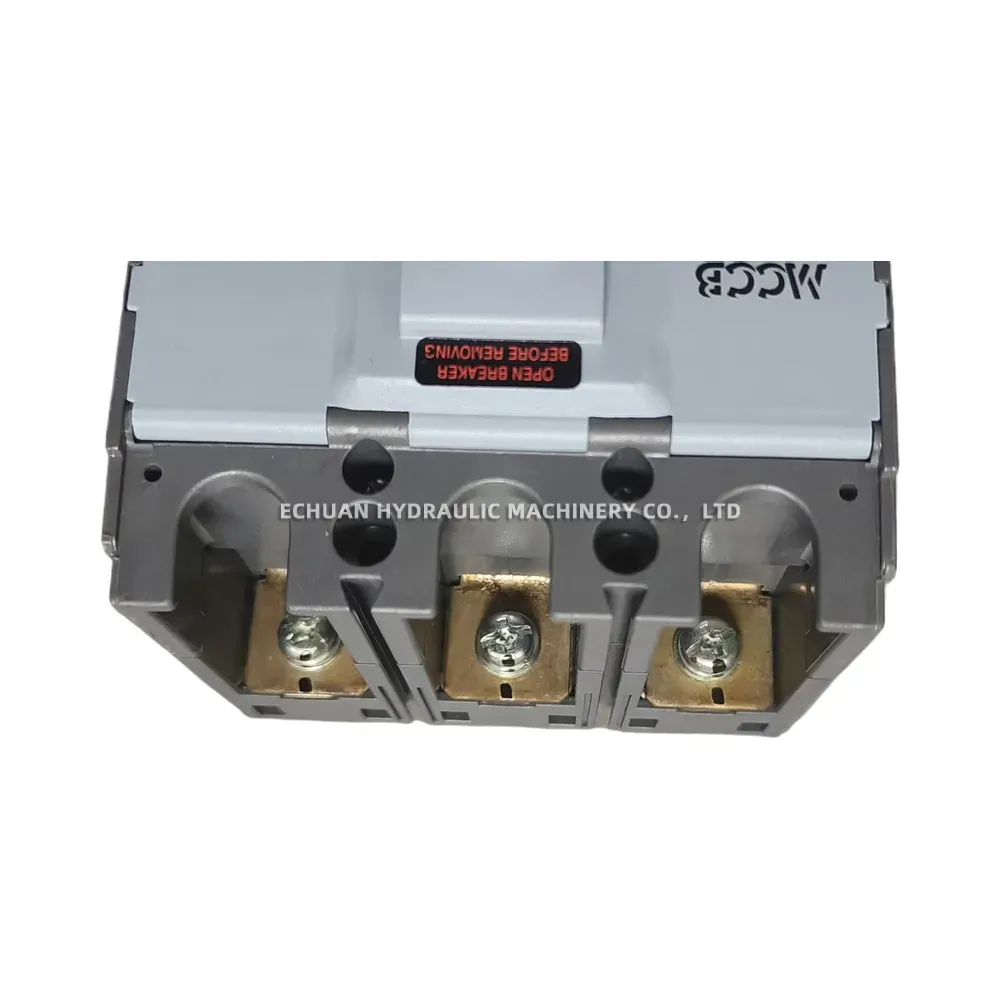

- Connection Type: Front Connection (CONN. FDC)
- Standards Compliance: IEC 60947-2, NEMA AB-1, CE, KS, JIS, EN
HYUNDAI HiBL 103NT Molded Case Circuit Breaker (MCCB)
Secure your electrical systems with the HYUNDAI HiBL 103NT MCCB. This 3-pole, 100AF/60A molded case circuit breaker delivers reliable thermal-magnetic protection with an adjustable trip unit and a high breaking capacity up to 125kA. CE and IEC compliant, it is the ideal choice for safe and efficient industrial power distribution.
| Brand | HYUNDAI |
|---|---|
| Model | HiBL 103NT |
| Part No. | 1008639050970 |
| Category | Electrical |
