Product Description

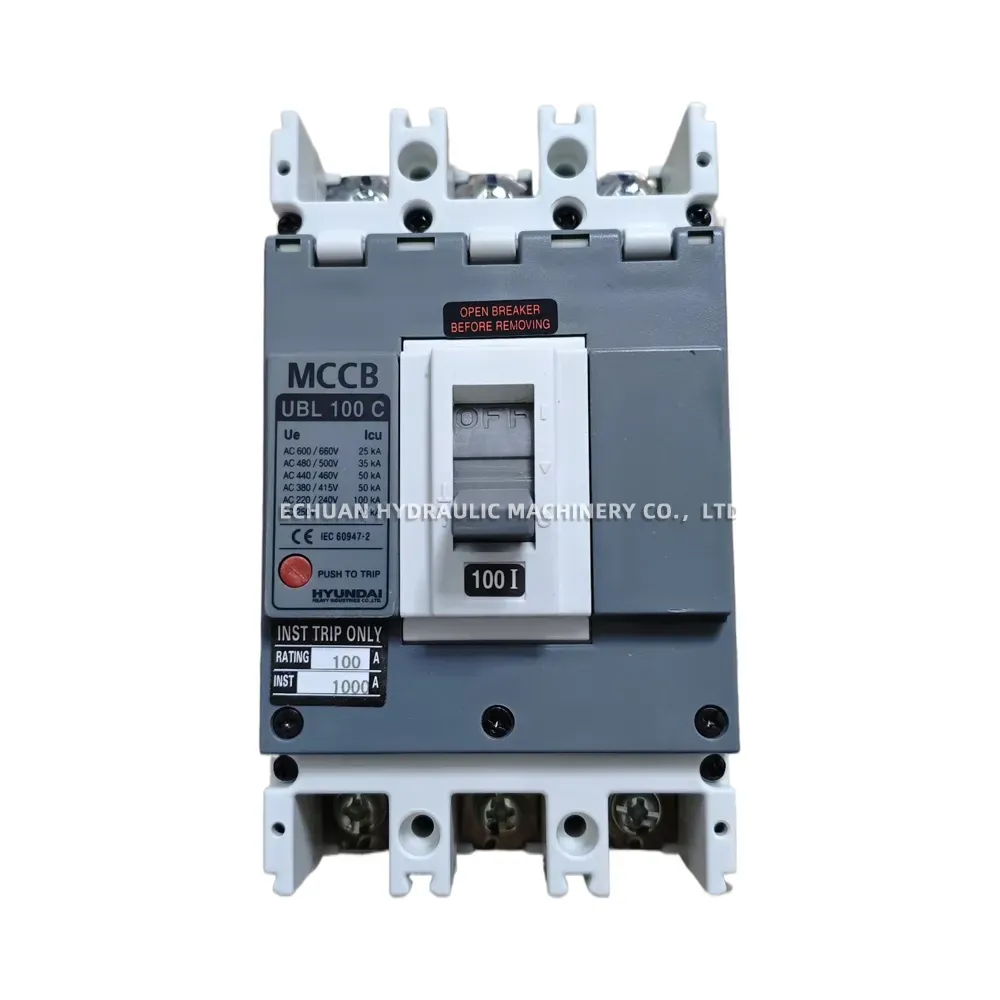

HYUNDAI UBL100C-B Molded Case Circuit Breaker (MCCB)
The HYUNDAI UBL100C-B is a premium-quality Molded Case Circuit Breaker (MCCB) engineered for robust electrical protection in demanding industrial and commercial applications. Manufactured by Hyundai Heavy Industries, this 3-pole breaker features a 100A frame size and a 100A rated current, specifically designed with an instantaneous trip-only mechanism set at 1000A for rapid response to severe fault conditions. It boasts an impressive ultimate short-circuit breaking capacity (Icu) of up to 100kA at 220/240V AC and is built to handle a rated operational voltage of up to 660V AC. Fully compliant with rigorous international standards including IEC 60947-2 and NEMA AB1, and carrying the CE mark, the UBL100C-B guarantees exceptional reliability, safety, and longevity for your power distribution systems.
Technical Specifications:
- Brand: HYUNDAI
- Model: UBL100C-B
- Product Type: Molded Case Circuit Breaker (MCCB)
- Number of Poles: 3-Pole
- Frame Size (AF): 100AF
- Rated Current (In): 100A
- Trip Type: Instantaneous Trip Only (Instant Setting: 1000A)
- Rated Insulation Voltage (Ui): AC 690V
- Rated Operational Voltage (Ue): AC 660V, 50/60Hz
- Impulse Withstand Voltage (Uimp): 6kV
- Ultimate Short-Circuit Breaking Capacity (Icu): AC 600/660V 25kA; AC 480/500V 35kA; AC 440/460V 50kA; AC 380/415V 50kA; AC 220/240V 100kA; DC 250V 40kA
- Service Short-Circuit Breaking Capacity (Ics): 50% Icu
- Utilization Category: Category A
- Features: Push-to-trip test button, toggle handle operation
- Compliance & Standards: IEC 60947-2, NEMA AB1, CE Marked
HYUNDAI UBL100C-B Molded Case Circuit Breaker (MCCB)
Upgrade your electrical panel with the HYUNDAI UBL100C-B Molded Case Circuit Breaker (MCCB). This reliable 3-pole, 100A (100AF) breaker features an instantaneous trip-only design (1000A setting) for advanced industrial circuit protection. IEC 60947-2 compliant and CE marked for superior safety and performance.
| Brand | HYUNDAI |
|---|---|
| Model | UBL100C-B |
| Part No. | 1010830316134 |
| Category | Electrical |
