Product Description

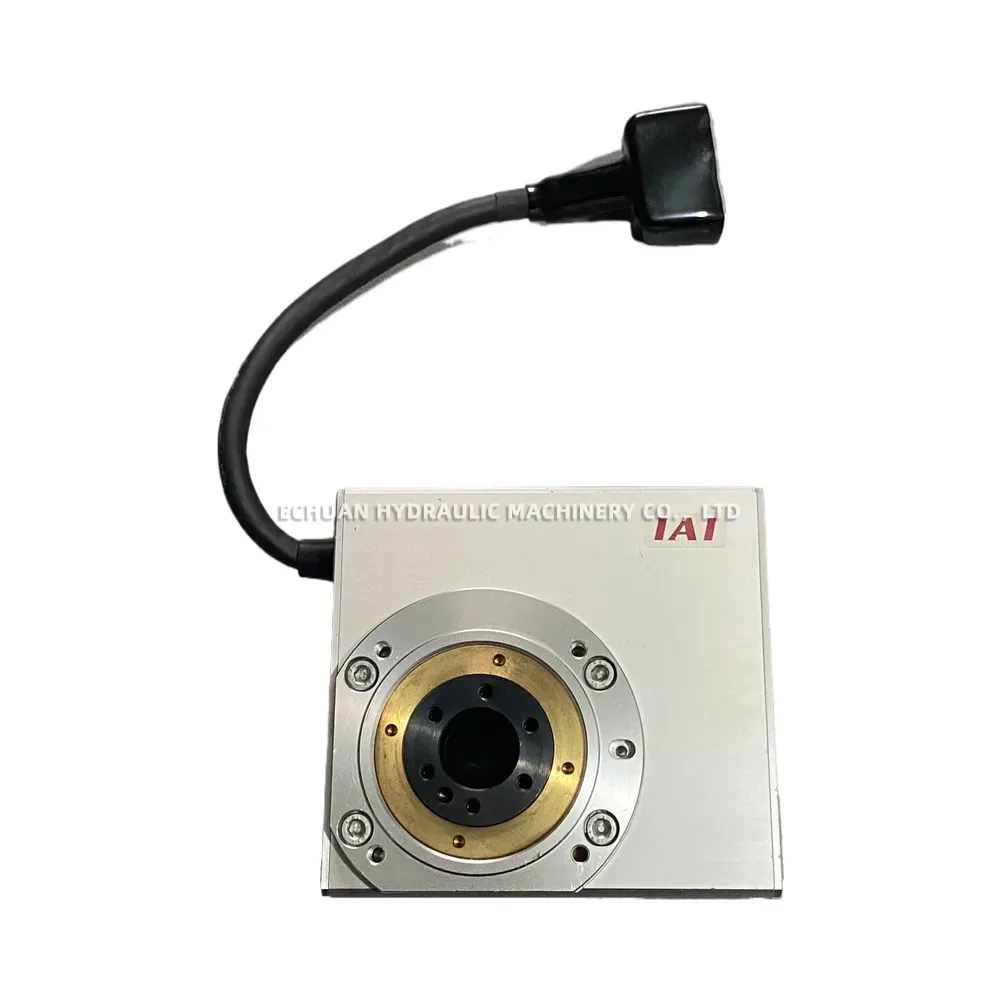

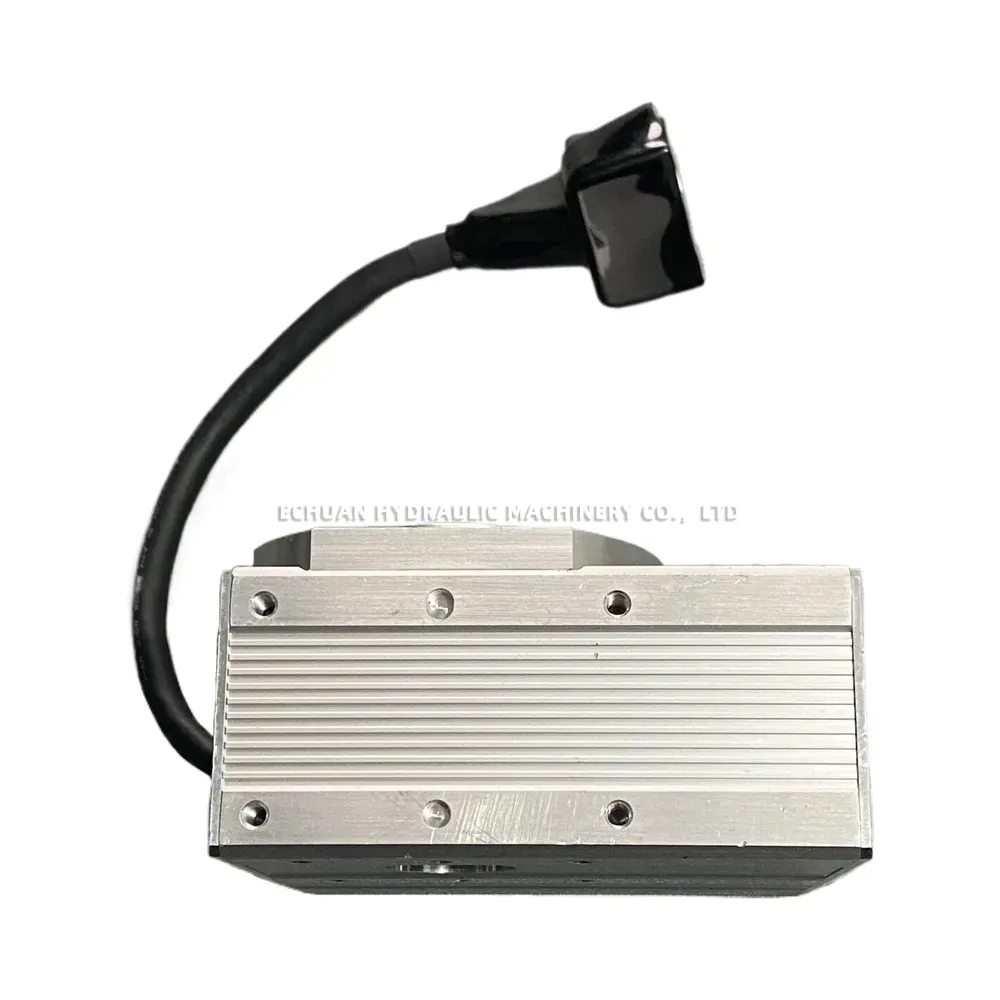

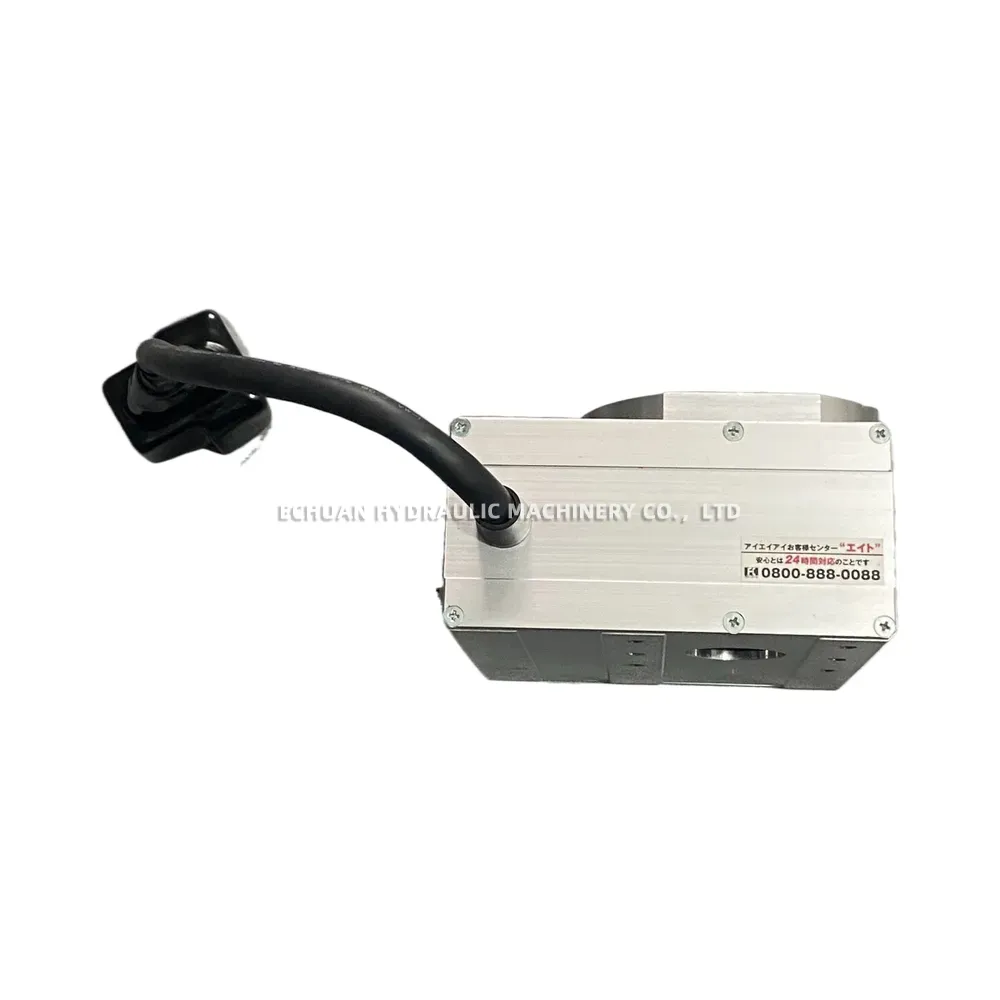

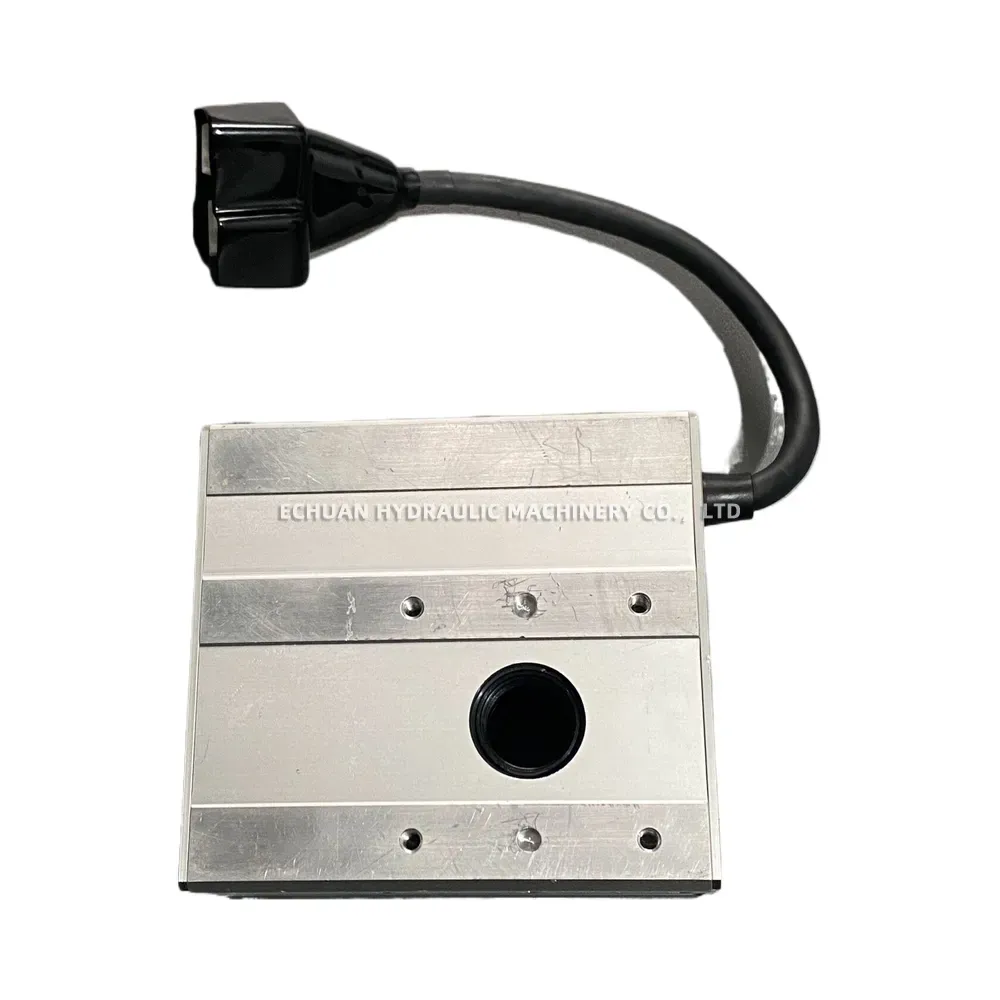

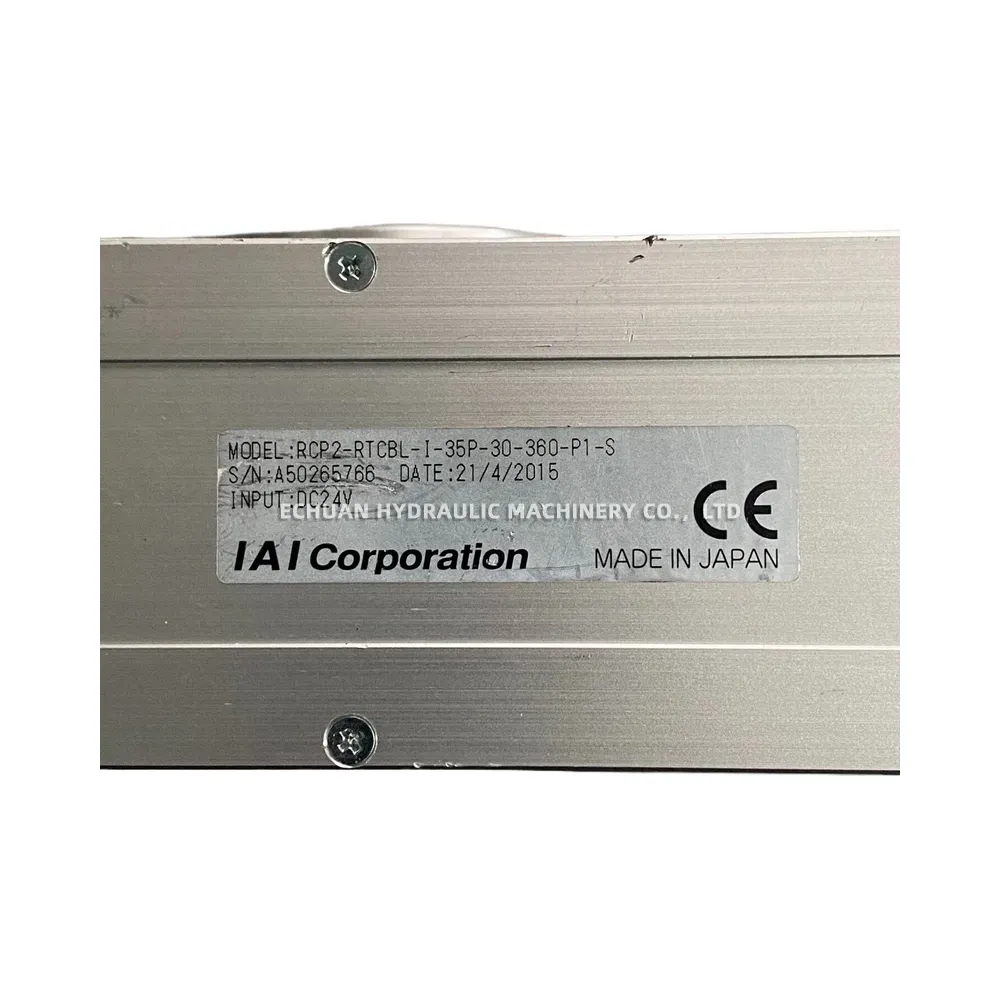

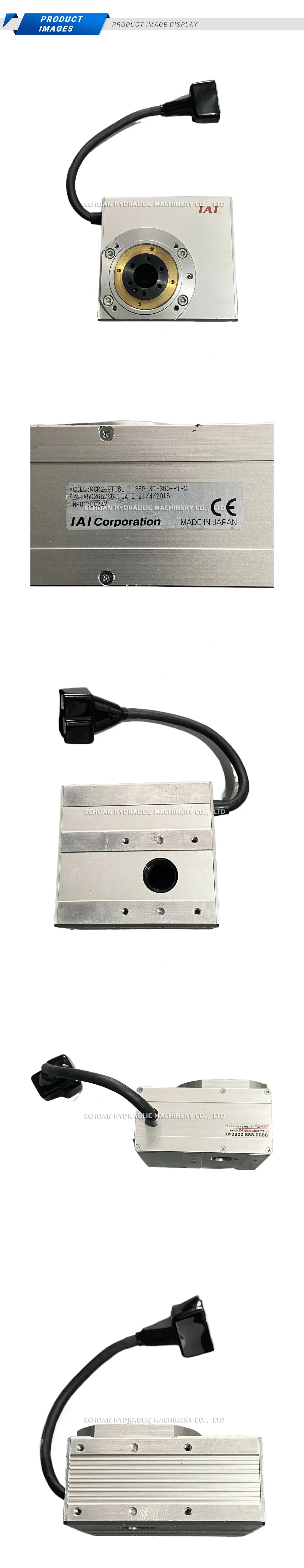

IAI RCP2-RTCBL-I-35P-30-360-P1-S Rotary Actuator
The IAI RCP2-RTCBL-I-35P-30-360-P1-S is a high-performance RoboCylinder rotary actuator engineered for precise angular positioning in industrial automation. Featuring a robust, compact aluminum housing with a highly functional central through-hole design, this actuator allows for the efficient routing of wiring and pneumatic tubing directly through the center axis, preventing cable entanglement. Operating on a standard DC24V power input, it utilizes a reliable 35mm stepper motor paired with an incremental encoder to deliver smooth, accurate 360-degree rotation. The unit includes an integrated cable with a heavy-duty connector for seamless communication with IAI controllers. Manufactured in Japan and CE-marked for global compliance, this rotary actuator ensures exceptional durability, repeatability, and long-term reliability in demanding manufacturing environments.
Technical Specifications:
- Brand: IAI Corporation
- Model Number: RCP2-RTCBL-I-35P-30-360-P1-S
- Actuator Type: Motorized Rotary Actuator (Hollow Shaft / Through-hole)
- Input Voltage: 24V DC
- Motor Type: 35mm Stepper Motor
- Encoder Type: Incremental (I)
- Gear Ratio: 1/30
- Operating Range: 360°
- Housing Material: Compact Aluminum
- Certifications: CE Marked
- Country of Origin: Made in Japan
IAI RCP2-RTCBL-I-35P-30-360-P1-S Rotary Actuator
Optimize your automated positioning with the IAI RCP2-RTCBL-I-35P-30-360-P1-S Rotary Actuator. This 24VDC RoboCylinder features a precise stepper motor, a space-saving central through-hole design for easy cable routing, and accurate 360-degree rotation. Made in Japan and CE-marked, it delivers reliable rotational control for industrial machinery and robotics.
