Product Description

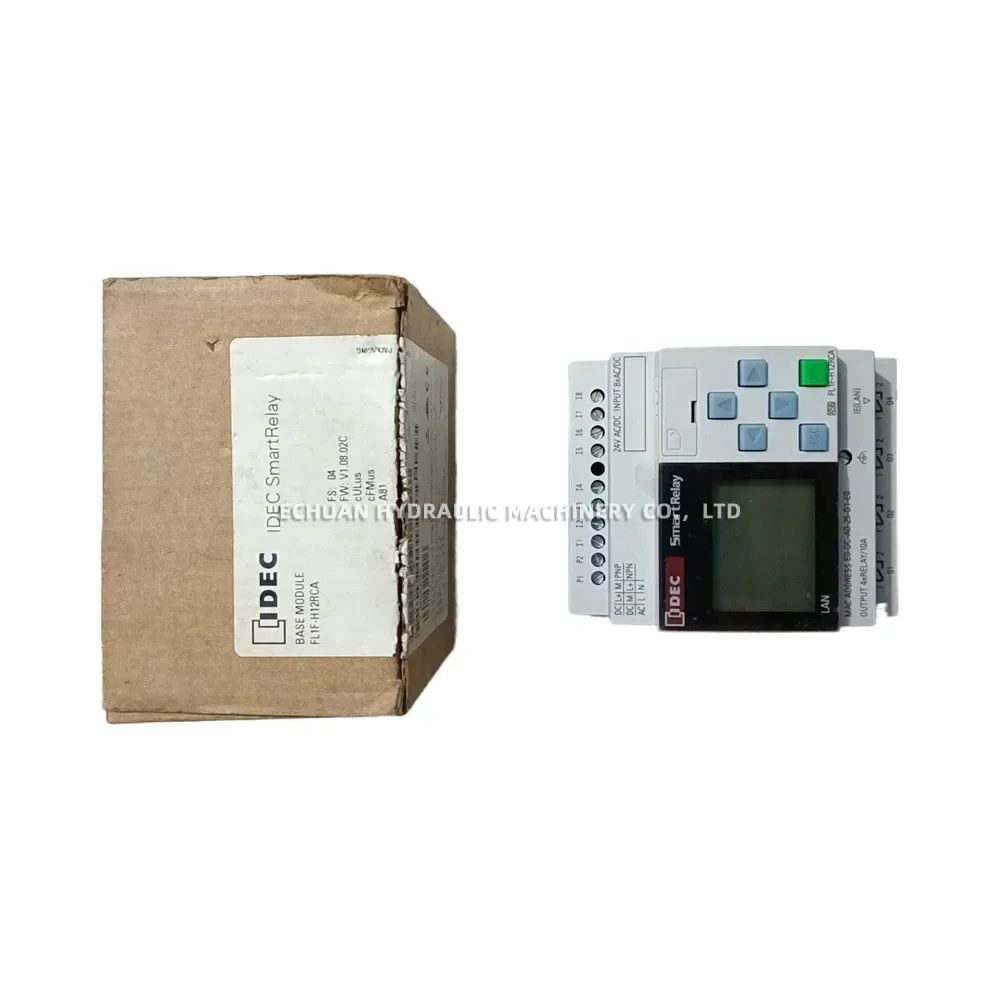

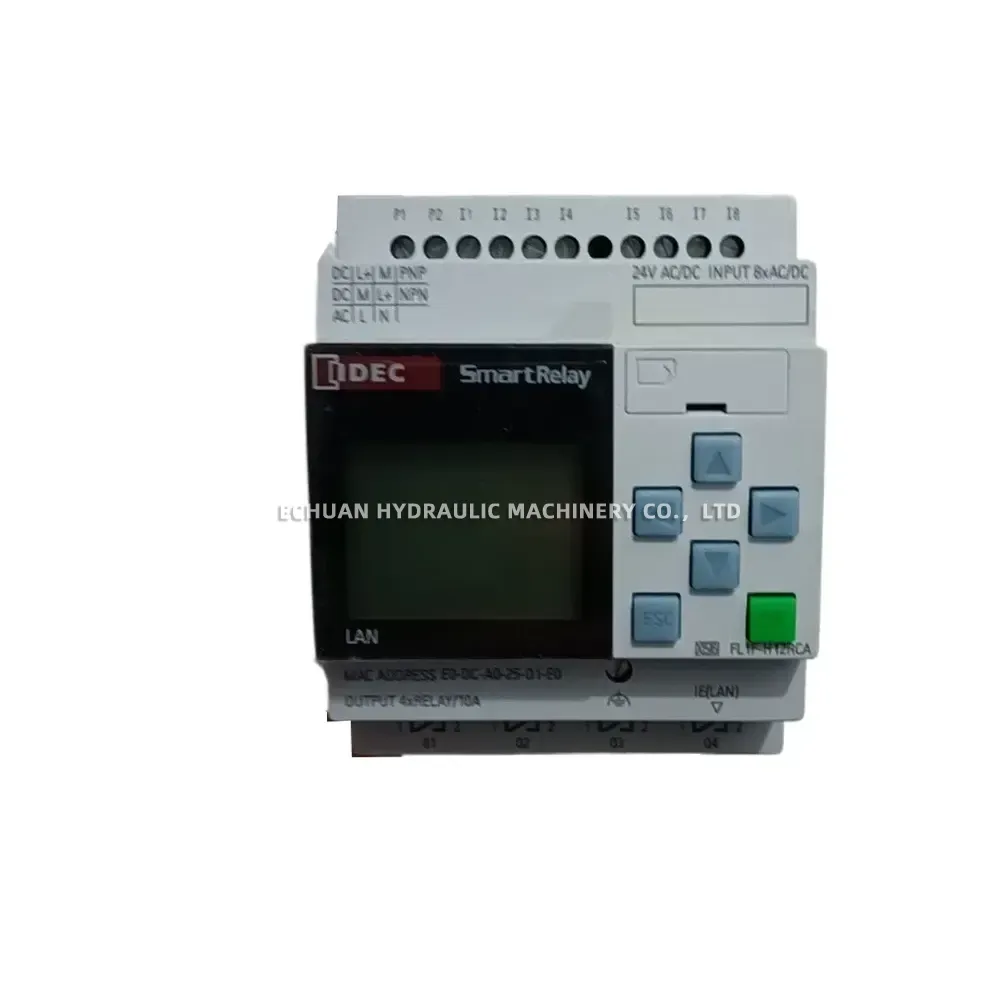

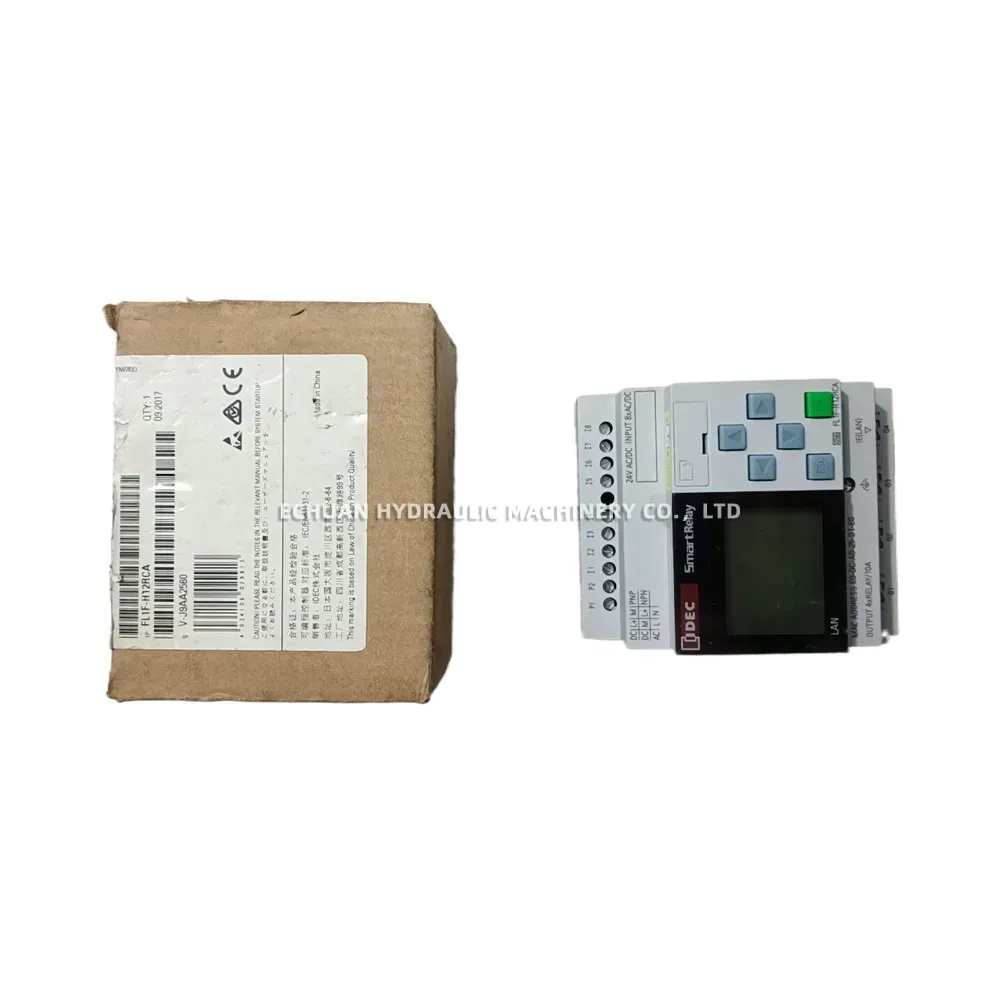

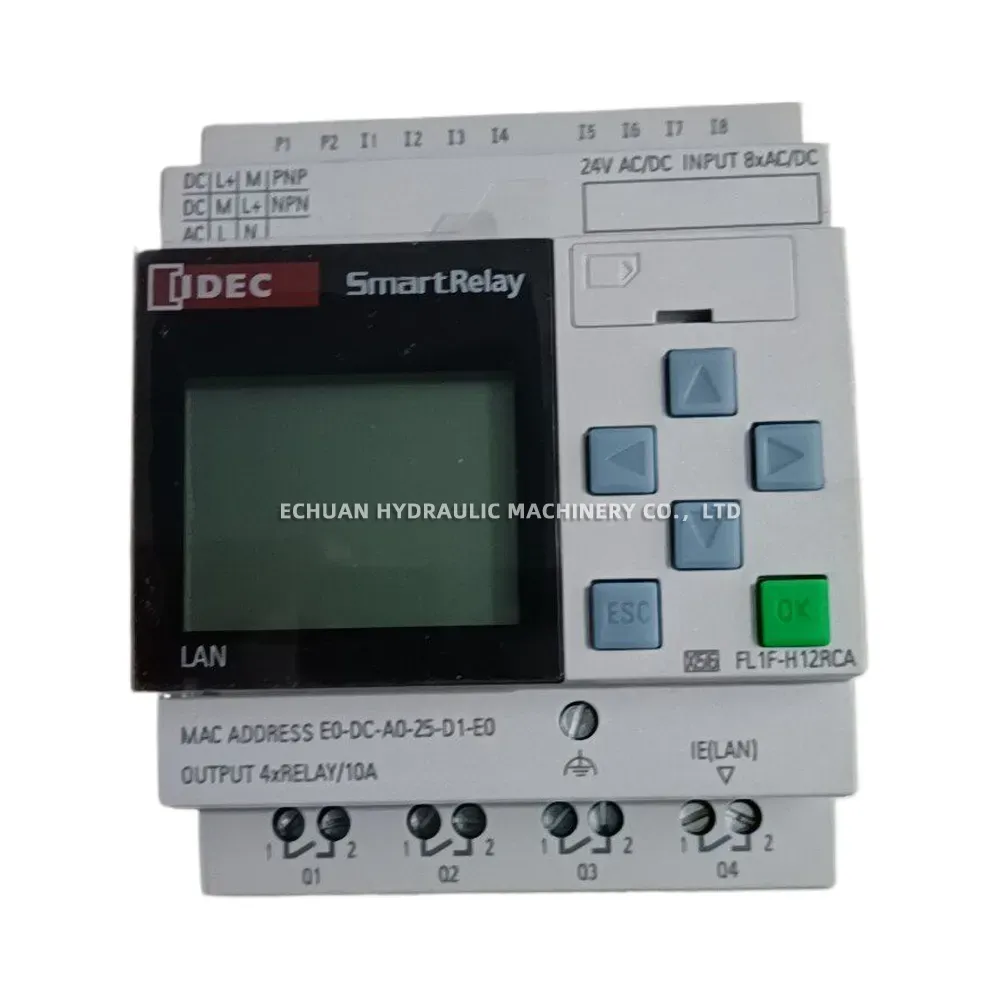

IDEC FL1F-H12RCA Smart Relay Module
The IDEC FL1F-H12RCA SmartRelay is a highly versatile and compact base logic module designed for advanced automation and control applications. Equipped with an integrated Ethernet LAN interface, it offers seamless networking and remote monitoring capabilities. This module features 8 digital inputs and 4 relay outputs (rated up to 10A), providing robust performance for various industrial control environments. Built to withstand demanding conditions, it is certified for use in Class I, Division 2 hazardous locations and operates reliably in temperatures ranging from 0°C to +55°C. With its compact footprint and powerful programmable functionality, the FL1F-H12RCA is an ideal choice for streamlining your automated control systems.
Technical Specifications:
- Brand / Model: IDEC / FL1F-H12RCA
- Power Supply: 24V DC
- Inputs: 8 Digital Inputs (24V AC/DC)
- Outputs: 4 Relay Outputs (10A at 240V AC General Purpose; 3A at 120V AC Tungsten; 8A at 24V DC General Purpose)
- Networking: Integrated Ethernet LAN Interface
- Operating Temperature: 0°C to +55°C

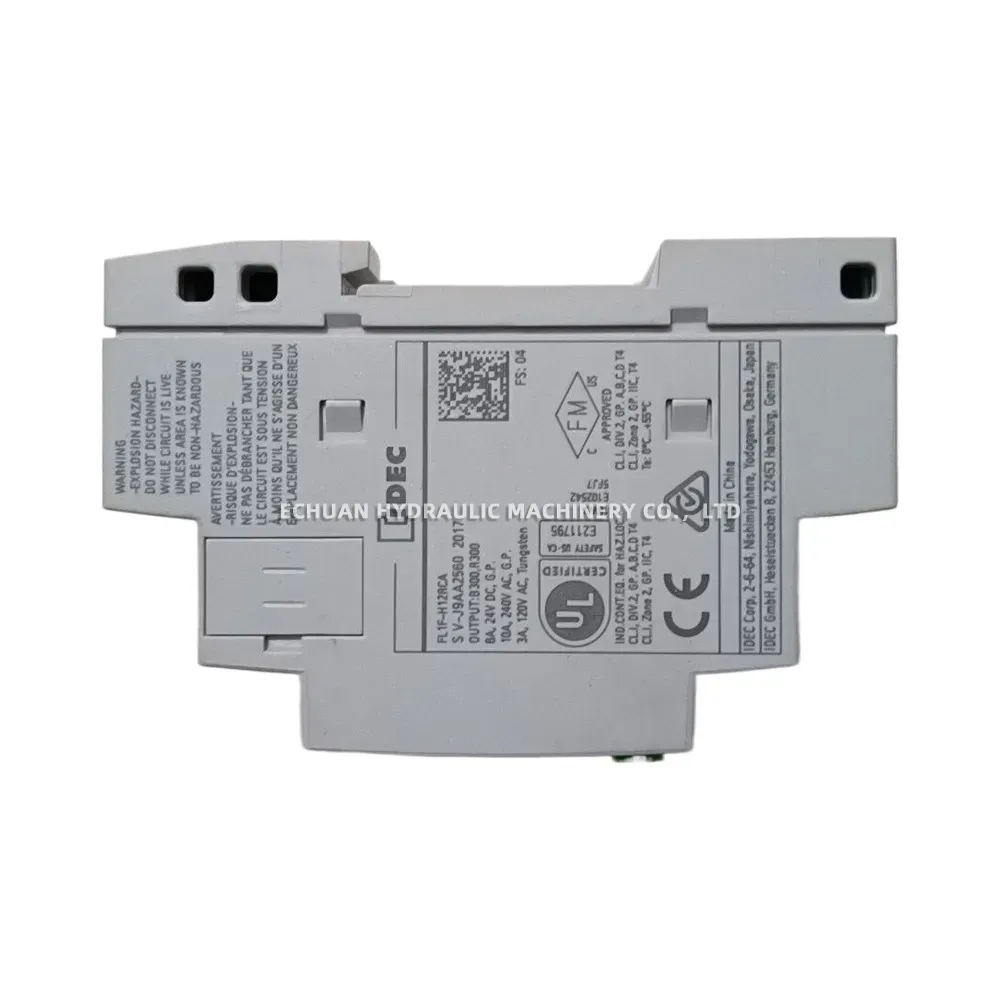

- Hazardous Location Ratings: Class I, Div 2, Groups A, B, C, D T4; Class I, Zone 2, Group IIC, T4
- Approvals & Certifications: UL/cUL (E211795, E102542), FM Approved, CE
IDEC FL1F-H12RCA Smart Relay Module
Optimize your industrial automation with the IDEC FL1F-H12RCA SmartRelay Base Module. Featuring 8 digital inputs, 4 relay outputs (10A), integrated Ethernet LAN, and Class I Div 2 hazardous location certification, this 24V DC programmable logic controller delivers reliable, high-performance control for demanding environments.
