Product Description

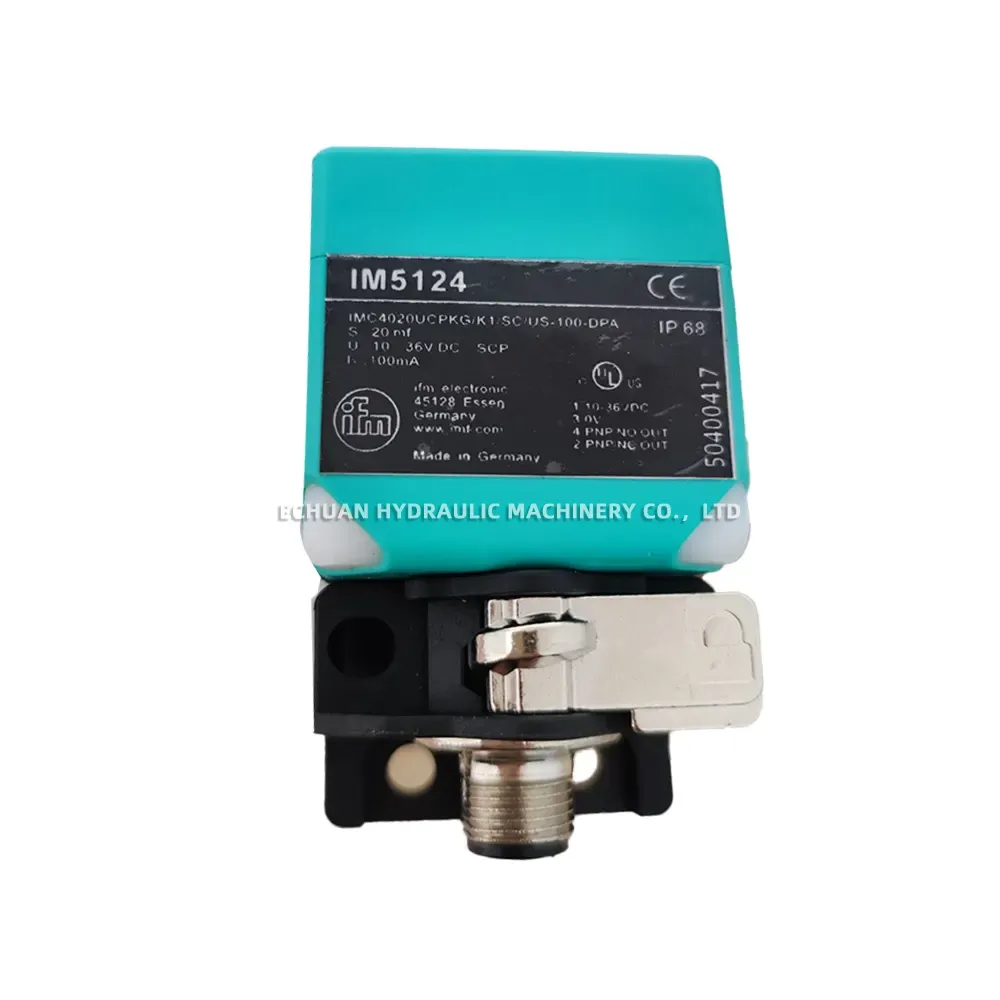

ifm IM5124 Inductive Proximity Sensor
The ifm IM5124 (order code: IMC4020UCPKG/K1/SC/US-100-DPA) is a highly reliable inductive proximity sensor from the efector100 series, engineered for precision non-contact sensing in demanding industrial automation applications. Manufactured in Germany, this sensor features a durable rectangular housing equipped with a robust metal mounting bracket for secure, vibration-resistant installation. It provides a generous sensing range of 20 mm and operates efficiently on a 10 to 36 V DC power supply. Designed to withstand harsh industrial environments, the IM5124 boasts an IP68 protection rating, ensuring maximum resistance to dust and moisture ingress. With its complementary PNP switching outputs, standard M12 connection, and integrated short-circuit protection (SCP), it delivers consistent, safe, and accurate operational performance.
Technical Specifications:
- Brand: ifm electronic
- Model: IM5124
- Order Code: IMC4020UCPKG/K1/SC/US-100-DPA (efector100 series)
- Sensing Distance (Sn): 20 mm
- Operating Voltage: 10…36 V DC
- Rated Current: 100 mA
- Output Function: PNP Complementary (Pin 4: NO / Pin 2: NC)
- Protection Features: Short-Circuit Protection (SCP)
- Connection: M12 Round Connector
- Housing Design: Rectangular with metal mounting bracket
- Protection Rating: IP 68
- Approvals: CE, CCC, UL Listed
- Country of Origin: Made in Germany
ifm IM5124 Inductive Proximity Sensor
Optimize your industrial automation with the genuine ifm IM5124 (IMC4020UCPKG) inductive proximity sensor. Featuring a 20mm sensing range, PNP complementary outputs, rugged IP68 protection, and a standard M12 connector, this German-made efector100 sensor ensures reliable and long-lasting object detection.
| Brand | Ifm |
|---|---|
| Model | IM5124 |
| Part No. | 673092458220 |
| Category | Electrical |
