Product Description

IFM O1D405

The IFM O1D405 is a high-performance photoelectric distance sensor that utilizes PMD (Photonic Mixer Device) time-of-flight technology for precise and reliable object detection. It offers a long sensing range of up to 2 meters, largely independent of the target’s color or surface finish. With its excellent background suppression and high excess gain, the O1D405 performs reliably even in challenging industrial environments with steam, smoke, or dust. The sensor features a visible class 1 laser light for easy alignment and a robust stainless steel housing, making it a durable solution for various automation tasks such as presence detection, level monitoring, and positioning.

Technical Specifications:

  • Sensing range: 0.03…2 m (on white paper 90% remission)

  • Electrical design: PNP

  • Output function: Normally open / normally closed; (programmable)

  • Operating voltage: 10…30 V DC

  • Light source: Laser light, red light, wavelength 650 nm

  • Laser protection class: 1

  • Protection: IP 67

  • Connection: M12 connector

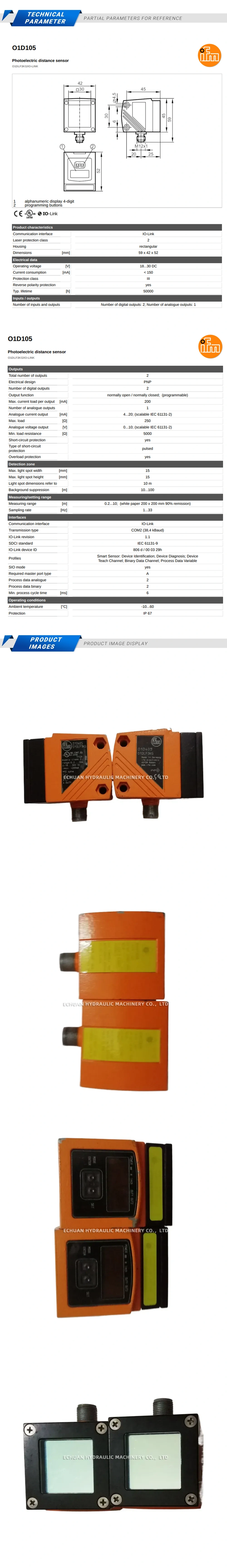

IFM O1D405 Description

IFM O1D405

Discover the IFM O1D405 photoelectric distance sensor, featuring PMD time-of-flight technology for reliable object detection up to 2m. Ideal for industrial automation with superior background suppression and a robust IP67-rated housing.
