Product Description

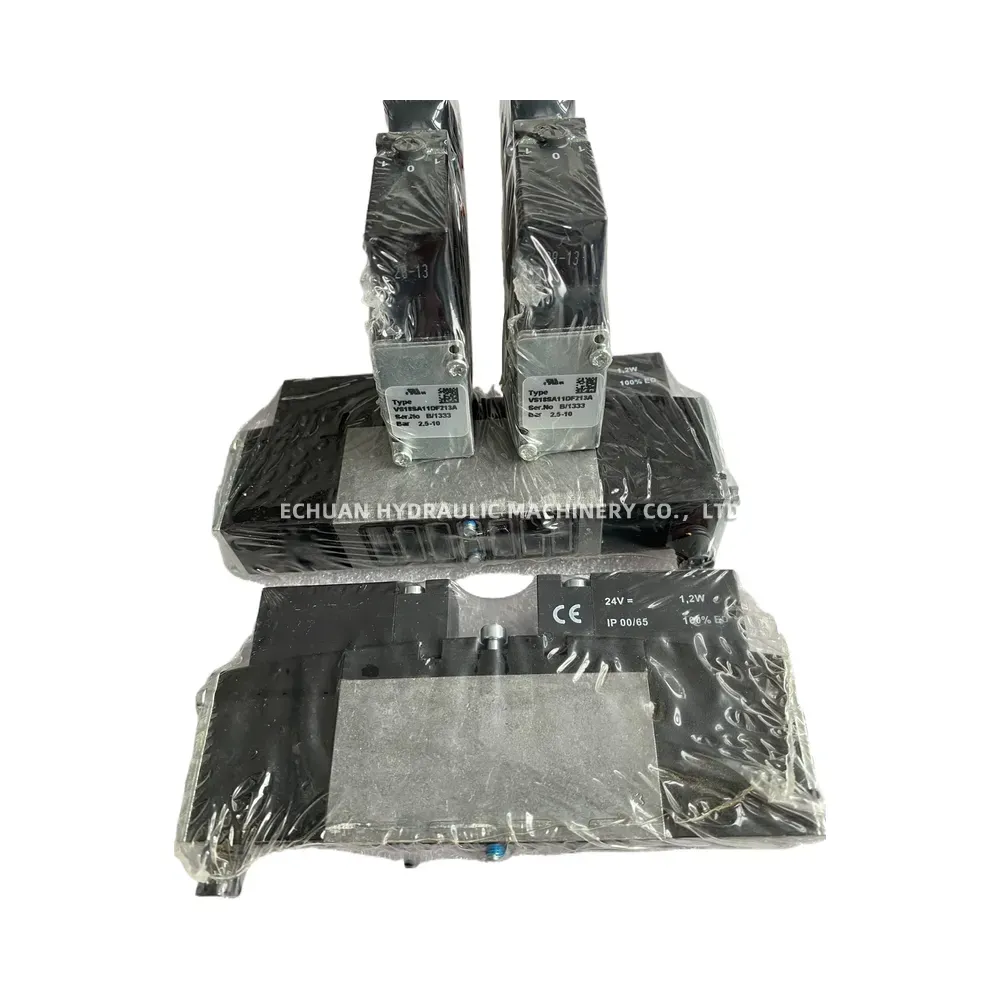

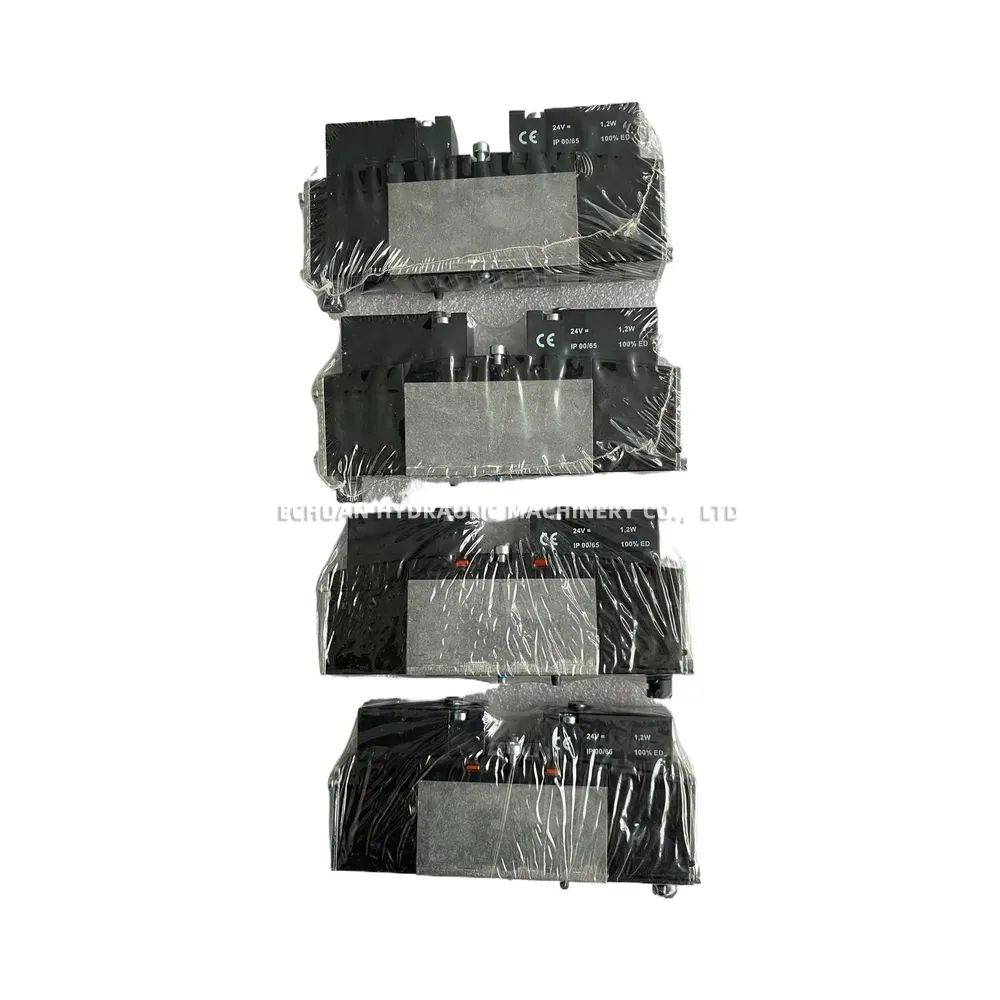

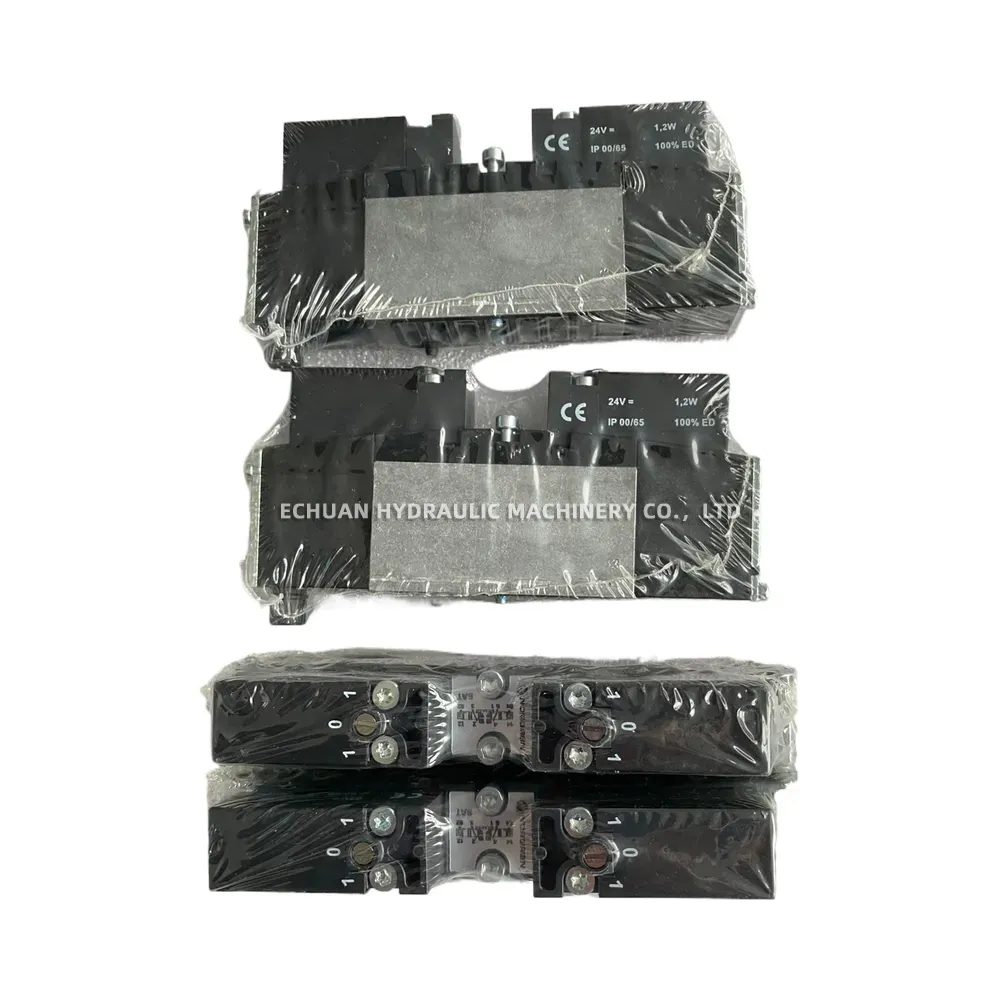

IMI NORGREN VS18SA11DF213A
The IMI Norgren VS18SA11DF213A is a high-performance VS18 series solenoid valve designed for industrial pneumatic control applications. This model is a 5/2 single solenoid valve with spring return, featuring G1/8 port connections. It utilizes an integrated electrical connector (DIN Form C) for easy installation and maintenance. The VS series valves are known for their compact design, high flow rates, long life, and modularity, allowing for flexible system configuration on manifold bases or as standalone units. This specific configuration is typically used to control the actuation of double-acting pneumatic cylinders or similar devices.

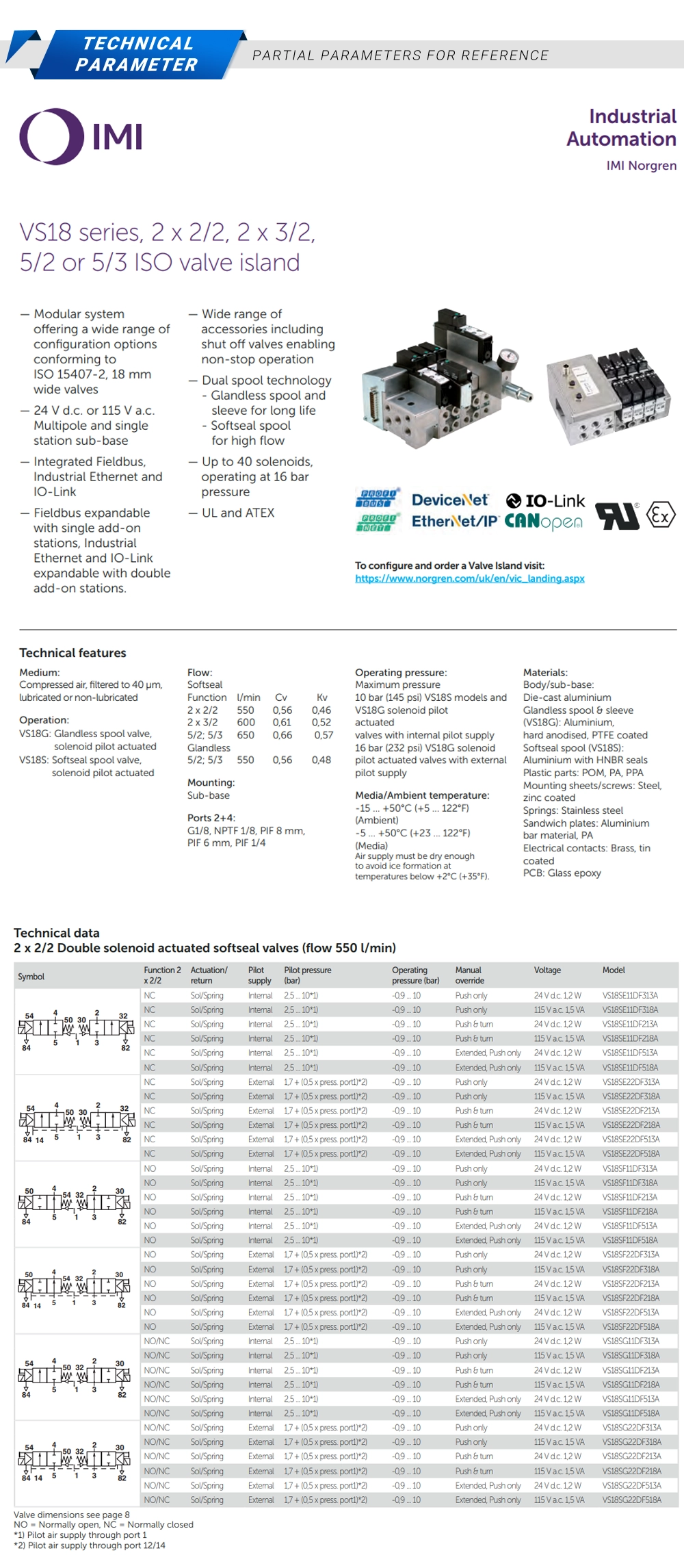

Technical Specifications:
- Valve Function: 5/2 Single Solenoid, Spring Return
- Series: VS18
- Port Size: G1/8
- Actuation Type: Solenoid/Spring
- Operating Pressure: -0.9 to 10 bar (-13 to 145 psi)
- Flow Rate (Kv): 0.57 m³/h
- Flow Rate (Cv): 0.67 US gpm
- Voltage: 24V DC
- Power Consumption: 1.2 W
- Electrical Connection: DIN Form C (EN 175301-803)
- Medium: Filtered, lubricated or non-lubricated compressed air
- Operating Temperature: -10°C to +50°C (+14°F to +122°F)
- IP Rating: IP65 (with correctly fitted connector)
- Body Material: Aluminium
- Seals Material: NBR (Nitrile Rubber)
IMI NORGREN VS18SA11DF213A
Model:IMI NORGREN VS18SA11DF213A
| Brand | IMI NORGREN |
|---|---|
| Model | VS18SA11DF213A |
| Part No. | IMI NORGREN VS18SA11DF213A |
| Category | Hydraulic valves |
