Product Description

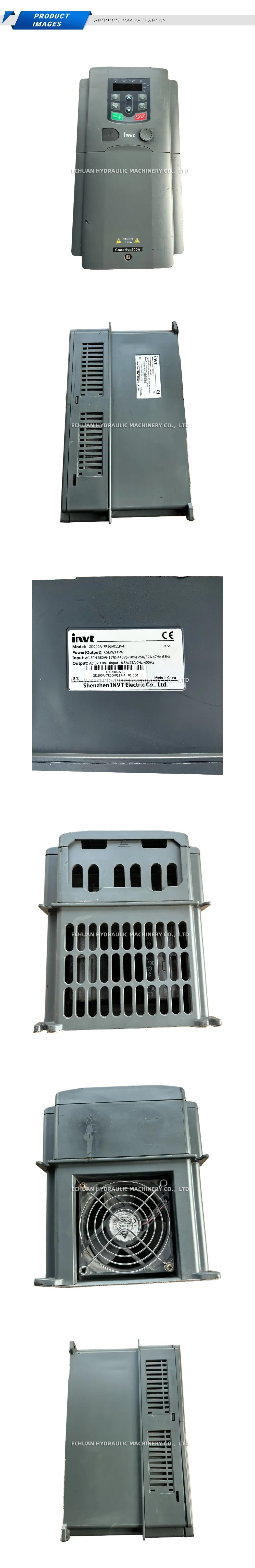

INVT GD200A-7R5G/011P-4
The INVT GD200A-7R5G/011P-4 is a high-performance, open-loop vector control inverter designed for a wide range of industrial applications. Part of the Goodrive200A series, this versatile Variable Frequency Drive (VFD) offers excellent motor control, reliability, and user-friendly operation. It features advanced control modes, including Sensorless Vector Control (SVC) and V/F control, ensuring precise and efficient motor speed regulation. With a dual power rating for both general-purpose (G-type) and pump/fan (P-type) loads, an integrated braking unit, and robust protection features, the GD200A is an ideal solution for optimizing energy consumption and improving process control in machinery, manufacturing, and HVAC systems.
Technical Specifications:
- Model: GD200A-7R5G/011P-4
- Input Voltage: 3-Phase 380V (-15%) ~ 440V (+10%)
- Applicable Motor Power (G-type): 7.5 kW
- Applicable Motor Power (P-type): 11 kW
- Rated Output Current (G-type): 17 A
- Rated Output Current (P-type): 23 A
- Control Mode: Sensorless Vector Control (SVC), V/F Control
- Braking Unit: Built-in
INVT GD200A-7R5G/011P-4
Buy the INVT GD200A-7R5G/011P-4, a 7.5kW/11kW 400V 3-phase Variable Frequency Drive (VFD). This high-performance inverter features open-loop vector control for general purpose and pump/fan applications.
