Product Description

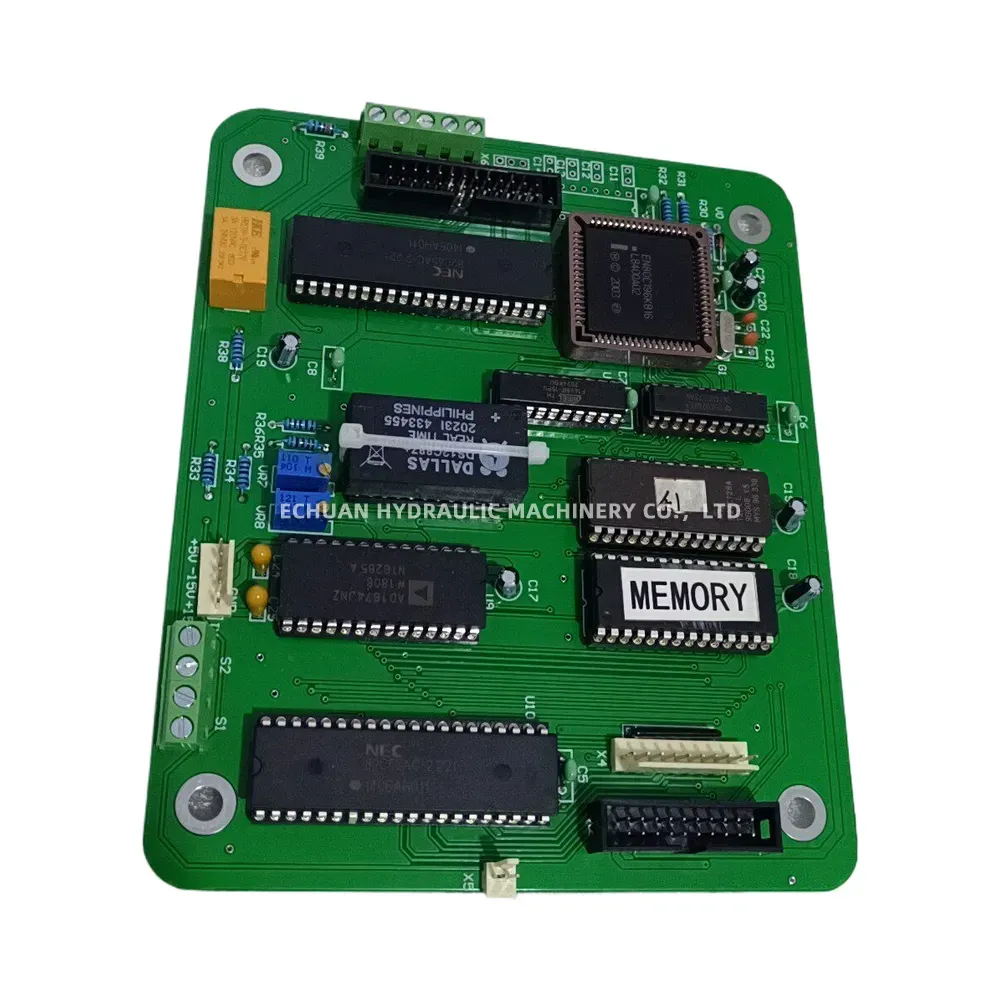

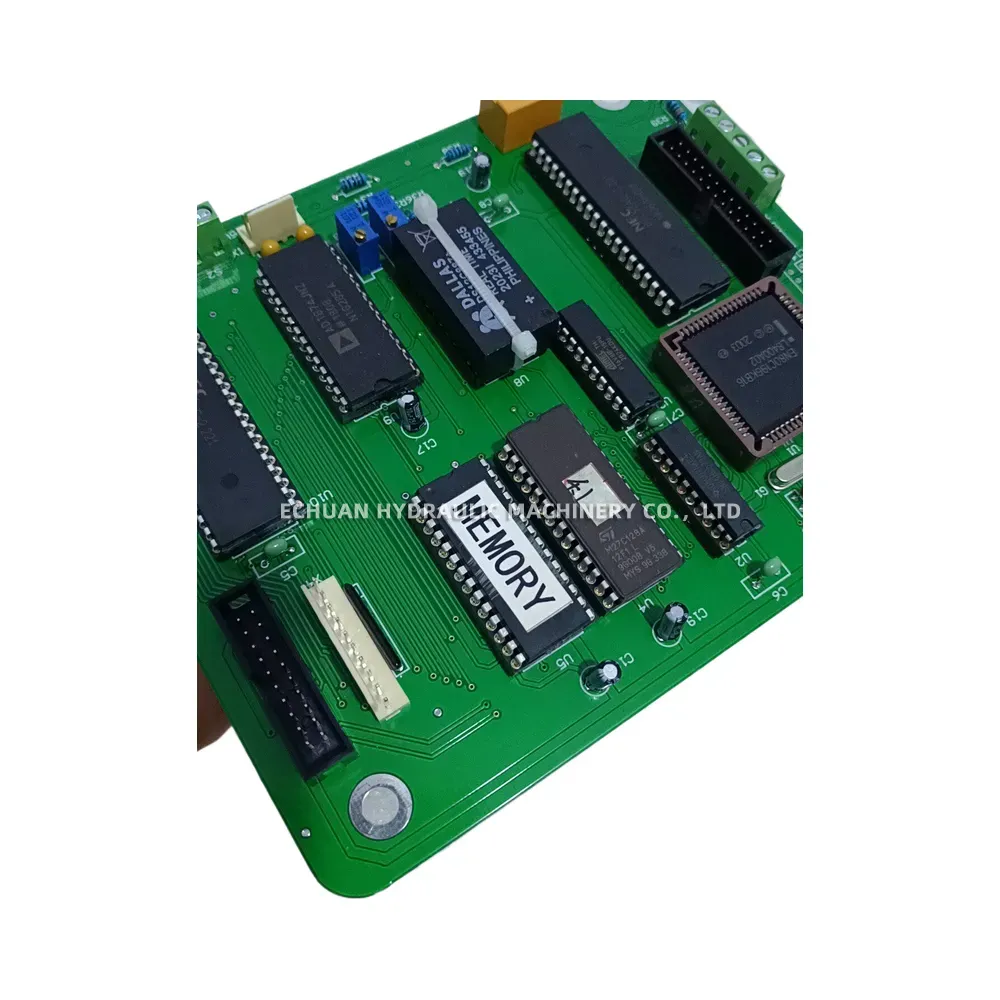

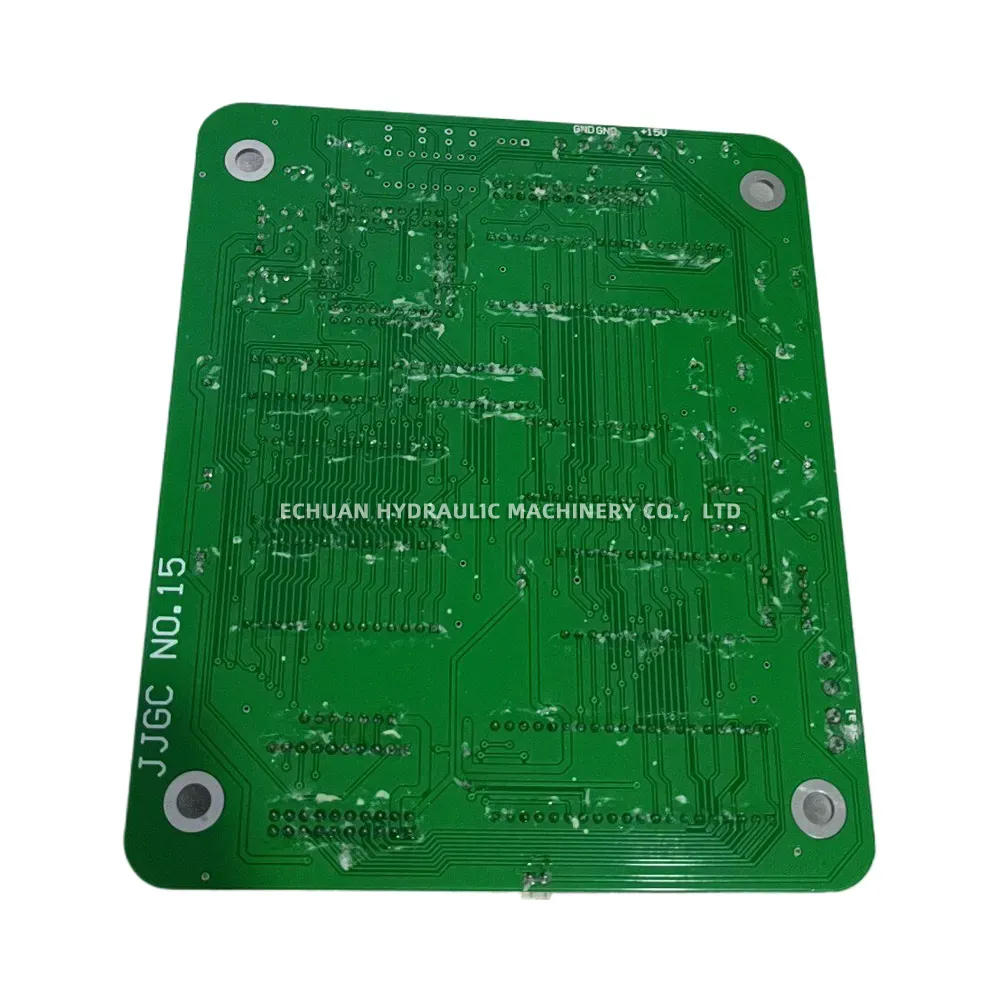

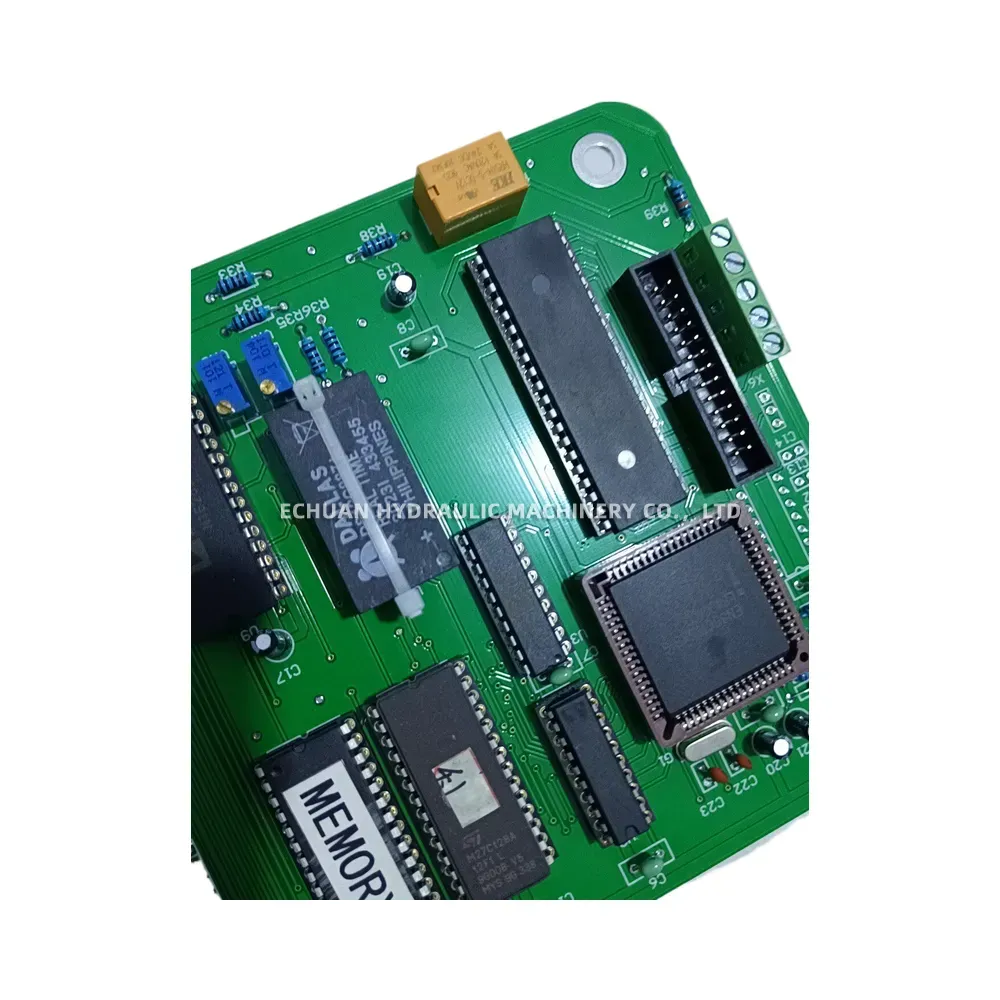

JJGC NO.15 Circuit Board / PCB Assembly

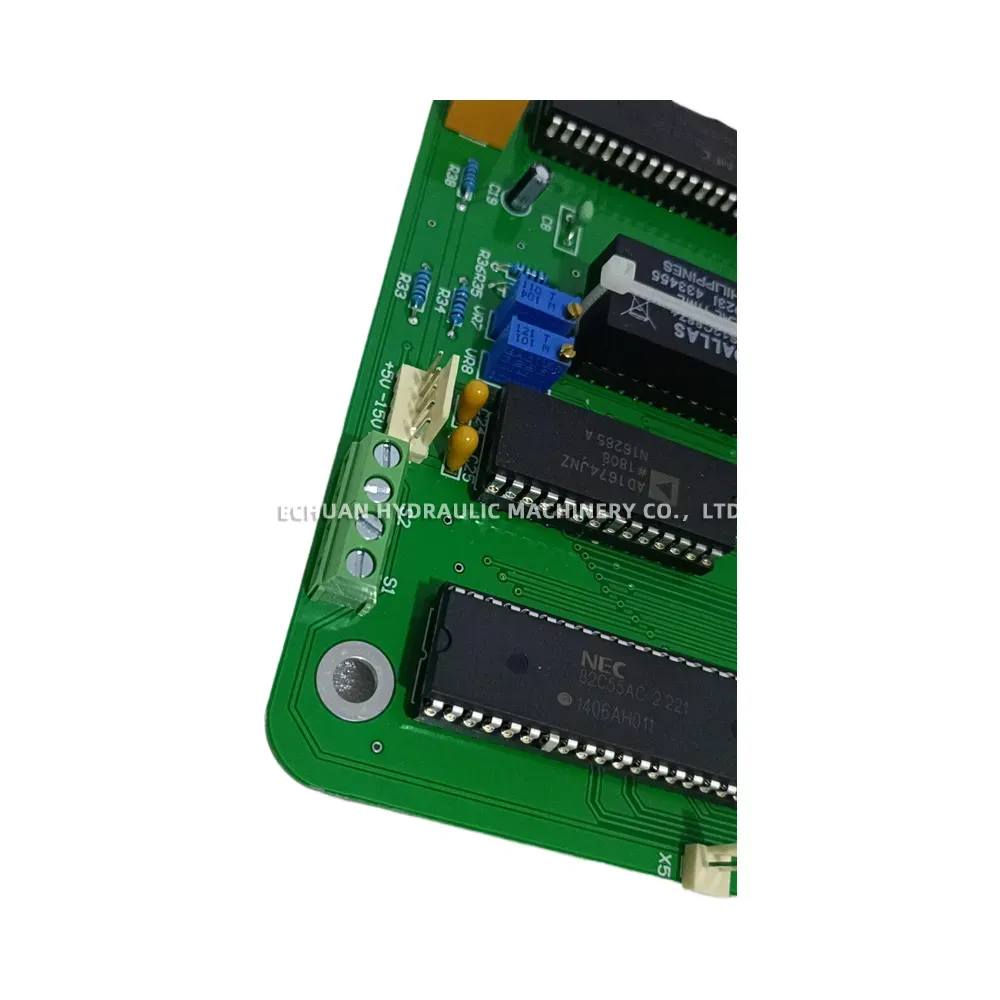

The JJGC NO.15 Circuit Board is a robust industrial printed circuit board (PCB) assembly designed for complex control applications and legacy equipment maintenance. It is driven by an EN80C196KB16 16-bit microcontroller and utilizes a comprehensive suite of high-quality integrated circuits to ensure reliable system operation. Key on-board components include a Dallas DS12C887 Real-Time Clock (RTC) module for accurate data logging and timekeeping, an AD1674JNZ 12-bit analog-to-digital converter for precise signal processing, and NEC 82C55AC-2 programmable peripheral interface chips. Engineered to operate with +5V and -15V power inputs, this fully populated green PCB is equipped with terminal blocks, pin headers, and onboard DIP switches (S1, S2) for versatile industrial integration and configuration.
Technical Specifications:
- Model: JJGC NO.15

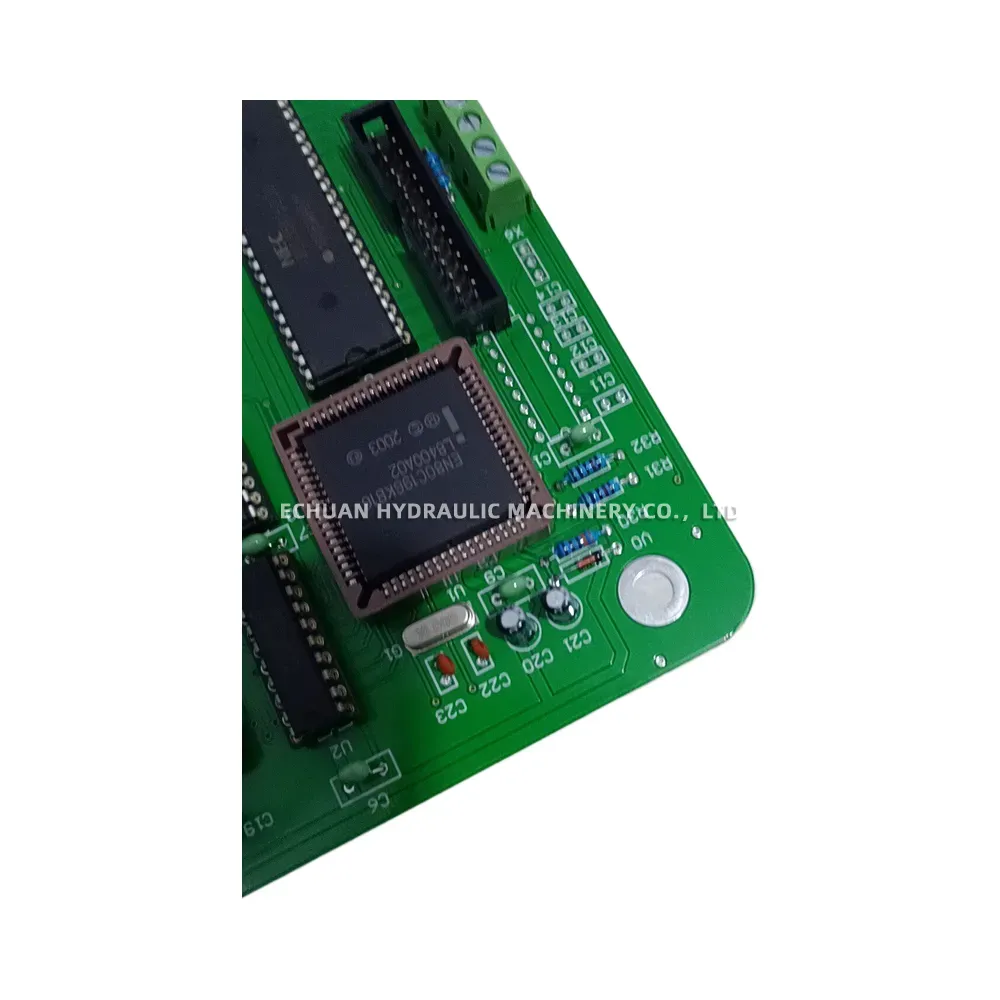

- Microcontroller: EN80C196KB16 (16-bit MCU)
- Real-Time Clock (RTC): Dallas DS12C887
- A/D Converter: AD1674JNZ (12-bit Analog-to-Digital Converter)
- Peripheral Interface: NEC 82C55AC-2
- Power Requirements: +5V, -15V DC
- Hardware Configuration: S1 & S2 DIP switches, terminal blocks, and pin headers
JJGC NO.15 Circuit Board / PCB Assembly
Maintain and repair your industrial control systems with the JJGC NO.15 Circuit Board Assembly. Featuring an EN80C196KB16 MCU, Dallas DS12C887 RTC, and AD1674JNZ ADC, this highly reliable replacement PCB delivers precision processing and seamless integration for legacy industrial machinery.
| Model | JJGC NO.15 |
|---|---|
| Part No. | 1020372056254 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/jjgc-no-15-circuit-board-pcb-assembly |
