Product Description

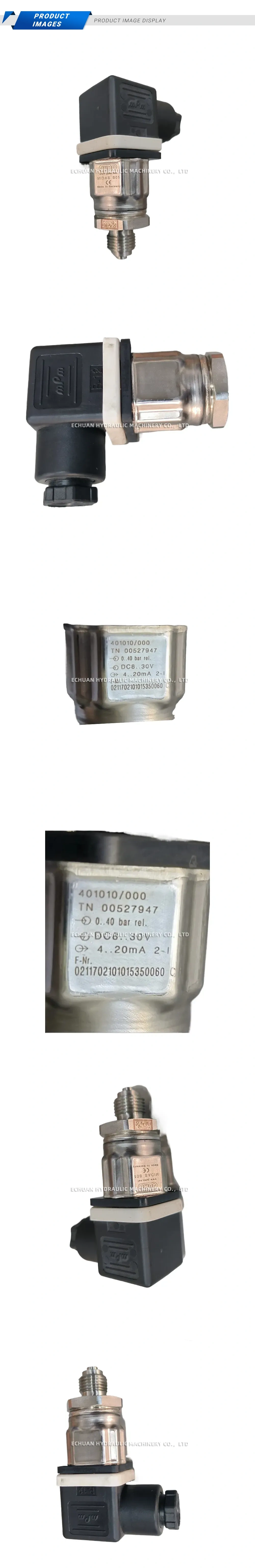

Jumo MIDAS S05
The JUMO MIDAS S05 is a versatile and reliable pressure transmitter designed for a wide range of industrial applications. Featuring a high-quality piezoresistive silicon sensor, it delivers precise and stable measurements. Its robust stainless steel construction ensures durability and long-term performance, even in demanding environments. The compact design allows for easy installation in space-constrained areas. With a variety of available measuring ranges, process connections, and electrical outputs, the MIDAS S05 can be configured to meet specific application requirements in fields such as mechanical engineering, hydraulics, and pneumatics.
Technical Specifications:
- Measuring Ranges: 0 to 1.6 bar up to 0 to 60 bar (relative); 0 to 1 bar up to 0 to 25 bar (absolute)
- Output Signal: 4 to 20 mA (2-wire), 0 to 10 V (3-wire), DC 0.5 to 4.5 V ratiometric
- Accuracy: ≤ 0.5 % of span (linearity)
- Medium Temperature Range: -30 to +125 °C
Jumo MIDAS S05
High-quality Jumo MIDAS S05 pressure transmitter for industrial applications. Features a robust stainless steel design, high accuracy, and various measuring ranges for reliable pressure monitoring.
