Product Description

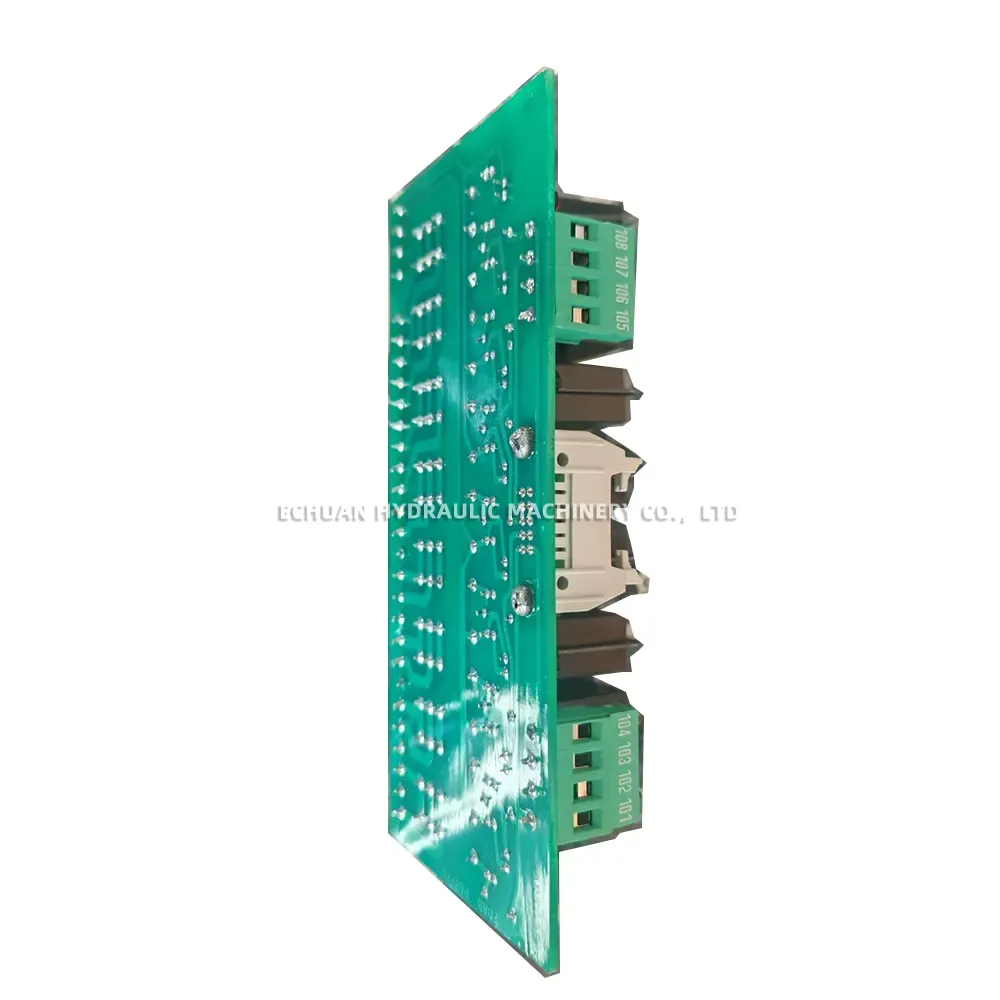

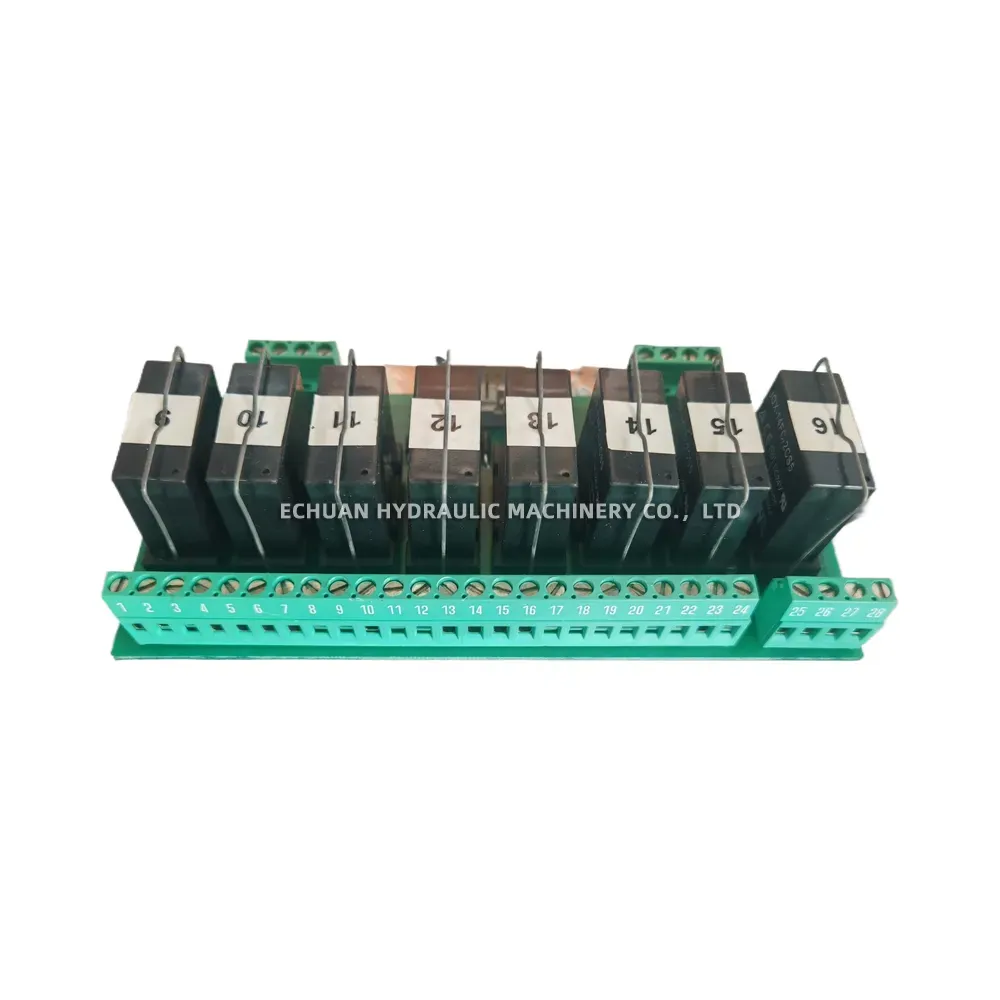

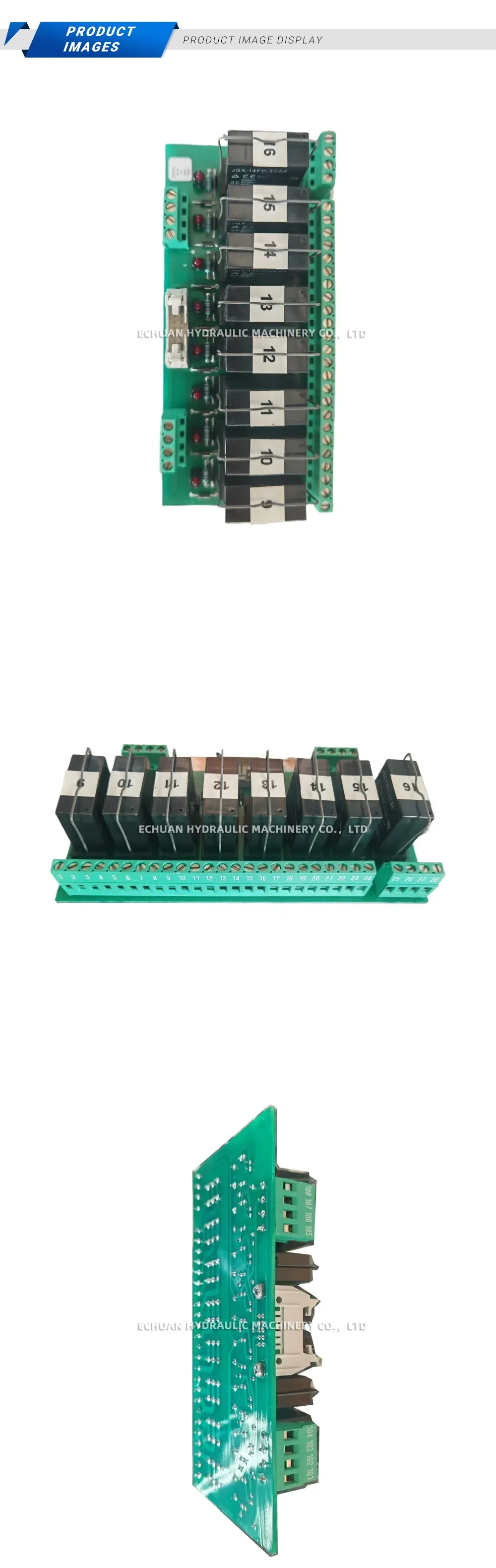

Kangshilian NSAC-1 16-Channel Relay Module
The Kangshilian NSAC-1 is a robust 16-channel industrial relay output board designed for reliable switching in automation and control systems. It operates on a 24VDC control voltage, making it compatible with standard PLC outputs and other industrial controllers. Each of the 16 channels is equipped with a high-quality JQX-14FC-2C55 DPDT relay, providing flexible normally open (NO) and normally closed (NC) contacts for a wide range of applications. The board features individual LED status indicators for each channel, allowing for quick visual diagnostics of relay states. Connections are simplified with green screw terminal blocks for power and load wiring, and a multi-pin connector for streamlined control signal input, ensuring secure and efficient installation in any control panel.
Technical Specifications:
- Model: NSAC-1
- Brand: Kangshilian
- Number of Channels: 16
- Control Signal Voltage: 24V DC
- Onboard Relay Model: JQX-14FC-2C55
- Contact Form: DPDT (Double Pole Double Throw) per channel
- Contact Rating (per relay): 5A @ 250V AC / 5A @ 30V DC
- Features: Individual LED status indicator for each relay
- Connections: Screw terminals for load, multi-pin header for control input
Kangshilian NSAC-1 16-Channel Relay Module
Discover the Kangshilian NSAC-1, a 16-channel industrial relay module with 24VDC control. Features high-performance JQX-14FC-2C55 DPDT relays, LED indicators, and screw terminals. Ideal for PLC output expansion and automation control.
