Product Description

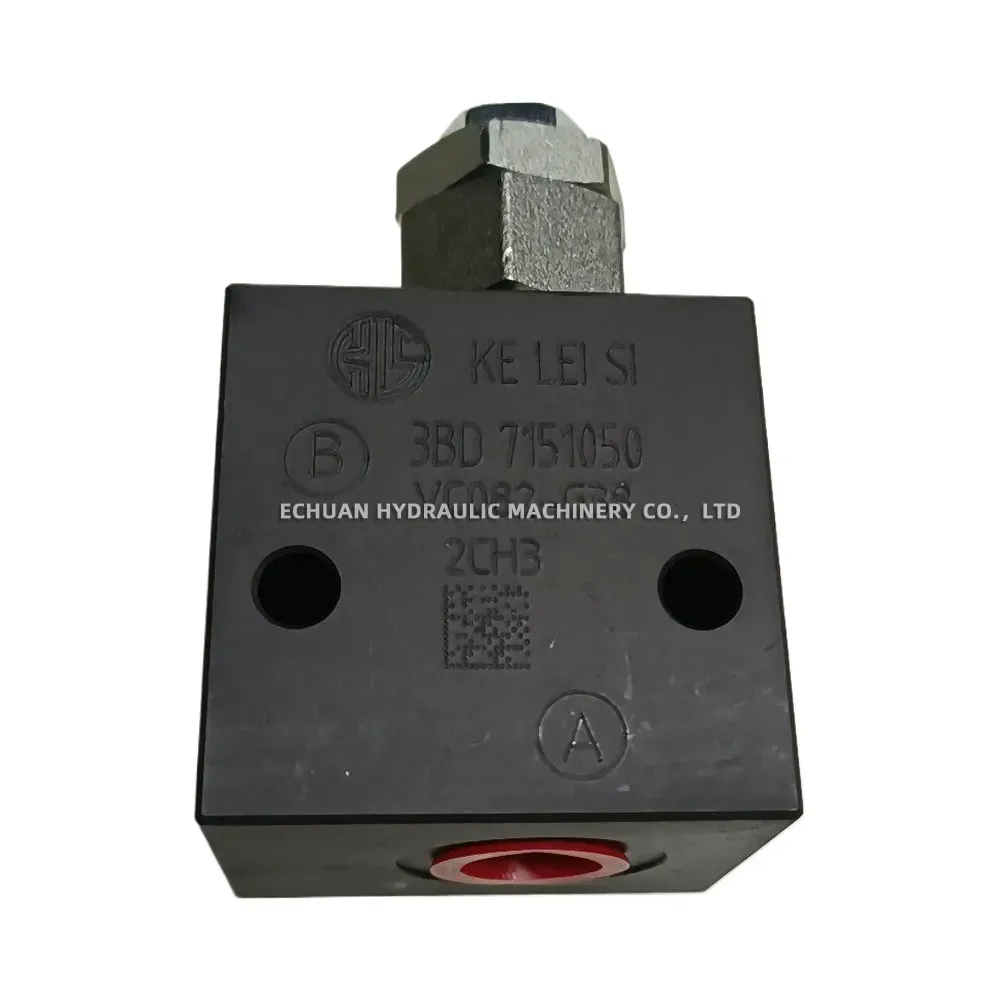

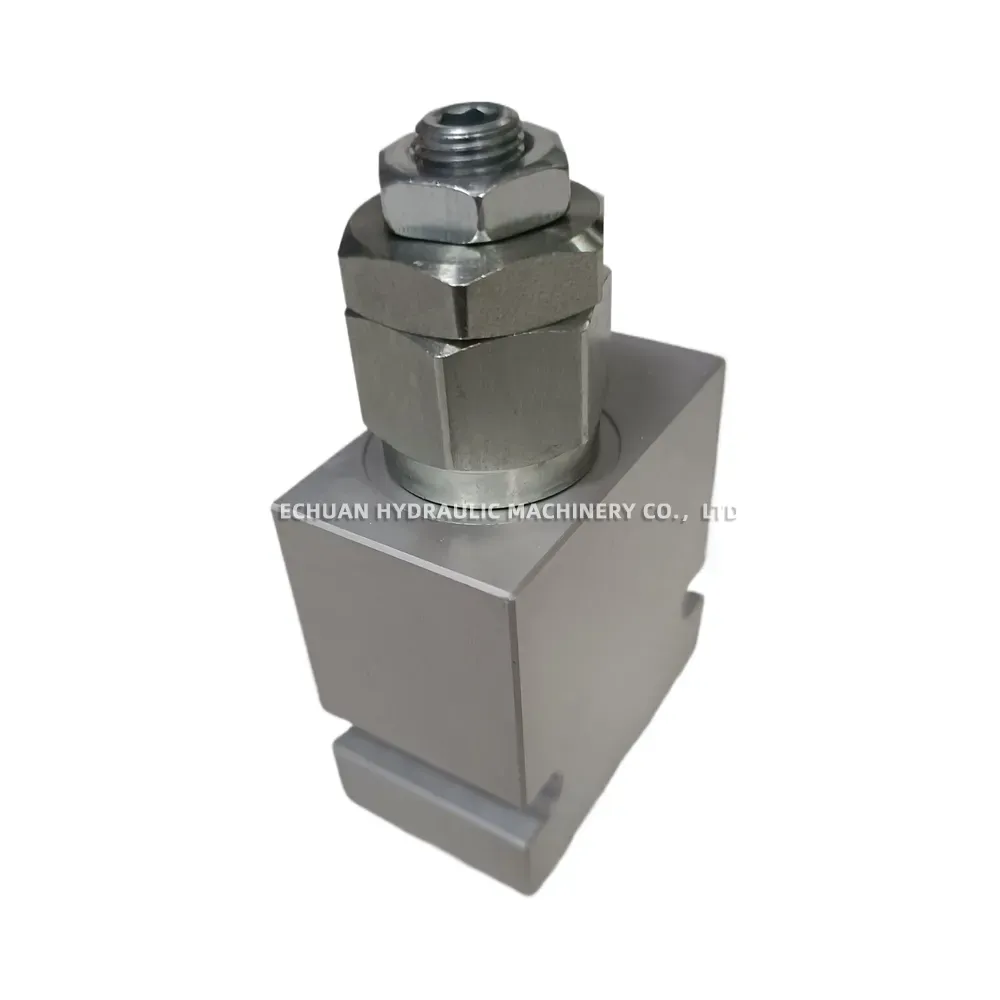

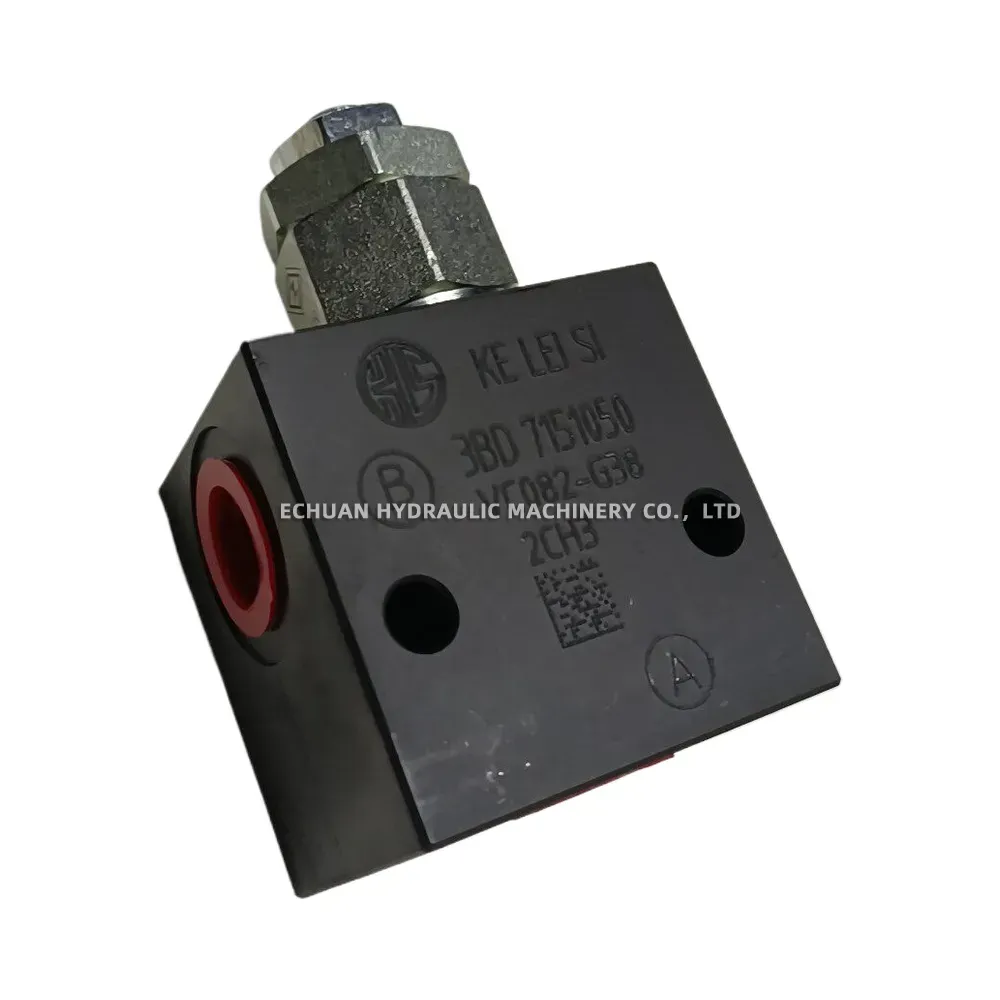

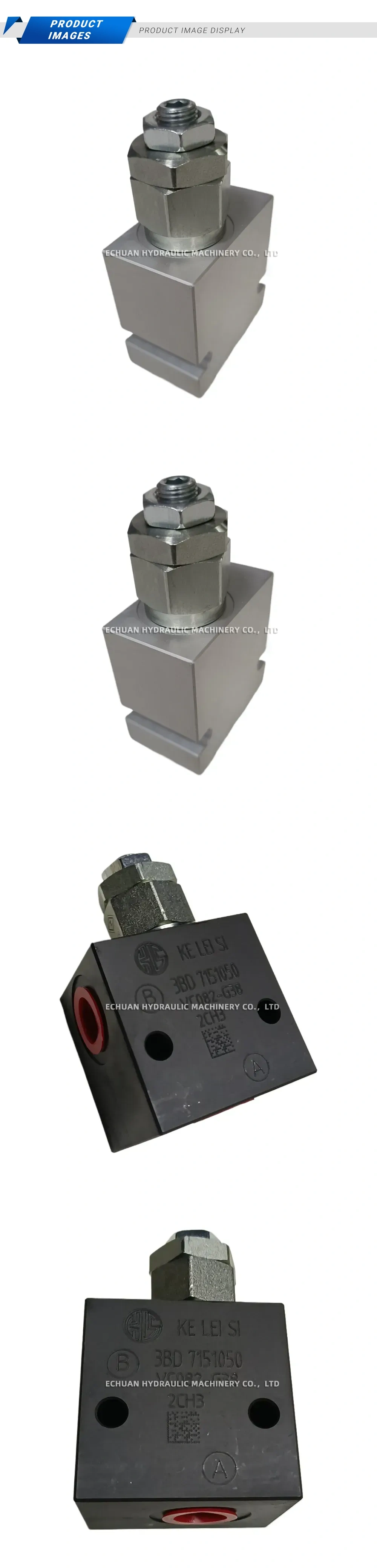

KE LEI SI RV2-08 / VC082-G38 Hydraulic Pressure Relief Valve with Manifold Block
The KE LEI SI RV2-08 / VC082-G38 is a high-performance, low-noise screw-in type hydraulic pressure relief valve integrated with a highly durable black steel manifold block. Engineered for precise hydraulic fluid control and reliable system protection, this valve features a hex adjustment screw and lock nuts for secure and accurate pressure calibration. It offers a versatile pressure setting range of 5 to 300 bar, accommodating flow capacities of 11 L/min or 30 L/min to suit various system requirements. The robust manifold block is equipped with standard G3/8 threaded ports (A and B) and two pre-drilled mounting holes for quick, secure installation. This assembly is an ideal solution for industrial and mobile hydraulic applications demanding dependable overpressure protection and long-lasting performance.
Technical Specifications:
- Brand: KE LEI SI
- Model: RV2-08 (Valve Cartridge) / VC082-G38 (Manifold Block)
- Valve Type: Low-noise screw-in hydraulic pressure relief valve
- Adjustment Mechanism: Hex adjustment screw with lock nuts
- Pressure Setting Range: 5 – 300 bar (Max 250 bar for 11 L/min version; Max 300 bar for 30 L/min version)
- Flow Capacity: 11 L/min / 30 L/min
- Port Connections: G3/8 threaded ports (Ports A and B)
- Manifold Material: Heavy-duty black steel
- Mounting: Two pre-drilled mounting holes on the manifold block
- Component Markings: RV2-08, VC082-G38, (B) 3BD 7151050, 2CH3, (A)
KE LEI SI RV2-08 / VC082-G38 Hydraulic Pressure Relief Valve with Manifold Block
Enhance your hydraulic system’s safety and efficiency with the KE LEI SI RV2-08 / VC082-G38 Hydraulic Pressure Relief Valve. Featuring a durable black steel manifold block with standard G3/8 ports, this low-noise, adjustable valve provides reliable overpressure protection up to 300 bar and supports flow rates up to 30 L/min. Perfect for demanding industrial and mobile hydraulic applications.
| Brand | KE LEI SI |
|---|---|
| Model | RV2-08 / VC082-G38 |
| Part No. | 677160985874 |
| Category | Hydraulic valves |
