Product Description

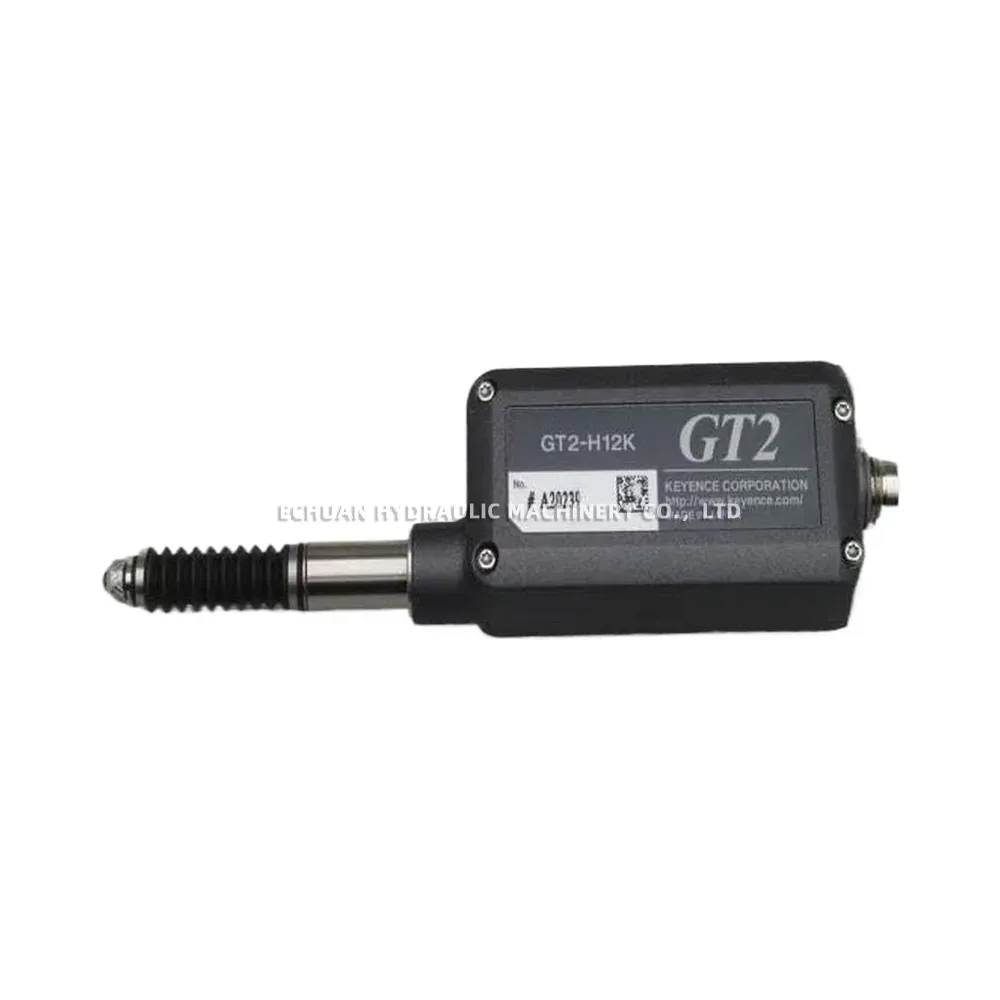

Keyence GT2-H12K Digital Probe / Contact Displacement Sensor

The Keyence GT2-H12K is a high-accuracy, low measuring force digital contact sensor designed for demanding industrial applications. Part of the robust GT2 series, this sensor provides exceptional precision with a 0.1 µm resolution and a 12 mm measuring range. Its IP67G-rated enclosure ensures reliable performance even in harsh environments with exposure to water, oil, and dust. The GT2-H12K is engineered for longevity and stability, featuring a durable linear ball bearing system and a carbide tip, making it an ideal solution for automated quality control, part inspection, and dimensional gauging where accuracy and repeatability are critical.

Technical Specifications:

  • Measuring Range: 12 mm

  • Resolution: 0.1 µm

  • Repeatability: 0.2 µm

  • Measuring Force (Spindle Down): 0.8 N

  • Protection Rating: IP67G (NEMA Type 13)

  • Spindle Type: Linear ball bearing

  • Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude

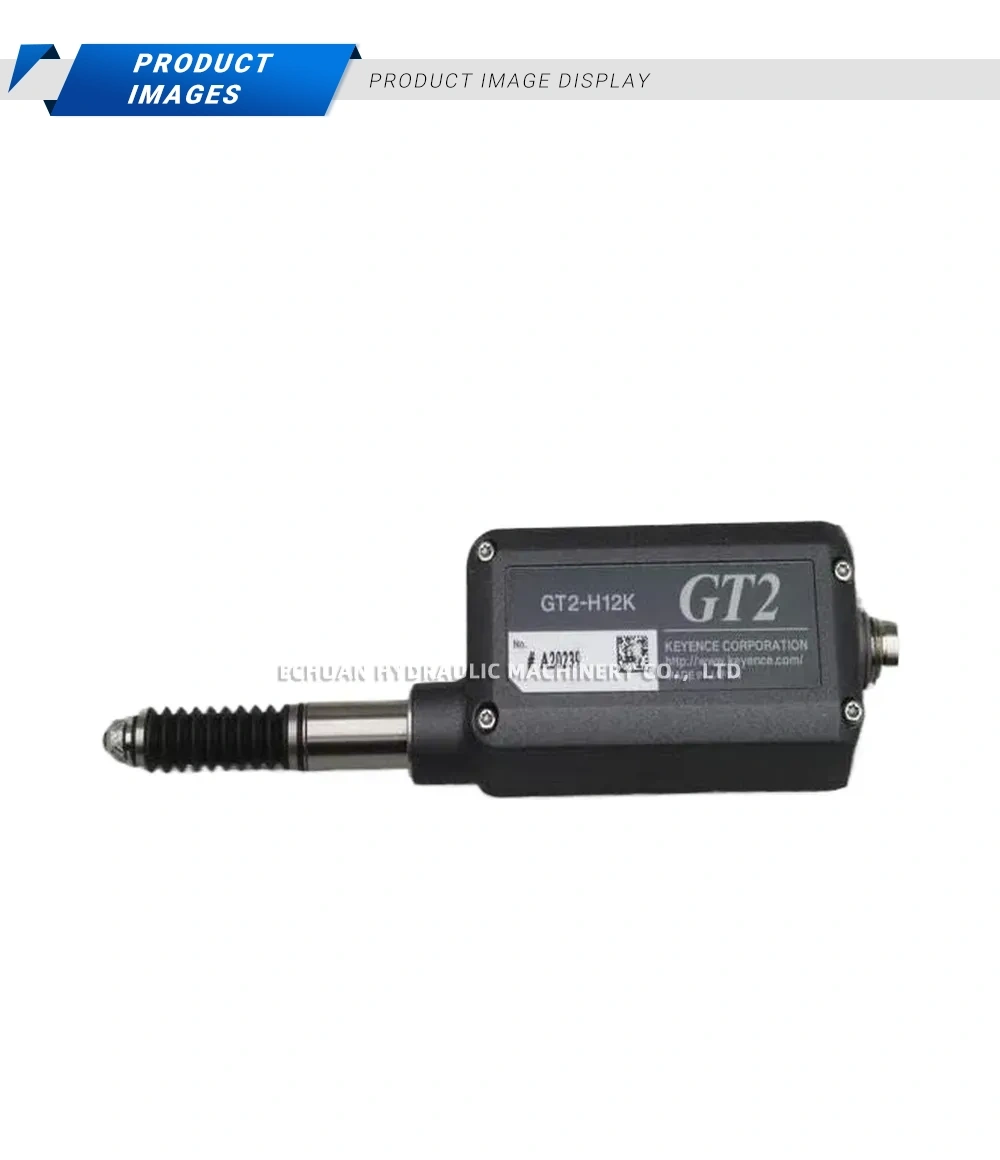

Keyence GT2-H12K Digital Probe / Contact Displacement Sensor Description

Keyence GT2-H12K Digital Probe / Contact Displacement Sensor

Discover high-precision measurement with the Keyence GT2-H12K Digital Probe. This IP67G-rated contact displacement sensor offers a 12 mm range, 0.1 µm resolution, and low measuring force for reliable, non-destructive gauging in industrial automation and quality control.

BrandKEYENCE
ModelGT2-H12K
Part No.959051379392
CategoryOther products
Linkhttps://www.echuan-hydraulic.com/product/keyence-gt2-h12k-digital-probe-contact-displacement-sensor
