Product Description

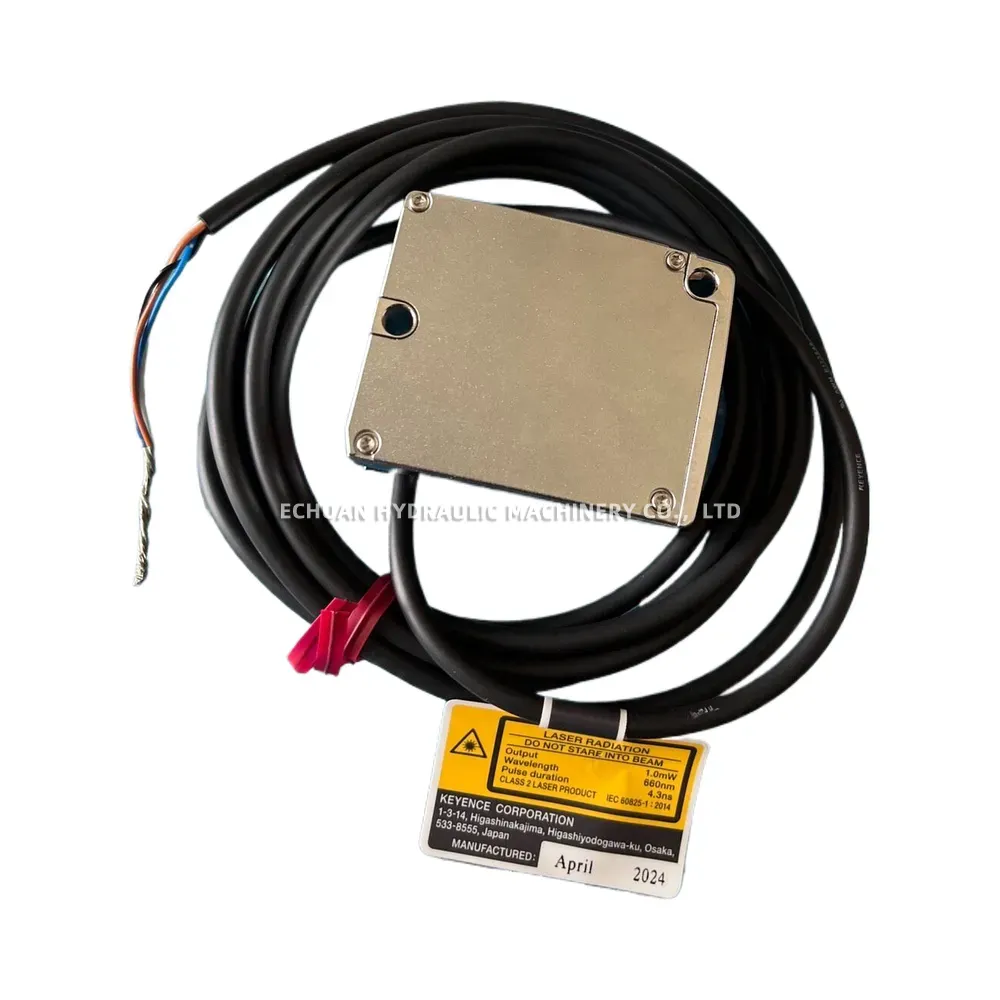

KEYENCE LR-TB5000 Long-range Laser Sensor
The KEYENCE LR-TB5000 is an advanced, highly versatile long-range laser sensor designed for precise and reliable detection in demanding industrial environments. Utilizing Time-of-Flight (TOF) technology, this sensor ensures stable target detection regardless of color, surface finish, or angle. The LR-TB5000 is equipped with IO-Link communication for seamless integration into smart factory systems and provides flexible configuration with dual outputs, including digital (50mA) and analog (4-20mA / 0-10V) options, as well as an external input. Featuring a highly visible Class 2 red laser for easy alignment and a durable 5-meter pre-wired cable, it meets strict global safety standards and delivers exceptional performance for automation applications.
Technical Specifications:
- Brand: KEYENCE
- Model: LR-TB5000
- Power Supply: 20-30V DC (Class 2 or LPS / max 150mA)
- Communication Protocol: IO-Link

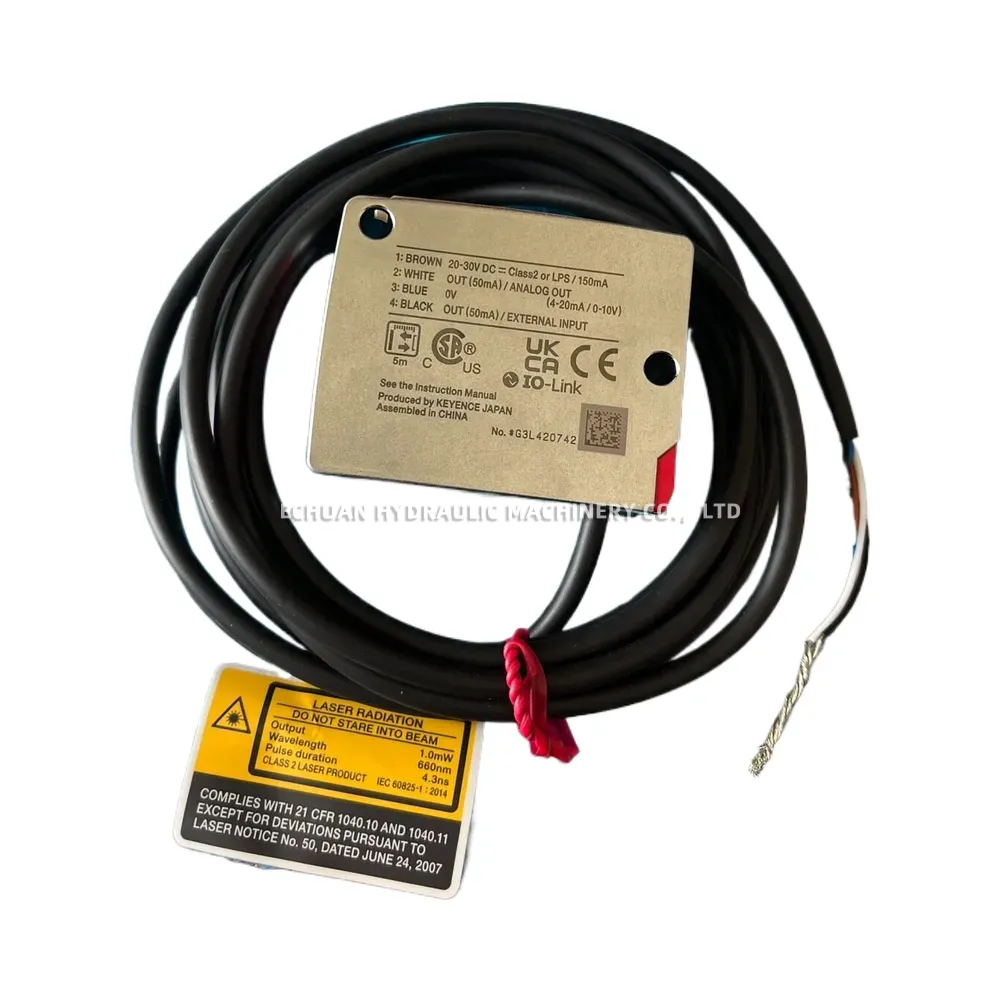

- Output 1 (White Wire): OUT (50mA) / ANALOG OUT (4-20mA / 0-10V)
- Output 2 (Black Wire): OUT (50mA) / EXTERNAL INPUT
- Light Source: Visible red laser (Wavelength: 660nm)
- Laser Specifications: Class 2, Output 1.0mW, Pulse duration 4.3ns
- Safety Compliance: IEC 60825-1:2014, 21 CFR 1040.10 and 1040.11
- Connection Type: Pre-wired cable (Length: 5m)
KEYENCE LR-TB5000 Long-range Laser Sensor
Shop the KEYENCE LR-TB5000 Long-range Laser Sensor. This industrial TOF sensor features IO-Link communication, a 5m pre-wired cable, a Class 2 visible red laser (660nm), and versatile analog/digital outputs for precise, reliable distance detection and automation control.
