Product Description
Keyence LR-W500C Self-Contained CMOS Laser Sensor
The Keyence LR-W500C is a high-performance, self-contained CMOS laser sensor designed for versatile and reliable detection in industrial applications. This full-spectrum sensor can detect targets based on color, gloss, or surface finish, making it exceptionally adaptable. It features a long detection range of up to 500 mm and a robust IP65/IP67-rated metal housing, ensuring durability in harsh environments. The LR-W500C is engineered for simple setup and stable detection, capable of identifying even the slightest differences in surface conditions, making it an ideal solution for complex automation tasks such as part verification, positioning, and quality control.

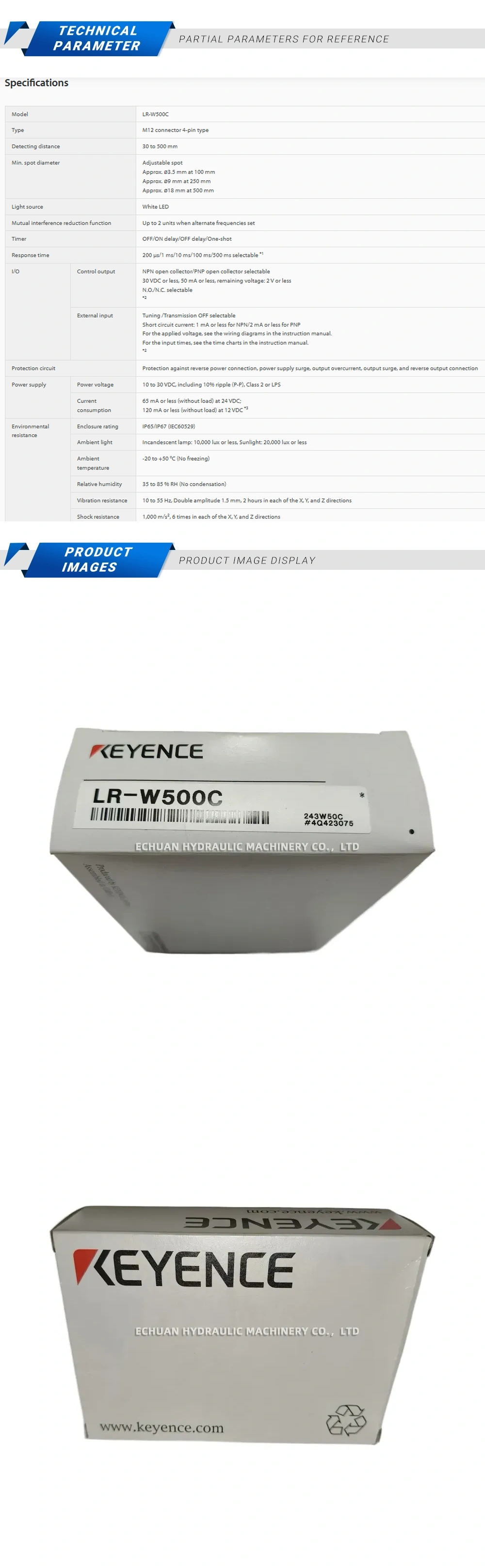

Technical Specifications:
- Model: LR-W500C (Cable type)
- Detectable Distance: 30 to 500 mm (1.18″ to 19.69″)
- Light Source: White LED
- Response Time: 200 µs / 1 ms / 10 ms / 100 ms / 500 ms (selectable)
- Control Output: NPN/PNP open collector (selectable), max. 100 mA/ch
- Power Voltage: 10 to 30 VDC, including 10% ripple (P-P)
- Enclosure Rating: IP65/IP67 (IEC60529)
Keyence LR-W500C
Discover the Keyence LR-W500C, a versatile self-contained CMOS laser sensor for reliable color, gloss, and surface detection up to 500mm. Features a durable IP67 metal housing.
