Product Description

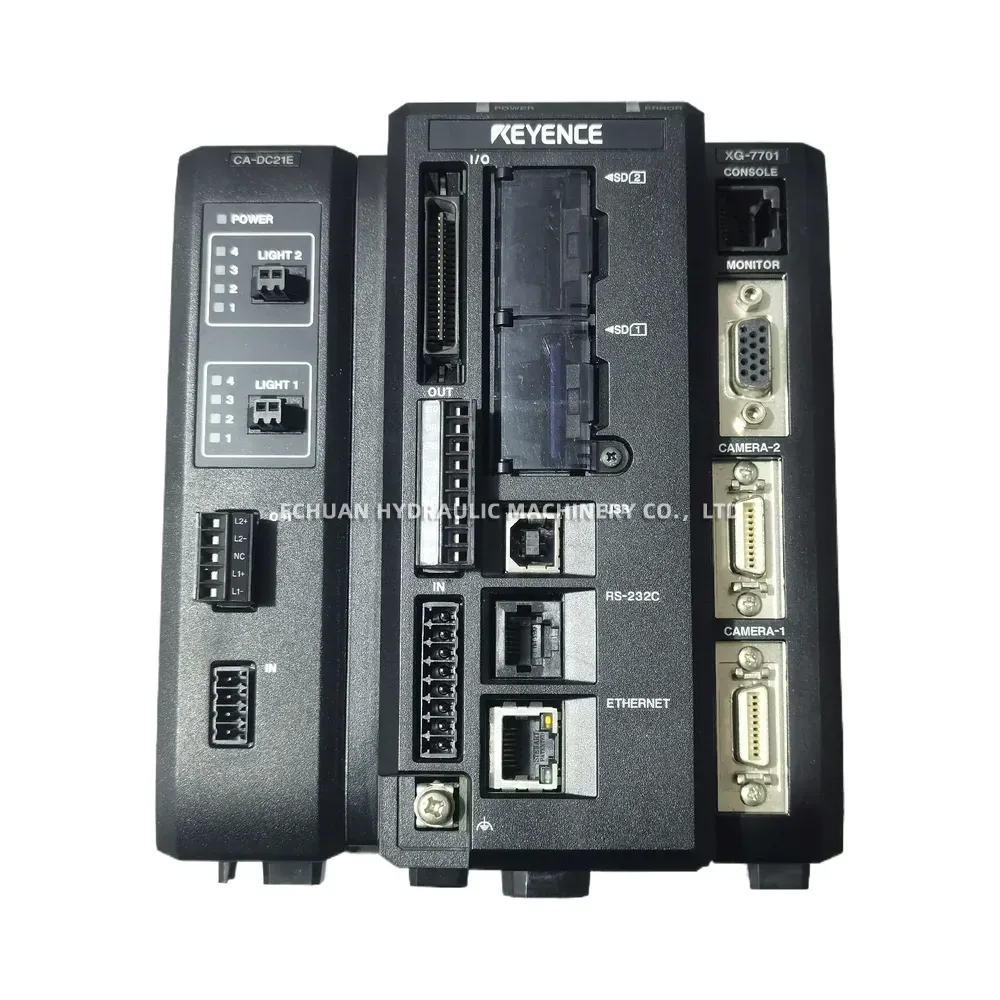

Keyence XG-7701 Vision System Controller with CA-DC21E Module
The Keyence XG-7701 is an advanced, high-performance Vision System Controller engineered for complex inspection, measurement, and alignment tasks in industrial automation environments. This specific configuration includes the Keyence CA-DC21E Lighting Controller expansion module, delivering a comprehensive, all-in-one solution for both image processing and synchronized illumination control. The XG-7701 main unit supports up to two camera inputs and features robust connectivity options, including Ethernet, RS-232C, USB, and standard I/O terminal blocks for seamless integration into existing PLC networks. Dual SD card slots provide reliable storage for inspection programs and image logging. The seamlessly integrated CA-DC21E module allows for direct control of two independent LED lighting channels, complete with power and light level status indicators, ensuring optimal contrast and accuracy for demanding machine vision applications.
Technical Specifications:
- Brand: Keyence
- Model: XG-7701 (Main Controller) with CA-DC21E (Lighting Expansion Module)
- Camera Inputs: 2 Ports (Camera-1, Camera-2)
- Communication Interfaces: Ethernet, RS-232C, USB, Console Port, Monitor Output
- Storage: 2 x SD Card Slots (SD 1, SD 2)
- Lighting Control (CA-DC21E): 2 Channels (Light 1, Light 2) with status indicators
- I/O Interface: Integrated IN/OUT terminal blocks

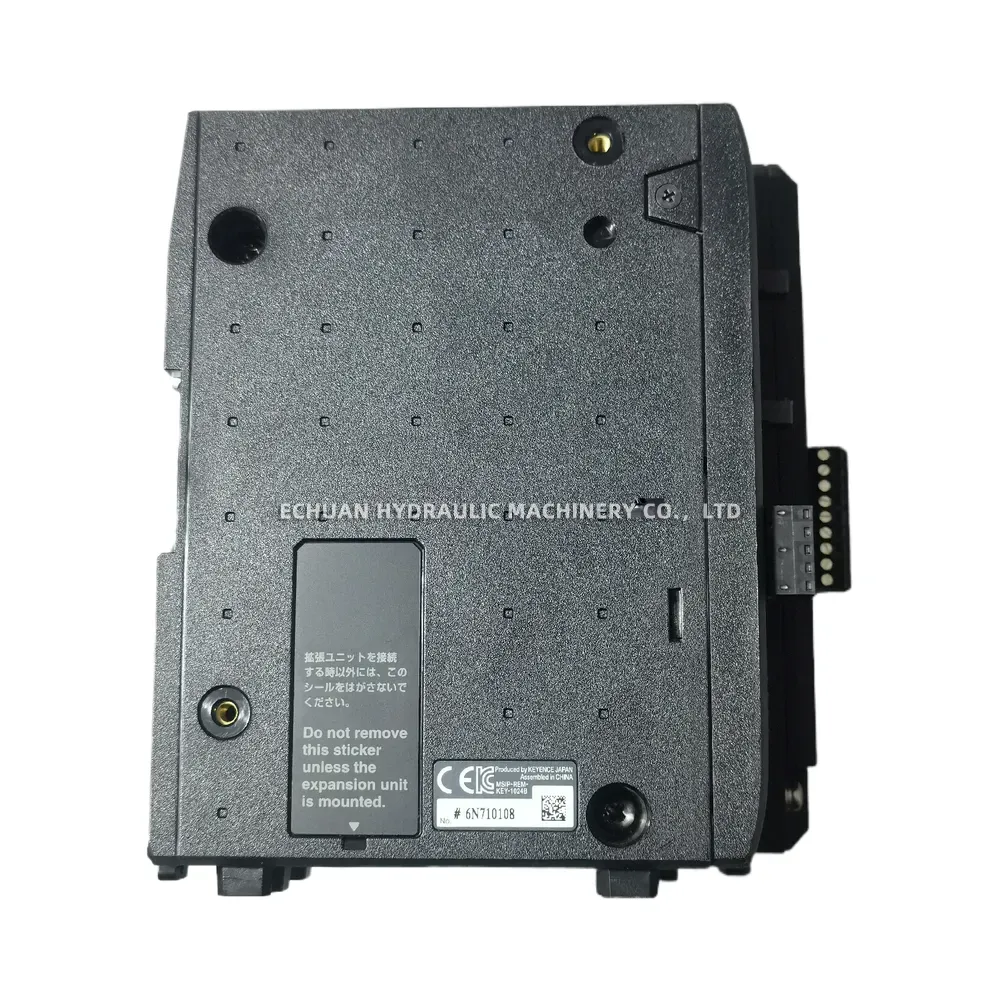

- Certifications: CE, KC
Keyence XG-7701 Vision System Controller
Optimize your automated inspection processes with the Keyence XG-7701 Vision System Controller. Featuring dual camera inputs, comprehensive Ethernet/USB connectivity, and an integrated CA-DC21E 2-channel lighting controller, this system delivers precise, high-speed image processing and synchronized illumination management for industrial machine vision applications.
