Product Description

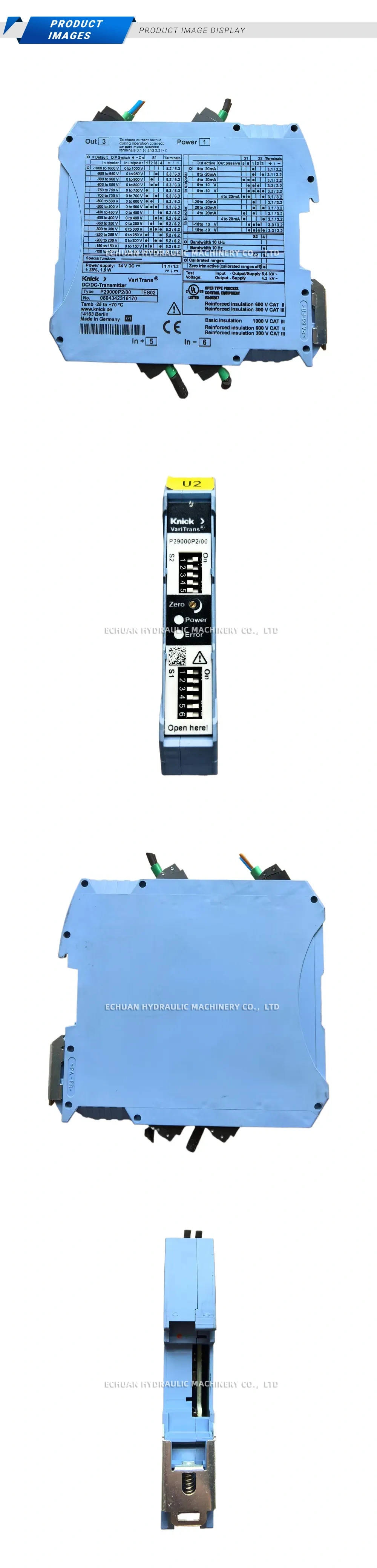

Knick P29000P2/00 AC Voltage Transducer
The Knick P29000P2/00 is a high-precision transducer designed for the measurement and conversion of sinusoidal AC voltage into a proportional, load-independent DC current or voltage signal. Utilizing a rectifier method calibrated to the r.m.s. value, it ensures accurate readings for monitoring and control applications. Housed in a compact 22.5 mm P2 enclosure for easy DIN rail mounting, it features a universal power supply (20 … 253 V AC/DC), providing flexibility across various industrial environments. This device is ideal for integrating AC voltage measurements into standard process control systems like PLCs or SCADA.
Technical Specifications:
- Input Signal: Sinusoidal AC Voltage (various ranges from 0 … 100 V to 0 … 690 V AC)
- Output Signal: Standard DC current (e.g., 0/4 … 20 mA) or DC voltage (e.g., 0/2 … 10 V)
- Power Supply: Universal range, 20 … 253 V AC/DC
- Housing: P2 modular housing, 22.5 mm width, for TS 35 DIN rail mounting
- Measurement Method: Rectifier method, calibrated to r.m.s. value
Kinck P29000P2/00
Discover the Knick P29000P2/00, a reliable AC voltage transducer for converting sinusoidal AC voltage to standard DC process signals. Features a universal power supply and compact DIN rail design.
