Product Description

Kinco GH070E Human Machine Interface

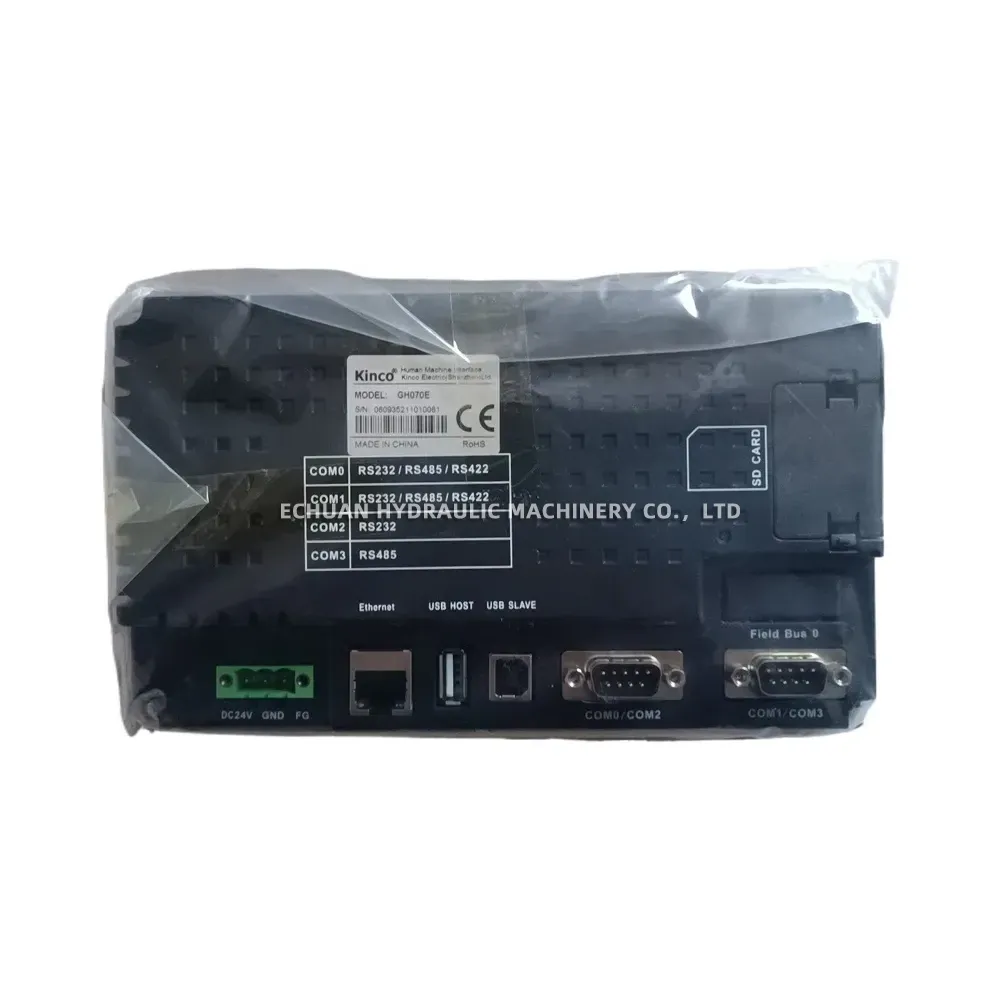

The Kinco GH070E is a high-performance Human Machine Interface (HMI) belonging to the Kinco Green Series, expertly engineered by Kinco Electric (Shenzhen) Ltd. for modern industrial automation. Designed to provide intuitive control and seamless system integration, this HMI boasts an impressive array of communication capabilities. It comes fully equipped with an Ethernet port, USB Host and Slave interfaces, an SD card slot for data logging and storage expansion, and a dedicated Field Bus interface. To ensure maximum compatibility with various PLCs, controllers, and industrial equipment, the GH070E features four distinct COM ports: COM0 and COM1 supporting RS232, RS485, and RS422; COM2 supporting RS232; and COM3 supporting RS485. Operating on a standard DC24V power supply and carrying CE and RoHS certifications, the GH070E guarantees reliable, safe, and efficient operation in demanding manufacturing environments.

Technical Specifications:

  • Brand: Kinco
  • Model: GH070E (Green Series)
  • Power Supply: DC24V (GND, FG)
  • COM0 Port: RS232 / RS485 / RS422
  • COM1 Port: RS232 / RS485 / RS422
  • COM2 Port: RS232
  • COM3 Port: RS485
  • Network Connectivity: Ethernet Port
  • Peripheral Interfaces: USB HOST, USB SLAVE, SD CARD Slot
  • Expansion: Field Bus 0
  • Certifications: CE, RoHS

Kinco GH070E Human Machine Interface Description

Kinco GH070E Human Machine Interface

Upgrade your industrial control systems with the Kinco GH070E Green Series HMI. Featuring built-in Ethernet, multiple serial ports (RS232/RS485/RS422), USB connectivity, and SD card support, this 24V DC touch panel delivers robust, seamless communication for complex automation equipment.
