Product Description

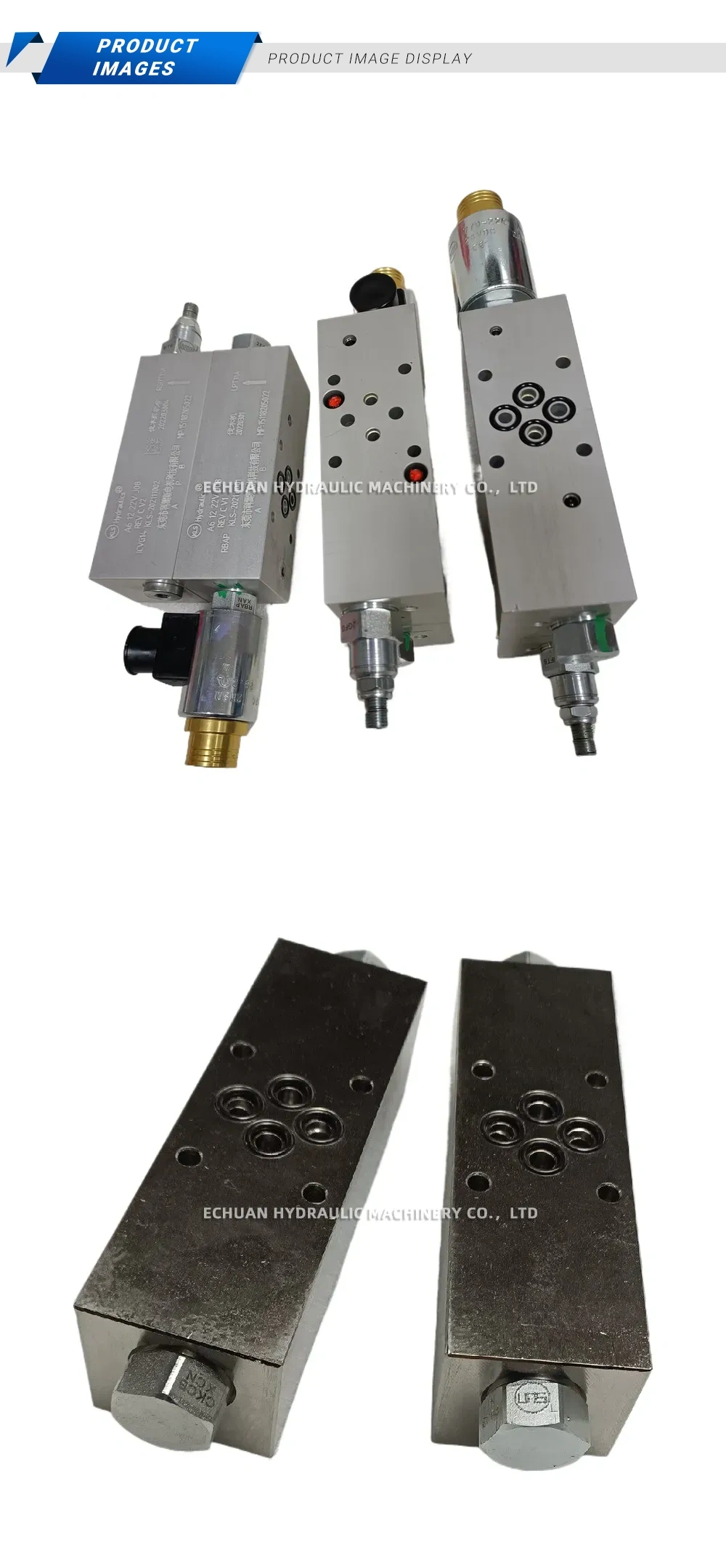

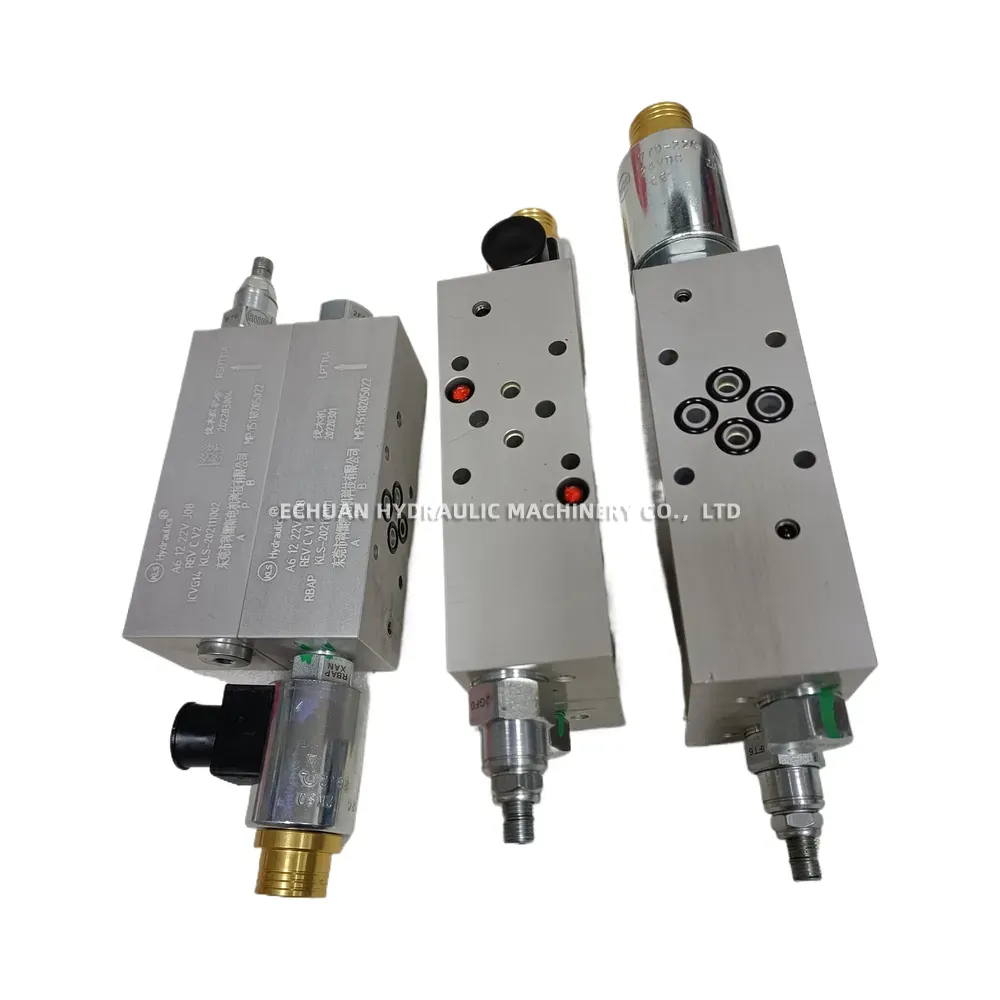

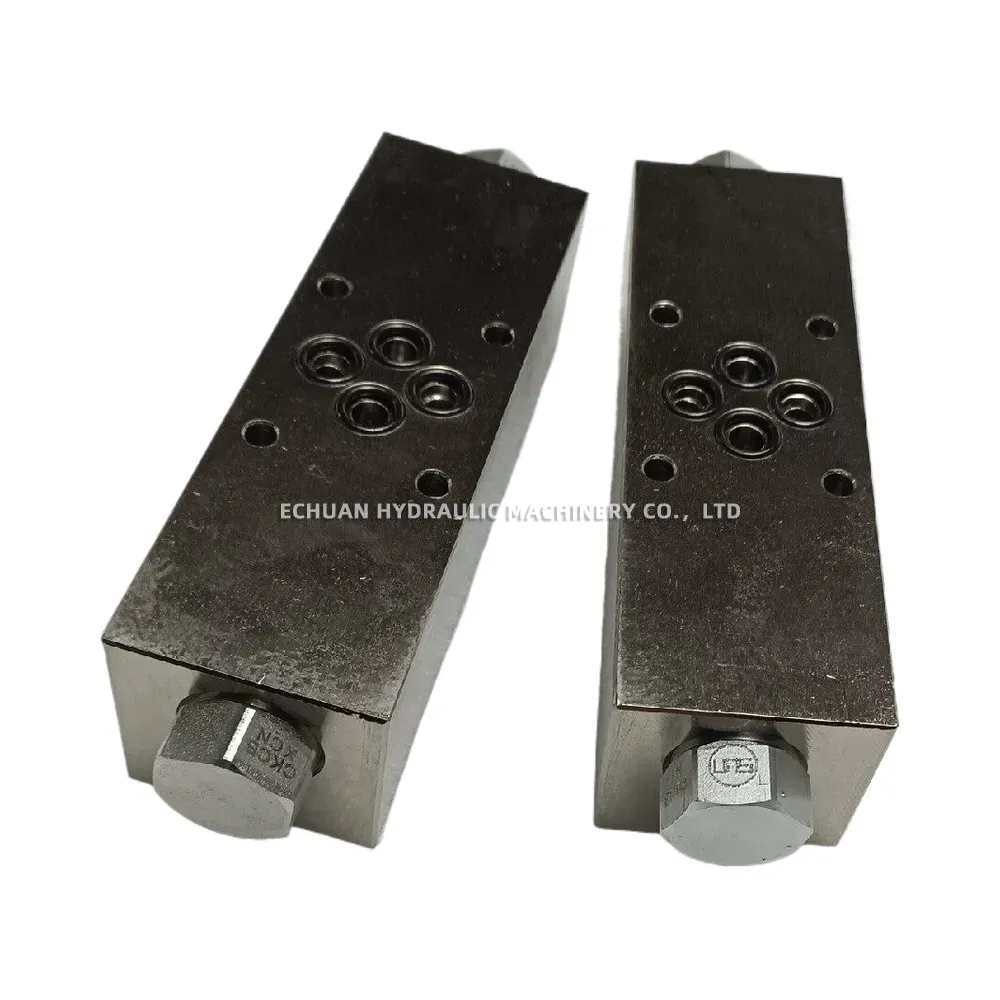

KLS Hydraulics M02-4 / AG 12 Z2V 008 Hydraulic Manifold Block, Flushing Plate and Cover Plate (Stacked Valve Assembly)
The KLS Hydraulics M02-4 / AG 12 Z2V 008 is a highly reliable hydraulic manifold block, flushing plate, and cover plate assembly engineered for custom stacked valve configurations. Designed specifically to accommodate NG6 and NG10 (CETOP 3 and CETOP 5) interfaces, this assembly features a precise P-A B-T porting pattern equipped with four O-ring sealed port connections to guarantee leak-free fluid transmission. The unit includes standard corner mounting holes for secure and straightforward installation. Built for versatility, this manifold block assembly seamlessly integrates with a wide variety of hydraulic components, including solenoid valves, cartridge control valves, hydraulic locks, solenoid ball valves, counterbalance valves, differential valves, and proportional pressure reducing valves, making it the ideal solution for complex and customized hydraulic control systems.
Technical Specifications:
- Brand: KLS Hydraulics
- Model: M02-4 / AG 12 Z2V 008
- Interface Standard: NG6 / NG10 (CETOP 3 / CETOP 5)
- Porting Pattern: P-A, B-T
- Connection Type: Four O-ring sealed port connections
- Mounting Configuration: Corner mounting holes
- System Compatibility: Supports integrated solenoid valves, cartridge control valves, hydraulic locks, solenoid ball valves, counterbalance valves, differential valves, and proportional pressure reducing valves
- Reference Markings: M02-4# P-A B-T 2FG2 A B; AG 12 Z2V 008 RBV C V2 KLS-202211W002; AG 12 Z2V 008 RBV C VV1 KLS-202211W001; HB-YS1820250Y22
KLS Hydraulics M02-4 / AG 12 Z2V 008 Hydraulic Manifold Block, Flushing Plate and Cover Plate (Stacked Valve Assembly)
Optimize your fluid power systems with the KLS Hydraulics M02-4 / AG 12 Z2V 008 Hydraulic Manifold Block and Stacked Valve Assembly. Compatible with NG6/NG10 (CETOP 3/5) interfaces, this robust block features a P-A B-T porting pattern, secure O-ring seals, and broad compatibility with solenoid, cartridge, and proportional valves for ultimate custom hydraulic control.
| Brand | KLS Hydraulics |
|---|---|
| Model | M02-4 / AG 12 Z2V 008 |
| Part No. | 676228693407 |
| Category | Hydraulic parts |
