Product Description

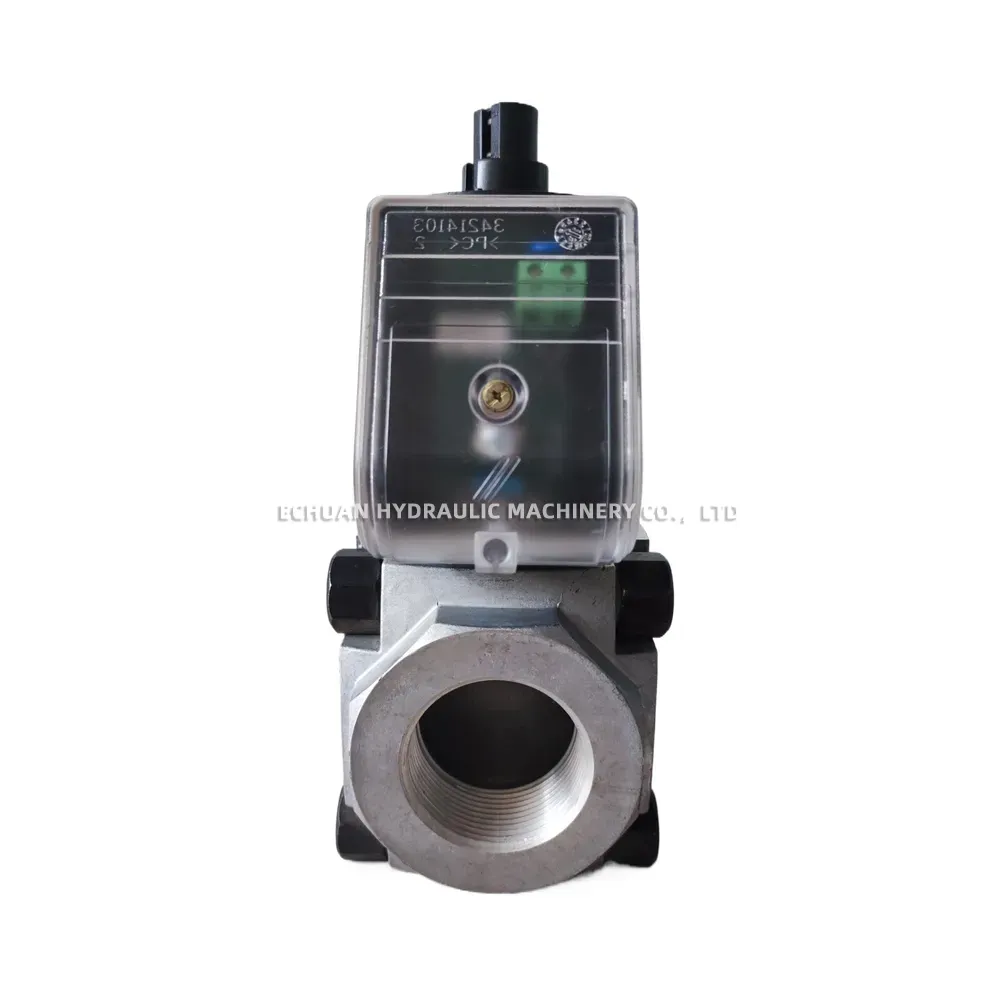

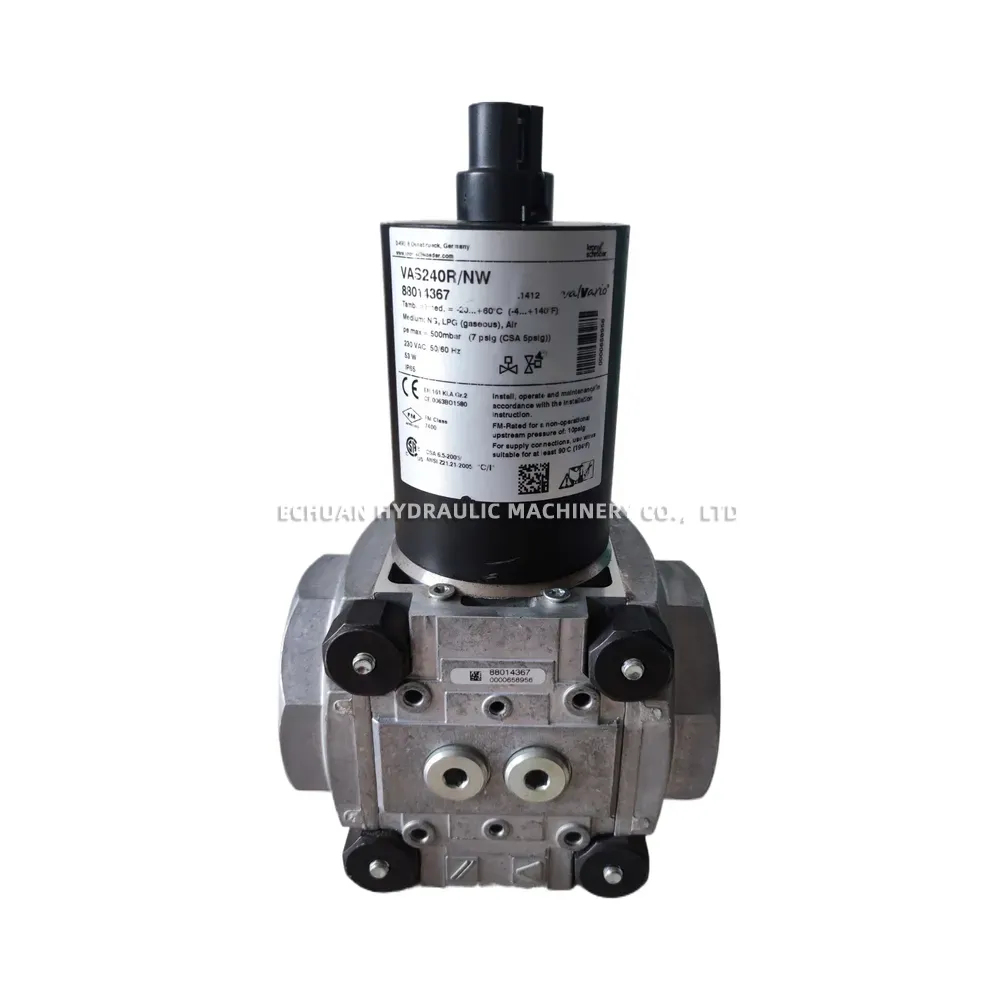

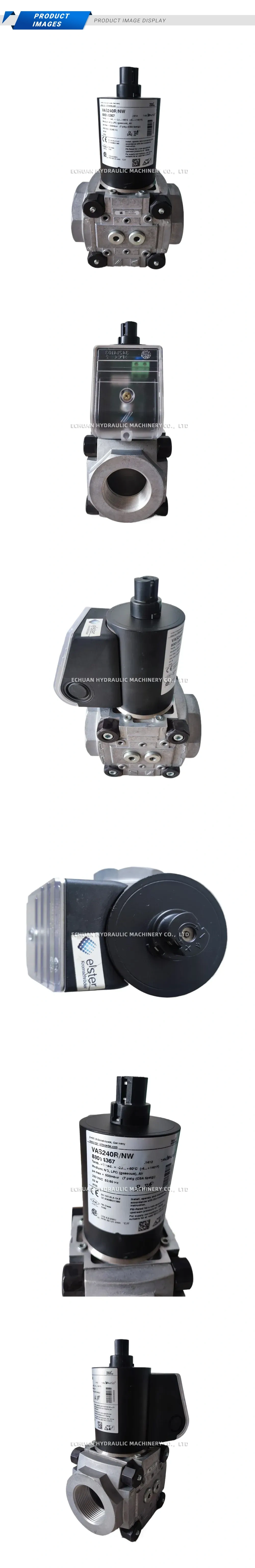

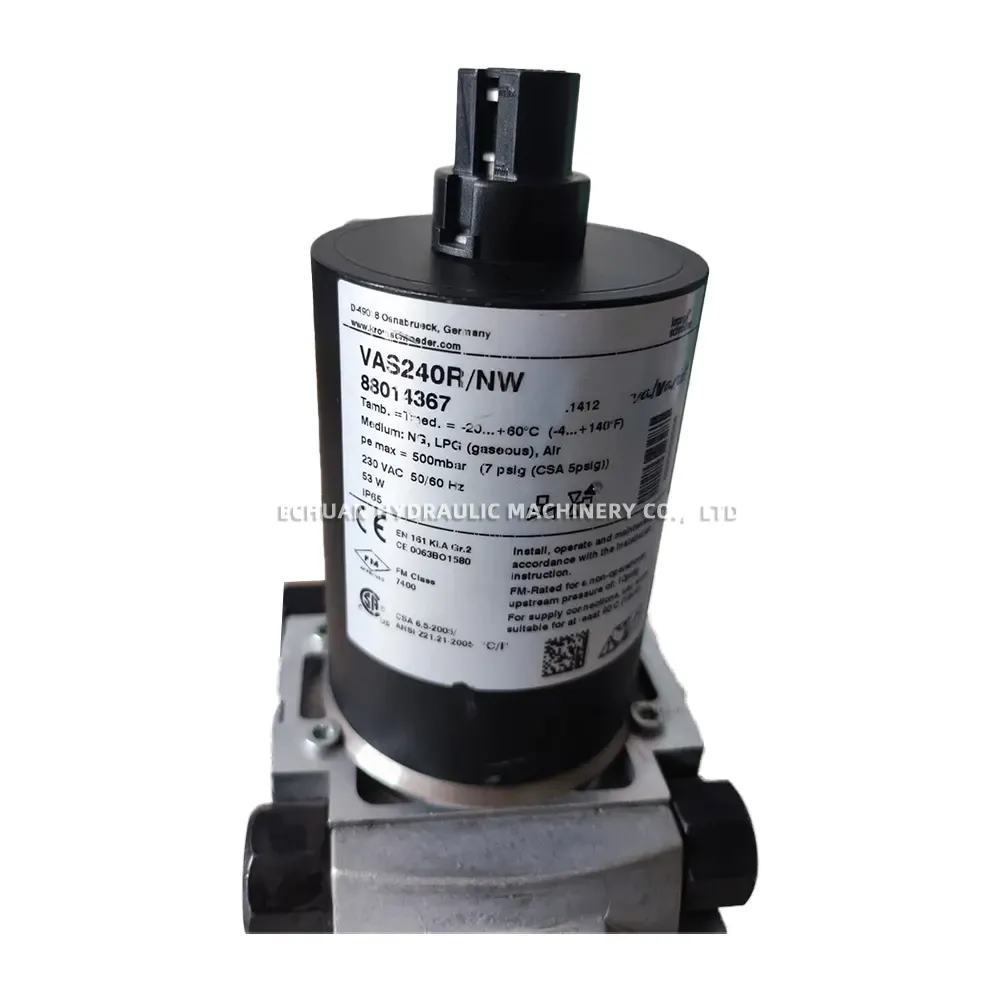

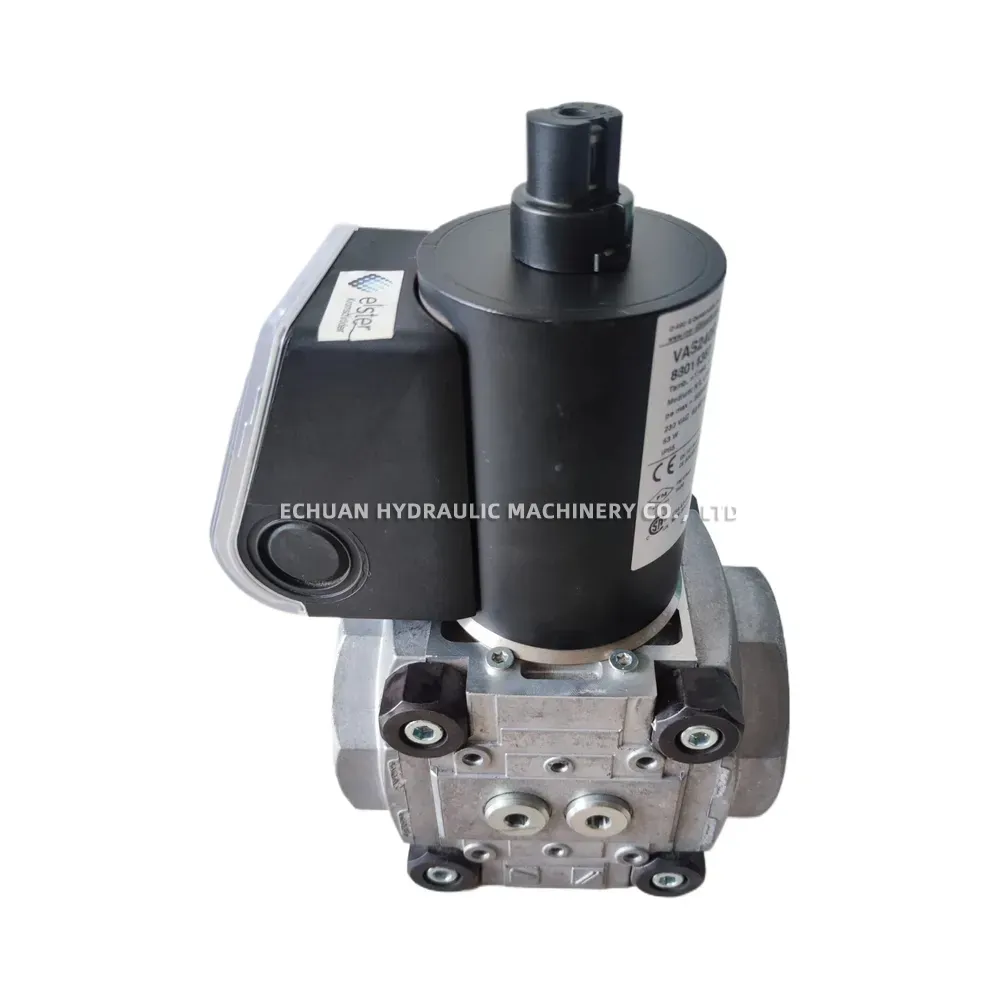

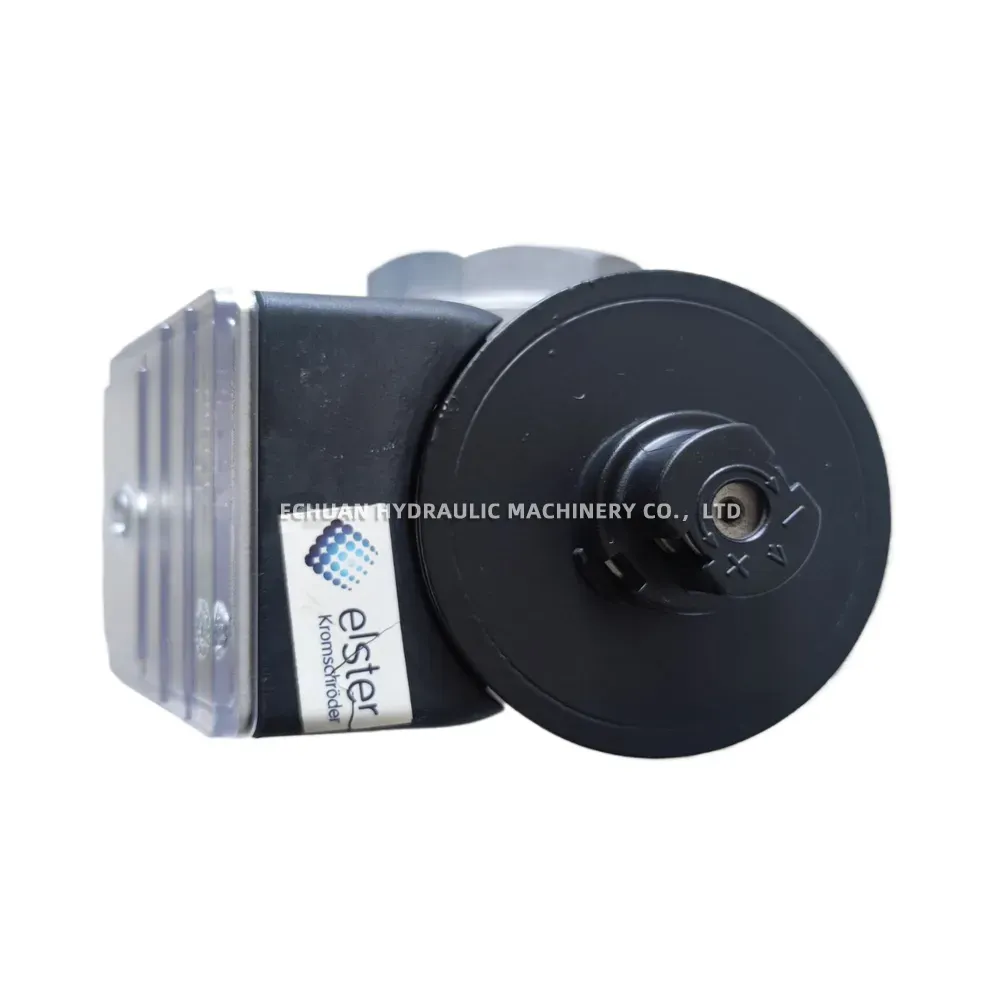

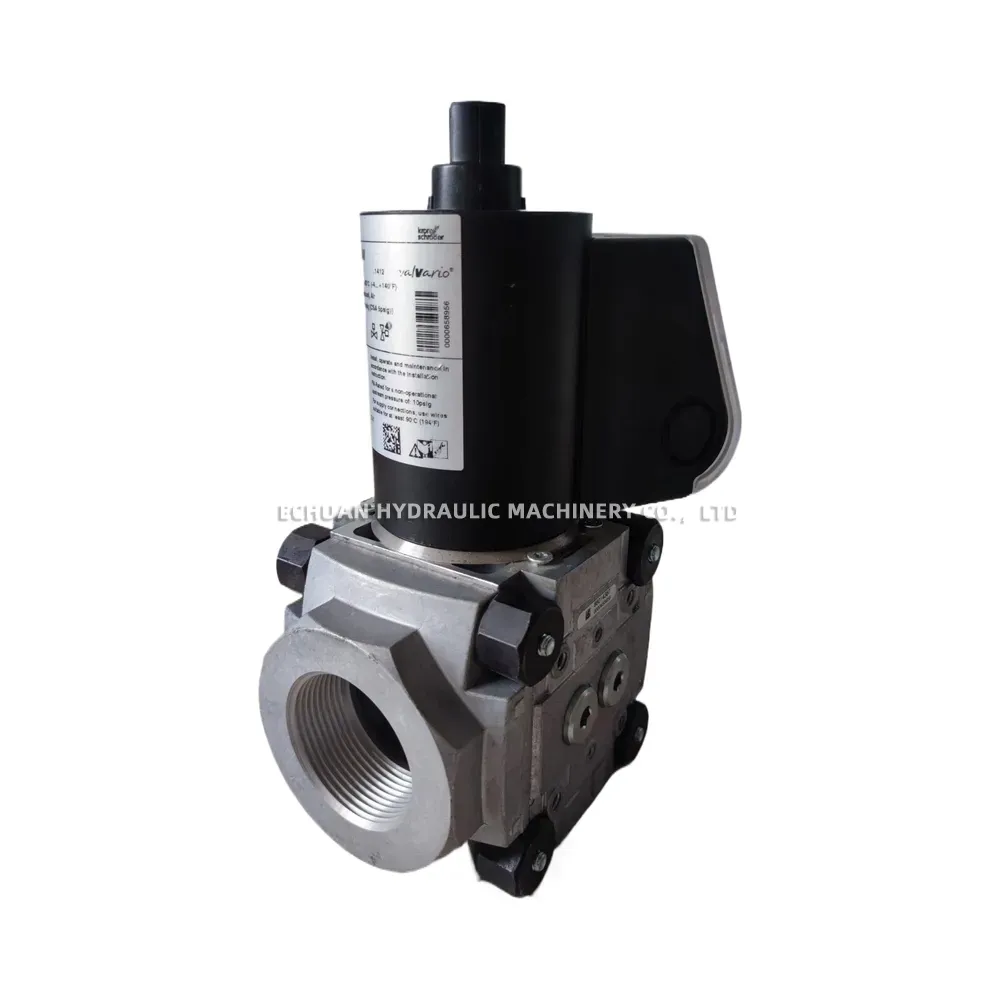

Kromschroeder VAS240R/NW Solenoid Gas Valve
The Kromschroeder VAS240R/NW (part number 83011367) is a premium valvario series solenoid gas valve designed for the safe and precise control of gaseous media, including natural gas (NG), liquid petroleum gas (LPG), and air. Built for durability in industrial environments, it features a rugged aluminum threaded valve body, a high-efficiency black electromagnetic actuator, and a transparent terminal box for easy wiring inspection. This valve supports a maximum inlet pressure of 500 mbar (7 psig) and operates reliably in ambient and medium temperatures ranging from -20°C to +60°C (-4°F to +140°F). With an IP65 protection rating and stringent global certifications including CE (EN 161 Class A Group 2), FM, and CSA, the VAS240R/NW ensures exceptional safety and performance for commercial and industrial combustion systems.
Technical Specifications:
- Brand / Series: Elster Kromschroeder / valvario
- Model / Part Number: VAS240R/NW / 83011367
- Compatible Media: Natural Gas (NG), LPG (gaseous), Air
- Maximum Inlet Pressure (pe max): 500 mbar (7 psig / CSA 5 psig)
- FM-Rated Non-Operational Upstream Pressure: 10 psig
- Temperature Range (Ambient & Medium): -20…+60°C (-4…+140°F)
- Electrical Supply: 230 VAC, 50/60 Hz, 53 W
- Protection Rating: IP65
- Approvals & Certifications: CE EN 161 Class A Group 2 (CE 0085BO1580), FM Class 7400, CSA 6.5-2003 / ANSI Z21.21-2005 C/I
- Construction: Aluminum threaded body, black actuator, transparent terminal box
Kromschroeder VAS240R/NW Solenoid Gas Valve
Shop the Kromschroeder VAS240R/NW Solenoid Gas Valve (83011367) for reliable control of NG, LPG, and air in industrial burners. Features 230 VAC operation, 500 mbar max pressure, IP65 protection, and CE/FM/CSA certifications for superior safety and compliance.
