Product Description

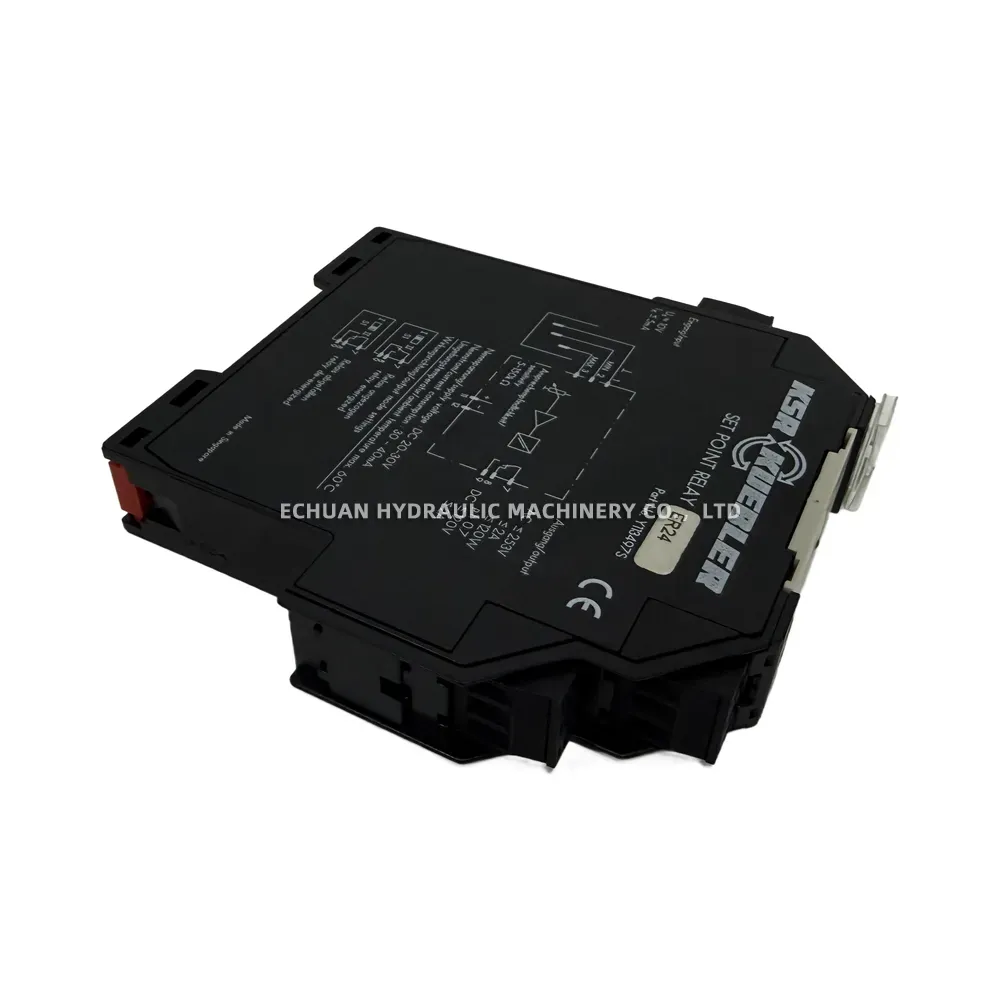

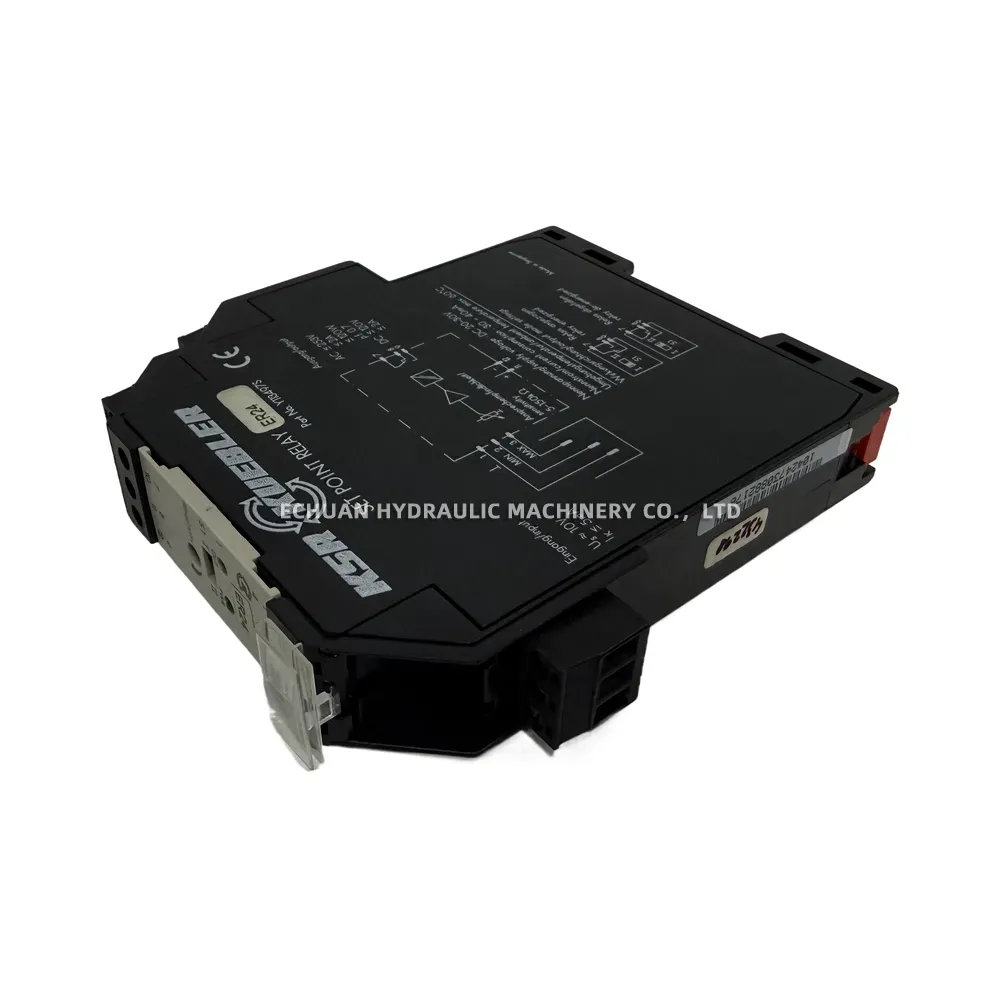

KSR Kuebler ER24 Set Point Relay
The KSR Kuebler ER24 Set Point Relay (Part No. Y118497S) is a highly reliable industrial control module specifically designed for evaluating reed and level switch signals. Manufactured in Singapore, this DIN-rail mountable relay features an adjustable response sensitivity ranging from 5 to 150 kΩ, allowing for precise control and monitoring in various liquid level applications. It is equipped with a user-selectable output mode (relay energized or de-energized) controlled via an S1 switch, alongside a front-panel sensitivity potentiometer. Clear OUT and PWR LED indicators provide instant visual status feedback. With robust relay output contacts and a compact footprint, the ER24 ensures safe, efficient, and continuous automated process control in demanding environments.
Technical Specifications:
- Brand / Model: KSR Kuebler / ER24 (Part No. Y118497S)
- Supply Voltage: DC 20 – 30 V
- Current Consumption: 30 – 40 mA
- Input Parameters: Ui ≈ 10 V, Ii ≤ 5 mA
- Adjustable Sensitivity: 5 – 150 kΩ
- Relay Output (AC): ≤ 253 V, ≤ 2 A, ≤ 620 W (pi 0.7)
- Relay Output (DC): ≤ 120 V, ≤ 2 A
- Max. Ambient Temperature: 60 °C
- Output Mode Settings: Selectable via S1 switch (Relay energized / de-energized)

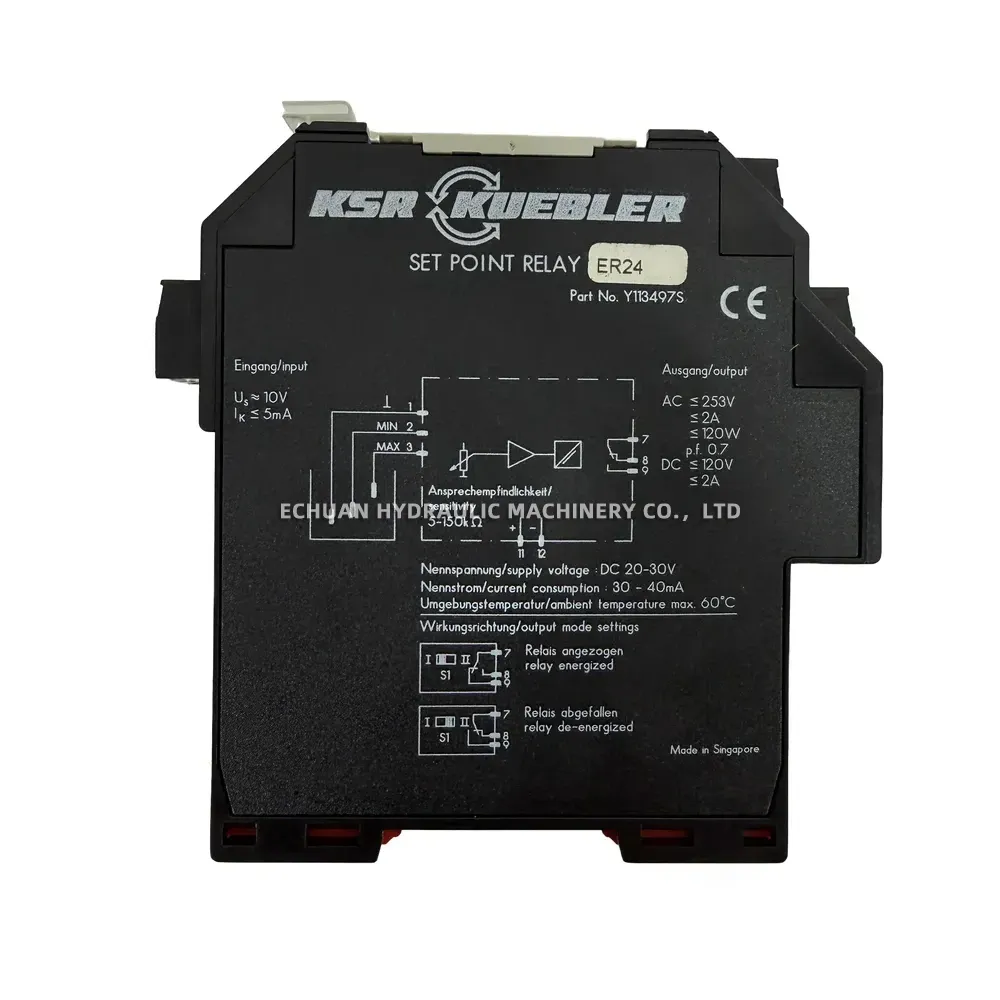

- Mounting & Terminals: DIN-rail mount housing, Terminals 1-12
KSR Kuebler ER24 Set Point Relay
Shop the KSR Kuebler ER24 Set Point Relay (Y118497S) for precise liquid level and reed switch signal evaluation. Features a 20-30V DC supply, adjustable 5-150 kΩ sensitivity, selectable output modes, and DIN-rail mounting for seamless integration into your industrial automation systems.
