Product Description
Lam Research VME 7671 VME Chassis Assembly with Controller Modules

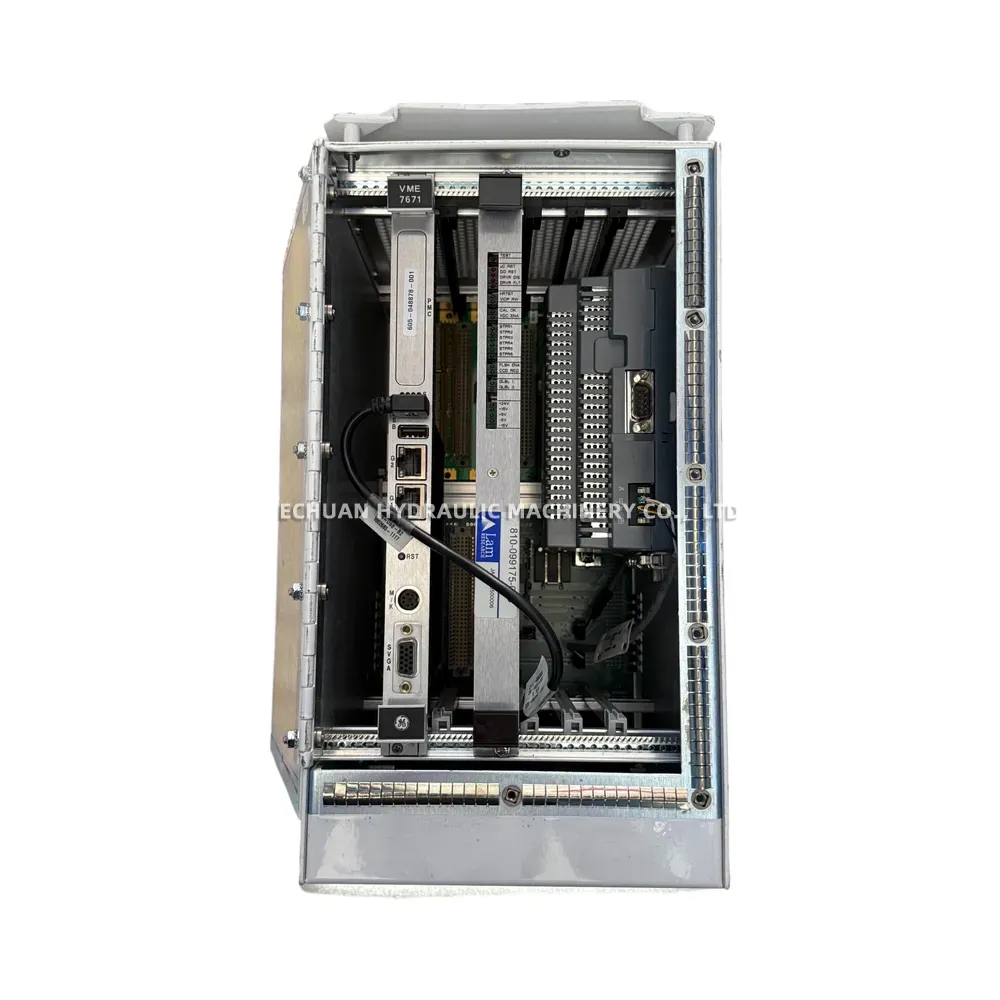

The Lam Research VME 7671 is a highly reliable industrial VME bus chassis assembly engineered for advanced semiconductor manufacturing systems. Housed in a durable metal enclosure, this unit integrates multiple critical controller and interface cards essential for precision equipment operation. It features a primary main controller card (P/N 605-048878-001) equipped with comprehensive status LEDs for real-time system diagnostics and robust stepper motor control capabilities (STPR1-6). Furthermore, the assembly includes a secondary interface card (P/N 810-099175-013) that provides essential communication and display connectivity, including 10/100 Ethernet, SVGA, and PS/2 (M/K) ports. The versatile rear panel is designed for seamless system integration, offering numerous D-Sub connectors (J3 through J20), dedicated Ethernet ports (J10-J12), and a secure power input terminal block (J29).
Technical Specifications:
- Brand: Lam Research
- Model: VME 7671

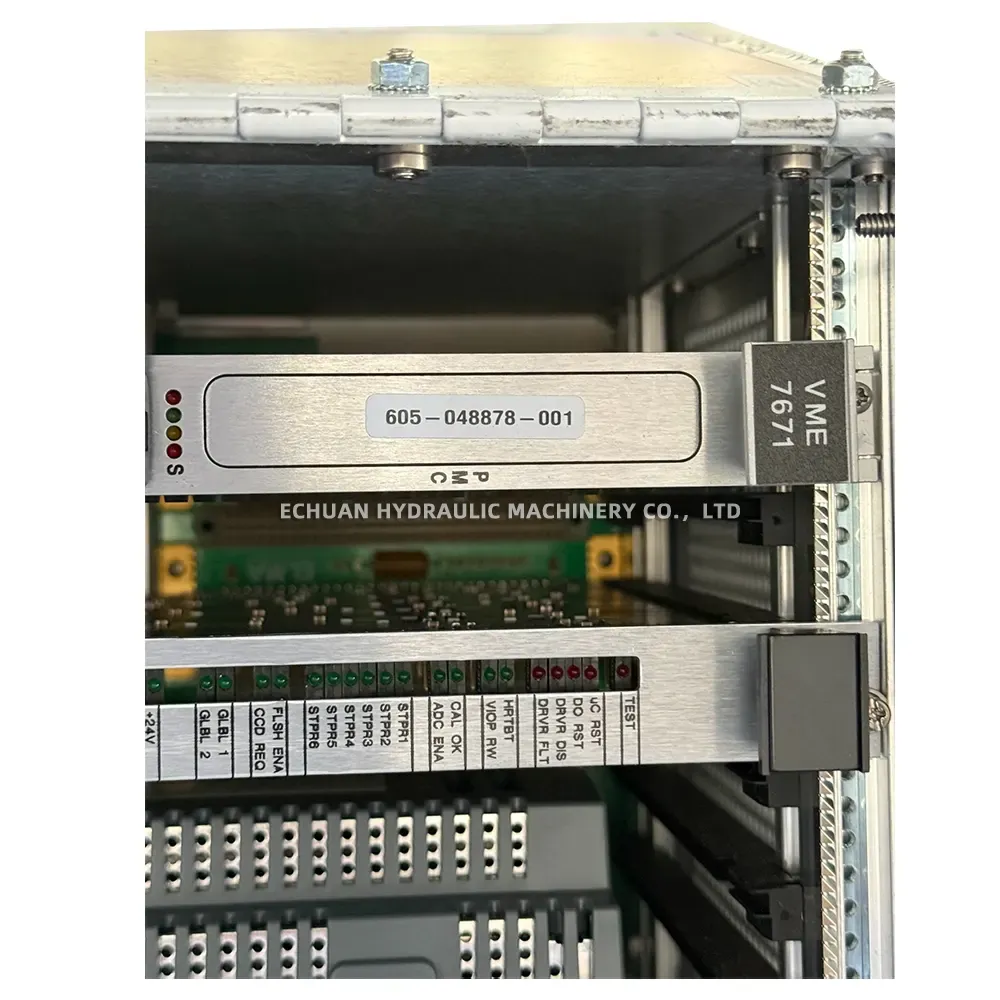

- Main Controller Card: P/N 605-048878-001 (Features Stepper Motor Control STPR1-6 and Diagnostic LEDs)

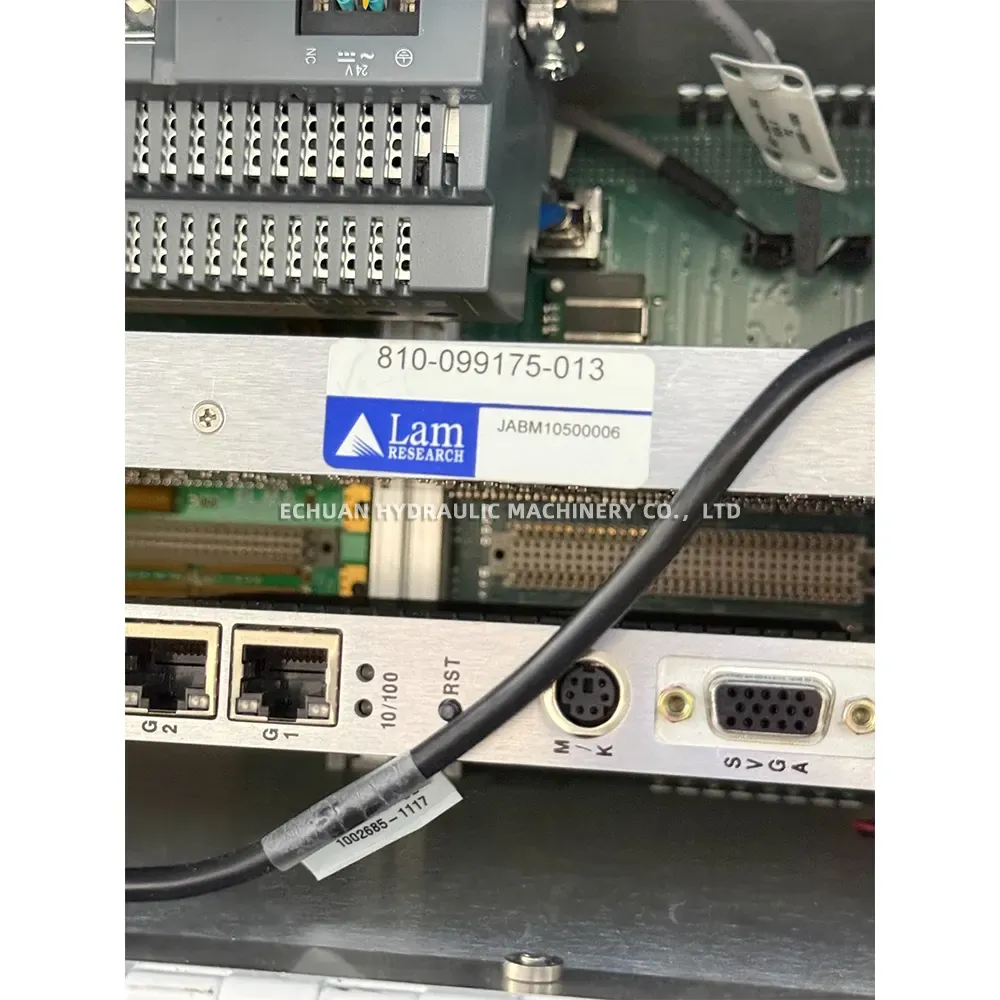

- Secondary Interface Card: P/N 810-099175-013 (Includes 10/100 Ethernet, SVGA, and PS/2 M/K ports)

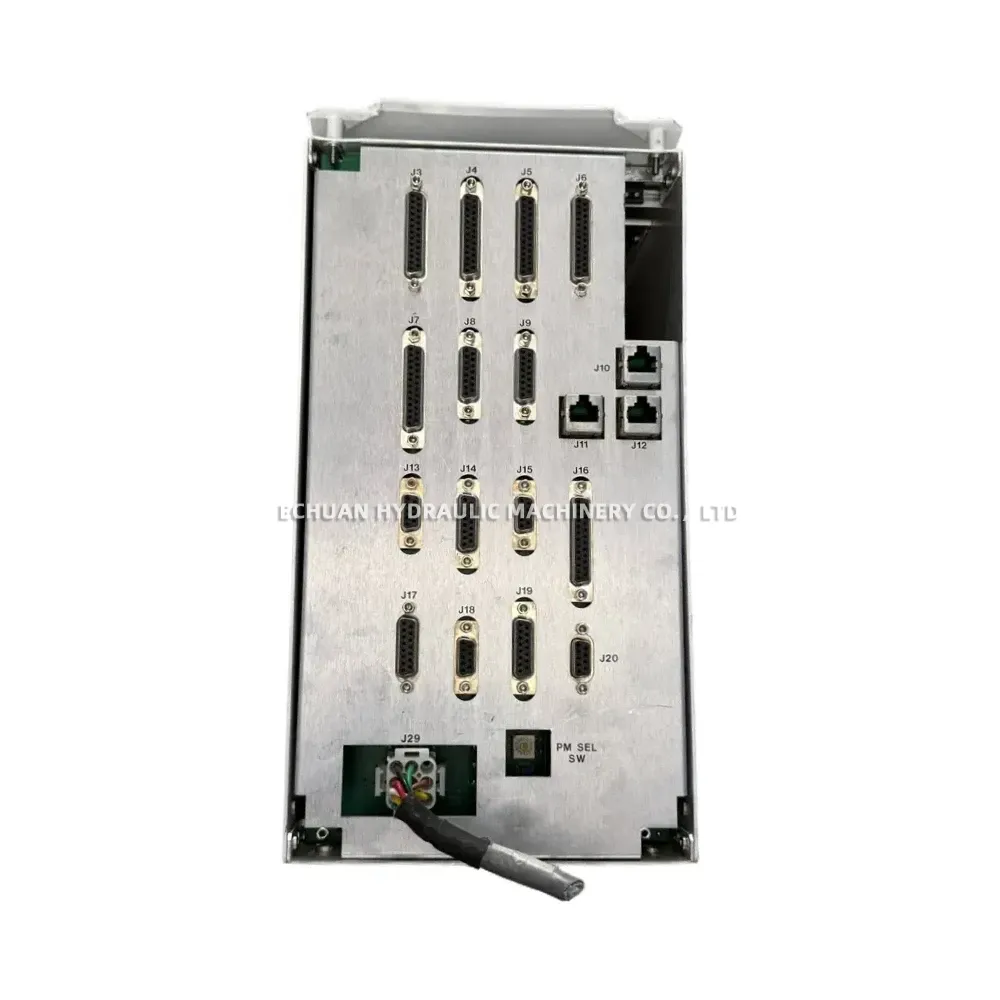

- Rear Panel Connectivity: D-Sub connectors (J3-J20), Ethernet ports (J10-J12), and Power input terminal block (J29)
- Diagnostic Indicators: PMC, TEST, UC RST, DO RST, DRV R DIS, DRV R FLT, HRTRT, VDR RW, CAL OK, ADC ENA, FLSH ENA
Lam Research VME 7671 VME Chassis Assembly with Controller Modules
Optimize your semiconductor manufacturing equipment with the Lam Research VME 7671 VME Chassis Assembly. Equipped with advanced controller modules (P/N 605-048878-001 and 810-099175-013), this industrial chassis delivers precise stepper motor control, robust Ethernet connectivity, and comprehensive system diagnostics for maximum operational uptime.
