Product Description

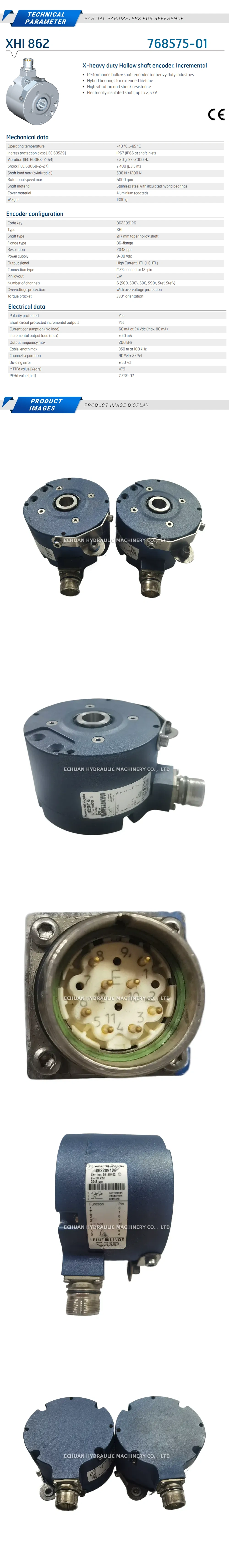

Leine Lind 862209126
The Leine & Linde 862209126 is a robust incremental encoder from the 800 Heavy-duty series, engineered to deliver reliable performance in the most demanding industrial environments. This model is renowned for its exceptional durability, featuring a mechanically robust design that withstands high levels of shock, vibration, and harsh operating conditions. With its 1024 PPR resolution and HTL output signal, it provides precise and stable position feedback essential for applications in steel mills, paper manufacturing, mining, and wind power industries. The solid shaft with a keyway and the industry-standard M23 connector ensure a secure mechanical and electrical installation.
Technical Specifications:
- Model Series: 862 Heavy-Duty Incremental Encoder
- Resolution: 1024 PPR (Pulses Per Revolution)
- Output Signal: HTL (High-Voltage Transistor Logic)
- Power Supply: 9-30 VDC
- Shaft Type: Solid shaft, ø11 mm with keyway
- Mechanical Interface: Clamping flange, ø65 mm
- Electrical Connection: M23 connector, 12-pin, male, radial orientation
- Enclosure Rating: IP67
Leine Lind 862209126
Discover the Leine & Linde 862209126, a heavy-duty incremental encoder with 1024 PPR, HTL output, and an ø11mm solid shaft. Built for harsh environments with an IP67 rating and a robust M23 connector.
