Product Description
LIMING FES0-10-24 Precision Planetary Reducer

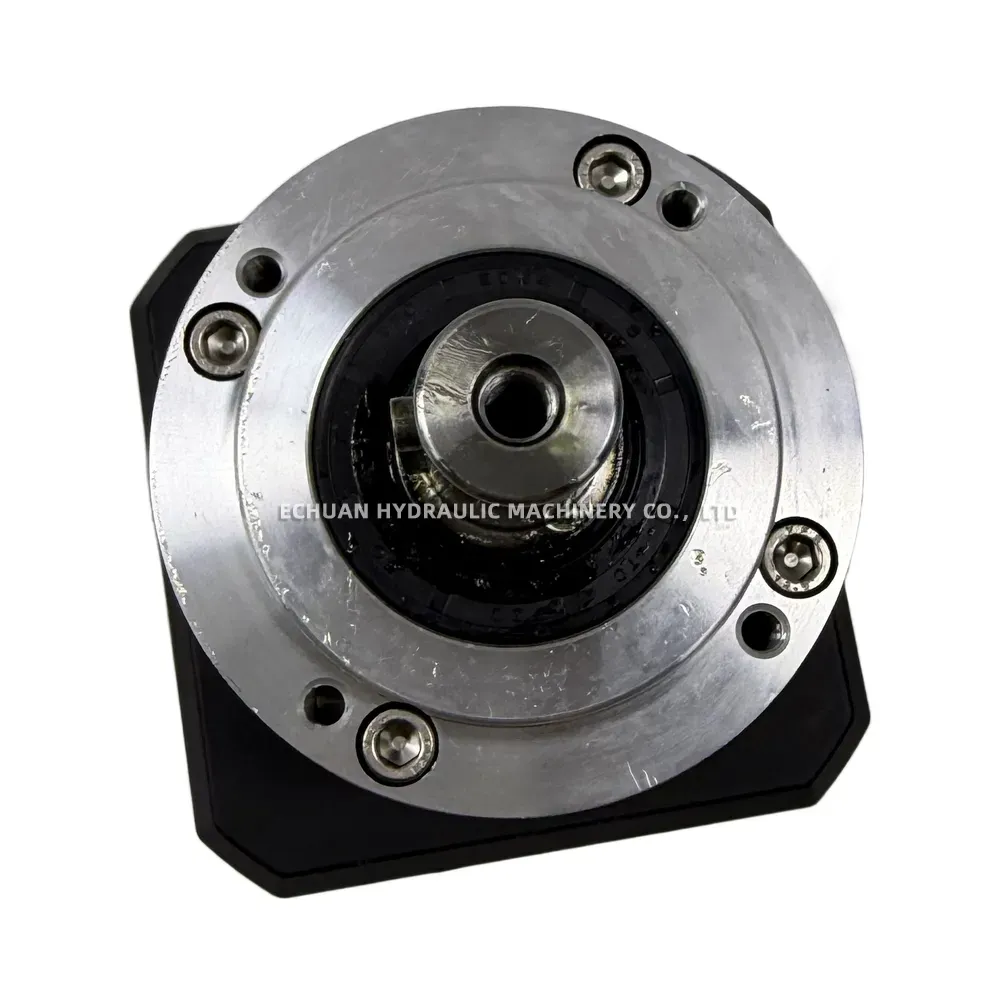

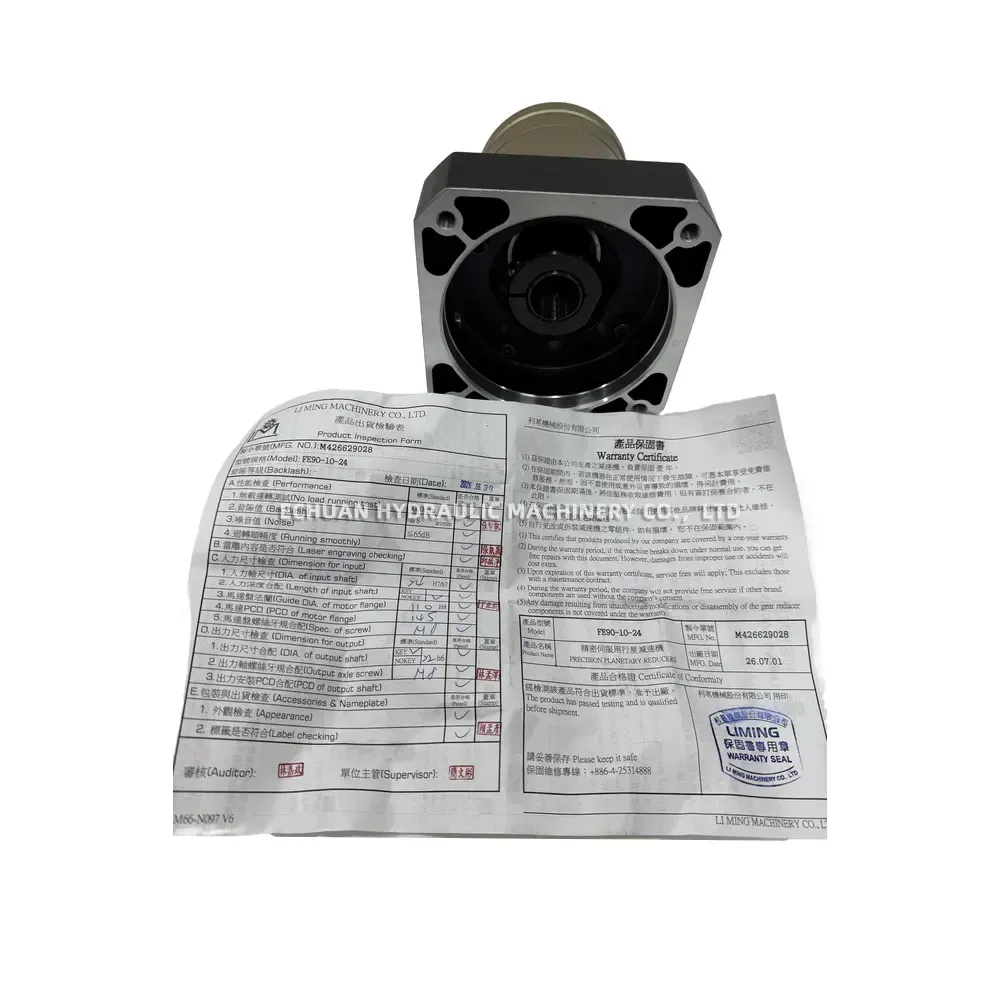

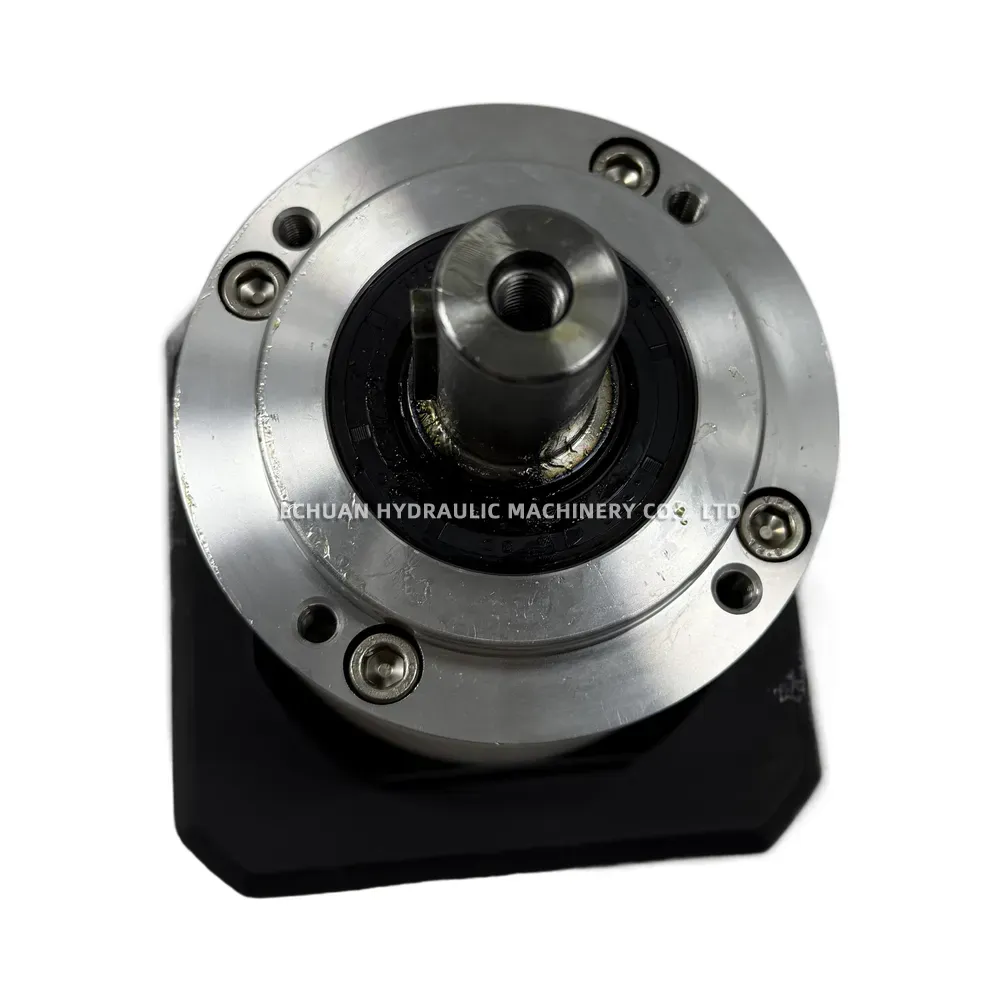

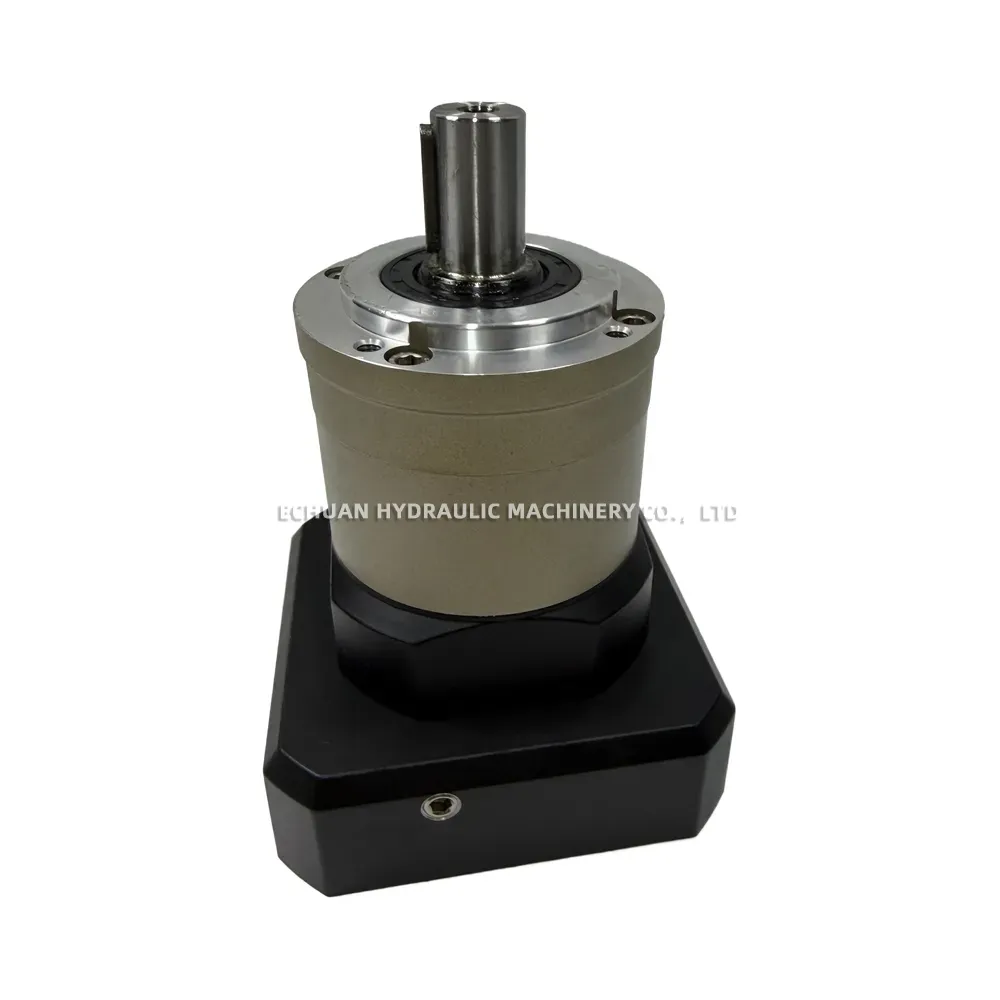

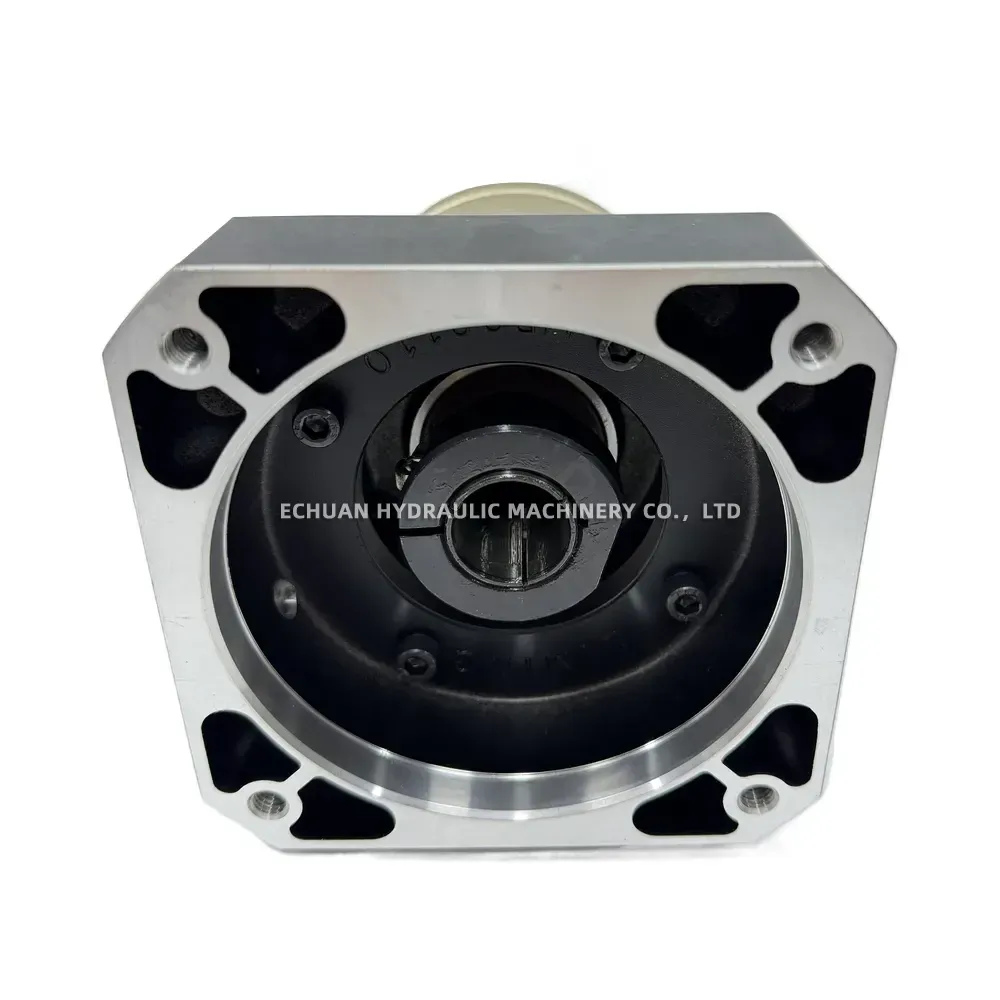

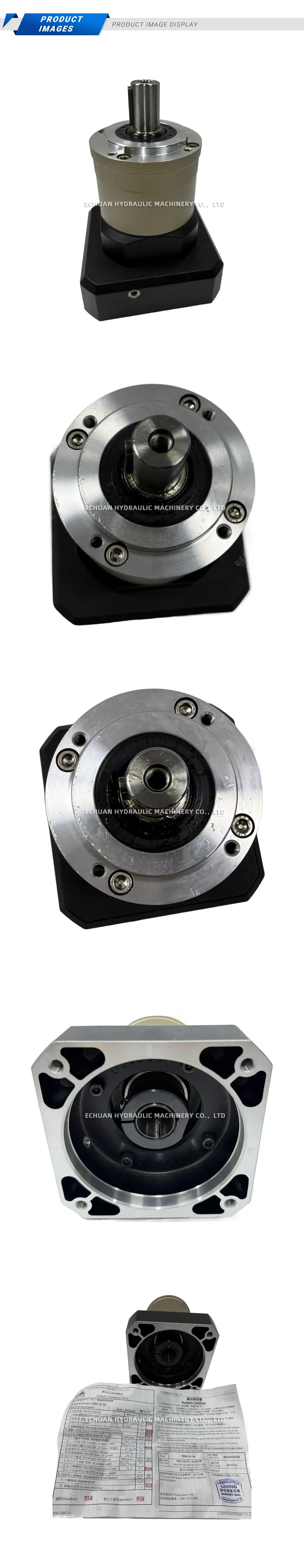

The LIMING FES0-10-24 is a high-performance precision planetary gear reducer engineered by Li Ming Machinery Co., Ltd. for demanding servo motor applications. This robust gearhead features a keyed cylindrical output shaft with a center tapped hole, a round output flange with threaded mounting holes, and a square input flange equipped with a clamping coupling hub for seamless and secure motor integration. Designed for superior accuracy and smooth power transmission, it delivers exceptional motion control with an ultra-low backlash of ≤5 arcmin and operates quietly with noise levels at or below 65 dB. Backed by rigorous factory testing, the FES0-10-24 is the ideal solution for precision industrial automation, CNC machinery, and robotics requiring reliable torque multiplication and speed reduction.
Technical Specifications:
- Brand: LIMING (Li Ming Machinery Co., Ltd.)
- Model: FES0-10-24
- Backlash: ≤5 arcmin
- Noise Level: ≤65 dB
- No-Load Running Test: 3000 rpm
- Input Shaft Diameter: 30 mm
- Motor Flange Guide Diameter: 110 mm
- Motor PCD (Pitch Circle Diameter): 145 mm
- Input Mounting Screw Spec: M8
- Output Shaft Diameter: 32 mm (k6) with keyway
- Output Axle Screw: M8
LIMING FES0-10-24 Precision Planetary Reducer
Optimize your automation systems with the LIMING FES0-10-24 Precision Planetary Reducer. Designed for seamless servo motor integration, this high-precision gearhead delivers ultra-low backlash (≤5 arcmin), quiet operation (≤65 dB), and features a robust 32mm keyed output shaft for highly accurate and reliable motion control in industrial applications.
| Brand | LIMING |
|---|---|
| Model | FES0-10-24 |
| Part No. | local_1789191447041_041r2v6 |
| Category | Other products |
