Product Description

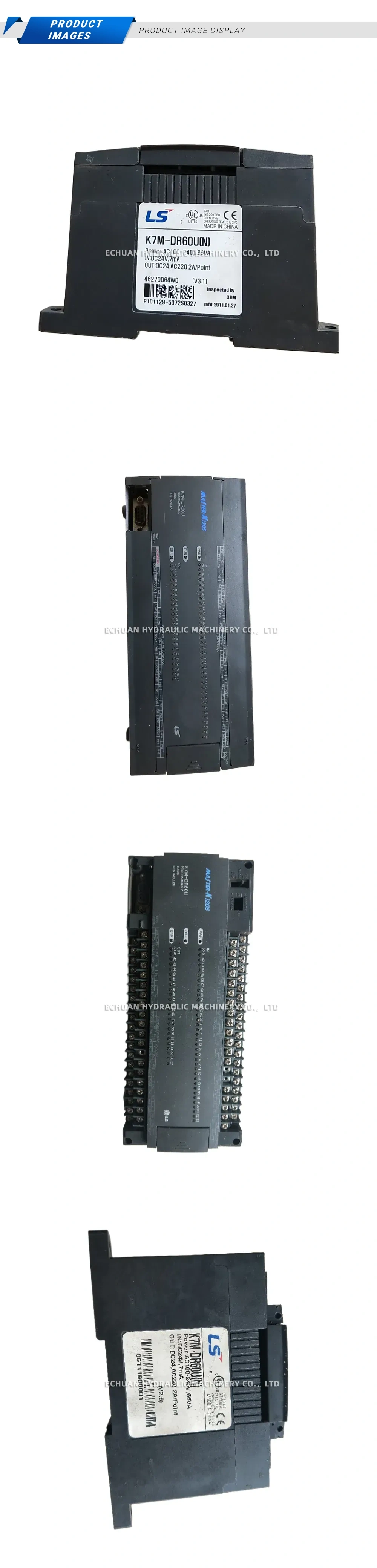

LS K7M-DR60U(N)
The LS K7M-DR60U(N) is a high-performance, block-type Programmable Logic Controller (PLC) from the MASTER-K K120S series. It is engineered to provide a compact and powerful automation solution for small to medium-sized applications. This main unit integrates a CPU, digital I/O, and power supply into a single, space-saving unit. Featuring 36 digital inputs and 24 relay outputs, it offers substantial control capabilities right out of the box. With built-in high-speed counters, positioning functions, and integrated RS-232C/RS-485 communication ports, the K7M-DR60U(N) is well-suited for a wide range of tasks including process control, packaging machinery, and material handling systems.
Technical Specifications:
- Product Type: PLC Main Unit (CPU)
- Power Supply: 100 – 240V AC
- Digital Inputs: 36 points (24V DC)
- Digital Outputs: 24 points (Relay)
- Program Capacity: 10k steps
- Processing Speed: 0.1 µs/step
- Communication Ports: Built-in RS-232C (1 channel), RS-485 (1 channel)
- Expansion: Up to 3 expansion modules
LS K7M-DR60U(N)
LS Electric K7M-DR60U(N) PLC main unit from the MASTER-K series, featuring 36 DC inputs, 24 relay outputs, and a 10k step program capacity. Ideal for compact and efficient industrial automation control.
