Product Description

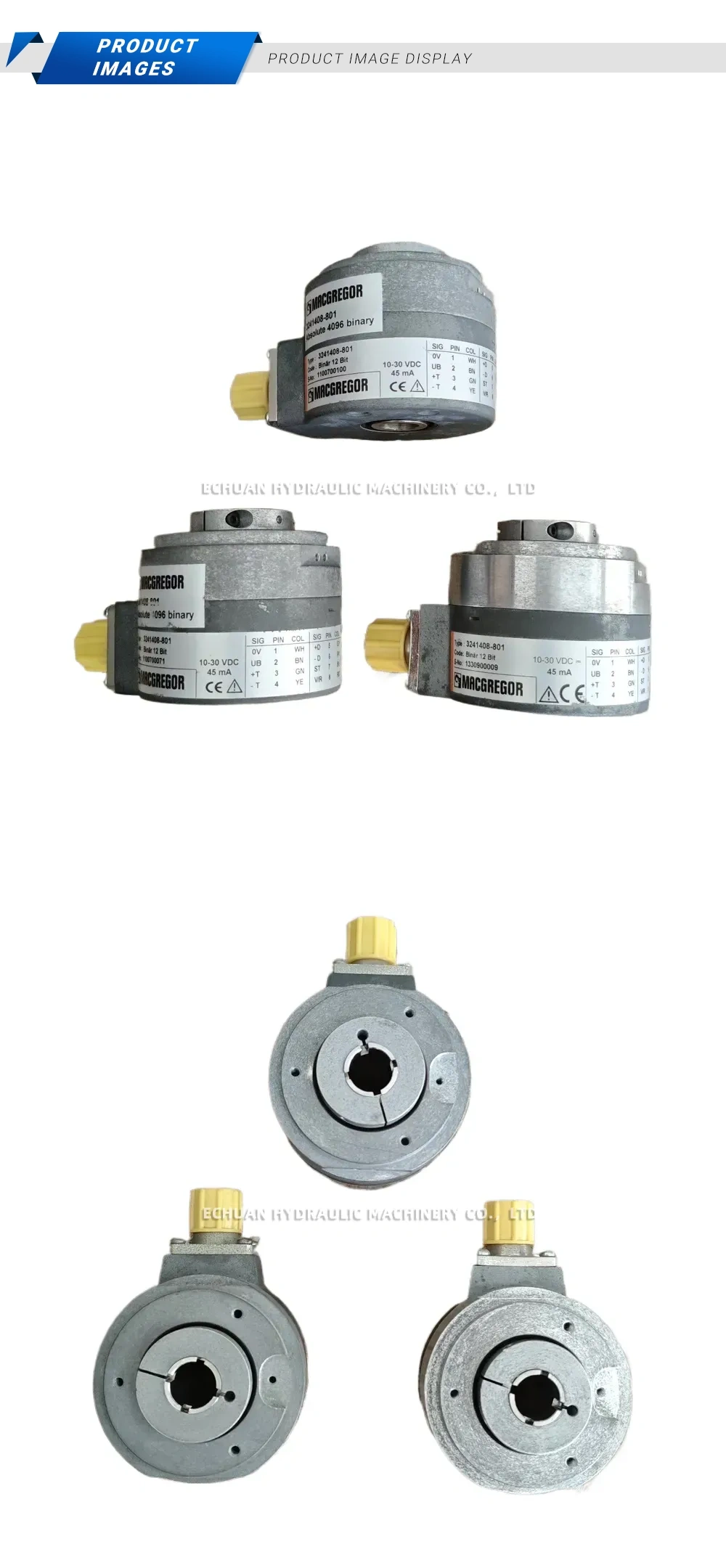

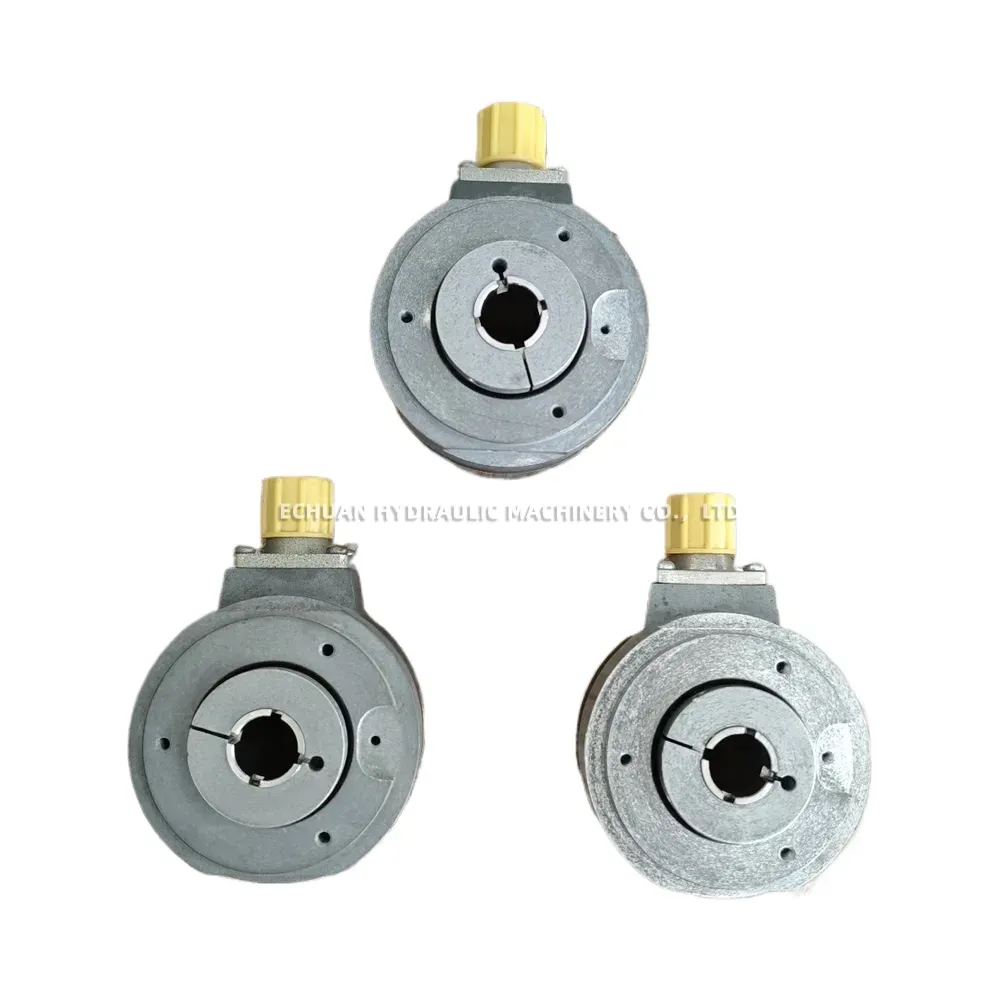

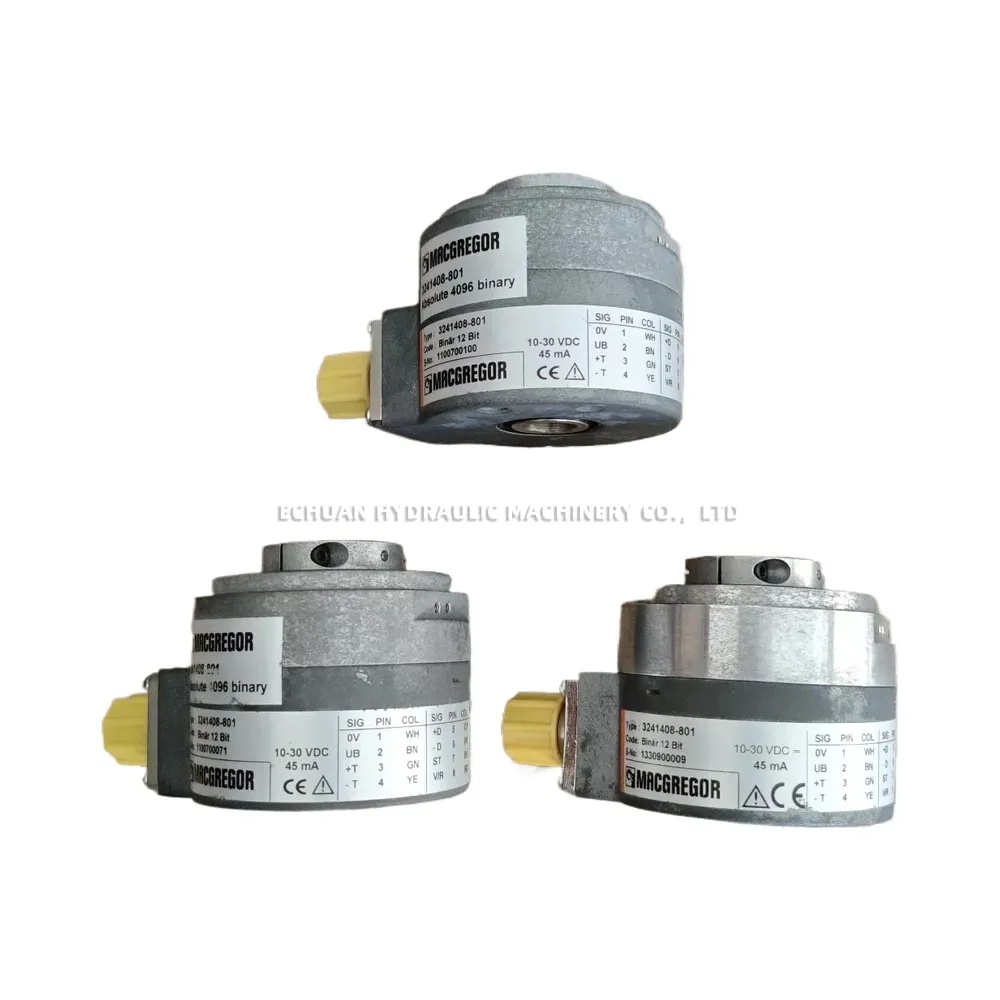

MACGREGOR 3241408-801 Absolute Rotary Encoder
The MACGREGOR 3241408-801 is a premium-quality absolute single-turn rotary encoder engineered for precise positioning in demanding industrial and marine applications. Manufactured in Germany, this CE-certified encoder features a robust hollow-shaft design equipped with a clamping ring for secure and straightforward mounting. It utilizes a 12-bit binary code to provide an absolute resolution of 4096, ensuring highly accurate feedback. Operating efficiently on a 10-30 VDC supply with a minimal current consumption of 45 mA, it features a parallel binary output and a reliable connector termination system. Built to MacGregor’s exacting standards, this rotary encoder delivers exceptional durability and consistent performance.
Technical Specifications:
- Brand: MACGREGOR
- Model: 3241408-801
- Encoder Type: Absolute Single-Turn Rotary Encoder
- Mechanical Design: Hollow-shaft with clamping ring
- Resolution: 4096 (12-bit Binary Code)
- Supply Voltage: 10-30 VDC
- Current Consumption: 45 mA
- Output Type: Parallel binary output
- Pin Assignment: 0V, UB, +T, -T, +D, -D, ST, VIR
- Origin & Certification: Made in Germany, CE Certified
MACGREGOR 3241408-801 Absolute Rotary Encoder
Shop the MACGREGOR 3241408-801 Absolute Rotary Encoder online. This German-made, hollow-shaft single-turn encoder delivers precise 12-bit (4096) binary resolution, 10-30 VDC operation, and reliable performance for heavy-duty industrial and marine applications. Order today for fast shipping.
| Brand | MACGREGOR |
|---|---|
| Model | 3241408-801 |
| Part No. | 993924216659 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/macgregor-3241408-801-absolute-rotary-encoder |
