Product Description

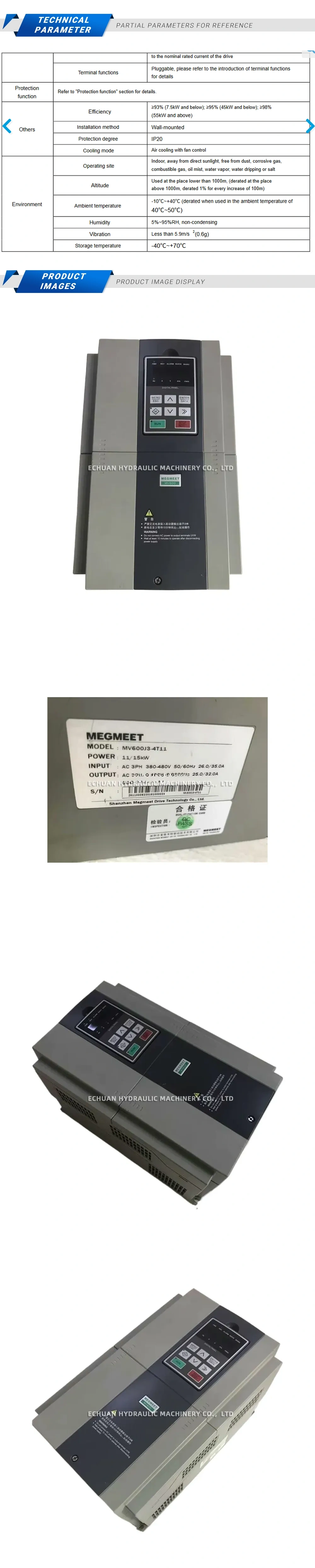

Megmeet MV600J3-4T11
The Megmeet MV600J3-4T11 is a high-performance, general-purpose vector control inverter designed for precise and efficient motor speed regulation in a wide range of industrial applications. Part of the MV600 series, this variable frequency drive (VFD) integrates advanced sensorless vector control (SVC) and V/F control modes to deliver excellent torque response and speed accuracy. It features a robust design with a wide input voltage range and comprehensive protection functions, ensuring reliable operation even in demanding environments. With its user-friendly interface and built-in braking unit, the MV600J3-4T11 is an ideal solution for applications such as pumps, fans, compressors, conveyors, and other machinery requiring adjustable speed control.
Technical Specifications:
- Model: MV600J3-4T11
- Power Rating: 11 kW / 15 HP
- Input Voltage: 3-Phase 380V – 480V AC (+/-15%), 50/60Hz
- Output Current: 25A
- Control Mode: Sensorless Vector Control (SVC), V/F Control
- Output Frequency Range: 0 – 400 Hz
- Overload Capacity: 150% of rated current for 60 seconds; 180% for 3 seconds
- Braking Unit: Built-in
Megmeet MV600J3-4T11
Discover the Megmeet MV600J3-4T11, a reliable 11kW (15HP) variable frequency drive. This 3-phase 380V-480V vector control inverter provides efficient motor speed control for various industrial applications.
