Product Description

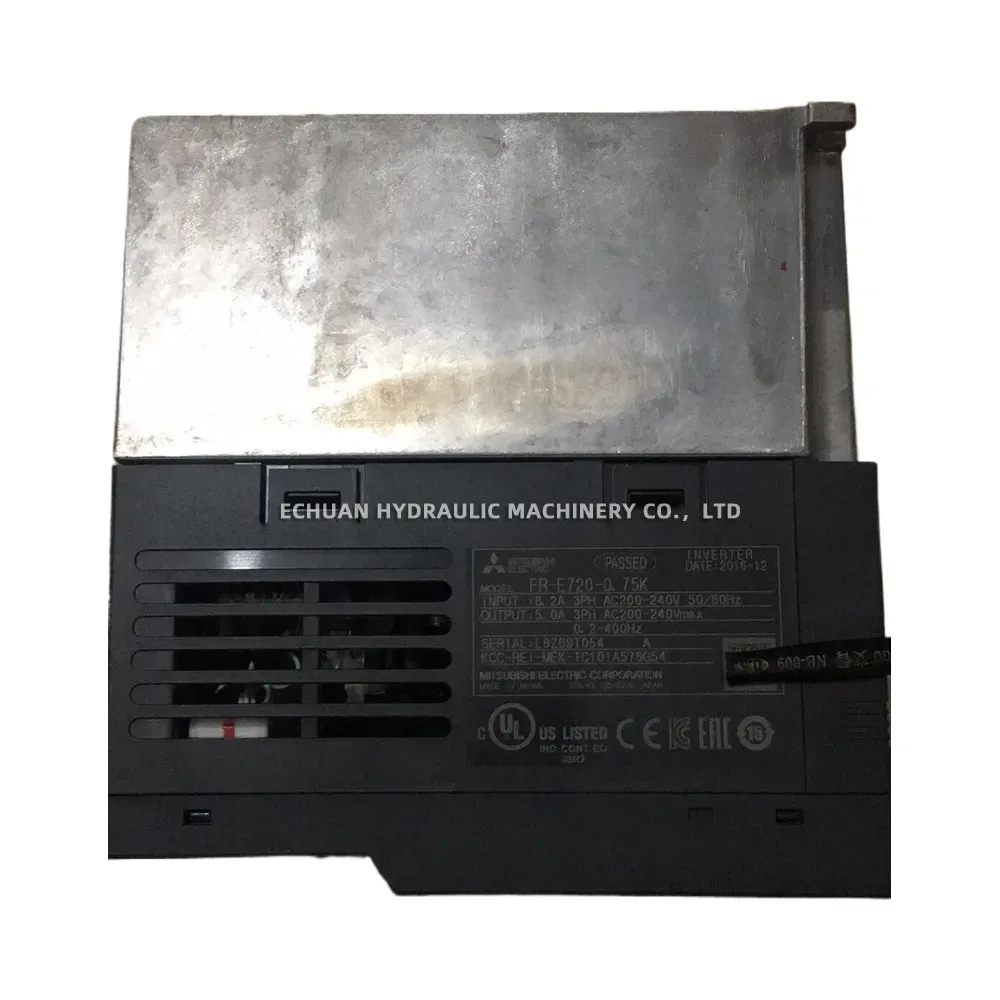

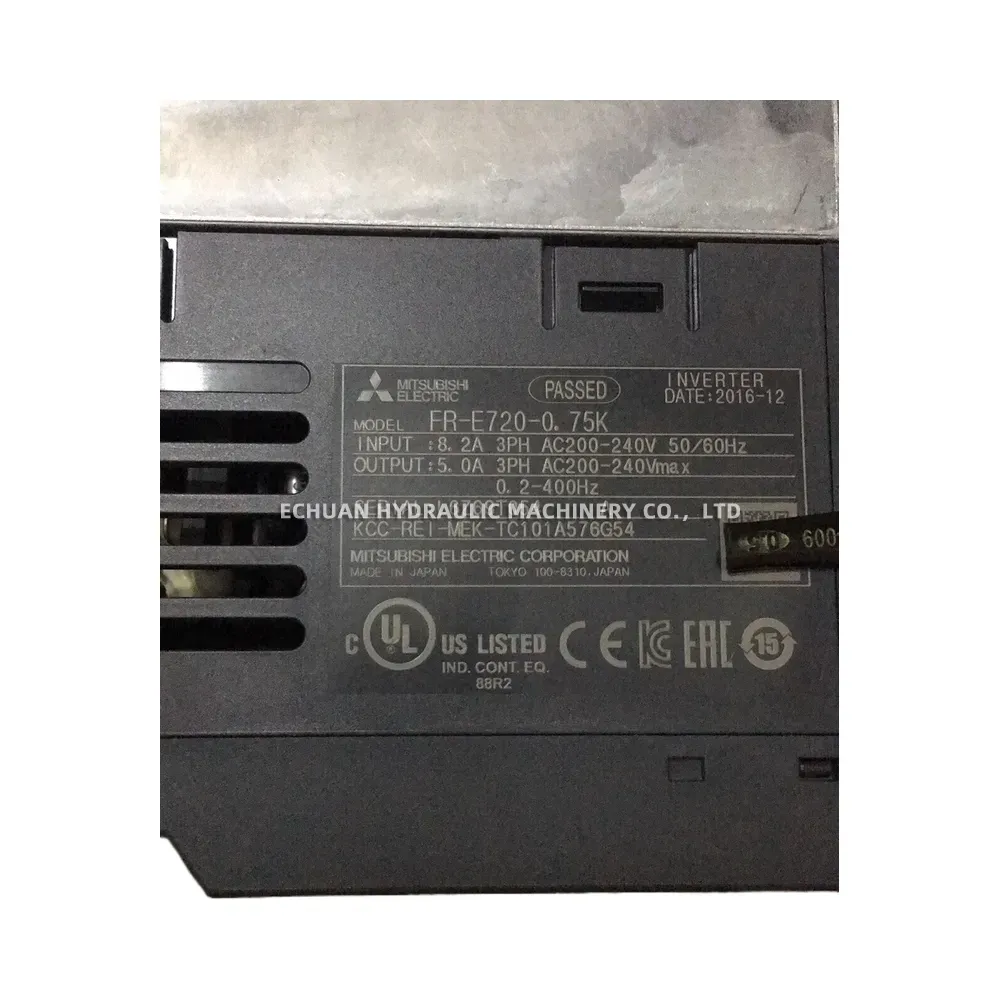

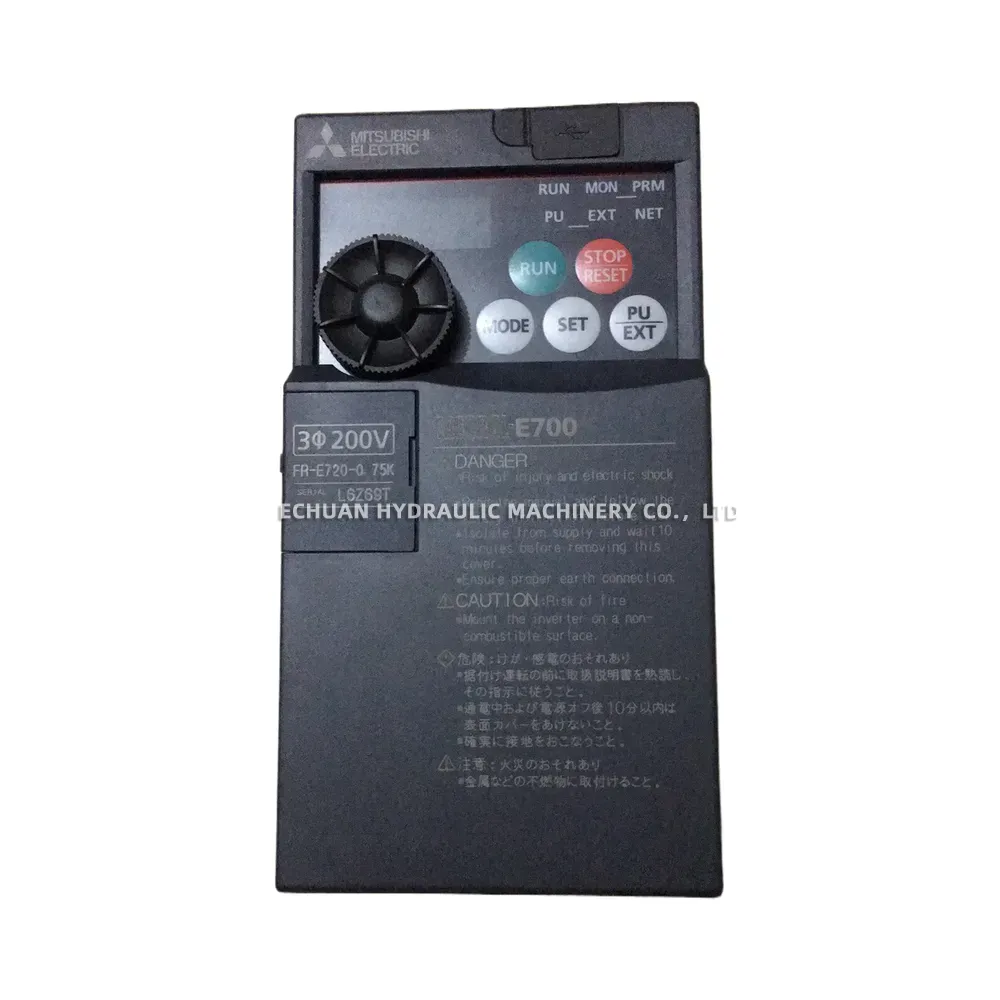

MITSUBISHI FR-E720-0.75K
The MITSUBISHI FR-E720-0.75K is a compact and powerful variable frequency drive (VFD) from the FR-E700 series. Designed for versatility and high performance in a small footprint, it offers advanced features like advanced magnetic flux vector control, optimum excitation control, and built-in safety functions (STO). Its ease of use is enhanced by a built-in USB port for simple setup and parameterization via a PC, and an integrated digital dial for quick access to parameters. Suitable for a wide range of applications requiring precise motor speed control for 3-phase induction motors up to 0.75kW.
Technical Specifications:
- Series: FR-E700
- Model: FR-E720-0.75K
- Input Voltage: 3-phase 200-240V AC (+10%, -15%), 50/60Hz
- Output Voltage: 3-phase 200-240V AC
- Applicable Motor Capacity (kW): 0.75 kW
- Rated Output Current (A): 4.0 A
- Output Frequency Range (Hz): 0.2 – 400 Hz
- Control Method: Soft-PWM control / High carrier frequency PWM control (Selectable between V/F control, Advanced magnetic flux vector control, General-purpose magnetic flux vector control, Optimum excitation control)
- Braking: Built-in braking transistor
- Communication: RS-485 (Modbus RTU), USB
- Safety Function: STO (Safe Torque Off) PLd, SIL2
- Enclosure: IP20 (Enclosed type)
- Overload Capacity: 150% of rated current for 60s, 200% for 3s (Inverse-time characteristics)
MITSUBISHI FR-E720-0.75K
Type:MITSUBISHI FR-E720-0.75K
| Brand | Mitsubishi |
|---|---|
| Model | FR-E720-0.75K |
| Category | Hydraulic parts |
| Link | https://www.echuan-hydraulic.com/product/mitsubishi-fr-e720-0-75k |
