Product Description

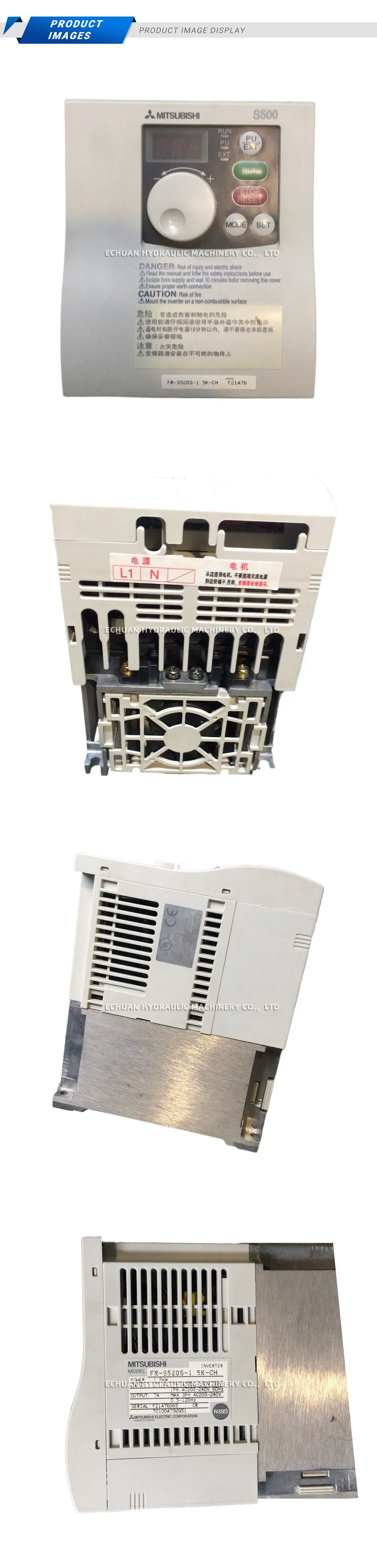

Mitsubishi FR-S520S-1.5K-CH
The Mitsubishi FR-S520S-1.5K-CH is a compact and highly reliable micro-inverter from the renowned FREQROL S500 series. Designed for simplicity and efficiency, this variable frequency drive (VFD) is an excellent solution for controlling the speed of 1.5kW three-phase motors using a single-phase power supply. Its user-friendly interface, featuring an integrated setting dial, allows for quick and easy setup without complex programming. The compact design makes it ideal for installation in tight spaces, perfect for applications such as small conveyors, fans, pumps, and other general-purpose machinery where precise motor control and energy savings are required.
Technical Specifications:
- Applicable Motor Capacity: 1.5 kW (2 HP)
- Input Power Supply: Single-phase 200-240V AC, 50/60Hz
- Output: Three-phase 200-240V AC
- Rated Output Current: 7.0 A
- Control Method: Soft-PWM control / High carrier frequency PWM control
Mitsubishi FR-S520S-1.5K-CH
Discover the Mitsubishi FR-S520S-1.5K-CH, a compact 1.5kW single-phase input VFD inverter from the FREQROL S500 series. Ideal for precise speed control of small motors in conveyor, fan, and pump applications.
