Product Description

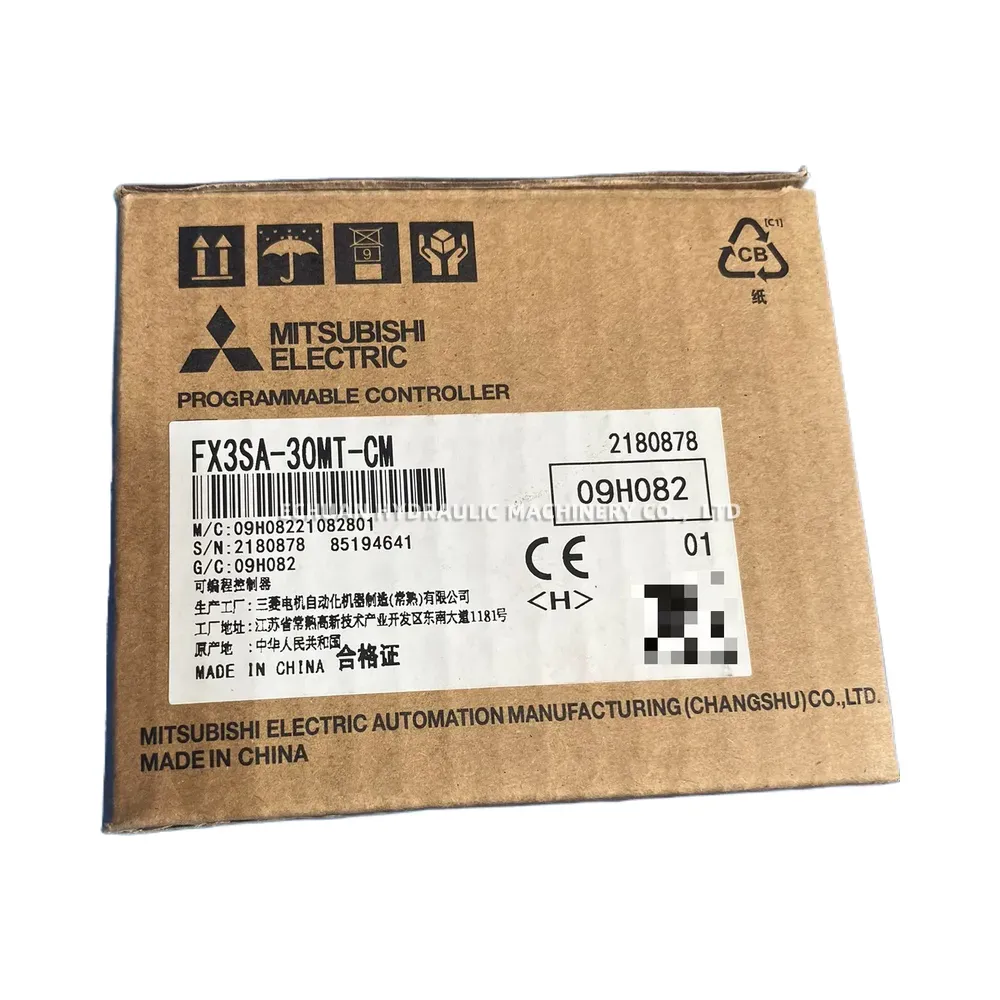

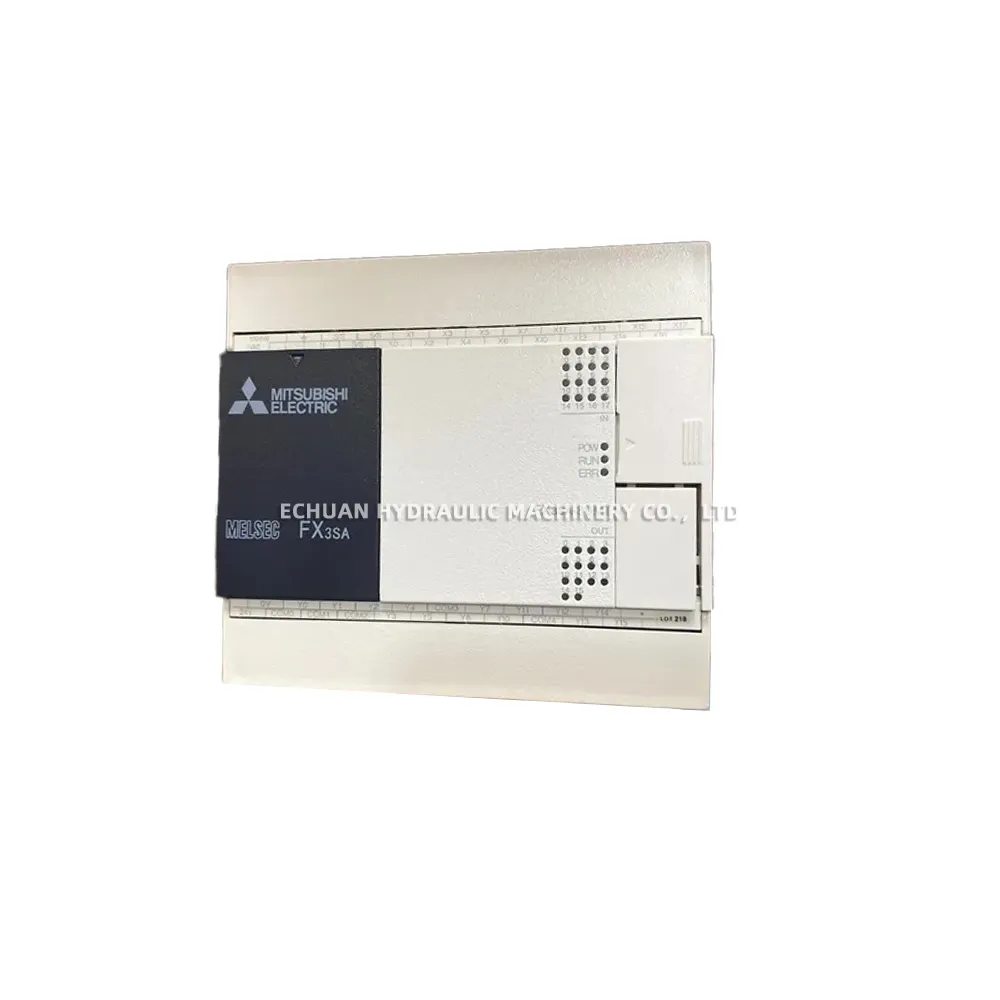

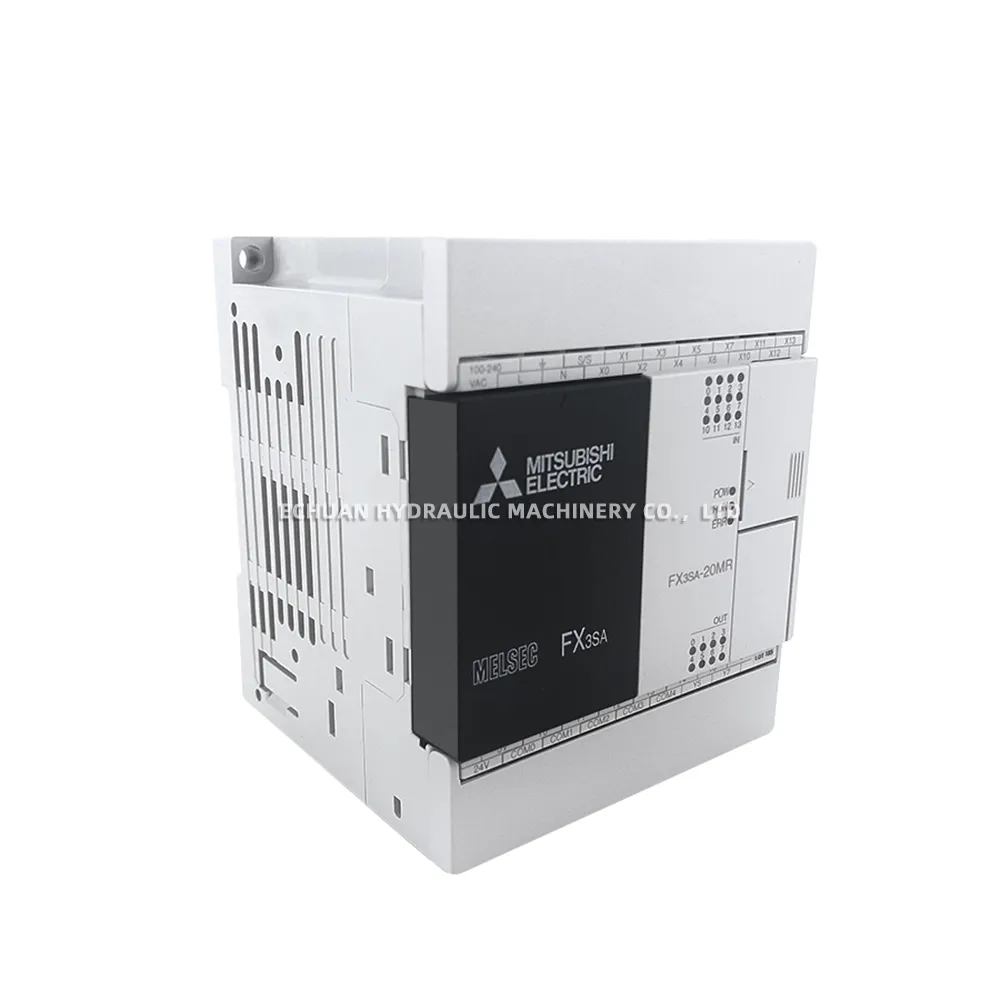

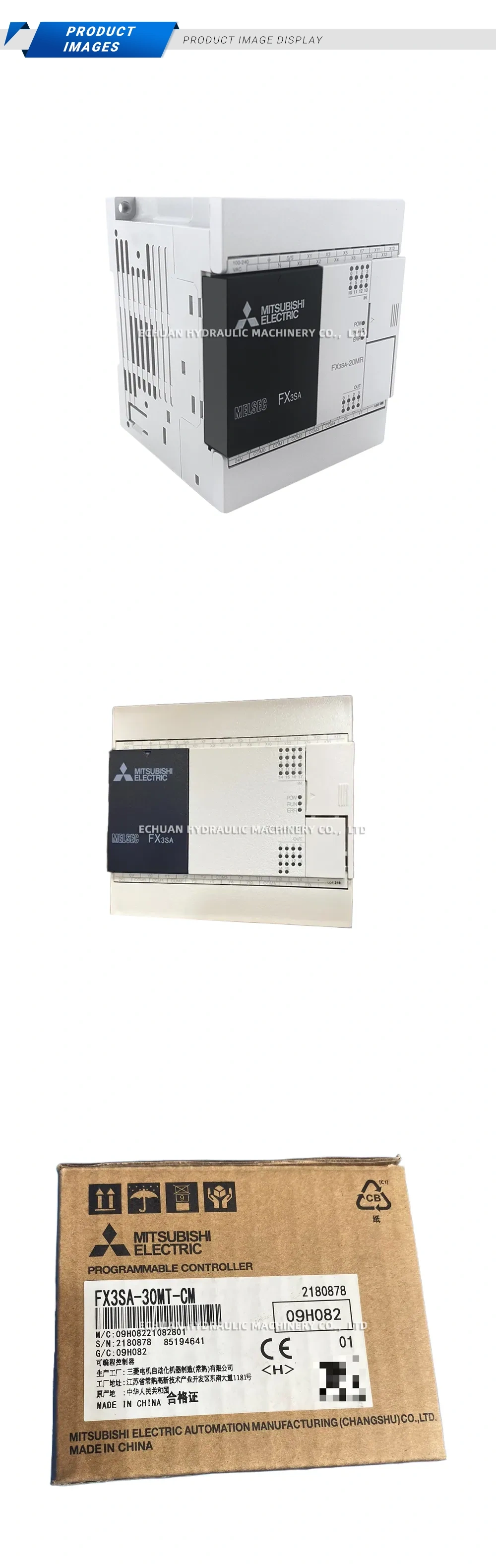

Mitsubishi FX3SA-30MT-CM
The Mitsubishi FX3SA-30MT-CM is a compact and cost-effective Programmable Logic Controller (PLC) from the renowned MELSEC-F series. It serves as the third-generation basic model, designed to provide a simple yet powerful solution for small-scale automation and control applications. This all-in-one controller integrates power supply, CPU, and I/O into a single compact unit, making it ideal for space-constrained installations. With built-in high-speed counters, positioning capabilities, and a USB programming port, the FX3SA-30MT-CM offers excellent performance and ease of use for standalone control systems in various industries.
Technical Specifications:
- Power Supply: 100 – 240 V AC
- Total I/O Points: 30
- Digital Inputs: 16 points (24 V DC, Sink/Source)
- Digital Outputs: 14 points (Transistor, Sink type)
- Program Memory: 4,000 steps EEPROM
- Programming Port: Mini-B USB Connector
- Series: MELSEC-F FX3S
Mitsubishi FX3SA-30MT-CM
Discover the Mitsubishi FX3SA-30MT-CM, a compact PLC with 30 I/O points, 100-240V AC power, and 14 transistor outputs. Ideal for basic automation and control systems.
