Product Description
Mitsubishi FX5-32ER/ES I/O Extension Module
The Mitsubishi FX5-32ER/ES is a high-performance I/O extension module designed for the MELSEC iQ-F series of programmable logic controllers (PLCs). This module provides a simple and effective way to expand the capabilities of your automation system by adding 16 digital inputs and 16 digital outputs. The FX5-32ER/ES connects seamlessly to an FX5U or FX5UC main unit, offering increased flexibility for controlling a wider range of sensors, actuators, and other devices. Available in two versions: the FX5-32ER features relay outputs for versatile load switching, while the FX5-32ES provides high-speed transistor (sink) outputs for applications requiring rapid response times. Its compact design and easy integration make it an ideal choice for expanding control systems in various industrial applications.

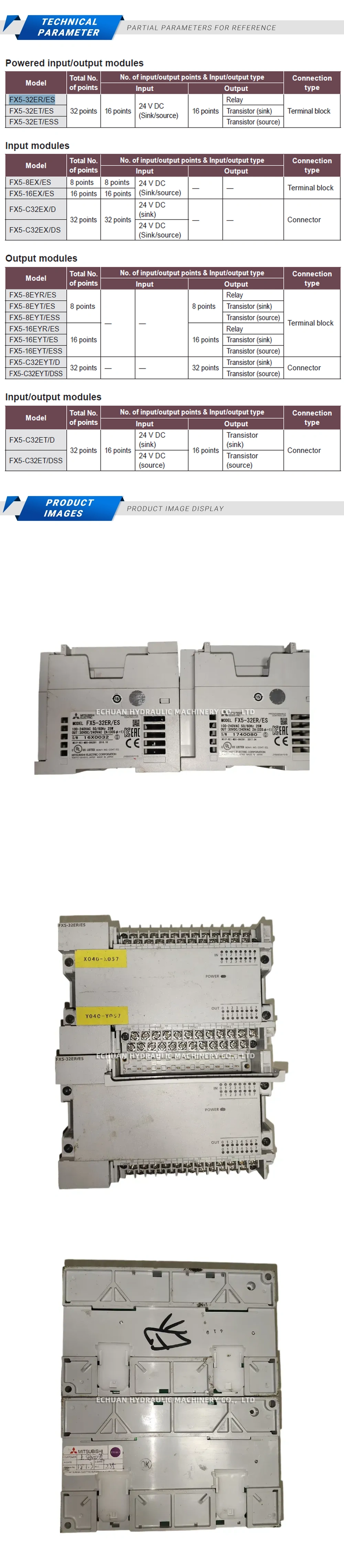

Technical Specifications:
- Model: FX5-32ER/ES
- Product Series: MELSEC iQ-F
- Number of I/O Points: 32 points (16 inputs / 16 outputs)
- Input Specification: 16 points, 24 V DC (Sink/Source)
- Output Specification (FX5-32ER): 16 points, Relay output, 2A/point
- Output Specification (FX5-32ES): 16 points, Transistor (Sink) output, 0.5A/point
- Compatibility: Connects to FX5U and FX5UC PLC CPU modules
- Power Consumption: 130mA (from 5V DC bus), 105mA (from 24V DC bus)
Mitsubishi FX5-32ER/ES
Expand your Mitsubishi MELSEC iQ-F PLC system with the FX5-32ER/ES I/O module. This unit adds 16 digital inputs and 16 relay (ER) or transistor (ES) outputs for enhanced automation control.
