Product Description

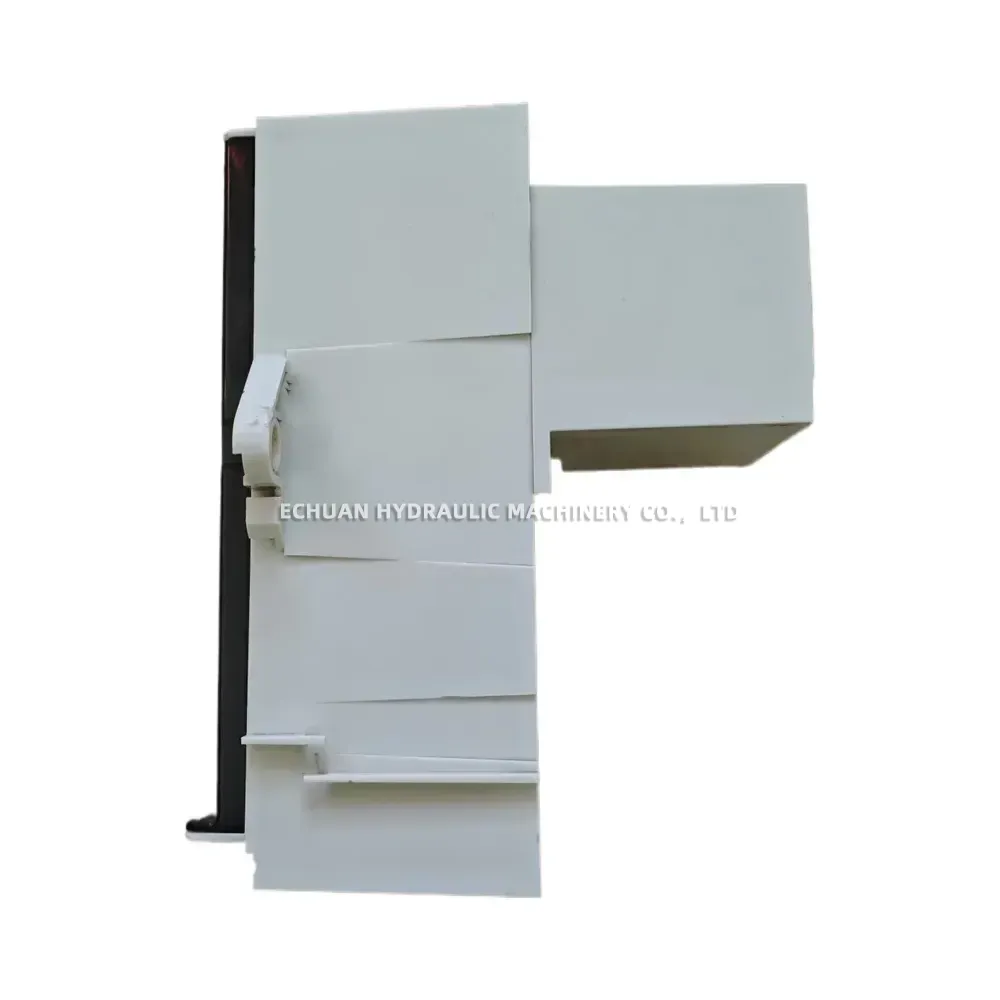

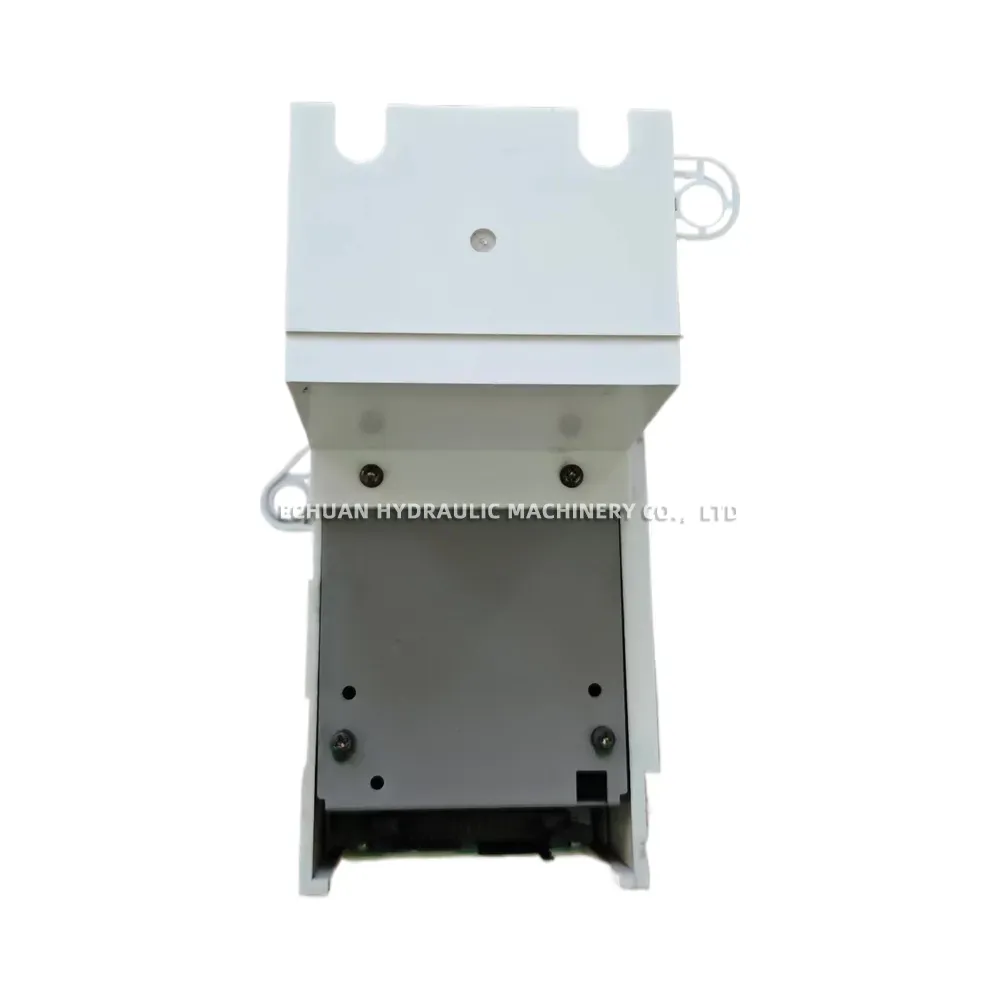

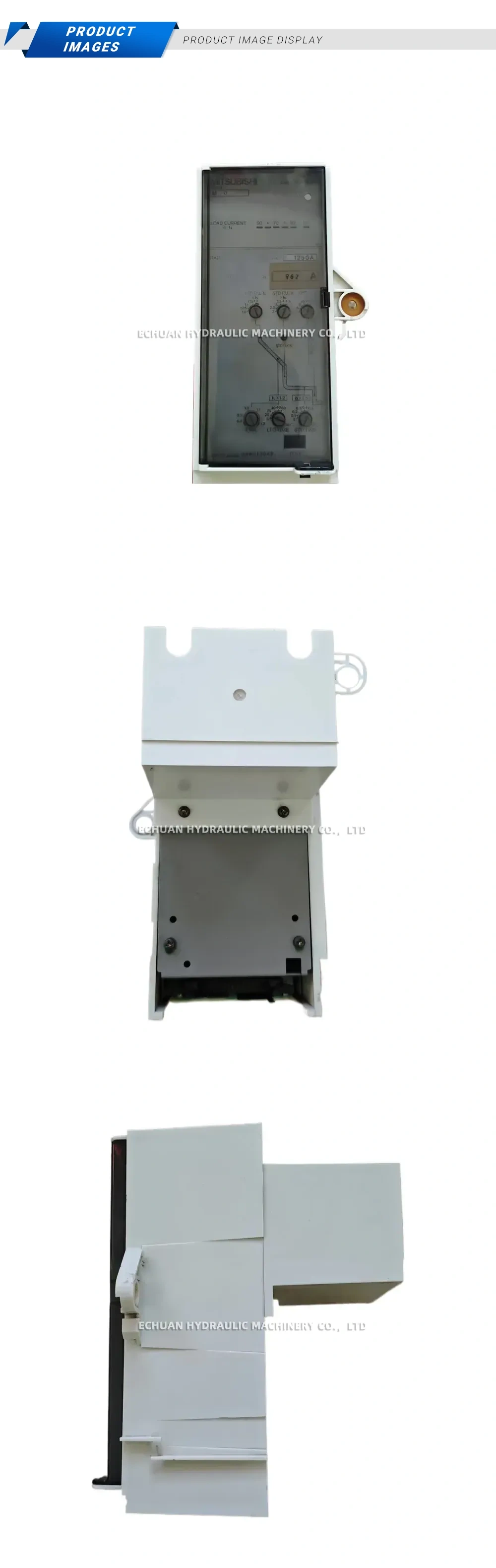

MITSUBISHI M-0 Electronic Trip Relay

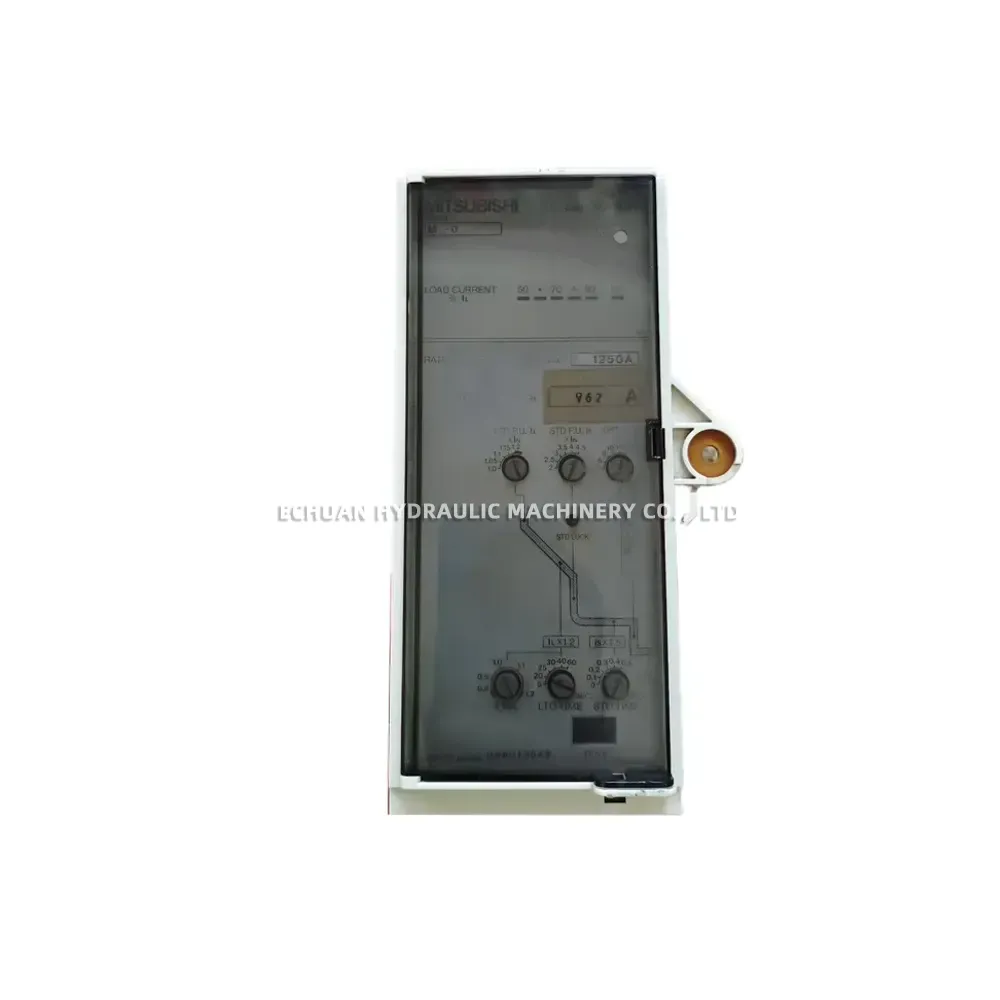

The Mitsubishi M-0 Electronic Trip Relay is a high-performance, Japanese-made trip unit engineered for reliable circuit breaker protection. Designed with a rated current of 1250A, this unit offers precise control and monitoring through its front panel load current indicators (50%, 70%, 90%, and 100% In) and comprehensive adjustable setting dials. It features highly customizable Long Time Delay (LTD), Short Time Delay (STD), and Instantaneous (INST) pickup settings, along with fine-tuning capabilities to ensure optimal electrical safety and system coordination. Built with a robust TEST function and an STD LOCK feature, the M-0 model guarantees dependable overcurrent protection for demanding industrial and commercial electrical applications.
Technical Specifications:
- Brand: MITSUBISHI
- Model: M-0
- Rated Current: 1250A (Setting label: 962A)
- Load Current Indication (%In): 50, 70, 90, 100
- LTD P.U. Setting (In): 1.0 – 1.2 xIn (1.0, 1.05, 1.1, 1.15, 1.2)
- STD P.U. Setting (Is): 2 – 4.5 xIn (2, 2.5, 3, 3.5, 4, 4.5)
- INST Setting (Ii): 8 – 12 xIn (8, 9, 10, 11, 12)
- FINE Adjustment: 0.8, 0.9, 1.0, 1.1, 1.2
- LTD Time: 15, 20, 30, 40, 60 sec
- STD Time: 0.1, 0.2, 0.3, 0.4, 0.5 sec
- Special Features: STD LOCK function, Ik x1.2 / Is x1.5 characteristics, Front panel TEST button
- Country of Origin: Made in Japan
MITSUBISHI M-0 Electronic Trip Relay
Shop the genuine Mitsubishi M-0 Electronic Trip Relay (1250A). This premium Japanese-made circuit breaker trip unit features adjustable LTD, STD, and INST settings with front panel load current indication for precise, reliable industrial electrical protection. Upgrade your electrical system’s safety today.
| Brand | Mitsubishi |
|---|---|
| Model | M-0 |
| Part No. | 1006750787665 |
| Category | Electrical |
