Product Description

Mitsubishi Q68ADI

The Mitsubishi Q68ADI is a high-performance analog-to-digital (A/D) converter module for the MELSEC-Q Series programmable logic controllers (PLCs). This module is designed to convert analog input signals, such as voltage or current from sensors and other devices, into digital values that the PLC CPU can process. With 8 independent input channels, it offers flexibility for various industrial automation applications requiring precise monitoring and control of analog processes. Its robust design ensures reliable performance in demanding environments, making it an essential component for sophisticated control systems.

Technical Specifications:

  • Number of analog input points: 8 channels

  • Analog input range (Voltage): DC -10V to +10V (Input resistance: 1MΩ)

  • Analog input range (Current): DC 0mA to 20mA, DC 4mA to 20mA (Input resistance: 250Ω)

  • Digital output resolution: Signed 16-bit binary data (-32768 to 32767)

  • Conversion speed: 1ms / 8 channels

  • Internal current consumption (5V DC): 0.38A

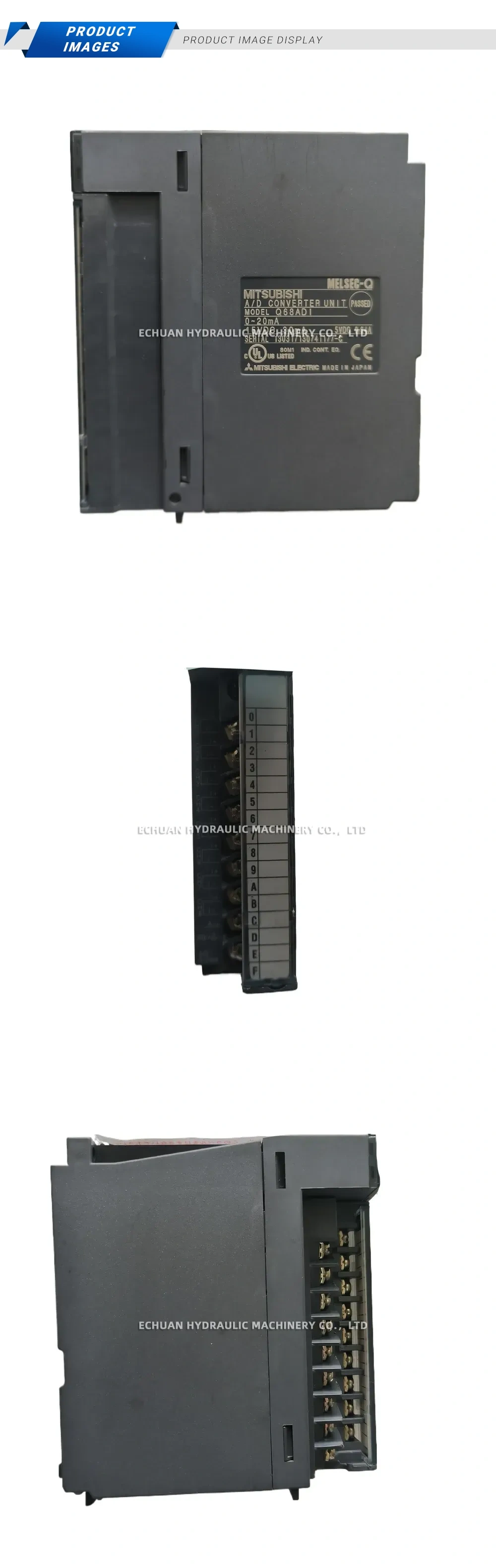

Mitsubishi Q68ADI Description

Mitsubishi Q68ADI

Discover the Mitsubishi Q68ADI, an 8-channel analog-to-digital input module for the MELSEC-Q Series PLC. It accurately converts voltage and current signals for precise industrial process control and monitoring.

BrandMitsubishi
ModelQ68ADI
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/mitsubishi-q68adi
