Product Description

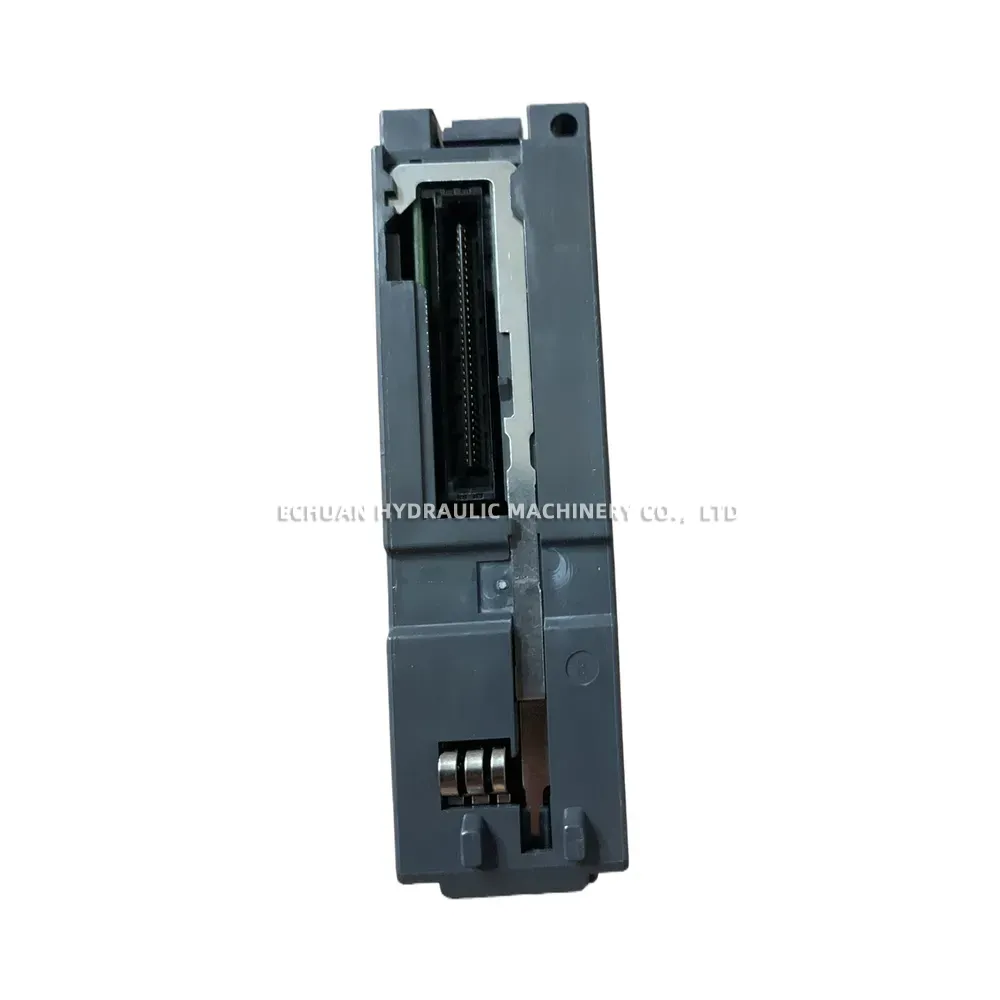

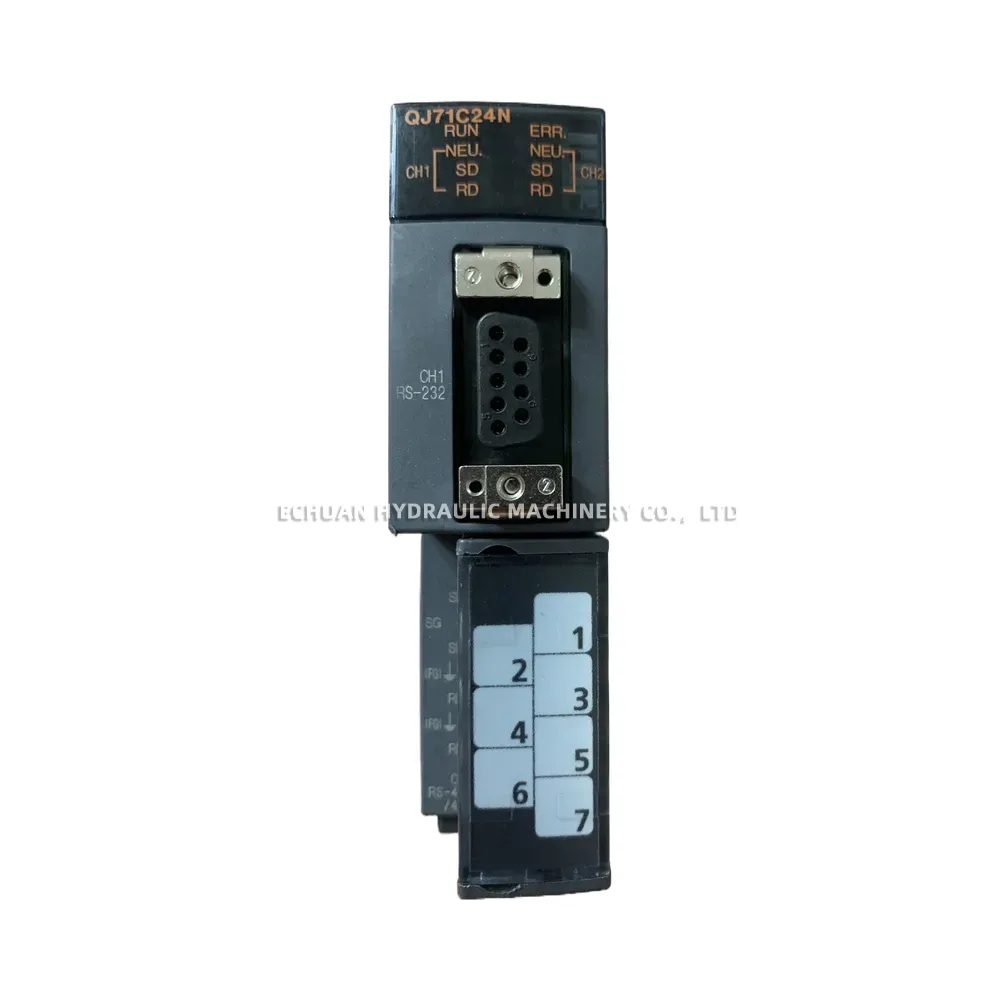

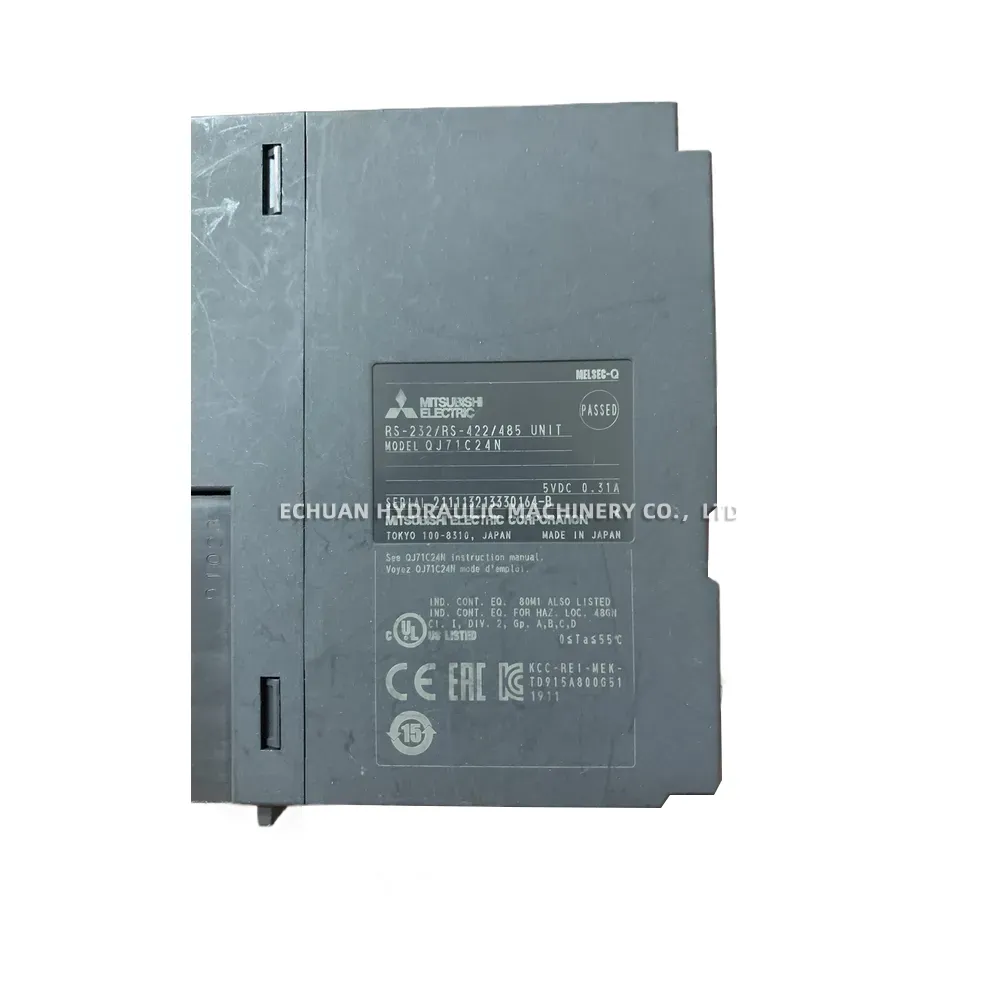

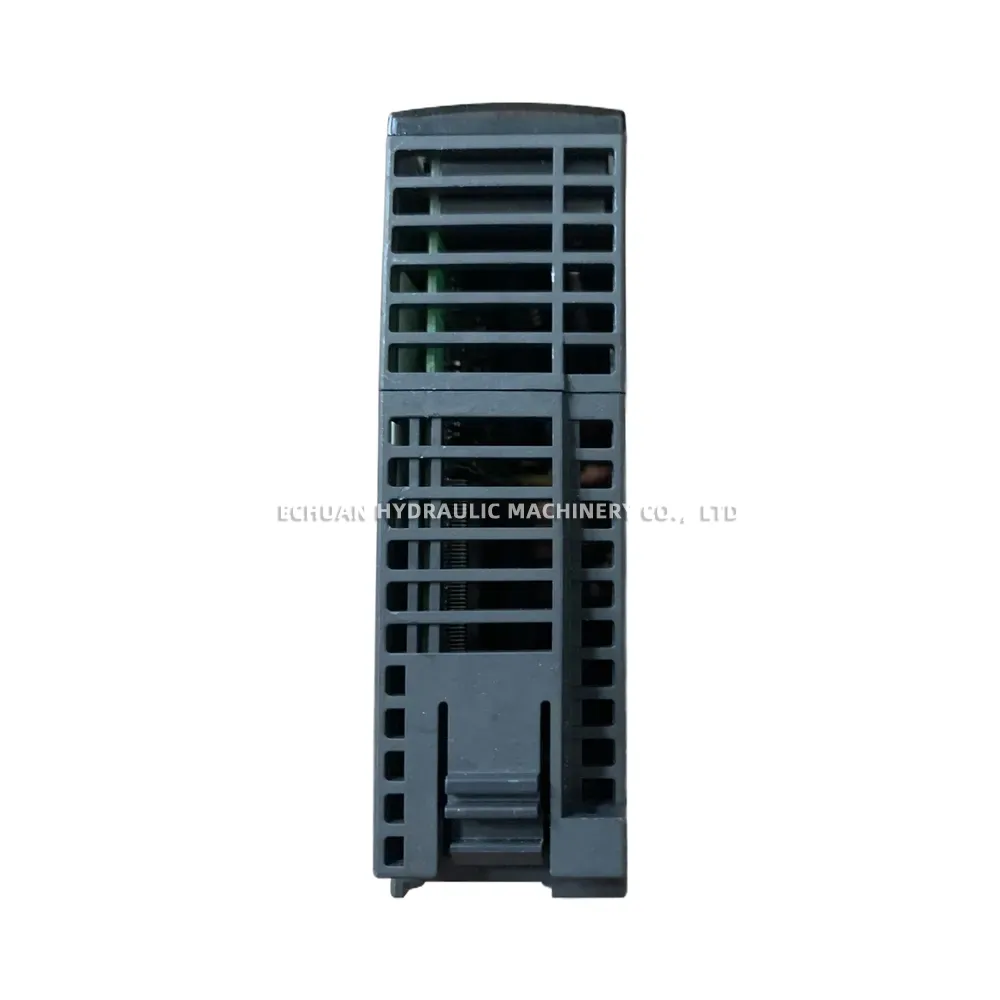

Mitsubishi QJ71C24N
The Mitsubishi QJ71C24N is a versatile serial communication module designed for the MELSEC-Q Series PLC platform. It provides two independent serial channels (CH1: RS-232, CH2: RS-232/RS-422/RS-485) enabling communication with a wide range of external devices such as barcode readers, printers, modems, measuring instruments, and personal computers. This module supports various communication protocols, including non-procedural communication, MC Protocol, and bidirectional protocol, offering flexible integration options for automation systems requiring serial data exchange.
Technical Specifications:
- Product Type: Serial Communication Module
- Series: MELSEC-Q
- Number of Serial Channels: 2
- Channel 1 Interface: RS-232 (D-Sub 9-pin male)
- Channel 2 Interface: RS-232/RS-422/RS-485 (Selectable, Terminal Block)
- Transmission Speed: 0.3 – 115.2 kbps (per channel, depending on settings)
- Communication Method: Full-duplex / Half-duplex
- Supported Protocols: Non-procedural, MC protocol (Format 1, 4, 5), Bidirectional protocol, Inverter communication
- I/O Points Occupied: 32 points (I/O assignment: Intelligent device)
- Internal Current Consumption (5V DC): 0.34 A
- Mounting: Base Unit Slot (Q Series)
Mitsubishi QJ71C24N
Type:Mitsubishi QJ71C24N
