Product Description

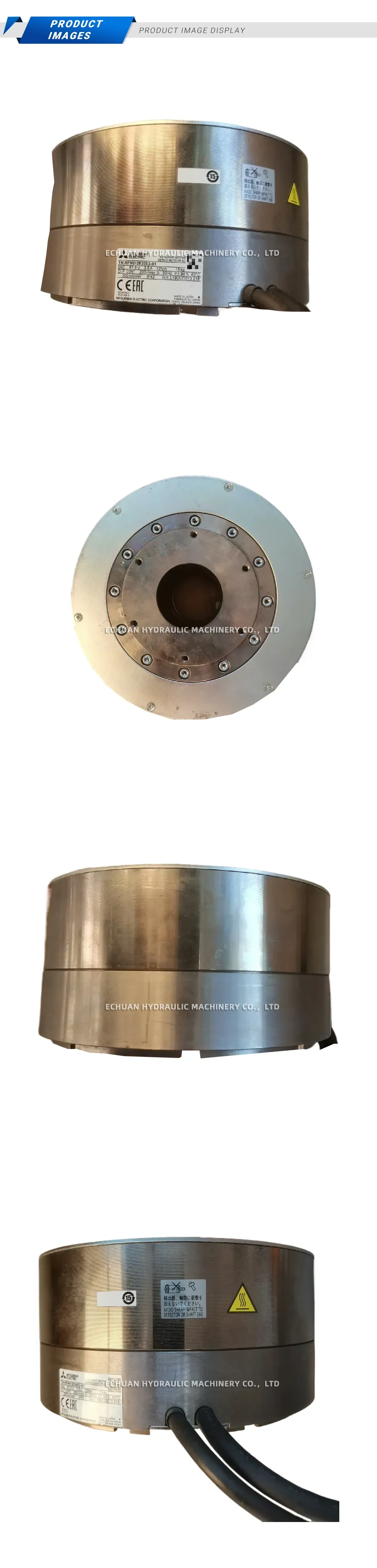

Mitsubishi TM-RFM012E20ES-S1
The Mitsubishi TM-RFM012E20ES-S1 is a high-performance direct drive (DD) servo motor designed for applications demanding exceptional precision, stability, and a compact footprint. As part of the MELSERVO-J4 series, this motor features a hollow shaft structure, which allows for easy wiring and piping, simplifying machine design. By eliminating mechanical transmission components like gearboxes and belts, the TM-RFM012E20ES-S1 provides backlash-free operation, reduced maintenance, and quieter performance. Its integrated high-resolution 22-bit absolute encoder ensures superior positioning accuracy and smooth, low-speed rotation, making it an ideal solution for indexing tables, semiconductor manufacturing equipment, and precision automation systems.
Technical Specifications:
- Model: TM-RFM012E20ES-S1
- Motor Series: TM-RFM (Direct Drive Motor)
- Rated Torque: 12 N·m
- Maximum Torque: 36 N·m
- Rated Speed: 200 rpm
- Maximum Speed: 500 rpm
- Encoder Type: Absolute Encoder
- Encoder Resolution: 22-bit (4,194,304 pulses/revolution)
- Hollow Shaft Inner Diameter: 25 mm
- Protection Class: IP42
Mitsubishi TM-RFM012E20ES-S1
Discover the Mitsubishi TM-RFM012E20ES-S1, a high-torque direct drive servo motor with a hollow shaft design. It delivers 12 Nm of rated torque, a rated speed of 200 rpm, and precise control via a 22-bit absolute encoder, perfect for high-accuracy automation.
