Product Description

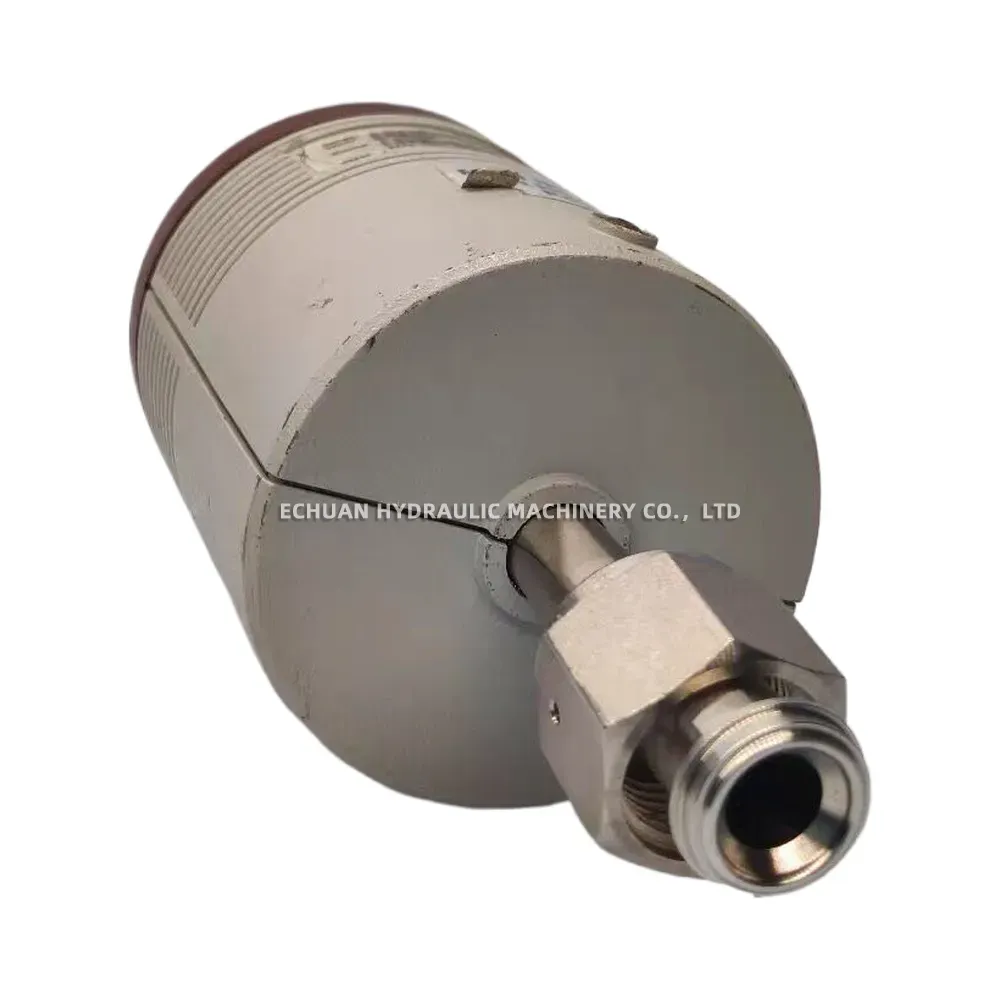

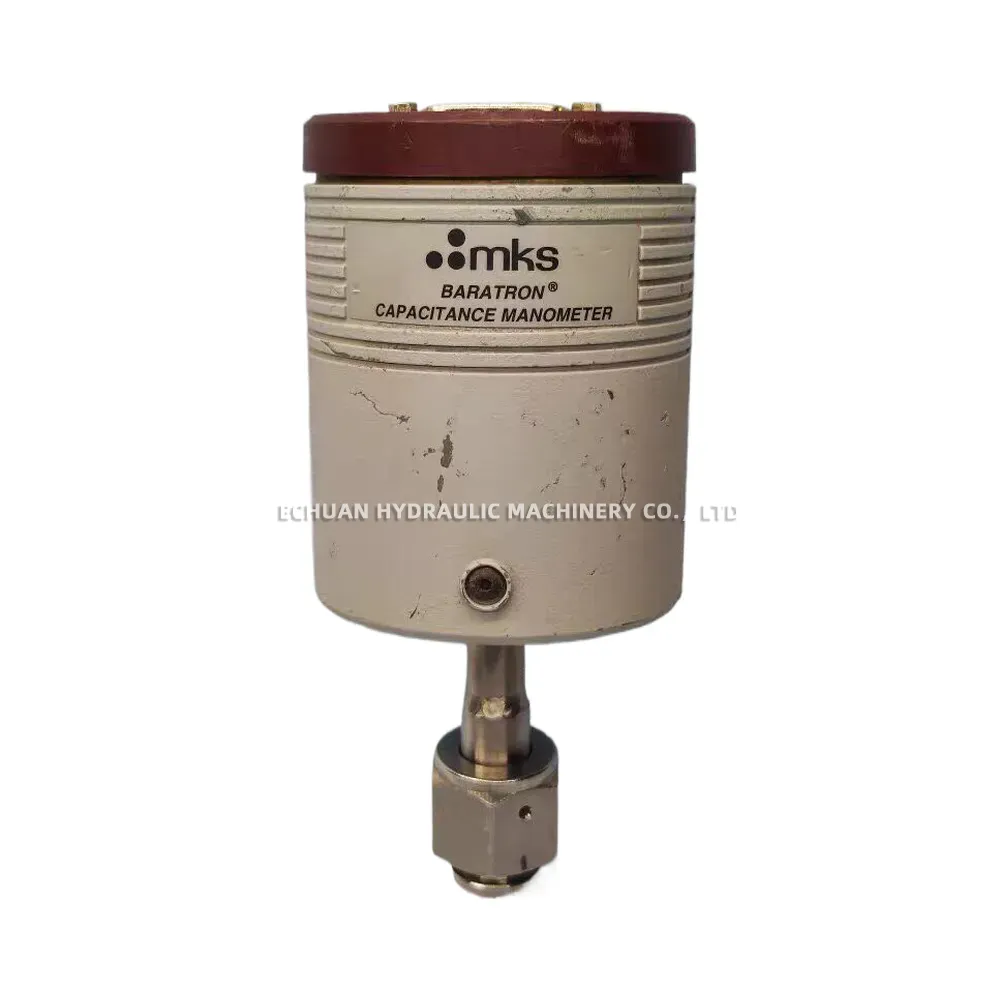

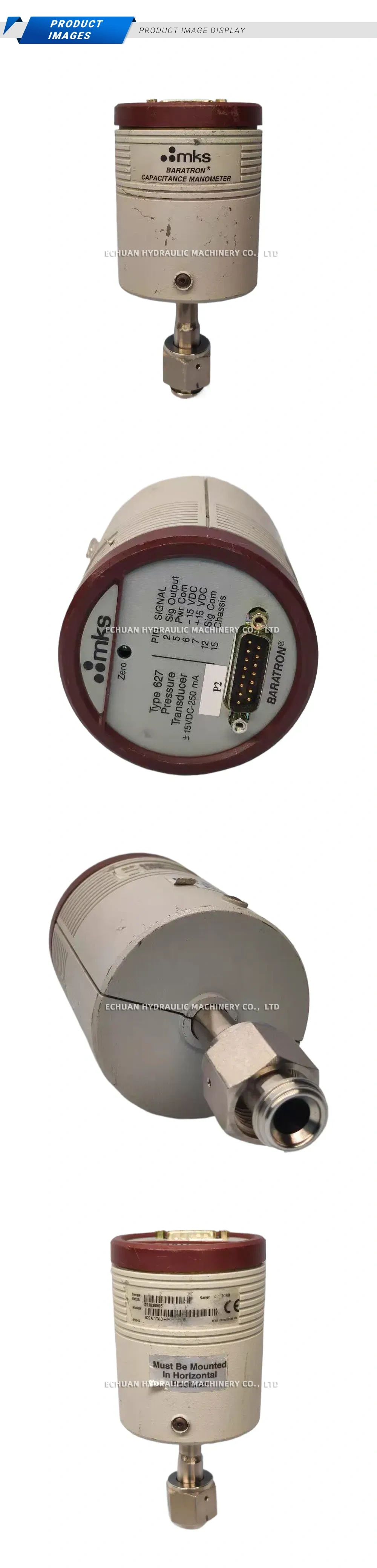

MKS 627A 17TD Capacitance Manometer
The MKS Baratron Type 627A 17TD is a highly accurate capacitance manometer and pressure transducer designed for precise vacuum and pressure measurement. Engineered by MKS Instruments, this robust unit offers a measurement range of 0.1 Torr, making it an ideal choice for sensitive semiconductor processing, industrial vacuum systems, and research applications. It operates on a standard ±15 VDC (250 mA) power supply and features a multi-pin connector interface for straightforward system integration. To ensure optimal performance and calibration accuracy, this specific model must be mounted in a horizontal position.
Technical Specifications:
- Brand: MKS Instruments
- Model: 627A 17TD (Baratron Type 627)
- Measurement Range: 0.1 TORR
- Power Supply: ±15 VDC, 250 mA

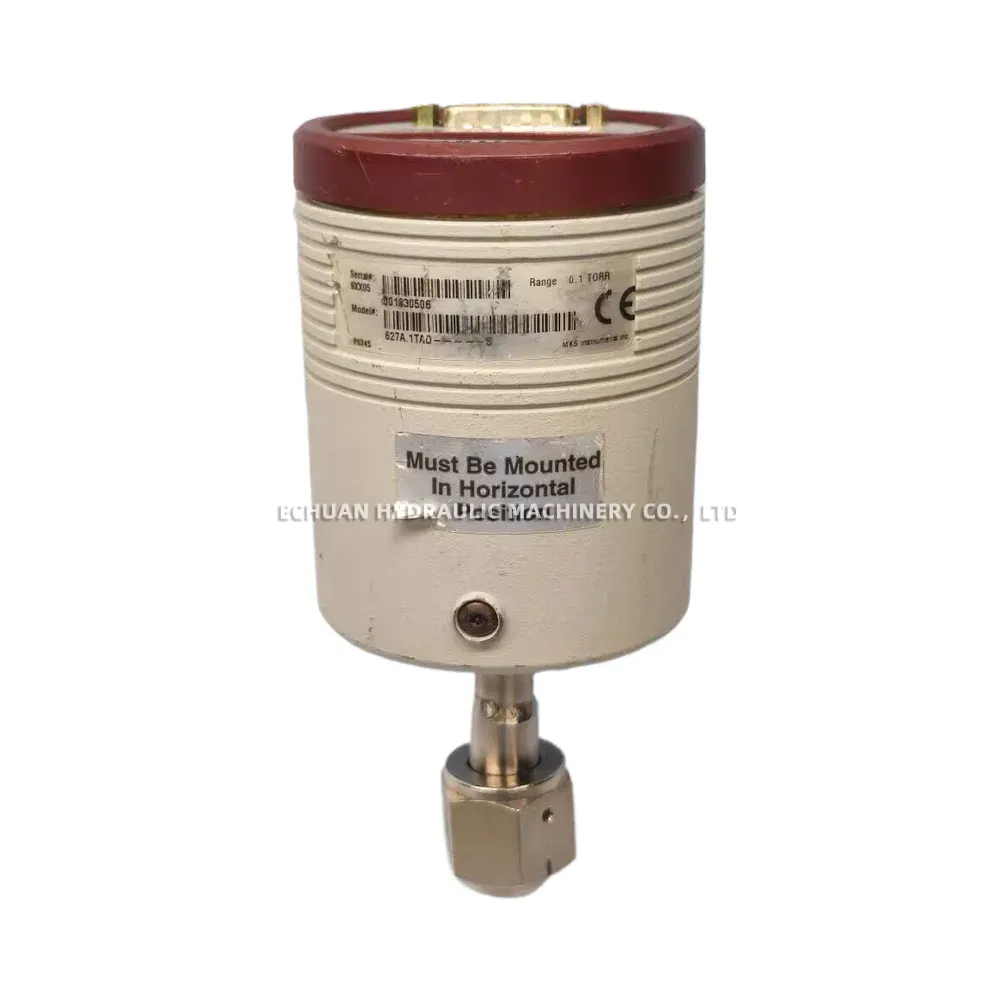

- Mounting Requirement: Must be mounted in horizontal position

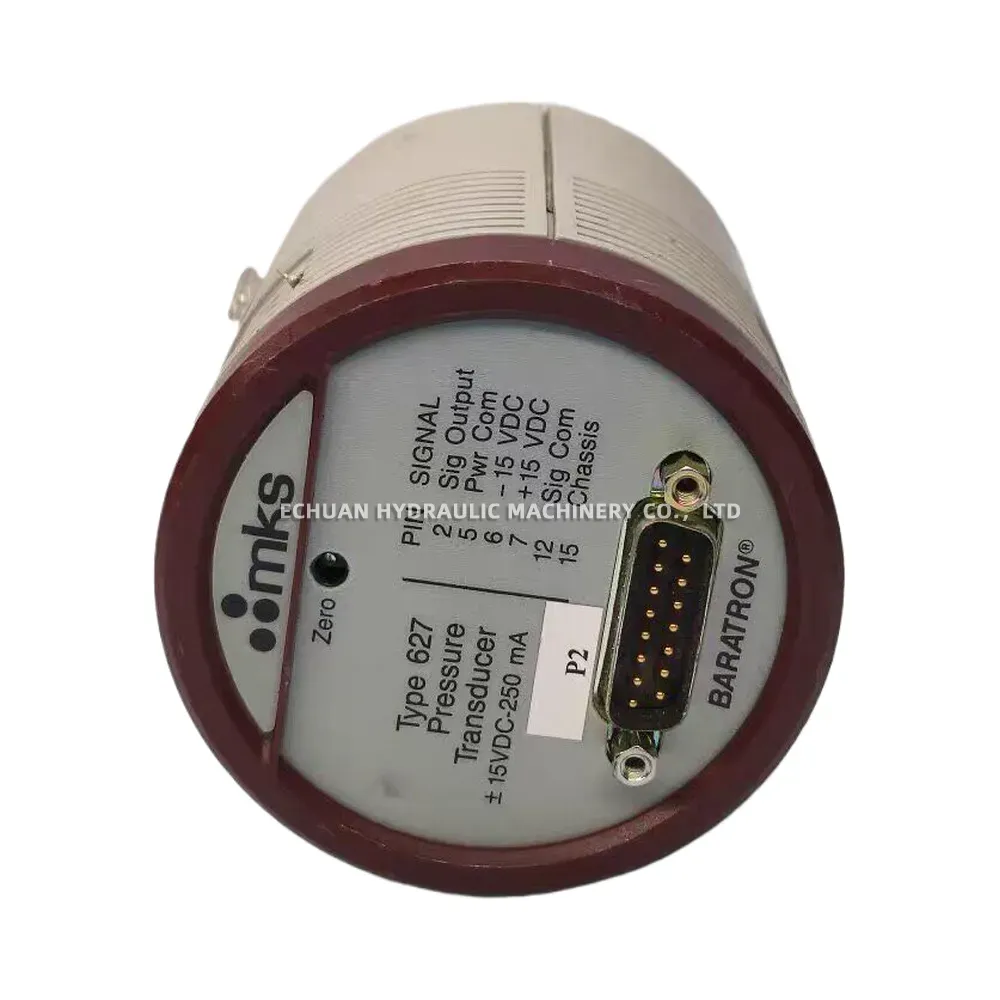

- Pin Signals: 2 Sig Output, 5 Pwr Com, 6 -15 VDC, 7 +15 VDC, 12 Sig Com, 15 Chassis
- Certifications: CE Marked
MKS 627A 17TD Capacitance Manometer
Shop the MKS 627A 17TD Baratron Capacitance Manometer. This high-precision pressure transducer features a 0.1 Torr measurement range, ±15 VDC power requirement, and multi-pin connectivity. Perfect for accurate vacuum system monitoring (horizontal mounting required).
