Product Description

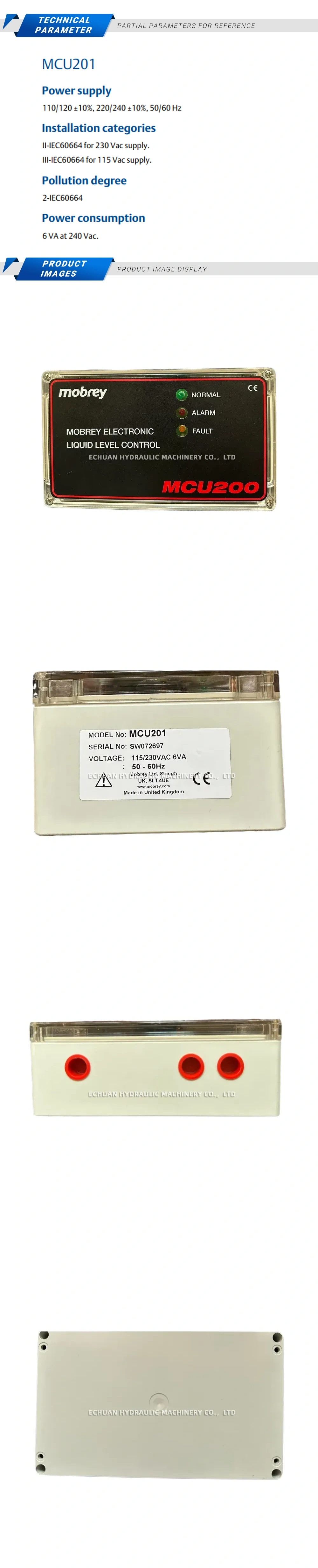

Mobrey MCU201 Control Unit
The Mobrey MCU201 is a versatile and reliable control unit designed to operate in conjunction with Mobrey ultrasonic level switches and sensors. Housed in a durable, wall-mountable polycarbonate enclosure, this unit provides an intrinsically safe power supply to the connected sensor, making it suitable for a wide range of industrial applications, including those in hazardous areas. It features relay outputs for high or low-level alarms, pump control, or other process functions. With features like selectable high/low alarm functionality, adjustable time delay, and clear LED status indicators, the MCU201 offers a comprehensive solution for liquid level detection and control systems.
Technical Specifications:
- Supply Voltage: Available in 24 Vdc, 115 Vac, or 230 Vac models
- Relay Output: SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw) relay contacts, typically rated at 5A @ 250 Vac
- Enclosure: Wall-mounted polycarbonate with an IP65 rating for protection against dust and water ingress
- Operating Temperature: -20°C to +50°C (-4°F to +122°F)

Mobrey MCU201
The Mobrey MCU201 is a compact control unit for Mobrey ultrasonic level switches, providing power and reliable SPDT/DPDT relay outputs for level alarm and control applications.
