Product Description
MOBREY S01DB/F84

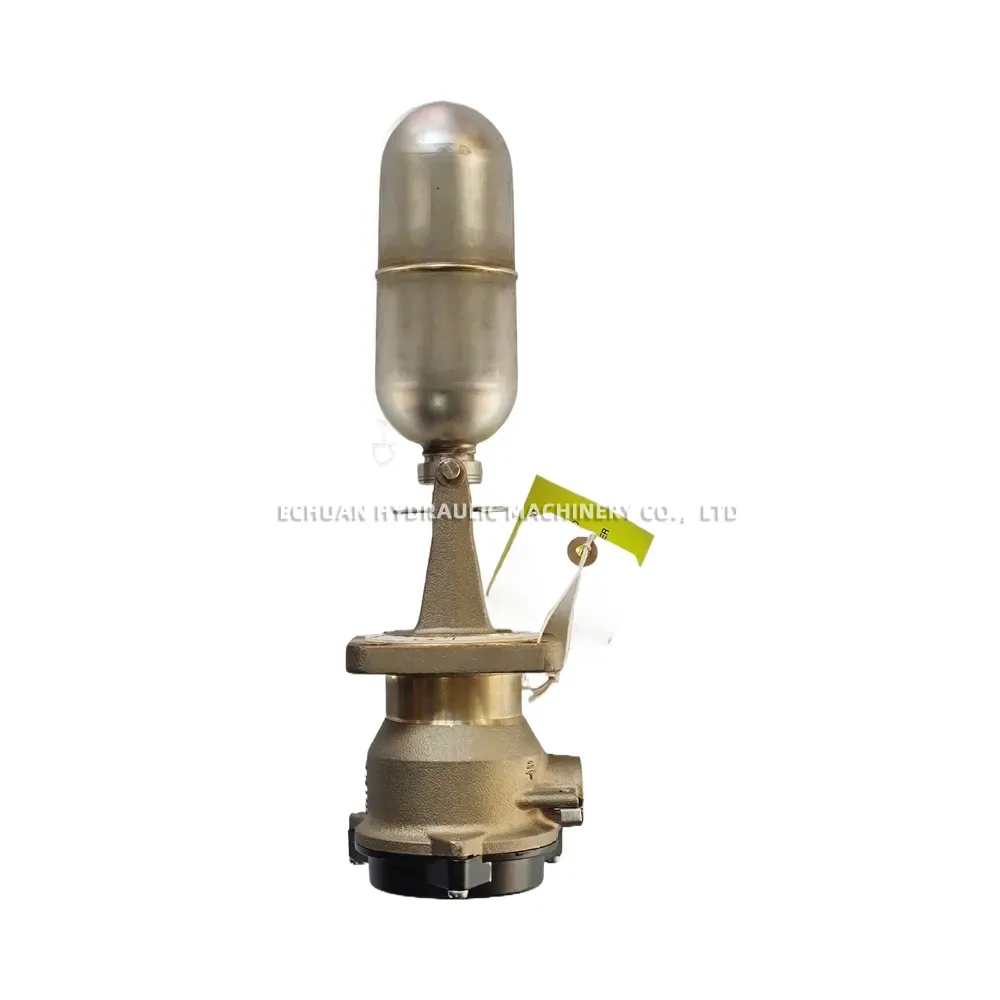

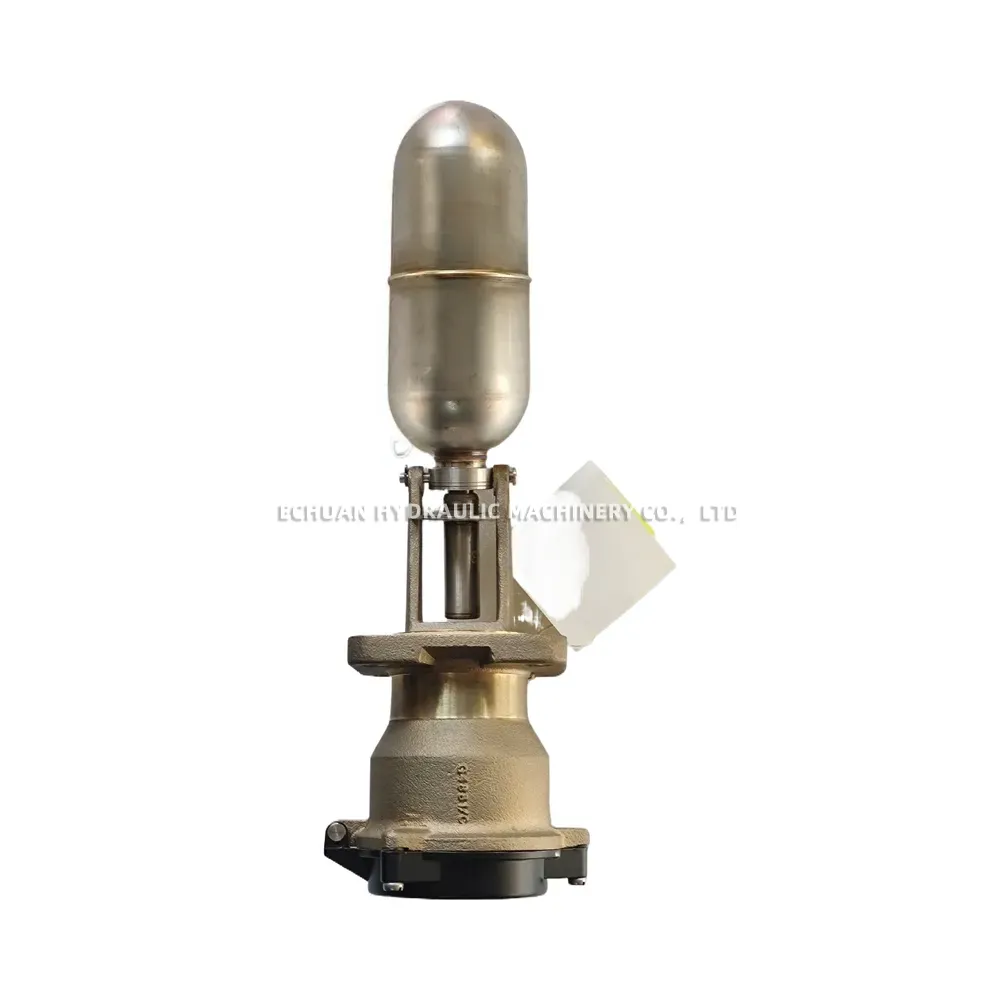

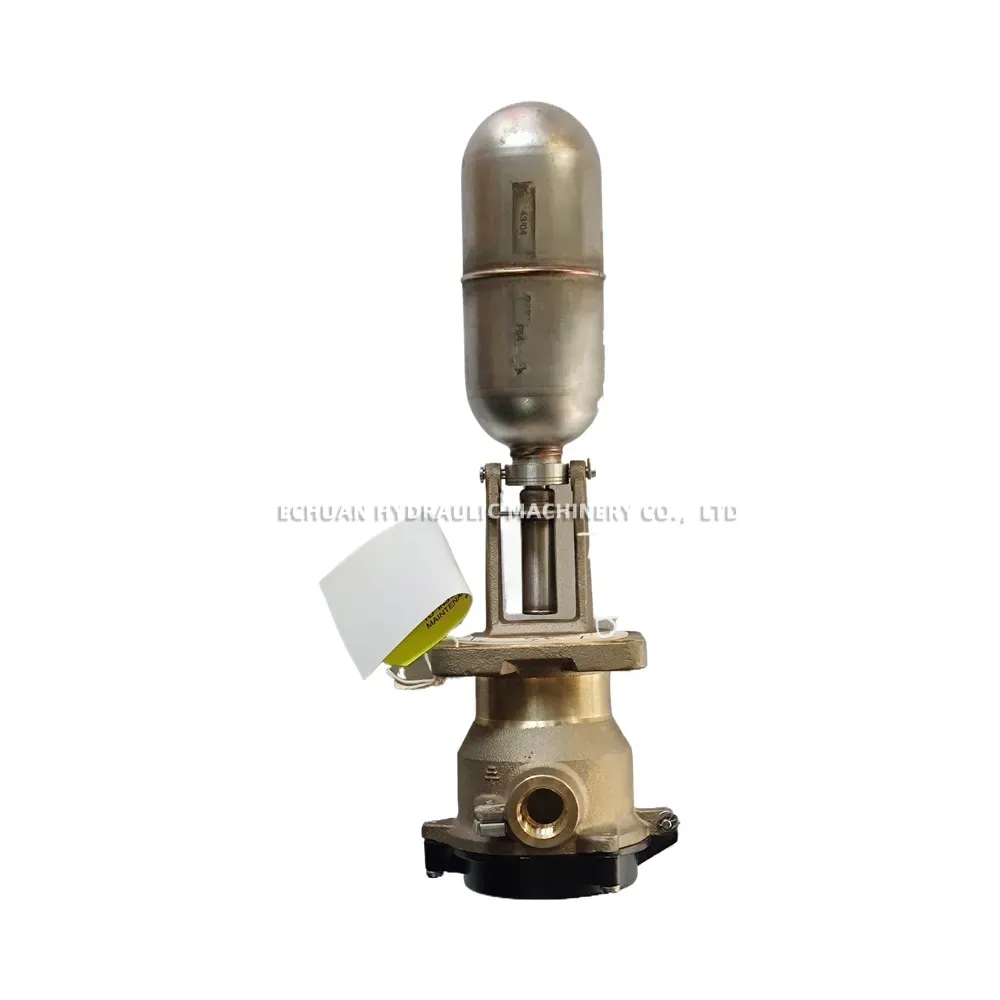

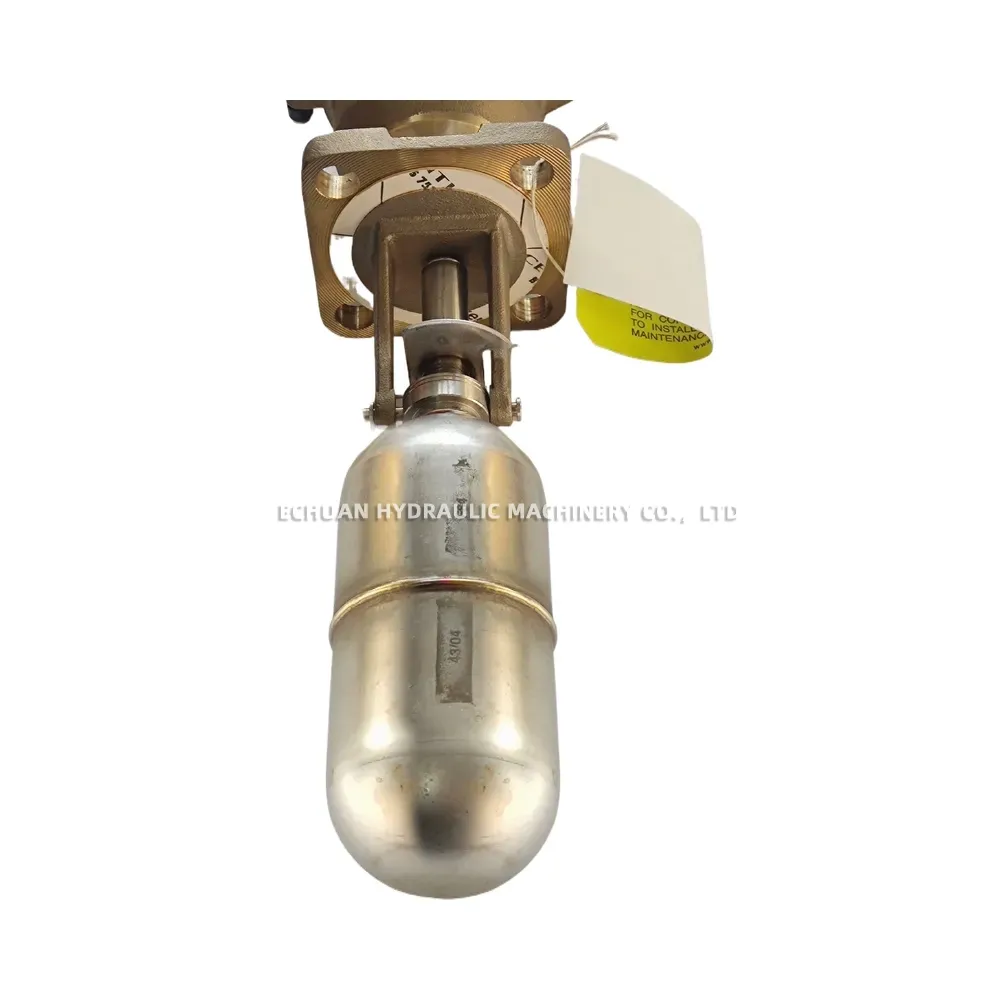

The Mobrey S01DB/F84 is a robust and reliable vertically mounted magnetic float level switch designed for high or low liquid level alarm and control functions in industrial tanks and vessels. Its simple, buoyancy-based principle ensures dependable operation. This switch features a flanged process connection (F84 designation, typically DN80 PN16) for secure mounting and is suitable for a wide range of industrial applications, including pump control and alarm signaling. It is known for its durability and long service life in demanding environments.
Technical Specifications:
- Mounting Orientation: Vertical
- Process Connection: Flanged (F84 – typically DN80 PN16)
- Switch Type: SPDT Microswitch (Common configuration, others may be available)
- Housing Material: Die-cast Aluminium Alloy (Standard, other options may exist)
- Wetted Parts Material: Stainless Steel (Typically 316 SS)
- Operating Principle: Magnetic Buoyancy Float
- Application: Liquid Level Alarm / Control
- Maximum Pressure: Dependent on flange rating and build (e.g., up to 16 bar for PN16)
- Operating Temperature: Dependent on specific build (consult datasheet, commonly up to 250°C or higher possible)
- Minimum Liquid Specific Gravity: Typically 0.7 or higher (consult datasheet for exact value)
MOBREY S01DB/F84
Model:MOBREY S01DB/F84
| Brand | MOBREY |
|---|---|
| Model | S01DB/F84 |
| Part No. | MOBREY S01DB/F84 |
| Category | Other products |
