Product Description

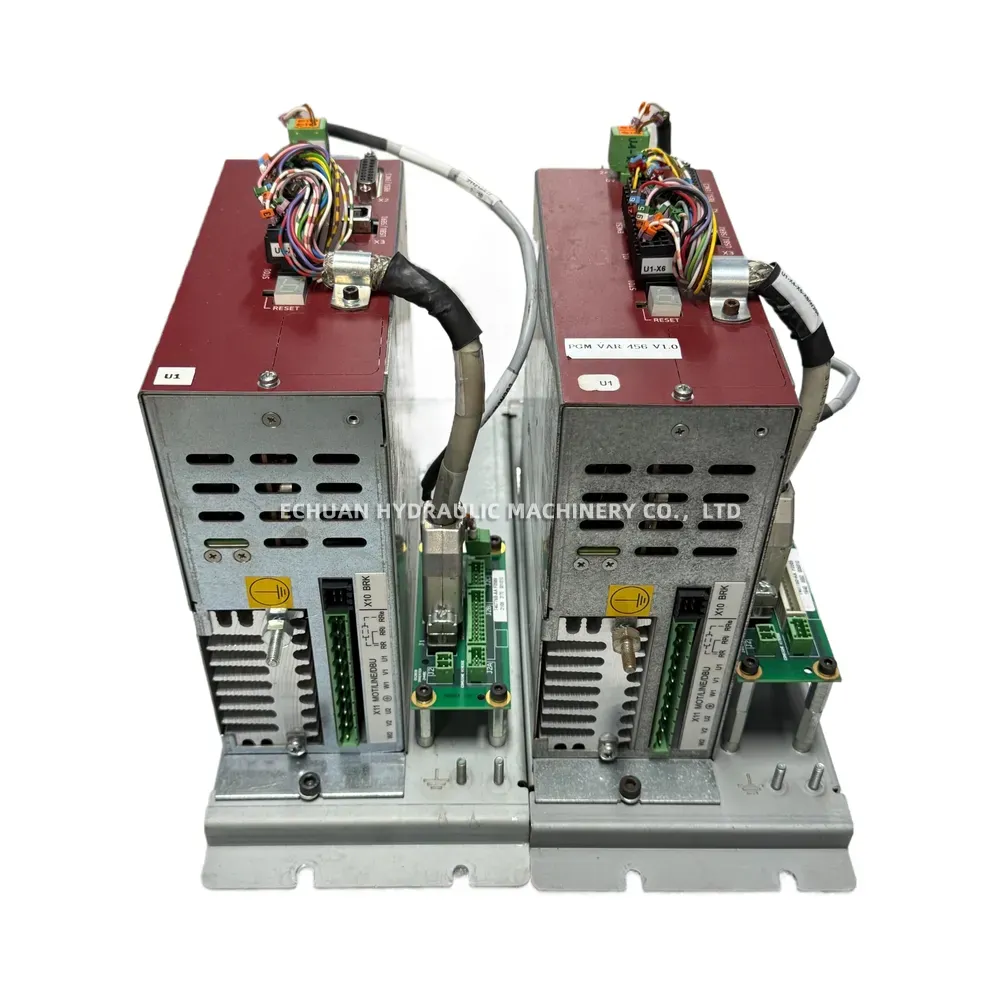

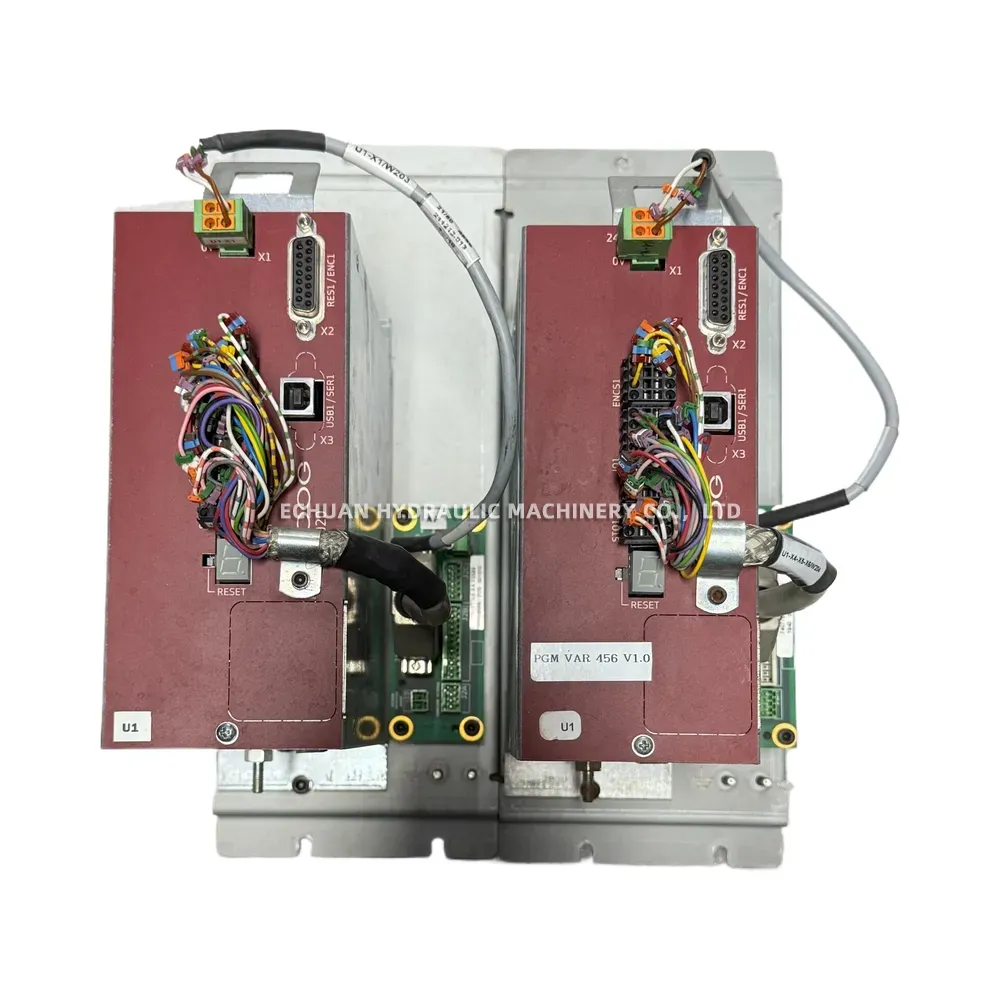

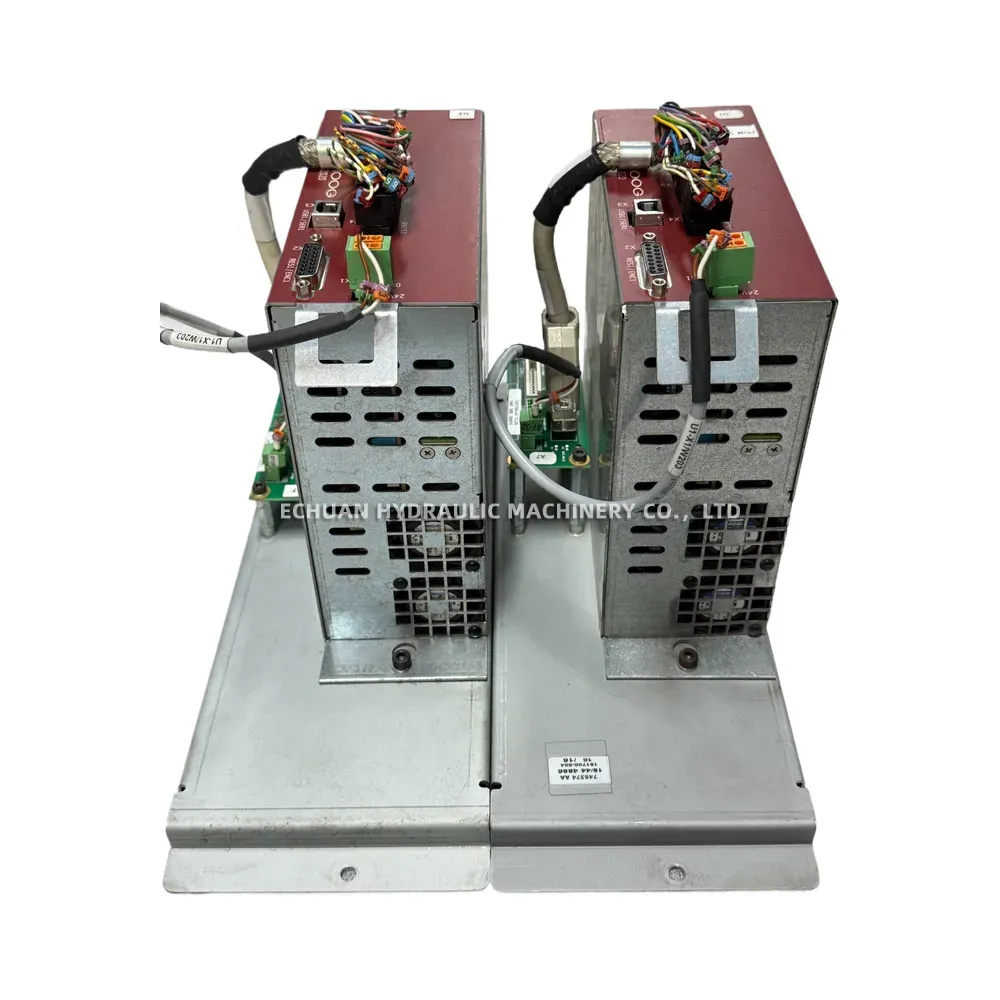

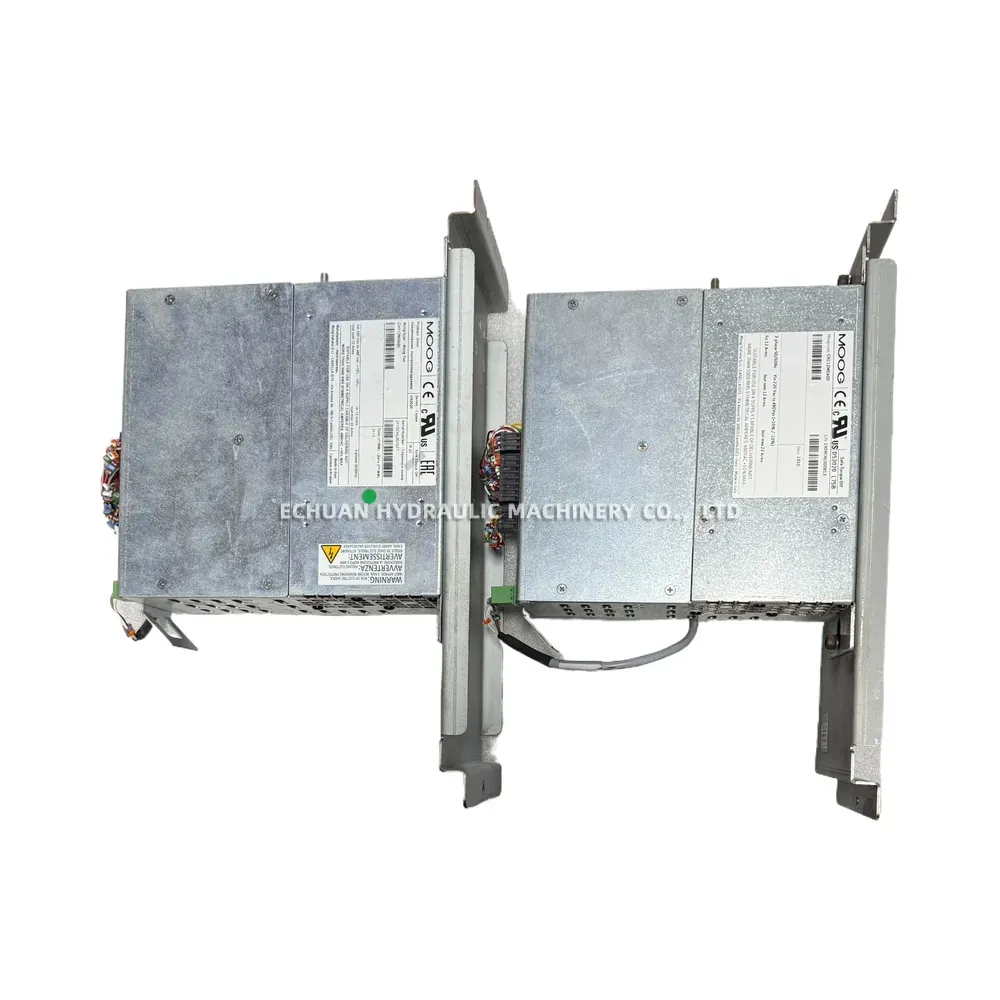

MOOG DS2020 L75B Servo Drive
The MOOG DS2020 L75B (Moog Code: CH112M0A00) is a high-performance industrial servo drive engineered to deliver precise motor control and exceptional reliability in demanding automation environments. Manufactured in Italy by Moog Italiana S.r.l., this drive features an integrated Safe Torque Off (STO) function, providing advanced machine safety and compliance with international safety standards. Operating on a 3-phase 50/60Hz power supply with a wide voltage range of 220 to 480 VAC, it provides a nominal output current of 12 Arms and a peak output of 22 Arms. Backed by CE and cRUus certifications, the DS2020 L75B is an ideal, compact solution for robust and highly efficient motion control systems.

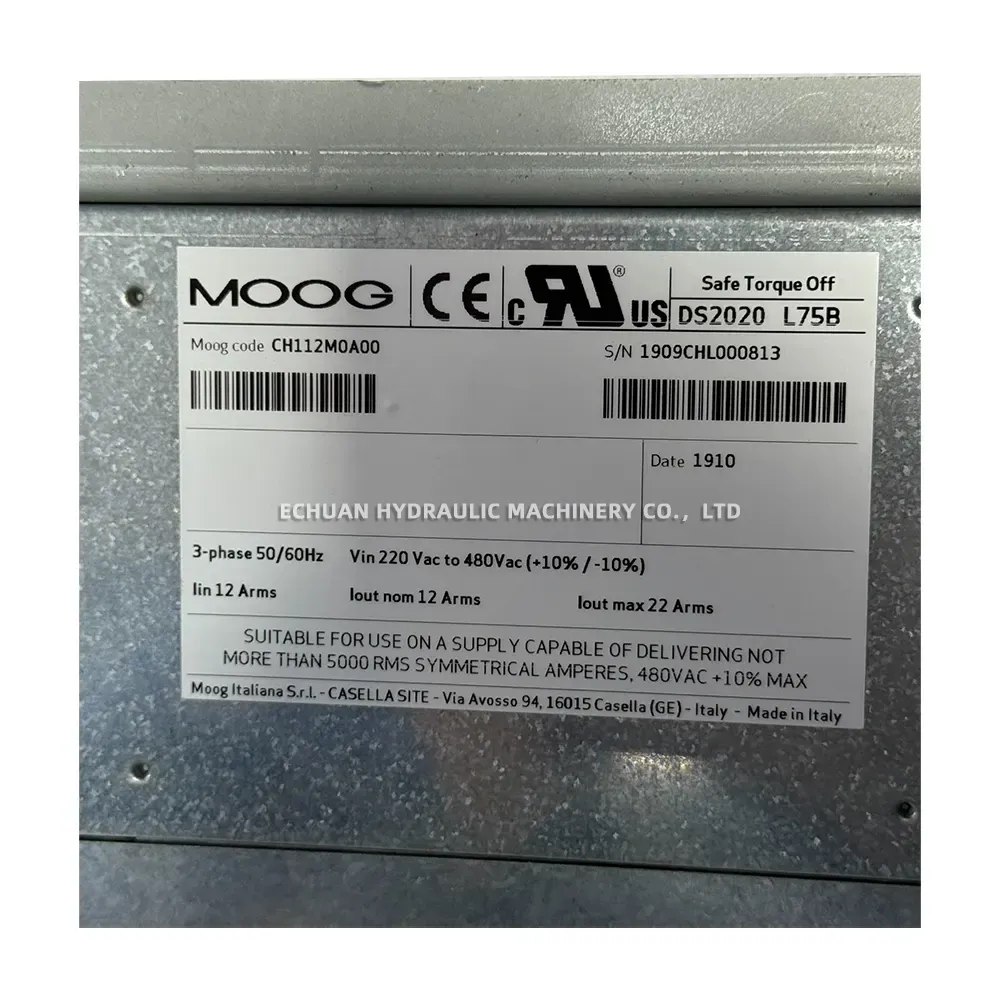

Technical Specifications:
- Manufacturer: MOOG (Moog Italiana S.r.l., Made in Italy)
- Model: DS2020 L75B (Product Code: CH112M0A00)
- Input Voltage (Vin): 3-phase 50/60Hz, 220 Vac to 480 Vac (+10% / -10%)
- Input Current (Iin): 12 Arms
- Nominal Output Current (Iout nom): 12 Arms
- Maximum Output Current (Iout max): 22 Arms
- Safety Features: Integrated Safe Torque Off (STO)
- Short Circuit Rating: Suitable for use on a supply capable of delivering not more than 5000 RMS symmetrical amperes, 480VAC +10% max
- Approvals & Certifications: CE, cRUus
MOOG DS2020 L75B Servo Drive
Optimize your industrial motion control with the MOOG DS2020 L75B Servo Drive (CH112M0A00). This 3-phase, 220-480VAC drive delivers 12A nominal and 22A peak output, featuring built-in Safe Torque Off (STO) for superior safety, reliability, and precision.
