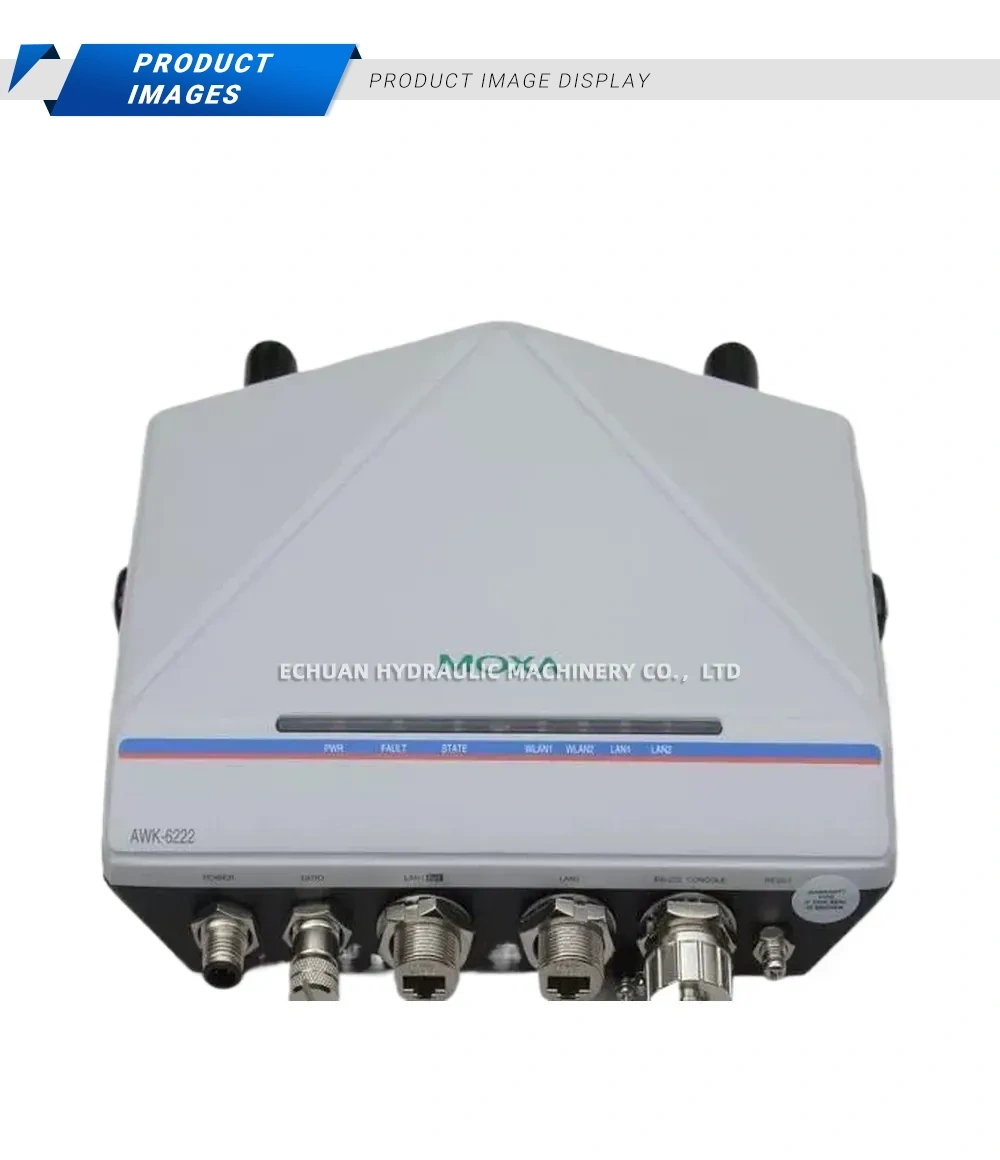

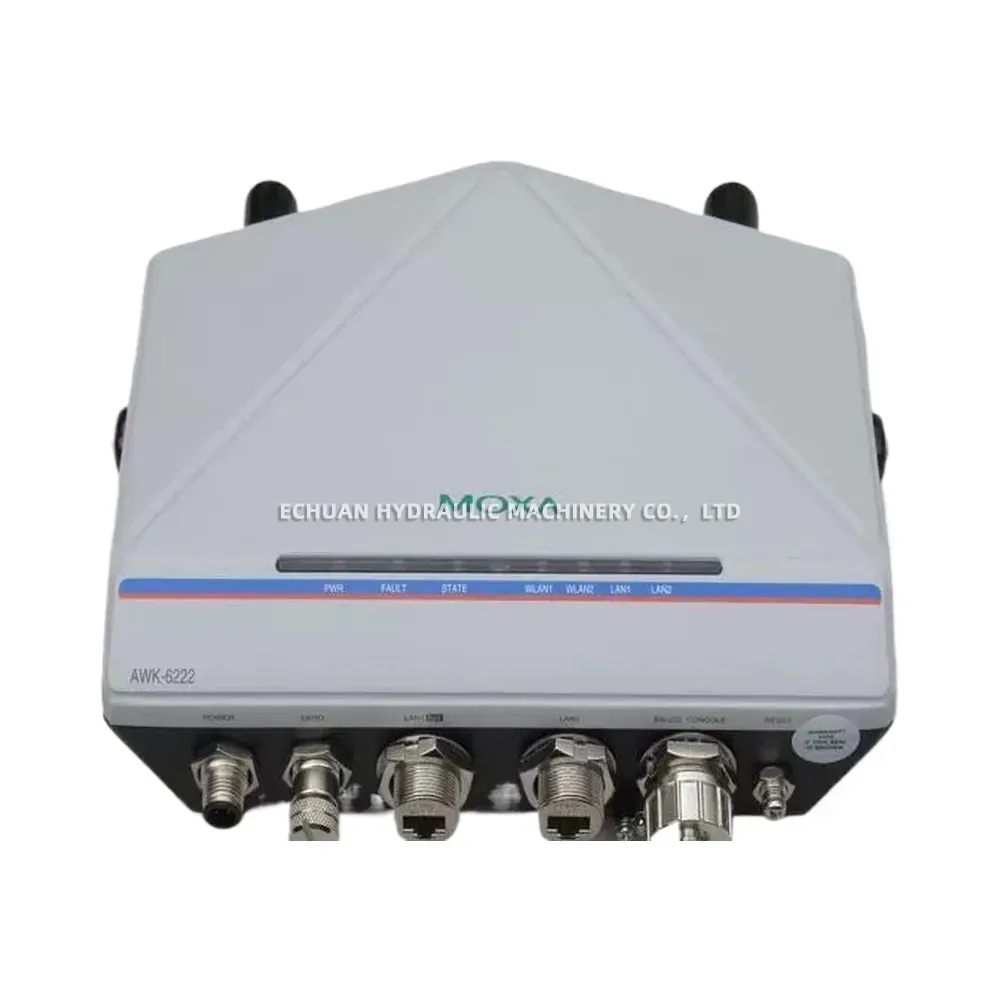

MOXA AWK-6222 Industrial Wireless LAN Client/Bridge
The MOXA AWK-6222 is a ruggedized, outdoor industrial wireless AP/bridge/client designed to deliver reliable and secure network connectivity in harsh environments. Its dual-radio design supports both 2.4 GHz and 5 GHz bands simultaneously, allowing for redundant wireless connections or increased data throughput up to 300 Mbps per radio. Housed in a robust IP68-rated metal enclosure, the AWK-6222 is waterproof, dust-tight, and capable of operating in extreme temperatures, making it an ideal solution for industrial applications such as oil and gas, manufacturing, and intelligent transportation systems. Features like dual LAN ports and redundant DC power inputs ensure maximum network availability and operational resilience.
Technical Specifications:
- WLAN Standards: IEEE 802.11a/b/g/n for Wireless LAN
- Operating Modes: AP / Bridge / Client
- Frequency Bands: Dual-radio design for 2.4 GHz and 5 GHz
- Data Rate: Up to 300 Mbps per radio
- Security: WEP, WPA/WPA2 (Personal/Enterprise), 802.11i, RADIUS authentication
- Interfaces: 2x 10/100BaseT(X) RJ45 LAN ports, 1x RS-232 RJ45 console port
- Housing: IP68-rated metal housing, waterproof and dust-tight
- Operating Temperature: -40 to 75°C (-40 to 167°F) for wide temperature models
MOXA AWK-6222 Industrial Wireless LAN Client/Bridge
Discover the MOXA AWK-6222, a rugged IP68-rated outdoor dual-radio 802.11n industrial wireless AP/bridge/client. Engineered for harsh environments with a wide operating temperature, it provides reliable and redundant WLAN connectivity for critical industrial applications.
