Product Description

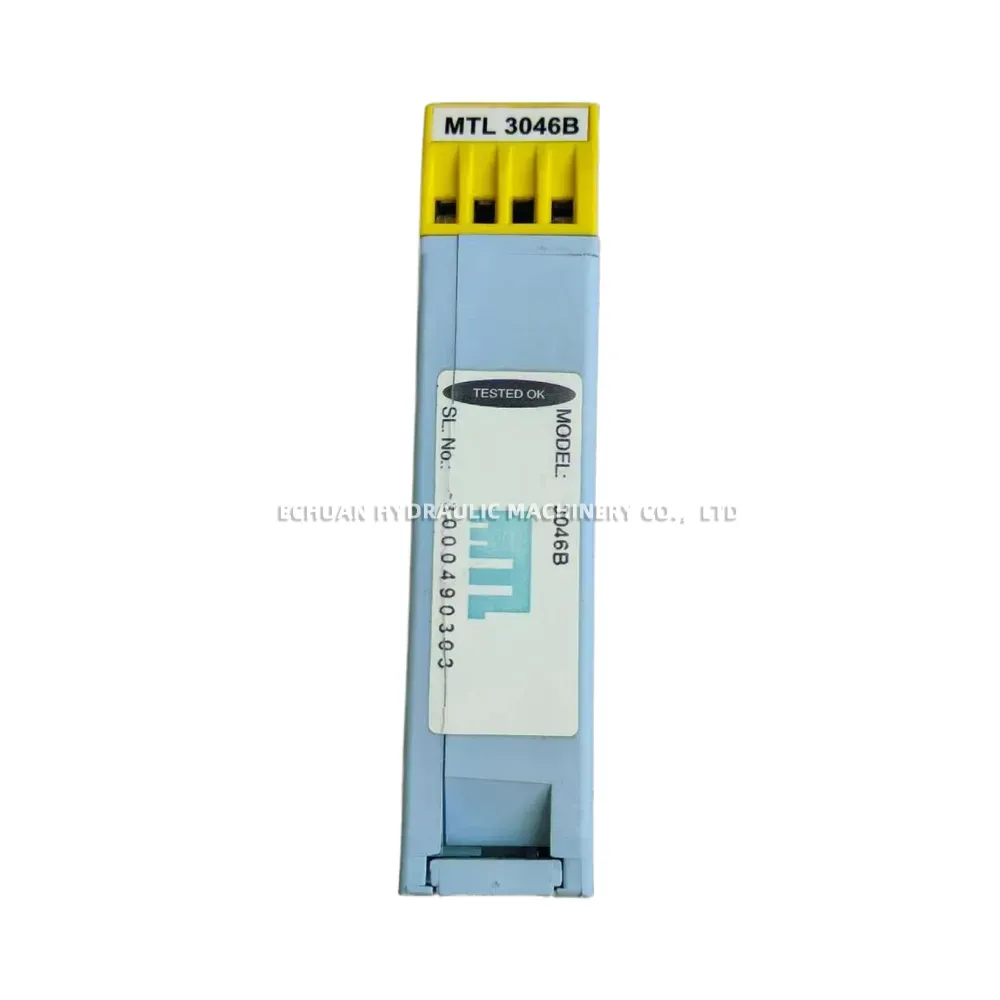

MTL 3046B Repeater power supply

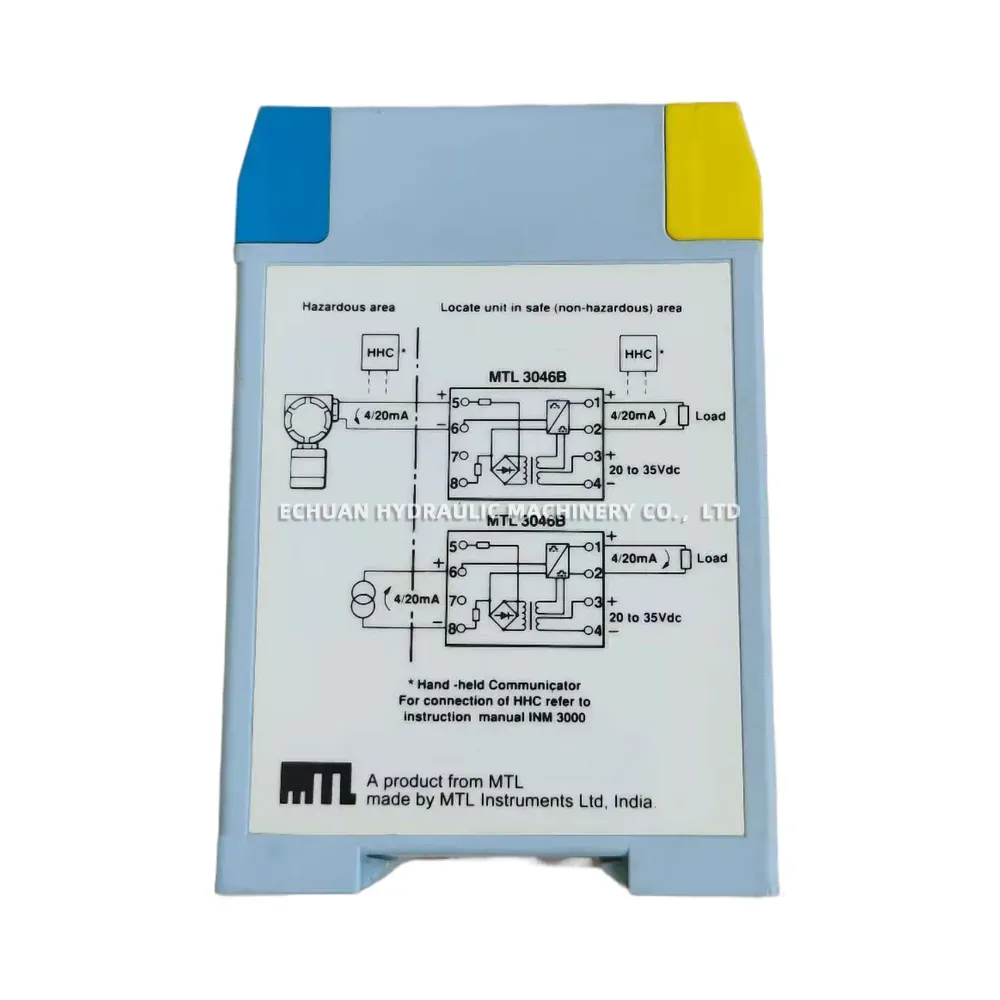

The MTL 3046B is a single-channel, intrinsically safe repeater power supply designed for industrial process control systems. It provides a fully floating DC supply to power a conventional 2- or 3-wire 4/20mA transmitter located in a hazardous area and repeats the current in a separate floating circuit in the safe area. This unit is part of the MTL3000 series, known for its compact design, easy installation, and high reliability. The MTL 3046B ensures safe and accurate signal transmission from hazardous environments, making it an essential component for applications in oil and gas, chemical, and pharmaceutical industries where intrinsic safety is paramount.
Technical Specifications:
- Number of channels: One
- Signal Type: 4 to 20mA for 2- or 3-wire transmitters
- Supply Voltage: 20 to 35V dc
- Hazardous Area Location: Zone 0, IIC, T4–T6 hazardous area. Div 1, Group A, hazardous location
- Safety Description (Terminals 1 to 2): Uo=28V, Io=93mA, Po=651mW
MTL 3046B Repeater power supply
Buy the MTL 3046B, a single-channel repeater power supply for powering 4/20mA transmitters in hazardous areas. This intrinsically safe barrier ensures reliable signal isolation and integrity for process control systems.
