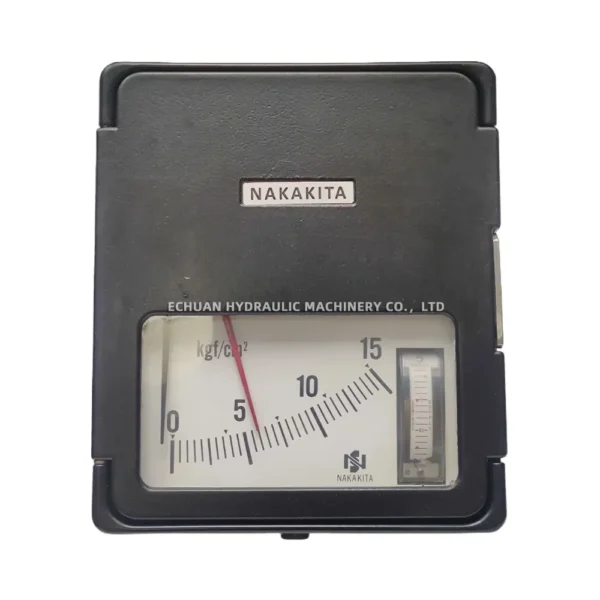

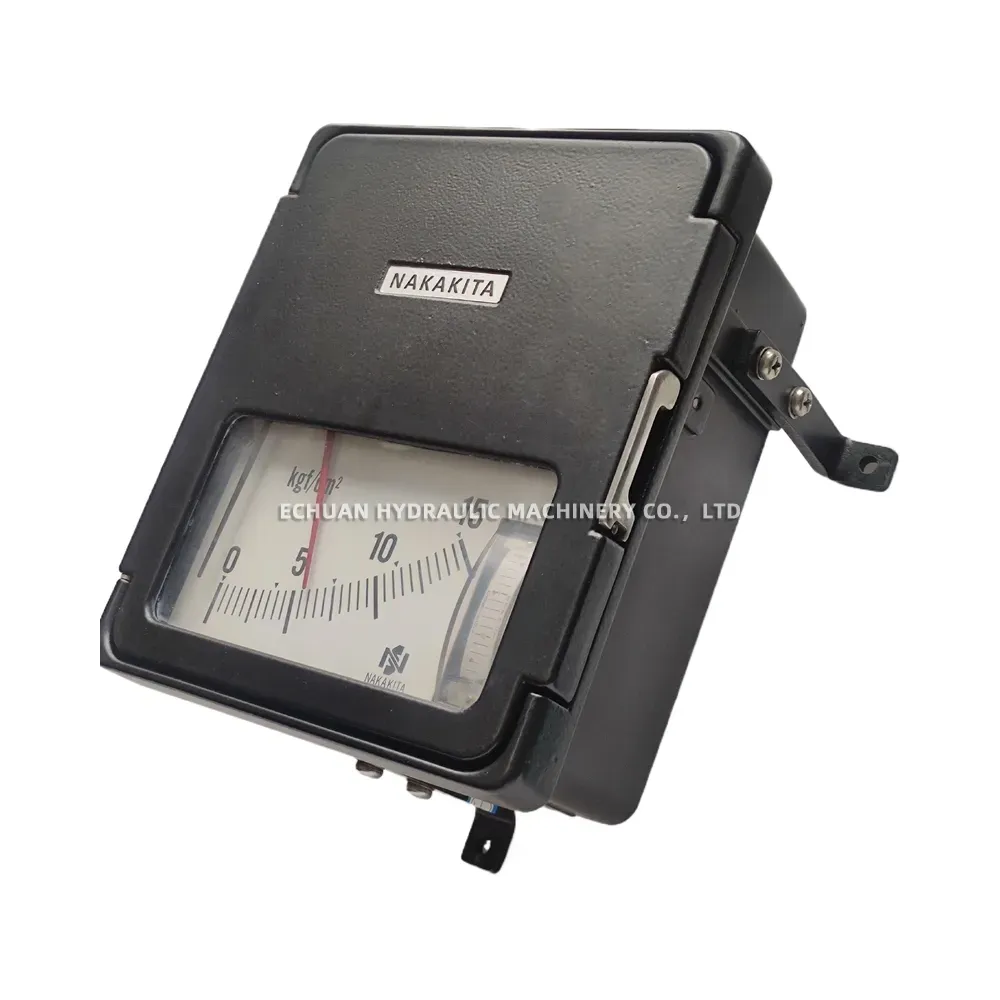

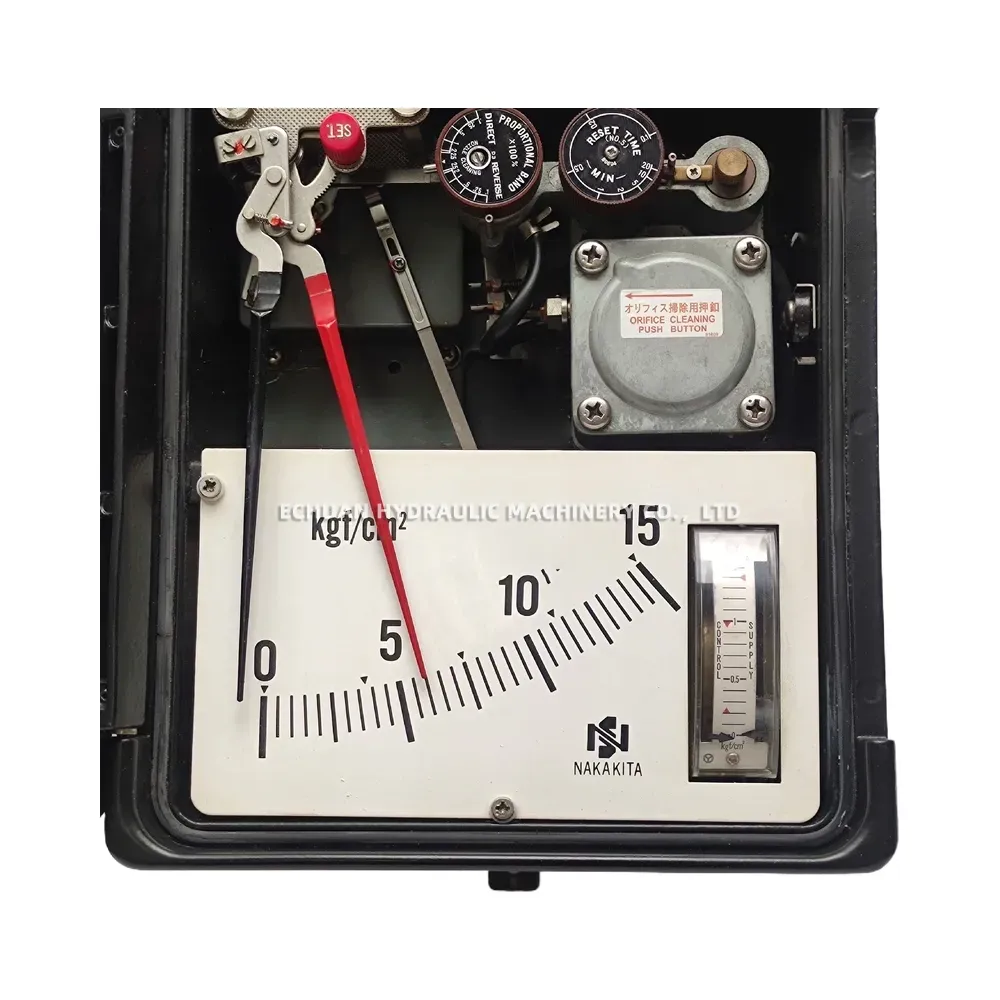

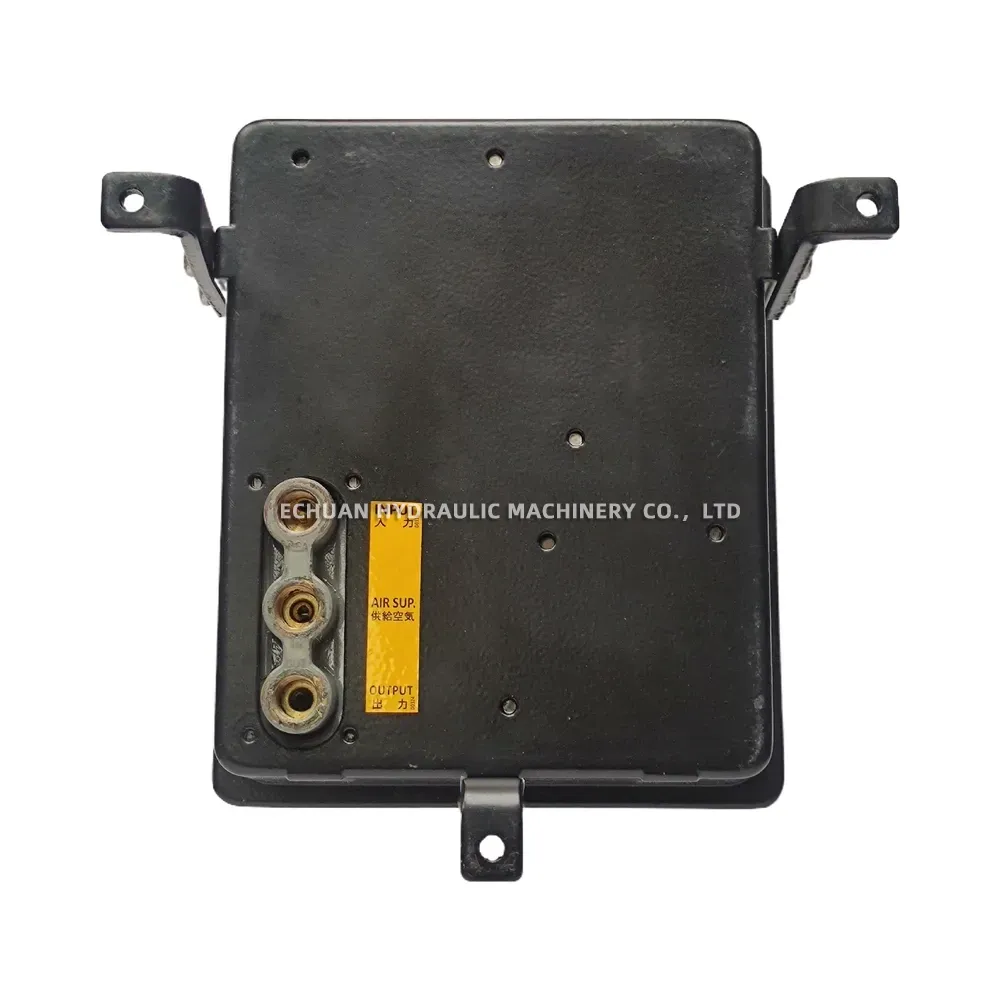

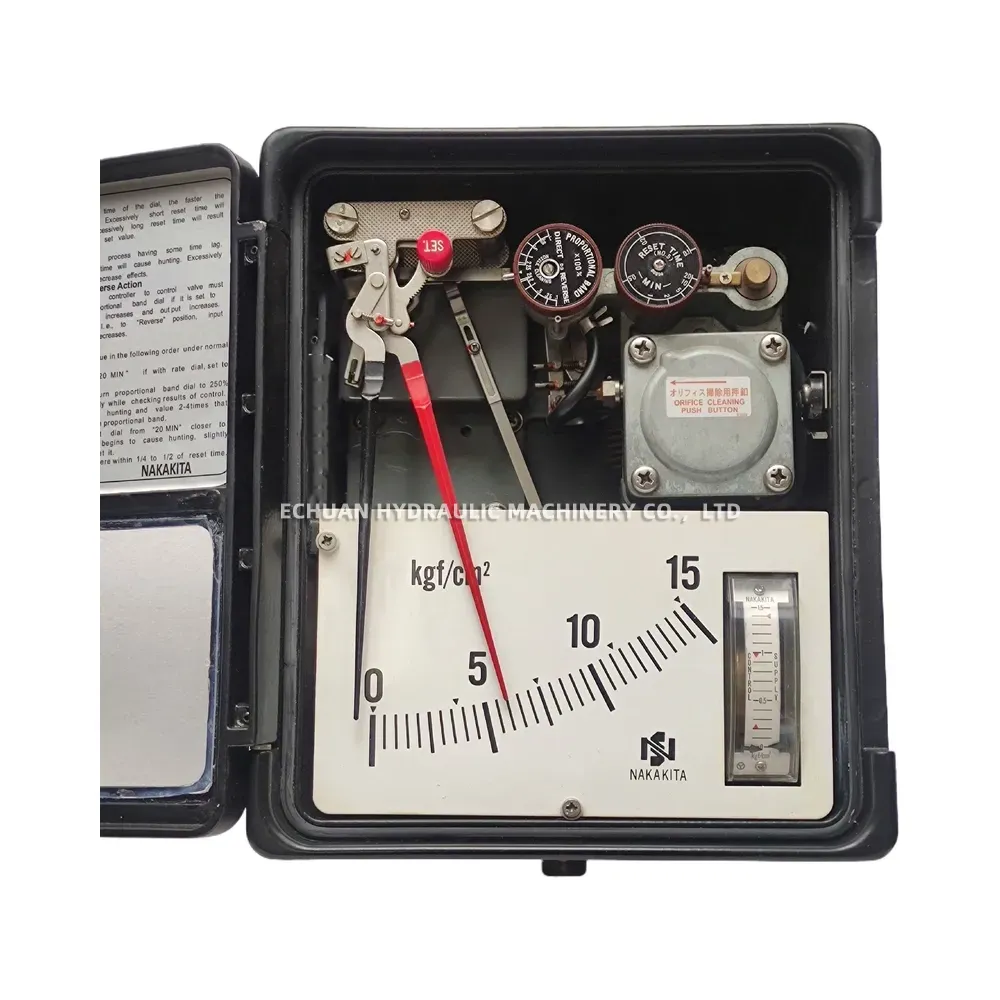

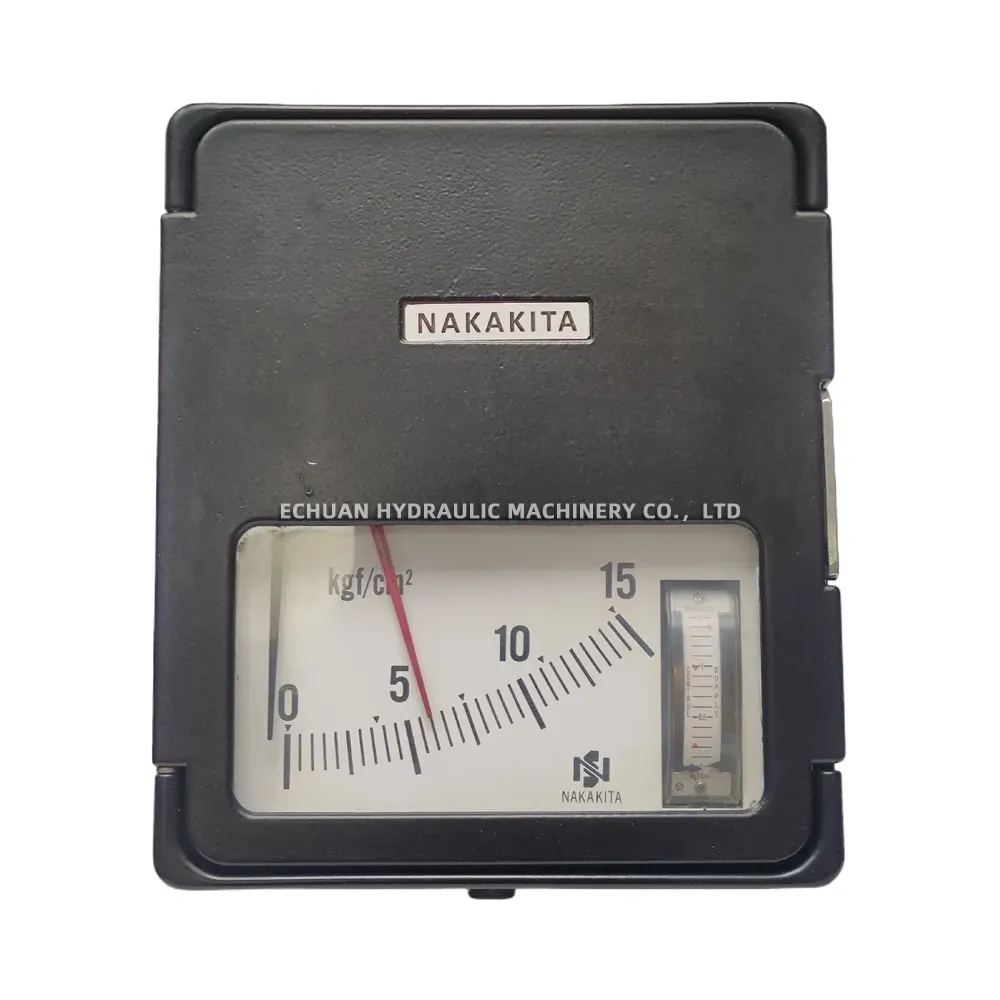

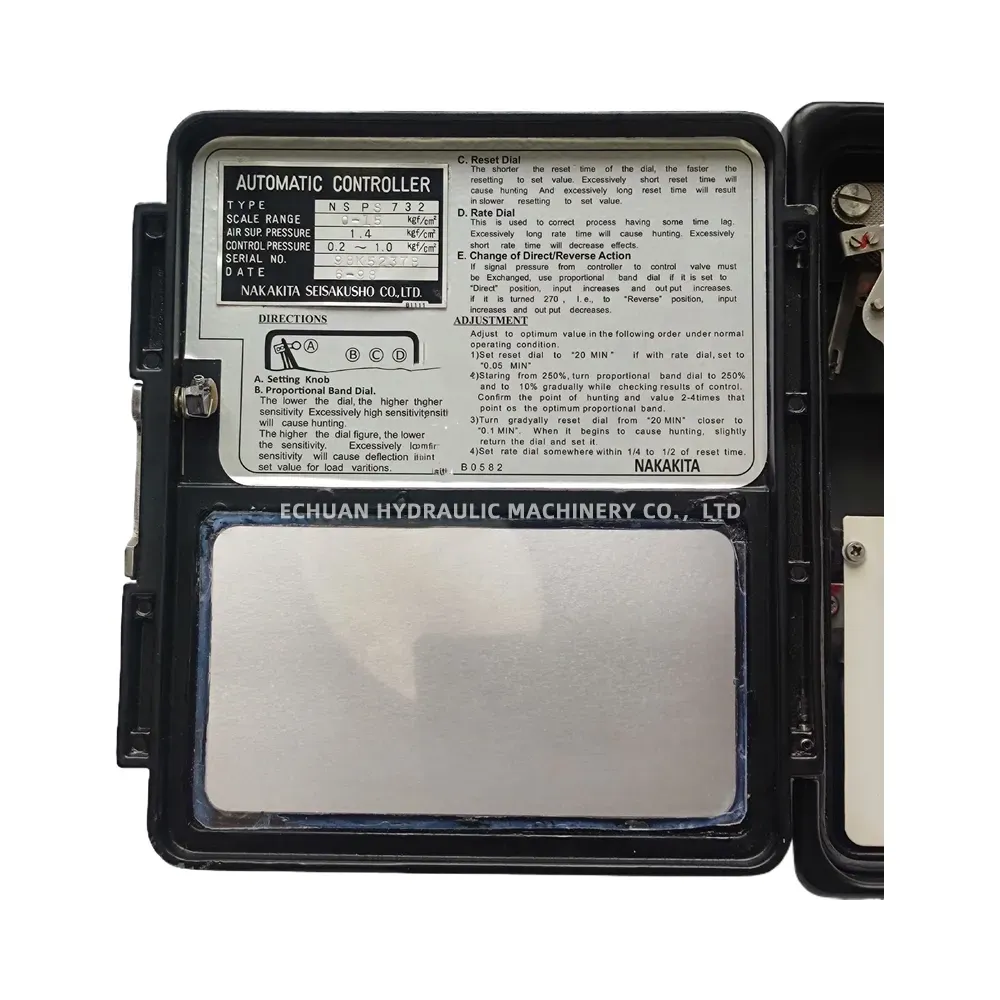

NAKAKITA NSPS 732 Pressure Switch
The NAKAKITA NSPS 732 is a robust and reliable pressure switch designed for demanding industrial and marine applications. Manufactured by Nakakita Seisakusho, it is commonly used for monitoring and controlling pressure in various systems such as lubricating oil, fuel oil, cooling water, steam, and compressed air lines. Known for its durability and accuracy, the NSPS 732 features a compact design and is built to withstand harsh environments, often found in ship engine rooms and industrial plants. It typically utilizes a microswitch mechanism activated by pressure changes acting on a bellows element.
Technical Specifications:
- Type: Bellows Type Pressure Switch
- Model Series: NSPS 732 (Specific variants exist, e.g., NSPS-732-A3)
- Typical Applications: Pressure monitoring and control (Lubricating oil, Fuel oil, Fresh water, Sea water, Compressed air, Steam)
- Setting Range: Various ranges available (e.g., 0.02～0.3MPa, 0.1～1MPa, 0.5～3MPa – dependent on specific model)
- Max Working Pressure: Dependent on selected range (e.g., 1MPa, 3MPa, 4MPa)
- Differential: Fixed or Adjustable options available (e.g., 0.02MPa Fixed, 0.03～0.15MPa Adj.)
- Switch Type: Typically SPDT Microswitch
- Contact Rating (Typical): AC 250V 5A / DC 110V 0.5A (Resistive load)
- Enclosure Protection: Often IP56 or equivalent
- Body Material: Typically Aluminium Alloy Die Casting
- Wetted Parts Material (Bellows): Commonly Phosphor Bronze or Stainless Steel (SUS316L)
- Pressure Connection: Commonly Rc1/4 (PT1/4) or Rc1/2 (PT1/2)
- Ambient Temperature Range: Typically -20°C to +70°C
NAKAKITA NSPS 732
Model:NAKAKITA NSPS 732
| Brand | Nakakita |
|---|---|
| Model | NSPS 732 |
| Part No. | NAKAKITA NSPS 732 |
| Category | Other products |
