Product Description

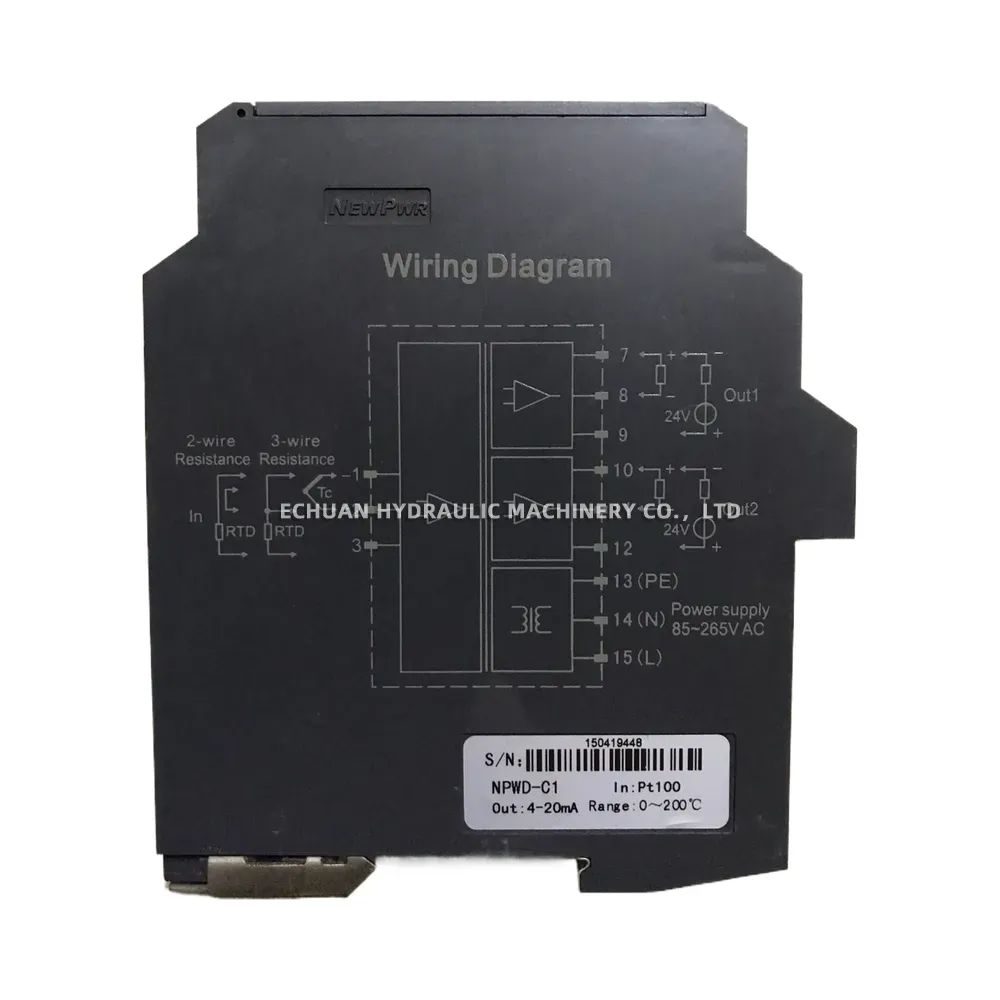

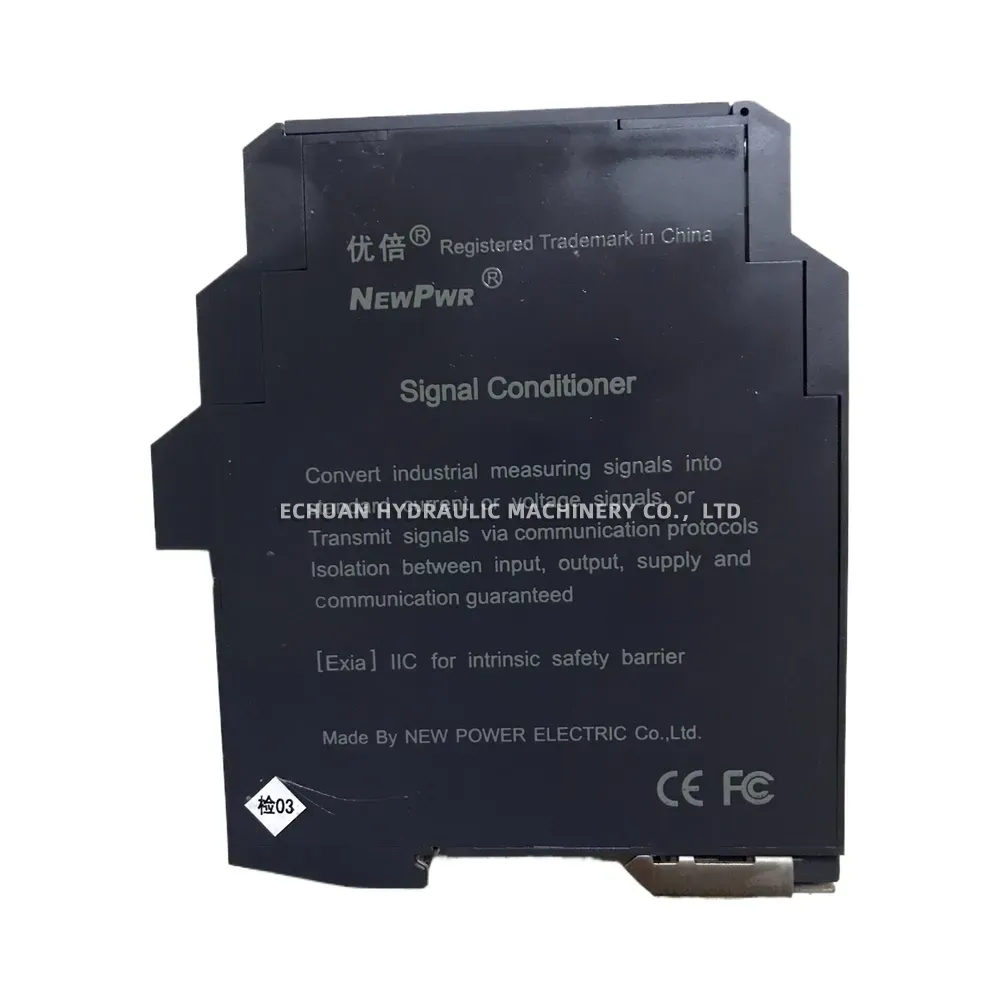

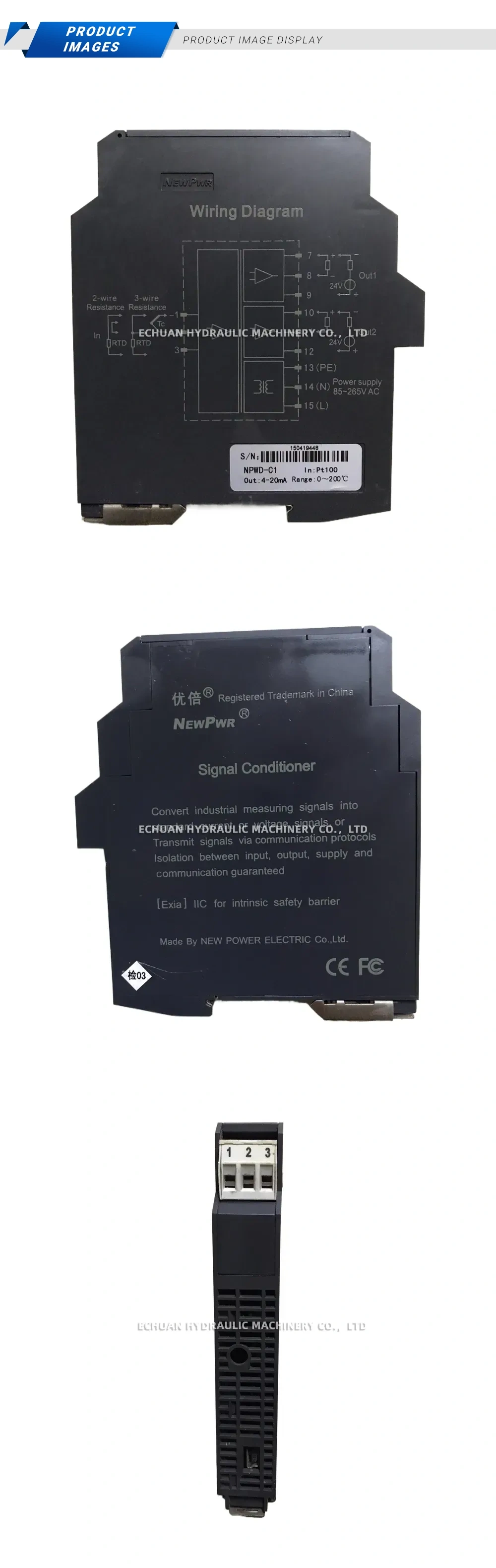

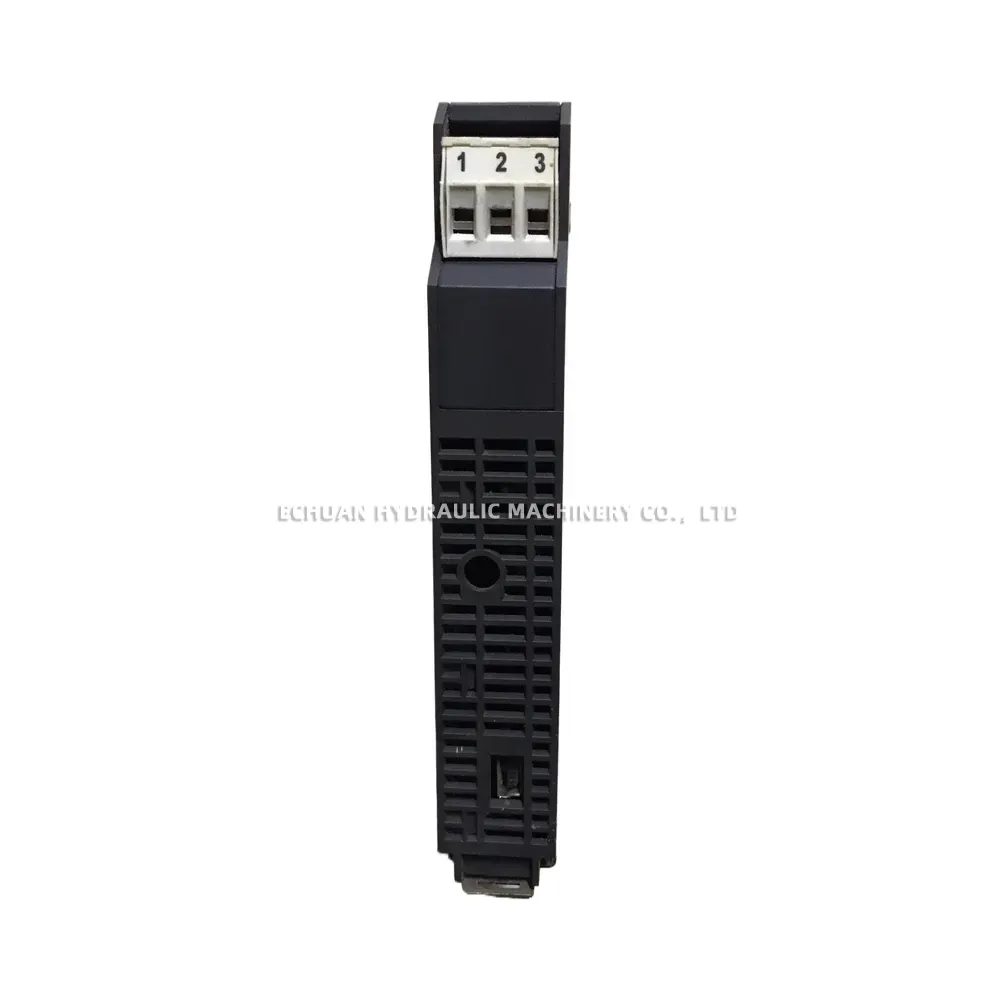

NEWPWR NPWD-C1 Signal Conditioner
The NEWPWR NPWD-C1 is a robust and reliable industrial signal conditioner designed for precise temperature measurement applications. It expertly converts signals from Pt100 RTD temperature sensors into a standard, stable 4-20mA current output, making it ideal for integration with PLCs, DCS, and other control systems. Featuring complete galvanic isolation between the input, output, and power supply, the NPWD-C1 eliminates ground loop issues and protects connected equipment from voltage surges. With its intrinsic safety barrier certification ([Exia] IIC), this device is certified for safe operation in hazardous environments, ensuring both accuracy and safety in critical processes.
Technical Specifications:
- Input Type: Pt100 RTD (Supports 2-wire and 3-wire connections)
- Output Signal: 4-20mA Current Loop
- Measurement Range: 0 ~ 200°C
- Power Supply: 85 ~ 265V AC
- Isolation: 3-way galvanic isolation (Input / Output / Power)
- Safety Certification: Intrinsic Safety Barrier [Exia] IIC
NEWPWR NPWD-C1 Signal Conditioner
Discover the NEWPWR NPWD-C1, an intrinsically safe signal conditioner that converts Pt100 RTD inputs to a 4-20mA output. Features a 0-200°C range, universal AC power supply, and full galvanic isolation for industrial temperature monitoring.
