Product Description
NEXT INSTRUMENT MCM-II Multi-axis Motion Controller Module

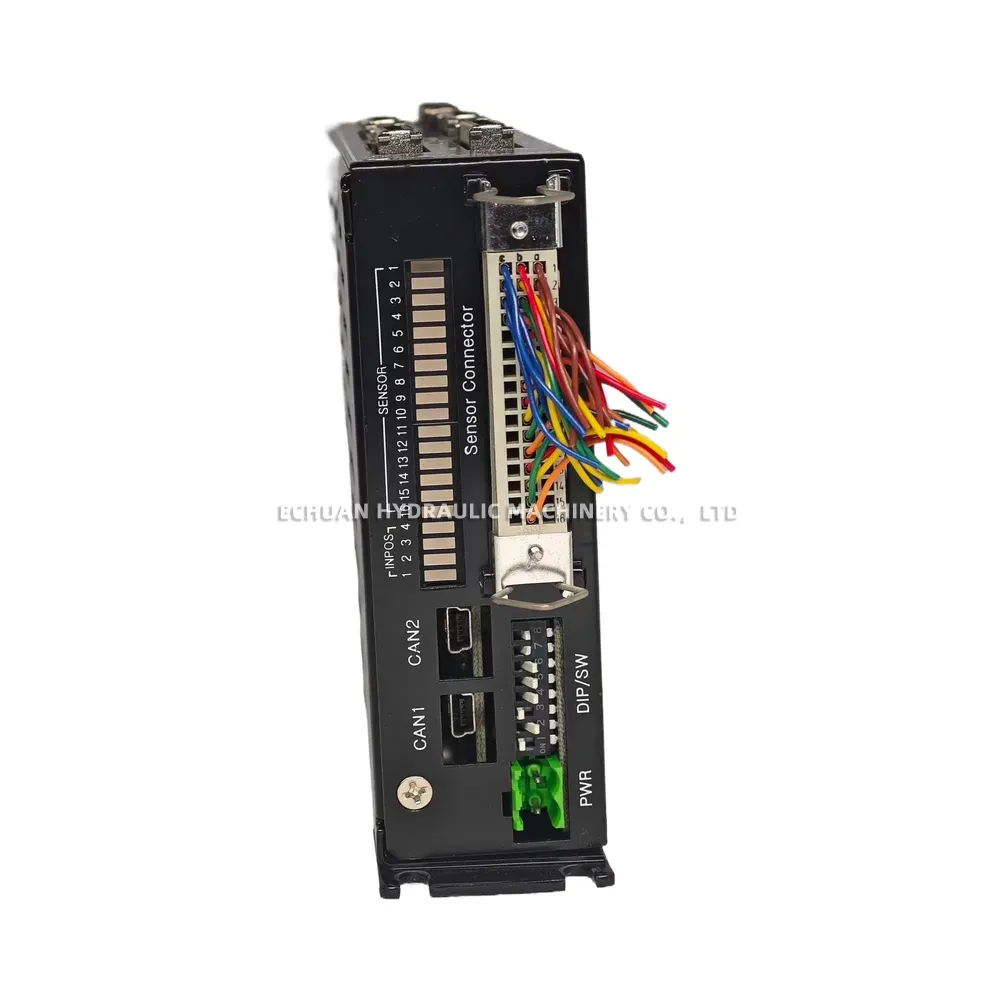

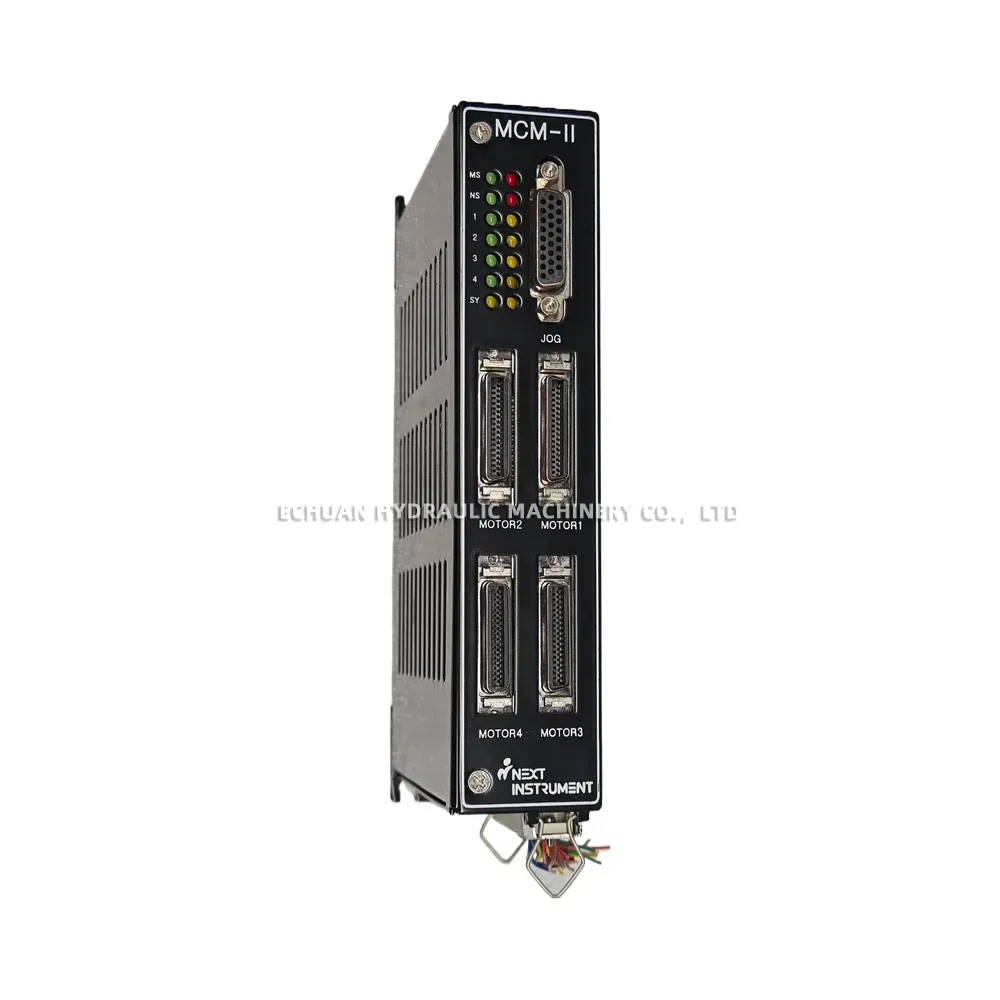

The NEXT INSTRUMENT MCM-II is a high-performance, industrial-grade multi-axis motion controller module engineered for complex automation and robotic applications. Housed in a durable, ventilated metal chassis, this module provides precise and synchronized control for up to four separate motors. It features a comprehensive set of I/O, including a 16-channel sensor connector and four dedicated in-position (INPOS) inputs, allowing for sophisticated feedback and positioning. Communication is handled through dual CAN bus ports (CAN1, CAN2), ensuring reliable data exchange within a larger control system. The front panel offers at-a-glance system status via dedicated LEDs for module status (MS, NS), system sync (SY), and individual axis activity. Configuration is simplified with an onboard DIP switch, and a dedicated JOG interface allows for easy manual operation and setup.
Technical Specifications:
- Model: MCM-II
- Controlled Axes: 4 (MOTOR1, MOTOR2, MOTOR3, MOTOR4 interfaces)
- Communication: Dual CAN bus ports (CAN1, CAN2)
- Sensor Inputs: 16-channel sensor connector
- Position Inputs: 4 INPOS channels
- Manual Control: JOG interface port
- Status Indicators: LEDs for MS, NS, Axis 1-4, SY
- Configuration: Onboard DIP switch bank (DIP/SW)
- Power Input: PWR terminal block
NEXT INSTRUMENT MCM-II Multi-axis Motion Controller Module
The NEXT INSTRUMENT MCM-II is a robust 4-axis motion controller module for industrial automation, featuring dual CAN communication, 16 sensor inputs, and a dedicated JOG interface for precise multi-axis control.
