Product Description

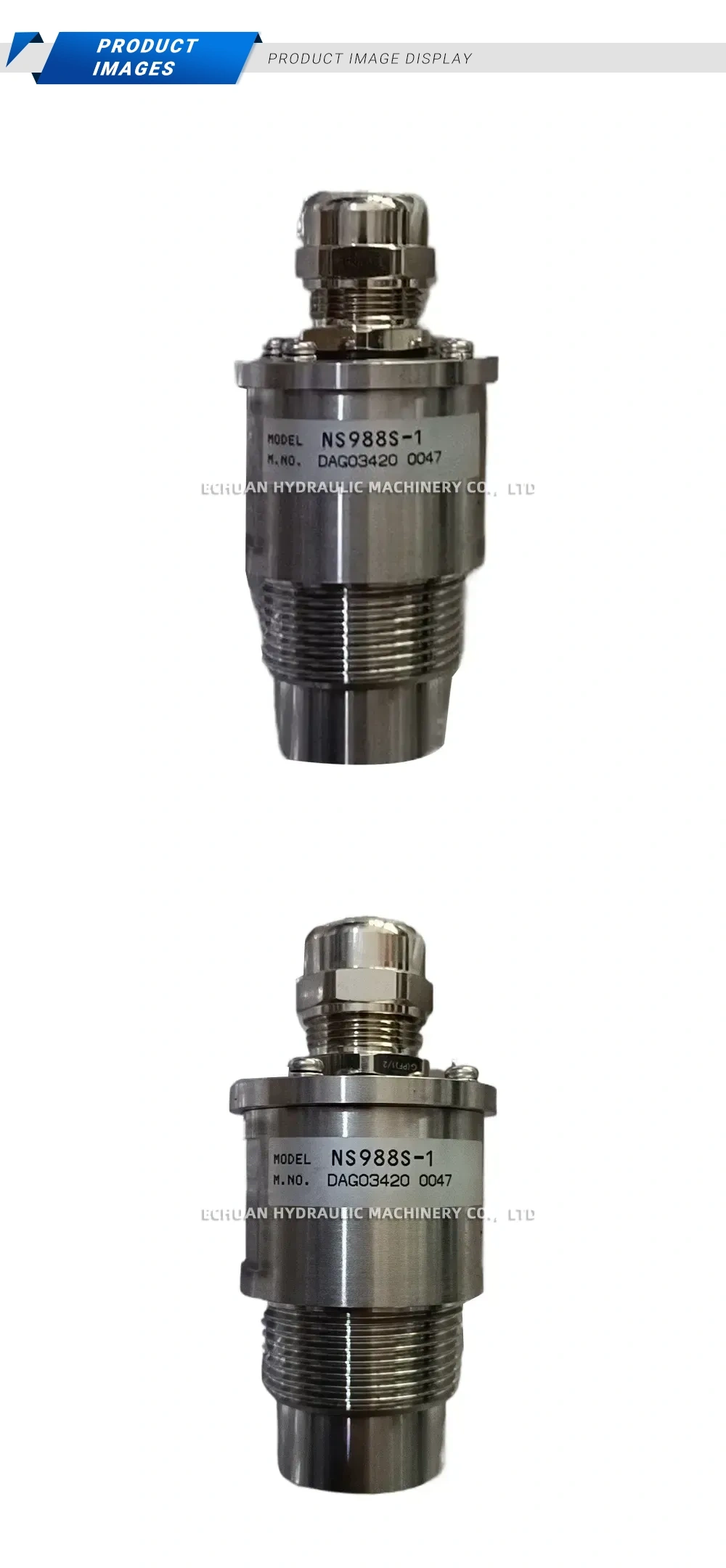

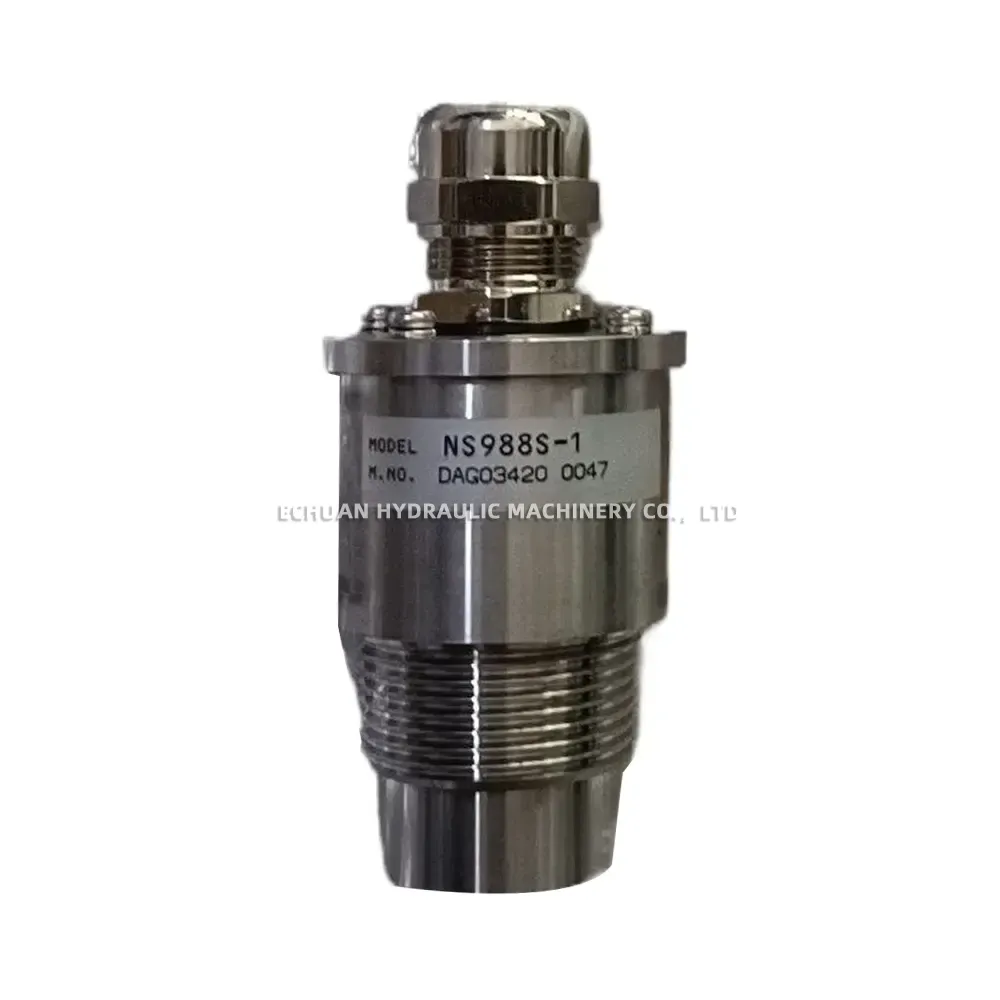

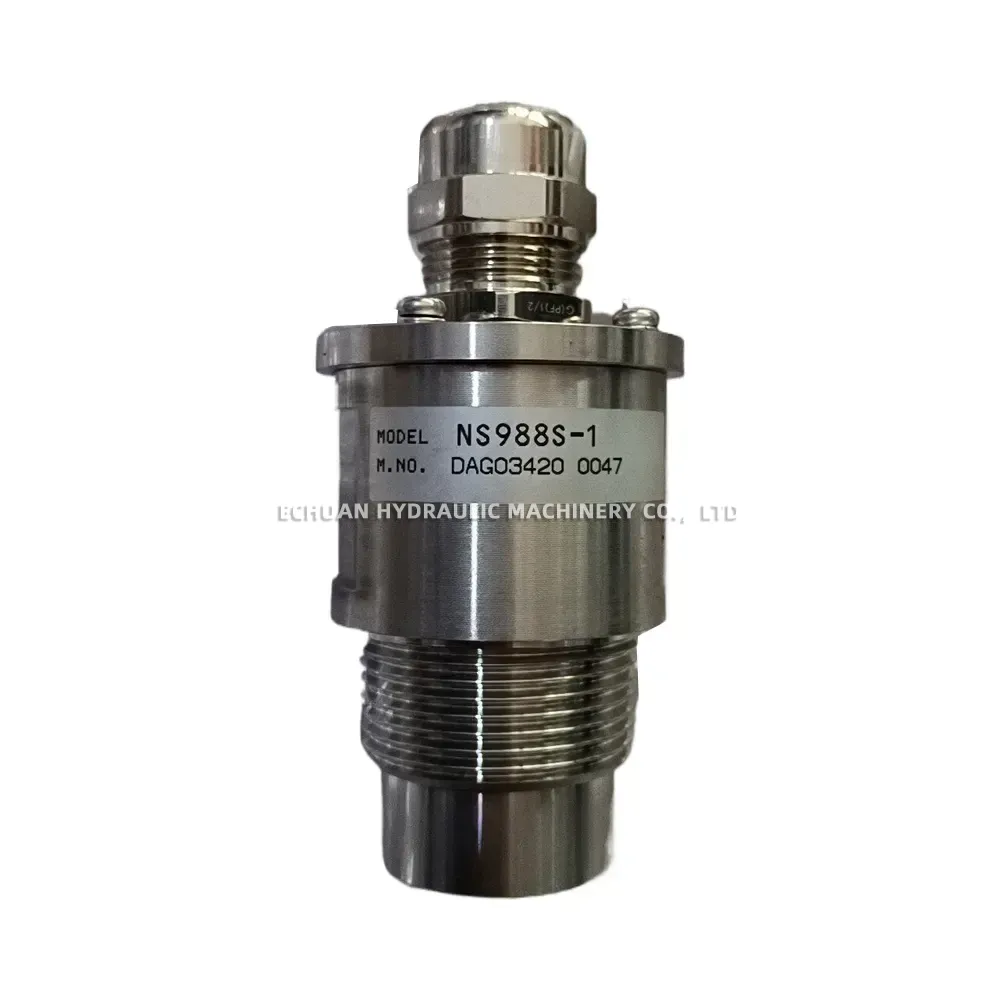

NKS NS988S-1 Industrial Diaphragm Pressure Switch
The NKS NS988S-1 is a robust and reliable industrial diaphragm pressure switch designed for precise process control and safety applications. Housed in a durable, weatherproof die-cast aluminum or optional stainless steel 316 enclosure (IP65 rated), it is built to withstand harsh industrial environments. This model features a high-quality SPDT microswitch for dependable electrical switching. With wetted parts made from stainless steel 316, the NS988S-1 offers excellent compatibility with a wide range of process media. Its adjustable set point and deadband make it a versatile solution for monitoring and controlling pressure in various systems, including pumps, compressors, and hydraulic or pneumatic circuits.
Technical Specifications:
- Model: NS988S-1
- Type: Industrial Diaphragm Pressure Switch
- Adjustable Pressure Range: -0.1 to 1 bar (-10 to 100 kPa)
- Housing Material: Weatherproof Die-cast Aluminum (Standard) or Stainless Steel 316
- Enclosure Protection: IP65
- Switch Output: SPDT (Single Pole Double Throw) Microswitch
- Wetted Parts: Stainless Steel 316 / 316L
- Process Connection: 1/4″ NPT(F) (Standard)
- Electrical Connection: 1/2″ NPT(F) (Standard)
- Repeatability: ±1% of Full Scale
NKS NS988S-1 Pressure Switch
Shop the NKS NS988S-1 Industrial Diaphragm Pressure Switch. Features a weatherproof housing (IP65), SPDT microswitch, and an adjustable pressure range of -0.1 to 1 bar. Ideal for reliable process control and monitoring.
| Brand | NKS |
|---|---|
| Model | NS988S-1 |
| Part No. | 802974545770 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/nks-ns988s-1-pressure-switch |
