Product Description

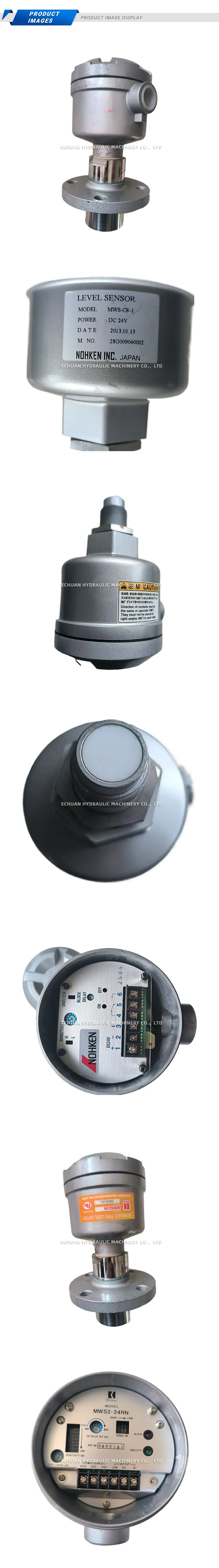

Nohken MWS.CR-1
The Nohken MWS.CR-1 is a key component of the MWS series microwave level switch system, designed for reliable, non-contact level detection. This system consists of a separate transmitter and receiver, ideal for sensing the presence or absence of solids, powders, granules, and liquids in challenging industrial environments. The MWS.CR-1 operates by detecting a low-power microwave beam; when the material level rises to block the beam’s path, the receiver’s output relay is triggered. Its non-contact principle ensures long-term stability and performance, as it is unaffected by dust, smoke, steam, or material buildup. This makes it a perfect solution for level control in silos, hoppers, chutes, and transfer points across various industries, including cement, mining, and chemical processing.
Technical Specifications:
- Model: Microwave Level Switch (Receiver Unit)
- Power Supply: 100/110/200/220 V AC, 50/60 Hz or 24 V DC
- Output: Relay contact SPDT (1c), 250 V AC 3 A, 30 V DC 3 A (resistive load)
- Operating Temperature: -20 to +60°C
- Enclosure Protection: IP65
- Max Detection Distance: Up to 100 meters (with corresponding transmitter)

Nohken MWS.CR-1
The Nohken MWS.CR-1 is a robust receiver for a non-contact microwave level switch system, providing accurate high or low-level detection for solids and liquids in industrial applications.
